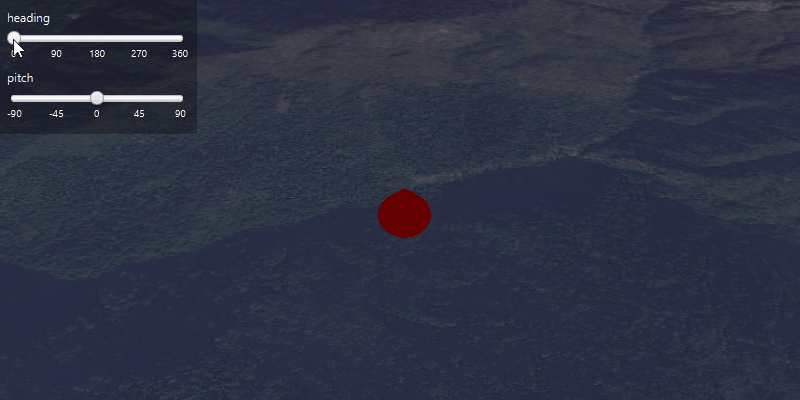

Scene property expressions

/*
 * Copyright 2022 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

module com.esri.samples.scene_properties_expressions {
  // require ArcGIS Maps SDK for Java module
  requires com.esri.arcgisruntime;

  // handle SLF4J http://www.slf4j.org/codes.html#StaticLoggerBinder
  requires org.slf4j.nop;

  // require JavaFX modules that the application uses
  requires javafx.graphics;
  requires javafx.controls;
  requires javafx.fxml;

  // make all @FXML annotated objects reflectively accessible to the javafx.fxml module
  opens com.esri.samples.scene_properties_expressions to javafx.fxml;

  exports com.esri.samples.scene_properties_expressions;
}

/*
 * Copyright 2017 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not
 * use this file except in compliance with the License. You may obtain a copy of
 * the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS, WITHOUT
 * WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the
 * License for the specific language governing permissions and limitations under
 * the License.
 */

package com.esri.samples.scene_properties_expressions;

import javafx.fxml.FXML;
import javafx.scene.control.Slider;
import javafx.scene.paint.Color;

import com.esri.arcgisruntime.ArcGISRuntimeEnvironment;
import com.esri.arcgisruntime.geometry.Point;
import com.esri.arcgisruntime.geometry.SpatialReferences;
import com.esri.arcgisruntime.mapping.ArcGISScene;
import com.esri.arcgisruntime.mapping.BasemapStyle;
import com.esri.arcgisruntime.mapping.view.Camera;
import com.esri.arcgisruntime.mapping.view.Graphic;
import com.esri.arcgisruntime.mapping.view.GraphicsOverlay;
import com.esri.arcgisruntime.mapping.view.LayerSceneProperties;
import com.esri.arcgisruntime.mapping.view.SceneView;
import com.esri.arcgisruntime.symbology.SimpleMarkerSceneSymbol;
import com.esri.arcgisruntime.symbology.SimpleRenderer;

public class ScenePropertiesExpressionsController {

  @FXML private SceneView sceneView;
  @FXML private Slider headingSlider;
  @FXML private Slider pitchSlider;

  public void initialize() {

    // authentication with an API key or named user is required to access basemaps and other location services
    String yourAPIKey = System.getProperty("apiKey");
    ArcGISRuntimeEnvironment.setApiKey(yourAPIKey);

    // create a scene and add a basemap to it
    ArcGISScene scene = new ArcGISScene(BasemapStyle.ARCGIS_IMAGERY);

    // add the SceneView to the stack pane
    sceneView.setArcGISScene(scene);

    // add a camera and initial camera position
    Point point = new Point(83.9, 28.4, 1000, SpatialReferences.getWgs84());
    Camera camera = new Camera(point, 1000, 0, 50, 0);
    sceneView.setViewpointCamera(camera);

    // create a graphics overlay
    GraphicsOverlay graphicsOverlay = new GraphicsOverlay();
    graphicsOverlay.getSceneProperties().setSurfacePlacement(LayerSceneProperties.SurfacePlacement.RELATIVE);
    sceneView.getGraphicsOverlays().add(graphicsOverlay);

    // add renderer using rotation expressions
    SimpleRenderer renderer = new SimpleRenderer();
    renderer.getSceneProperties().setHeadingExpression("[HEADING]");
    renderer.getSceneProperties().setPitchExpression("[PITCH]");
    graphicsOverlay.setRenderer(renderer);

    // create a red cone graphic
    SimpleMarkerSceneSymbol coneSymbol = SimpleMarkerSceneSymbol.createCone(Color.RED, 100, 100);
    coneSymbol.setPitch(-90);  // correct symbol's default pitch
    Graphic cone = new Graphic(new Point(83.9, 28.41, 200, SpatialReferences.getWgs84()), coneSymbol);
    graphicsOverlay.getGraphics().add(cone);

    // bind attribute values to sliders
    headingSlider.valueProperty().addListener(o -> cone.getAttributes().put("HEADING", headingSlider.getValue()));
    pitchSlider.valueProperty().addListener(o -> cone.getAttributes().put("PITCH", pitchSlider.getValue()));
  }

  /**
   * Disposes application resources.
   */
  void terminate() {
    if (sceneView != null)
      sceneView.dispose();
  }
}

/*
 * Copyright 2017 Esri.
 *
 * Licensed under the Apache License, Version 2.0 (the "License"); you may not
 * use this file except in compliance with the License. You may obtain a copy of
 * the License at
 *
 * http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS, WITHOUT
 * WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the
 * License for the specific language governing permissions and limitations under
 * the License.
 */

package com.esri.samples.scene_properties_expressions;

import java.io.IOException;

import javafx.application.Application;
import javafx.fxml.FXMLLoader;
import javafx.scene.Parent;
import javafx.scene.Scene;
import javafx.stage.Stage;

public class ScenePropertiesExpressionsSample extends Application {

  private static ScenePropertiesExpressionsController controller;

  @Override
  public void start(Stage stage) throws IOException {
    // set up the scene
    FXMLLoader loader = new FXMLLoader(getClass().getResource("/scene_properties_expressions/main.fxml"));
    Parent root = loader.load();
    controller = loader.getController();
    Scene scene = new Scene(root);

    // set up the stage
    stage.setTitle("Scene Properties Expressions Sample");
    stage.setWidth(800);
    stage.setHeight(700);
    stage.setScene(scene);
    stage.show();
  }

  /**
   * Stops and releases all resources used in application.
   */
  @Override
  public void stop() {
    controller.terminate();
  }

  /**
   * Opens and runs application.
   *
   * @param args arguments passed to this application
   */
  public static void main(String[] args) {

    Application.launch(args);
  }
}
