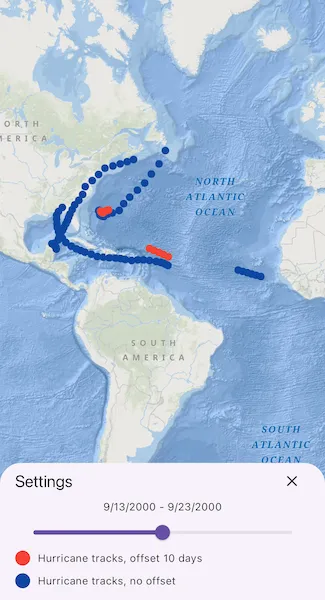

Add feature layer with time offset

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
//
// Copyright 2024 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
//

import 'dart:math';
import 'package:arcgis_maps/arcgis_maps.dart';
import 'package:flutter/material.dart';

import '../../utils/sample_state_support.dart';

class AddFeatureLayerWithTimeOffset extends StatefulWidget {
  const AddFeatureLayerWithTimeOffset({super.key});

  @override
  State<AddFeatureLayerWithTimeOffset> createState() =>
      _AddFeatureLayerWithTimeOffsetState();
}

class _AddFeatureLayerWithTimeOffsetState
    extends State<AddFeatureLayerWithTimeOffset> with SampleStateSupport {
  // Create a controller for the map view.
  final _mapViewController = ArcGISMapView.createController();
  // The start and end times of the feature layer.
  late DateTime _startTime;
  late DateTime _endTime;
  // A flag for when the map view is ready and controls can be used.
  var _ready = false;
  // A flag for when the settings bottom sheet is visible.
  var _settingsVisible = false;
  // The current time interval, expressed as a fraction of the full time extent.
  var _intervalFraction = 0.5;
  // A message to display the current date range.
  var _dateRangeMessage = '';

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SafeArea(
        top: false,
        child: Stack(
          children: [
            Column(
              children: [
                Expanded(
                  // Add a map view to the widget tree and set a controller.
                  child: ArcGISMapView(
                    controllerProvider: () => _mapViewController,
                    onMapViewReady: onMapViewReady,
                  ),
                ),
                Row(
                  mainAxisAlignment: MainAxisAlignment.spaceEvenly,
                  children: [
                    // A button to show the Settings bottom sheet.
                    ElevatedButton(
                      onPressed: () => setState(() => _settingsVisible = true),
                      child: const Text('Settings'),
                    ),
                  ],
                ),
              ],
            ),
            // Display a progress indicator and prevent interaction until state is ready.
            Visibility(
              visible: !_ready,
              child: SizedBox.expand(
                child: Container(
                  color: Colors.white30,
                  child: const Center(child: CircularProgressIndicator()),
                ),
              ),
            ),
          ],
        ),
      ),
      // The Settings bottom sheet.
      bottomSheet: _settingsVisible ? buildSettings(context) : null,
    );
  }

  // The build method for the Settings bottom sheet.
  Widget buildSettings(BuildContext context) {
    return Container(
      padding: EdgeInsets.fromLTRB(
        20.0,
        0.0,
        20.0,
        max(
          20.0,
          View.of(context).viewPadding.bottom /
              View.of(context).devicePixelRatio,
        ),
      ),
      child: Column(
        mainAxisSize: MainAxisSize.min,
        children: [
          Row(
            children: [
              Text(
                'Settings',
                style: Theme.of(context).textTheme.titleLarge,
              ),
              const Spacer(),
              IconButton(
                icon: const Icon(Icons.close),
                onPressed: () => setState(() => _settingsVisible = false),
              ),
            ],
          ),
          // Display the current date range.
          Text(_dateRangeMessage),
          Row(
            children: [
              Expanded(
                // A slider to adjust the interval.
                child: Slider(
                  value: _intervalFraction,
                  onChanged: (value) {
                    setState(() => _intervalFraction = value);
                    updateTimeExtent();
                  },
                ),
              ),
            ],
          ),
          Row(
            children: [
              SizedBox(
                width: 20.0,
                height: 20.0,
                child: Container(
                  decoration: const BoxDecoration(
                    shape: BoxShape.circle,
                    color: Colors.red,
                  ),
                ),
              ),
              const SizedBox(width: 10.0),
              const Text('Hurricane tracks, offset 10 days'),
            ],
          ),
          const SizedBox(height: 10.0),
          Row(
            children: [
              SizedBox(
                width: 20.0,
                height: 20.0,
                child: Container(
                  decoration: BoxDecoration(
                    shape: BoxShape.circle,
                    color: Colors.blue.shade900,
                  ),
                ),
              ),
              const SizedBox(width: 10.0),
              const Text('Hurricane tracks, no offset'),
            ],
          ),
        ],
      ),
    );
  }

  void onMapViewReady() async {
    // Create a map with the oceans basemap style and an initial viewpoint.
    final map = ArcGISMap.withBasemapStyle(BasemapStyle.arcGISOceans);
    map.initialViewpoint = Viewpoint.fromCenter(
      ArcGISPoint(
        x: -6000000,
        y: 2500000,
        spatialReference: SpatialReference.webMercator,
      ),
      scale: 1e8,
    );

    // The URL of the feature layer showing hurricanes.
    final featureLayerUri = Uri.parse(
      'https://sampleserver6.arcgisonline.com/arcgis/rest/services/Hurricanes/MapServer/0',
    );

    // Create a feature layer for the hurricane tracks, represented by blue dots.
    final featureTable = ServiceFeatureTable.withUri(featureLayerUri);
    final featureLayer = FeatureLayer.withFeatureTable(featureTable);
    featureLayer.renderer = SimpleRenderer(
      symbol: SimpleMarkerSymbol(
        style: SimpleMarkerSymbolStyle.circle,
        color: Colors.blue.shade900,
        size: 10.0,
      ),
    );

    // Create another feature layer, offset by 10 days, represented by red dots.
    final offsetFeatureTable = ServiceFeatureTable.withUri(featureLayerUri);
    final offsetFeatureLayer =
        FeatureLayer.withFeatureTable(offsetFeatureTable);
    offsetFeatureLayer.renderer = SimpleRenderer(
      symbol: SimpleMarkerSymbol(
        style: SimpleMarkerSymbolStyle.circle,
        color: Colors.red,
        size: 10.0,
      ),
    );
    offsetFeatureLayer.timeOffset =
        TimeValue(duration: 10, unit: TimeUnit.days);

    // Add the feature layers to the map.
    map.operationalLayers.addAll([featureLayer, offsetFeatureLayer]);

    // Load the feature layer and record the start and end times.
    await featureLayer.load();
    _startTime = featureLayer.fullTimeExtent?.startTime ?? DateTime.now();
    _endTime = featureLayer.fullTimeExtent?.endTime ?? DateTime.now();
    updateTimeExtent();

    // Set the map on the map view controller.
    _mapViewController.arcGISMap = map;

    // Set the ready state variable to true to enable the sample UI.
    setState(() => _ready = true);
  }

  // Calculate the new time extent based on the interval fraction.
  void updateTimeExtent() {
    // Calculate how many days to offset from the original start time.
    final totalDays = _endTime.difference(_startTime).inDays;
    final desiredDays = (totalDays * _intervalFraction).round();

    // Calculate the new start and end times (10 days apart).
    final newStart = _startTime.add(Duration(days: desiredDays));
    var newEnd = newStart.add(const Duration(days: 10));
    if (newEnd.isAfter(_endTime)) newEnd = _endTime;

    // Set the new time extent on the map view controller.
    _mapViewController.timeExtent =
        TimeExtent(startTime: newStart, endTime: newEnd);

    // Update the date range message.
    _dateRangeMessage = '${newStart.month}/${newStart.day}/${newStart.year} - '
        '${newEnd.month}/${newEnd.day}/${newEnd.year}';
  }
}
