Create and use a raster layer made from a local raster file.
Use case
Rasters can be digital aerial photographs, imagery from satellites, digital pictures, or even scanned maps. An end-user will frequently need to import raster files acquired through various data-collection methods into their map to view and analyze the data.
How to use the sample

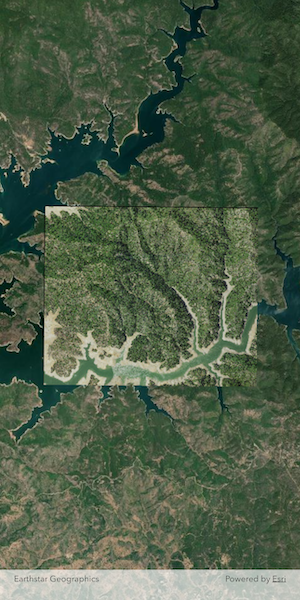

When the sample starts, a raster will be loaded from a file and displayed in the map view.
How it works
- Create a
Raster
from a raster file. - Create a
RasterLayer
from the raster. - Add it as an operational layer with
map.operationalLayers.add(rasterLayer)
.
Relevant API
- Raster
- RasterLayer
Additional information
See the topic What is raster data? in the ArcGIS Pro documentation for more information about raster images.
Tags
data, image, import, layer, raster, visualization
Sample Code
add_raster_from_file.dart
// Copyright 2025 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
// https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
//
import 'dart:io';
import 'package:arcgis_maps/arcgis_maps.dart';
import 'package:arcgis_maps_sdk_flutter_samples/common/common.dart';
import 'package:flutter/material.dart';
import 'package:path_provider/path_provider.dart';
class AddRasterFromFile extends StatefulWidget {
const AddRasterFromFile({super.key});
@override
State<AddRasterFromFile> createState() => _AddRasterFromFileState();
}
class _AddRasterFromFileState extends State<AddRasterFromFile>
with SampleStateSupport {
// Create a controller for the map view.
final _mapViewController = ArcGISMapView.createController();
// download message
var _downloadMessage = '';
// A flag for when the map view is ready and controls can be used.
var _ready = false;
@override
Widget build(BuildContext context) {
return Scaffold(
body: Stack(
children: [
// Add a map view to the widget tree and set a controller.
ArcGISMapView(
controllerProvider: () => _mapViewController,
onMapViewReady: onMapViewReady,
),
// Display a progress indicator and prevent interaction until state is ready.
LoadingIndicator(visible: !_ready, text: _downloadMessage),
],
),
);
}
Future<void> onMapViewReady() async {
// Create a map with the ArcGIS ImageryStandard basemap style and set to the map view.
final map = ArcGISMap.withBasemapStyle(BasemapStyle.arcGISImageryStandard);
// Set the map on the map view controller.
_mapViewController.arcGISMap = map;
// Load the raster layer.
final rasterLayer = await loadRasterLayerFromFile();
if (rasterLayer != null) {
// Add the raster layer to the map's operational layers.
map.operationalLayers.add(rasterLayer);
// Set the viewpoint to the center of the raster layer's full extent.
final fullExtent = rasterLayer.fullExtent;
if (fullExtent != null) {
final viewpoint = Viewpoint.fromCenter(fullExtent.center, scale: 80000);
// Set the viewpoint to the raster layer.
_mapViewController.setViewpoint(viewpoint);
}
}
// Set the ready state variable to true to enable the sample UI.
setState(() => _ready = true);
}
Future<RasterLayer?> loadRasterLayerFromFile() async {
const downloadFileName = 'raster-file';
final appDir = await getApplicationDocumentsDirectory();
final zipFile = File('${appDir.absolute.path}/$downloadFileName.zip');
final shastaTifFile = File(
'${appDir.absolute.path}/$downloadFileName/$downloadFileName/Shasta.tif',
);
// Download the sample data if it does not exist.
if (!zipFile.existsSync()) {
await downloadSampleDataWithProgress(
itemIds: ['7c4c679ab06a4df19dc497f577f111bd'],
destinationFiles: [zipFile],
onProgress: (progress) {
setState(
() =>
_downloadMessage =
'Downloading raster file... ${progress * 100}%',
);
},
);
}
// Create a raster from the file URI.
final raster = Raster.withFileUri(shastaTifFile.uri);
// Load the raster object.
await raster.load();
// Create a raster layer using the raster object.
final rasterLayer = RasterLayer.withRaster(raster);
return rasterLayer;
}
}
