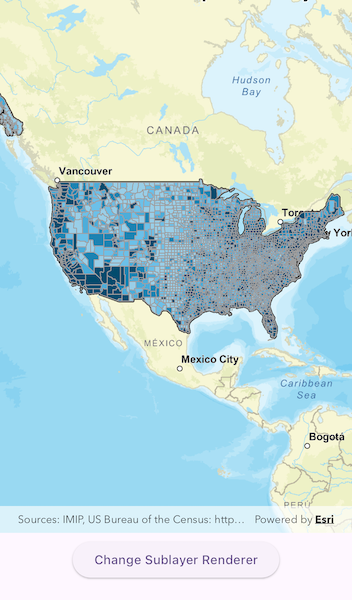

Apply class breaks renderer to sublayer

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
//
// Copyright 2024 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
//

import 'package:arcgis_maps/arcgis_maps.dart';
import 'package:flutter/material.dart';

import '../../utils/sample_state_support.dart';

class ApplyClassBreaksRendererToSublayer extends StatefulWidget {
  const ApplyClassBreaksRendererToSublayer({super.key});

  @override
  State<ApplyClassBreaksRendererToSublayer> createState() =>
      _ApplyClassBreaksRendererToSublayerState();
}

class _ApplyClassBreaksRendererToSublayerState
    extends State<ApplyClassBreaksRendererToSublayer> with SampleStateSupport {
  // Create a map view controller.
  final _mapViewController = ArcGISMapView.createController();
  // Create a map with a basemap style.
  final _map = ArcGISMap.withBasemapStyle(BasemapStyle.arcGISStreets);
  // A flag for when the map view is ready and controls can be used.
  var _ready = false;
  // A flag for when the renderer has been updated.
  var _rendered = false;
  // Create an image sublayer.
  late ArcGISMapImageSublayer _countiesSublayer;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SafeArea(
        top: false,
        child: Stack(
          children: [
            Column(
              // Add the map view and buttons to a column.
              children: [
                Expanded(
                  // Add a map view to the widget tree and set a controller.
                  child: ArcGISMapView(
                    controllerProvider: () => _mapViewController,
                    onMapViewReady: onMapViewReady,
                  ),
                ),
                Center(
                  // Apply renderer button.
                  child: ElevatedButton(
                    onPressed: !_rendered ? renderLayer : null,
                    child: const Text('Change Sublayer Renderer'),
                  ),
                ),
              ],
            ),
            // Display a progress indicator and prevent interaction until state is ready.
            Visibility(
              visible: !_ready,
              child: SizedBox.expand(
                child: Container(
                  color: Colors.white30,
                  child: const Center(child: CircularProgressIndicator()),
                ),
              ),
            ),
          ],
        ),
      ),
    );
  }

  void onMapViewReady() async {
    // Create an image layer.
    final imageLayer = ArcGISMapImageLayer.withUri(
      Uri.parse(
        'https://sampleserver6.arcgisonline.com/arcgis/rest/services/Census/MapServer',
      ),
    );
    // Set the map to the map view controller.
    _mapViewController.arcGISMap = _map;
    // Set the initial viewpoint.
    _mapViewController.setViewpoint(
      Viewpoint.withLatLongScale(
        latitude: 48.354406,
        longitude: -99.998267,
        scale: 147914382,
      ),
    );
    // Add the image layer to the map.
    _map.operationalLayers.add(imageLayer);

    // Load the image layer and counties sublayer.
    await imageLayer.load();
    _countiesSublayer = imageLayer.mapImageSublayers.elementAt(2);
    await _countiesSublayer.load();

    // Set the ready state variable to true to enable the sample UI.
    setState(() => _ready = true);
  }

  void renderLayer() async {
    // Apply class breaks renderer.
    _countiesSublayer.renderer = createPopulationClassBreaksRenderer();
    // Update the rendered state.
    setState(() => _rendered = true);
  }

  ClassBreaksRenderer createPopulationClassBreaksRenderer() {
    // Create colors for the class breaks.
    const blue1 = Color.fromARGB(255, 153, 206, 231);
    const blue2 = Color.fromARGB(255, 108, 192, 232);
    const blue3 = Color.fromARGB(255, 77, 173, 218);
    const blue4 = Color.fromARGB(255, 28, 130, 178);
    const blue5 = Color.fromARGB(255, 2, 75, 109);

    // Create symbols for the class breaks.
    final outline = SimpleLineSymbol(
      style: SimpleLineSymbolStyle.solid,
      color: Colors.grey,
      width: 1,
    );
    final classSymbol1 = SimpleFillSymbol(
      style: SimpleFillSymbolStyle.solid,
      color: blue1,
      outline: outline,
    );
    final classSymbol2 = SimpleFillSymbol(
      style: SimpleFillSymbolStyle.solid,
      color: blue2,
      outline: outline,
    );
    final classSymbol3 = SimpleFillSymbol(
      style: SimpleFillSymbolStyle.solid,
      color: blue3,
      outline: outline,
    );
    final classSymbol4 = SimpleFillSymbol(
      style: SimpleFillSymbolStyle.solid,
      color: blue4,
      outline: outline,
    );
    final classSymbol5 = SimpleFillSymbol(
      style: SimpleFillSymbolStyle.solid,
      color: blue5,
      outline: outline,
    );

    // Create class breaks.
    final classBreak1 = ClassBreak(
      description: '-99 to 8560',
      label: '-99 to 8560',
      minValue: -99,
      maxValue: 8560,
      symbol: classSymbol1,
    );
    final classBreak2 = ClassBreak(
      description: '> 8,560 to 18,109',
      label: '> 8,560 to 18,109',
      minValue: 8560,
      maxValue: 18109,
      symbol: classSymbol2,
    );
    final classBreak3 = ClassBreak(
      description: '> 18,109 to 35,501',
      label: '> 18,109 to 35,501',
      minValue: 18109,
      maxValue: 35501,
      symbol: classSymbol3,
    );
    final classBreak4 = ClassBreak(
      description: '> 35,501 to 86,100',
      label: '> 35,501 to 86,100',
      minValue: 35501,
      maxValue: 86100,
      symbol: classSymbol4,
    );
    final classBreak5 = ClassBreak(
      description: '> 86,100 to 10,110,975',
      label: '> 86,100 to 10,110,975',
      minValue: 86100,
      maxValue: 10110975,
      symbol: classSymbol5,
    );

    // Create and return a class breaks renderer.
    return ClassBreaksRenderer(
      fieldName: 'POP2007',
      classBreaks: [
        classBreak1,
        classBreak2,
        classBreak3,
        classBreak4,
        classBreak5,
      ],
    );
  }
}
