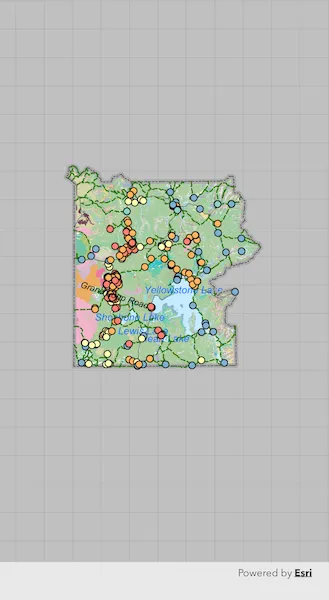

Display map from mobile map package

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
//
// Copyright 2024 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
//

import 'dart:io';

import 'package:arcgis_maps/arcgis_maps.dart';
import 'package:flutter/material.dart';
import 'package:path_provider/path_provider.dart';

import '../../utils/sample_data.dart';
import '../../utils/sample_state_support.dart';

class DisplayMapFromMobileMapPackage extends StatefulWidget {
  const DisplayMapFromMobileMapPackage({super.key});

  @override
  State<DisplayMapFromMobileMapPackage> createState() =>
      _DisplayMapFromMobileMapPackageState();
}

class _DisplayMapFromMobileMapPackageState
    extends State<DisplayMapFromMobileMapPackage> with SampleStateSupport {
  // Create a controller for the map view.
  final _mapViewController = ArcGISMapView.createController();
  // A flag for when the map view is ready.
  var _ready = false;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      // Add a map view to the widget tree and set a controller.
      body: Stack(
        children: [
          ArcGISMapView(
            controllerProvider: () => _mapViewController,
            onMapViewReady: onMapViewReady,
          ),
          // Display a progress indicator and prevent interaction until state is ready.
          Visibility(
            visible: !_ready,
            child: SizedBox.expand(
              child: Container(
                color: Colors.white30,
                child: const Center(child: CircularProgressIndicator()),
              ),
            ),
          ),
        ],
      ),
    );
  }

  void onMapViewReady() async {
    await downloadSampleData(['e1f3a7254cb845b09450f54937c16061']);
    final appDir = await getApplicationDocumentsDirectory();

    // Load the local mobile map package.
    final mmpkFile = File('${appDir.absolute.path}/Yellowstone.mmpk');
    final mmpk = MobileMapPackage.withFileUri(mmpkFile.uri);
    await mmpk.load();

    if (mmpk.maps.isNotEmpty) {
      // Get the first map in the mobile map package and set to the map view.
      _mapViewController.arcGISMap = mmpk.maps.first;
    }

    // Set the ready state variable to true to enable the sample UI.
    setState(() => _ready = true);
  }
}
