Create, query and edit a specific server version using service geodatabase.
Use case
Workflows often progress in discrete stages, with each stage requiring the allocation of a different set of resources and business rules. Typically, each stage in the overall process represents a single unit of work, such as a work order or job. To manage these, you can create a separate, isolated version and modify it. Once this work is complete, you can integrate the changes into the default version.

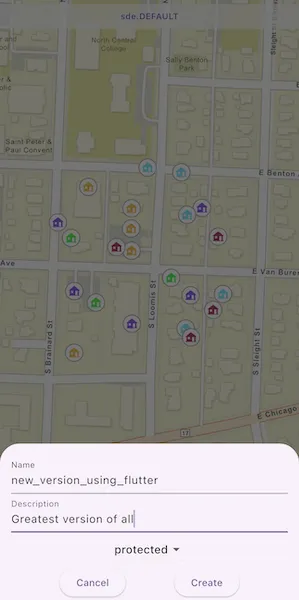

How to use the sample
Once loaded, the map will zoom to the extent of the feature layer. The current version is indicated at the top of the map. Tap on "Create" to open a bottom modal sheet to specify the version information (name, access, and description). See the Additional information section for restrictions on the version name.
Tap "Create" to create the version with the information that you specified. Select a feature to edit an attribute and/or tap a second time anywhere on the map to relocate the point.
Tap the Switch button in the bottom right corner to switch back and forth between the version you created and the default version. Edits will automatically be applied to your version when switching to the default version.
How it works
- Create and load a
ServiceGeodatabasewith a feature service URL that has enabled Version Management. - Get the
ServiceFeatureTablefrom the service geodatabase. - Create a
FeatureLayerfrom the service feature table. - Create
ServiceVersionParameterswith a unique name,VersionAccess, and description.- Note - See the additional information section for more restrictions on the version name.
- Create a new version calling
ServiceGeodatabase.createVersionpassing in the service version parameters. - Await
ServiceGeodatabase.createVersionsignal to obtain theServiceVersionInfoof the version created. - Switch to the version you have just created using
ServiceGeodatabase.switchVersion, passing in the version name obtained from the service version info from step 6. - Select a
Featurefrom the map to edit its "TYPDAMAGE" attribute and location. - Apply these edits to your version by calling
ServiceGeodatabase.applyEdits(). - Switch back and forth between your version and the default version to see how the two versions differ.
Relevant API
- FeatureLayer
- ServiceFeatureTable
- ServiceGeodatabase
- ServiceGeodatabase.applyEdits
- ServiceGeodatabase.createVersion
- ServiceGeodatabase.switchVersion
- ServiceGeodatabase.undoLocalEdits
- ServiceVersionInfo
- ServiceVersionParameters
- VersionAccess
About the data
The feature layer used in this sample is Damage to commercial buildings located in Naperville, Illinois.
Additional information
Credentials:
- Username: editor01
- Passowrd: S7#i2LWmYH75
The name of the version must meet the following criteria:
- Must not exceed 62 characters
- Must not include: Period (.), Semicolon (;), Single quotation mark ('), Double quotation mark (")
- Must not include a space for the first character
- Note - the version name will have the username and a period (.) prepended to it. E.g "editor01.MyNewUniqueVersionName"
Branch versioning access permission:
- VersionAccess.Public - Any portal user can view and edit the version.
- VersionAccess.Protected - Any portal user can view, but only the version owner, feature layer owner, and portal administrator can edit the version.
- VersionAccess.Private - Only the version owner, feature layer owner, and portal administrator can view and edit the version.
Tags
branch versioning, edit, version control, version management server
Sample Code
edit_with_branch_versioning.dart
// Copyright 2025 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
// https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
//
import 'dart:math';
import 'package:arcgis_maps/arcgis_maps.dart';
import 'package:arcgis_maps_sdk_flutter_samples/common/common.dart';
import 'package:flutter/material.dart';
class EditWithBranchVersioning extends StatefulWidget {
const EditWithBranchVersioning({super.key});
@override
State<EditWithBranchVersioning> createState() =>
_EditWithBranchVersioningState();
}
class _EditWithBranchVersioningState extends State<EditWithBranchVersioning>
with SampleStateSupport {
// Create a controller for the map view.
final _mapViewController = ArcGISMapView.createController();
// Create an instance of the model class for this sample.
final _model = EditWithBranchVersioningModel();
// A flag for when the map view is ready and controls can be used.
var _ready = false;
// A boolean value indicating whether bottom feature sheet is available.
bool _featureBottomSheetVisible = false;
@override
Widget build(BuildContext context) {
return Scaffold(
body: SafeArea(
top: false,
left: false,
right: false,
child: Stack(
children: [
Column(
children: [
Expanded(
// Add a map view to the widget tree and set a controller.
child: ArcGISMapView(
controllerProvider: () => _mapViewController,
onMapViewReady: onMapViewReady,
onTap: onTap,
),
),
Row(
mainAxisAlignment: MainAxisAlignment.spaceEvenly,
children: [
// A button to open a bottom sheet for creating a new branch version.
ElevatedButton(
onPressed: () async {
await showCreateVersionModalBottomSheet(
context,
_model,
);
},
child: const Text('Create'),
),
// A button to select a version to switch to.
ElevatedButton(
onPressed:
_model.isVersionCreated
? () => showSwitchVersionDialog(context, _model)
: null,
child: const Text('Switch'),
),
],
),
],
),
// Display a progress indicator and prevent interaction until state is ready.
LoadingIndicator(visible: !_ready),
// Display a banner with the current version at the top.
SafeArea(
child: IgnorePointer(
child: Container(
padding: const EdgeInsets.all(10),
color: Colors.white.withValues(alpha: 0.7),
child: Row(
mainAxisAlignment: MainAxisAlignment.center,
children: [
ValueListenableBuilder(
valueListenable: _model.currentVersionNameNotifier,
builder: (context, currentVersionName, child) {
return Text(
'Version: $currentVersionName',
textAlign: TextAlign.center,
style: Theme.of(context).textTheme.labelMedium,
);
},
),
],
),
),
),
),
],
),
),
// The Feature Details bottom sheet.
bottomSheet:
_featureBottomSheetVisible
? buildFeatureDetails(context, _model.selectedFeature!)
: null,
);
}
Future<void> onMapViewReady() async {
// Call the setUp method in the model class to configure the service geodatabase and feature layer.
await _model.setUp();
// Set the configured map to the map view controller.
_mapViewController.arcGISMap = _model.map;
// Set the ready state variable to true to enable the sample UI.
setState(() => _ready = true);
}
Future<void> onTap(Offset localPosition) async {
if (_model.selectedFeature != null && !_model.onDefaultVersion) {
final mapPoint = _mapViewController.screenToLocation(
screen: localPosition,
);
// Show the move confirmation dialog if a feature is already selected.
_showMoveConfirmationDialog(_model.selectedFeature!, mapPoint!);
return;
} else {
// Clear the selection of the feature layer.
_model.clearSelection();
}
// Do an identify on the feature layer and select a feature.
final identifyLayerResult = await _mapViewController.identifyLayer(
_model.featureLayer,
screenPoint: localPosition,
tolerance: 5,
);
// If there are features identified select the first feature.
final features =
identifyLayerResult.geoElements.whereType<Feature>().toList();
if (features.isNotEmpty) {
_model.selectFeature(features.first);
// Show the bottom modal sheet with the feature's attributes.
if (mounted) {
setState(() {
_featureBottomSheetVisible = true;
});
}
}
}
Widget buildFeatureDetails(BuildContext context, Feature feature) {
// Get the required feature attributes.
final placeName = feature.attributes['placename'] as String?;
final damageType = feature.attributes['typdamage'] as String?;
return Container(
padding: EdgeInsets.fromLTRB(
20,
20,
20,
max(
20,
View.of(context).viewPadding.bottom /
View.of(context).devicePixelRatio,
),
),
child: Column(
mainAxisSize: MainAxisSize.min,
children: [
Row(
children: [
Text(
placeName ?? 'Feature Details',
style: Theme.of(context).textTheme.titleLarge,
),
const Spacer(),
IconButton(
icon: const Icon(Icons.close),
onPressed:
() => setState(() {
_featureBottomSheetVisible = false;
_model.clearSelection();
}),
),
],
),
const Divider(),
Text('Damage Type: ${damageType ?? 'Unknown'}'),
const Divider(),
TextButton(
onPressed:
_model.onDefaultVersion
? null
: () {
setState(() {
_editDamageType(feature);
});
},
child: const Text('Edit Damage Type'),
),
],
),
);
}
void _showMoveConfirmationDialog(Feature feature, ArcGISPoint mapPoint) {
showDialog(
context: context,
builder:
(context) => AlertDialog(
title: const Text('Confirm Move'),
content: const Text('Do you want to move the selected feature?'),
actions: [
TextButton(
onPressed: () {
Navigator.of(context).pop();
_model.clearSelection();
setState(() => _featureBottomSheetVisible = false);
},
child: const Text('Cancel'),
),
TextButton(
onPressed: () {
Navigator.of(context).pop();
setState(() {
feature.geometry = mapPoint;
_model.updateFeature();
setState(() => _featureBottomSheetVisible = false);
});
},
child: const Text('Move'),
),
],
),
);
}
void _editDamageType(Feature feature) {
showDialog(
context: context,
builder: (context) {
return AlertDialog(
title: const Text('Damage Type'),
content: Column(
mainAxisSize: MainAxisSize.min,
children:
DamageType.values.map((damageType) {
return ListTile(
title: Text(damageType.label),
onTap: () {
Navigator.of(context).pop();
// Update the feature's attribute with the selected value.
feature.attributes['typdamage'] = damageType.label;
_model.updateFeature();
setState(() {
_featureBottomSheetVisible = false;
});
},
);
}).toList(),
),
);
},
);
}
Future<void> showCreateVersionModalBottomSheet(
BuildContext context,
EditWithBranchVersioningModel model,
) async {
final nameController = TextEditingController();
final descriptionController = TextEditingController();
var selectedAccess = VersionAccess.public;
return showModalBottomSheet<void>(
context: context,
isScrollControlled: true,
builder: (context) {
return StatefulBuilder(
builder: (context, setModalState) {
return Padding(
padding: EdgeInsets.only(
bottom: MediaQuery.of(context).viewInsets.bottom,
),
child: SingleChildScrollView(
child: Column(
mainAxisSize: MainAxisSize.min,
children: [
Padding(
padding: const EdgeInsets.all(16),
child: Column(
children: [
TextField(
controller: nameController,
decoration: const InputDecoration(
labelText: 'Name',
),
),
TextField(
controller: descriptionController,
decoration: const InputDecoration(
labelText: 'Description',
),
),
Padding(
padding: const EdgeInsets.all(8),
child: DropdownMenu(
initialSelection: selectedAccess,
onSelected: (newValue) {
if (newValue != null) {
setModalState(() {
// Update the selected access value when a new value is selected from the dropdown menu.
selectedAccess = newValue;
});
}
},
// Display the version access values in a dropdown.
dropdownMenuEntries:
VersionAccess.values.map((value) {
return DropdownMenuEntry(
value: value,
label: value.name,
);
}).toList(),
),
),
Row(
mainAxisAlignment: MainAxisAlignment.spaceEvenly,
children: [
ElevatedButton(
onPressed: () => Navigator.of(context).pop(),
child: const Text('Cancel'),
),
ElevatedButton(
onPressed: () async {
// Create a new version by defining service version parameters from the user input.
if (nameController.text.isNotEmpty) {
final parameters =
ServiceVersionParameters()
..name = nameController.text
..description =
descriptionController.text
..access = selectedAccess;
try {
await model.createVersion(parameters);
setState(() {
model.isVersionCreated = true;
});
if (context.mounted) {
Navigator.of(context).pop();
}
} on ArcGISException catch (e) {
if (context.mounted) {
Navigator.of(context).pop();
// Show an error message if an exception occurs.
await showDialog<void>(
context: context,
builder: (context) {
var errorMessageStrings = e
.additionalMessage
.split(RegExp(r'\s+'));
if (errorMessageStrings.contains(
'Extended',
)) {
errorMessageStrings =
errorMessageStrings.sublist(
0,
errorMessageStrings.length -
4,
);
}
final cleanedMessage =
errorMessageStrings.join(' ');
return AlertDialog(
title: const Text('Error'),
content: Text(
'Error: $cleanedMessage',
),
actions: [
TextButton(
onPressed:
() =>
Navigator.of(
context,
).pop(),
child: const Text('OK'),
),
],
);
},
);
}
}
} else {
// Show an error message if the fields are empty.
await showDialog<void>(
context: context,
builder: (context) {
return AlertDialog(
title: const Text('Error'),
content: const Text(
'Name cannot be empty',
),
actions: [
TextButton(
onPressed:
() =>
Navigator.of(
context,
).pop(),
child: const Text('OK'),
),
],
);
},
);
}
},
child: const Text('Create'),
),
],
),
],
),
),
],
),
),
);
},
);
},
);
}
Future<void> showSwitchVersionDialog(
BuildContext context,
EditWithBranchVersioningModel model,
) async {
return showDialog<void>(
context: context,
builder: (context) {
return AlertDialog(
title: const Text('Switch Version'),
content: Column(
mainAxisSize: MainAxisSize.min,
children:
model.existingVersionNames.map((versionName) {
return ListTile(
title: Text(versionName),
onTap: () async {
Navigator.of(context).pop();
try {
await model.switchToVersion(versionName);
// catch ArcGISException when switching to a version fails.
// ignore: avoid_catches_without_on_clauses
} catch (e) {
// Show an error message if an exception occurs.
if (context.mounted) {
await showDialog<void>(
context: context,
builder: (context) {
return AlertDialog(
title: const Text('Error'),
content: Text('Error: $e'),
actions: [
TextButton(
onPressed:
() => Navigator.of(context).pop(),
child: const Text('OK'),
),
],
);
},
);
}
}
},
);
}).toList(),
),
actions: [
TextButton(
onPressed: () => Navigator.of(context).pop(),
child: const Text('Cancel'),
),
],
);
},
);
}
}
// A model class to manage the service data, branch versions, and features that are used in this sample.
class EditWithBranchVersioningModel extends ChangeNotifier {
EditWithBranchVersioningModel() {
// Initialize the current version name with the default version name from the service geodatabase.
currentVersionNameNotifier.value = serviceGeodatabase.defaultVersionName;
}
// The names of the versions added by the user.
//
// - Note: To get a full list of existing versions in the service geodatabase, use `ServiceGeodatabase.versions`.
// In this sample, only the default version and versions created in current session are shown.
final existingVersionNames = <String>[];
// Initially center the map's viewpoint on Naperville, IL, USA.
final map = ArcGISMap.withBasemapStyle(BasemapStyle.arcGISStreets)
..initialViewpoint = Viewpoint.fromCenter(
ArcGISPoint(
x: -9811970,
y: 5127180,
spatialReference: SpatialReference.webMercator,
),
scale: 4000,
);
// Create a service geodatabase from a feature service URL.
final serviceGeodatabase = ServiceGeodatabase.withUri(
Uri.parse(
'https://sampleserver7.arcgisonline.com/server/rest/services/DamageAssessment/FeatureServer',
),
);
// Use a ValueNotifier to track the current version name.
final currentVersionNameNotifier = ValueNotifier<String>('');
// Update the current version name and notify listeners.
void updateCurrentVersionName() {
currentVersionNameNotifier.value = serviceGeodatabase.versionName;
}
late FeatureLayer featureLayer;
Feature? selectedFeature;
// A boolean value indicating whether the geodatabase's current version is its default version.
bool get onDefaultVersion =>
serviceGeodatabase.versionName == serviceGeodatabase.defaultVersionName;
// A boolean value indicating whether a version has been created.
bool isVersionCreated = false;
// Sets up the service geodatabase and feature layer.
Future<void> setUp() async {
// Adds the credential to access the feature service for the service geodatabase.
final credential = await getPublicSampleCredential();
ArcGISEnvironment.authenticationManager.arcGISCredentialStore.add(
credential: credential,
);
await serviceGeodatabase.load();
existingVersionNames.add(serviceGeodatabase.defaultVersionName);
// Update the current version name after loading the service geodatabase.
updateCurrentVersionName();
// Creates a feature layer from the geodatabase and adds it to the map.
final serviceFeatureTable = serviceGeodatabase.getTable(layerId: 0)!;
featureLayer = FeatureLayer.withFeatureTable(serviceFeatureTable);
map.operationalLayers.add(featureLayer);
}
// Creates a new version in the service using given parameters.
// - ServiceVersionParameters parameters: The properties of the new version.
// - Returns: The name of the created version.
Future<String> createVersion(ServiceVersionParameters parameters) async {
final versionInfo = await serviceGeodatabase.createVersion(
newVersion: parameters,
);
existingVersionNames.add(versionInfo.name);
// Set the flag to true when a version is created.
isVersionCreated = true;
// Switch to the newly created version.
await switchToVersion(versionInfo.name);
return versionInfo.name;
}
// Switches the geodatabase version to a version with a given name.
// - Parameter versionName: The name of the version to connect to.
Future<void> switchToVersion(String versionName) async {
if (onDefaultVersion) {
// Discards the local edits when on the default branch.
// Making edits on default branch is disabled, but this is left here for parity.
await serviceGeodatabase.undoLocalEdits();
} else {
// Applies the local edits when on a user created branch.
await serviceGeodatabase.applyEdits();
}
clearSelection();
await serviceGeodatabase.switchVersion(versionName: versionName);
// Update the current version name.
updateCurrentVersionName();
}
// Selects a feature on the feature layer.
void selectFeature(Feature feature) {
featureLayer.selectFeature(feature);
selectedFeature = feature;
}
// Clears the selected feature.
void clearSelection() {
featureLayer.clearSelection();
selectedFeature = null;
}
// Updates the selected feature in it's feature table.
Future<void> updateFeature() async {
if (selectedFeature?.featureTable == null) return;
await selectedFeature!.featureTable!.updateFeature(selectedFeature!);
clearSelection();
}
Future<ArcGISCredential> getPublicSampleCredential() async {
// The public credentials for the data in this sample.
// Note: Never hardcode login information in a production application. This is done solely for the sake of the sample.
final credential = await TokenCredential.create(
uri: Uri.parse(
'https://sampleserver7.arcgisonline.com/server/rest/services/DamageAssessment/FeatureServer',
),
username: 'editor01',
password: 'S7#i2LWmYH75',
);
return credential;
}
}
// The damage type of a feature.
enum DamageType {
destroyed,
major,
minor,
affected,
inaccessible,
defaultType;
String get label {
switch (this) {
case DamageType.destroyed:
return 'Destroyed';
case DamageType.major:
return 'Major';
case DamageType.minor:
return 'Minor';
case DamageType.affected:
return 'Affected';
case DamageType.inaccessible:
return 'Inaccessible';
case DamageType.defaultType:
return 'Default';
}
}
}
