Display a scene

Learn how to create and display a scene A scene is a collection of layers that are displayed in 3D. It is typically composed of a basemap layer, data layers, and 3D data. Learn more with a basemap layer A basemap layer is the layer in a map or scene that displays basemap data. The data source for a basemap layer is typically a basemap service. Learn more and an elevation layer An elevation layer is a layer that defines the ground height or the surface for a scene. Learn more . Set properties of the scene’s camera A camera defines the rendering viewpoint of a 3D scene in a scene view. Learn more to control the 3D perspective.

Like a map A map is a collection of layers that are displayed in 2D. It is typically composed of a basemap layer and data layers. Learn more , a scene A scene is a collection of layers that are displayed in 3D. It is typically composed of a basemap layer, data layers, and 3D data. Learn more contains layers A layer is a reference to a collection of geographic data that is used to access and display data. The data for layers are typically provided by the basemap layer service and data services. Learn more of geographic data. It contains a basemap layer A basemap layer is the layer in a map or scene that displays basemap data. The data source for a basemap layer is typically a basemap service. Learn more and, optionally, one or more data layers A data layer is a layer that references geographic data from a file or a service and is used to visualize the data in a map or scene. Learn more . To provide a realistic view of the terrain, you can also add elevation layers An elevation layer is a layer that defines the ground height or the surface for a scene. Learn more to define the height of the surface across the scene. The 3D perspective of the scene is controlled by the scene’s camera A camera defines the rendering viewpoint of a 3D scene in a scene view. Learn more , which defines the position of the scene observer in 3D space.

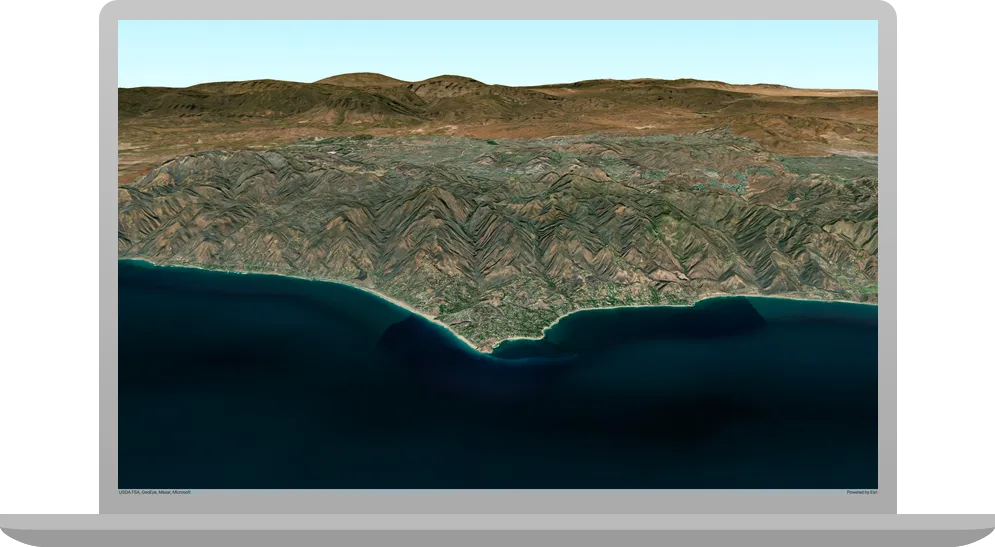

In this tutorial, you create and display a scene A scene is a collection of layers that are displayed in 3D. It is typically composed of a basemap layer, data layers, and 3D data. Learn more using the imagery basemap layer A basemap layer is the layer in a map or scene that displays basemap data. The data source for a basemap layer is typically a basemap service. Learn more . The surface of the scene is defined with an elevation layer An elevation layer is a layer that defines the ground height or the surface for a scene. Learn more and the camera A camera defines the rendering viewpoint of a 3D scene in a scene view. Learn more is positioned to display an area of the Santa Monica Mountains in the scene view A scene view is a user interface that displays scene layers and graphics in 3D. It uses a camera to control the visible area of the scene and supports user interactions such as pan, zoom, tilt, and rotate. Learn more .

The scene and code will be used as the starting point for other 3D tutorials.

Prerequisites

Steps

Create a new Java project with Gradle

1. Open IntelliJ IDEA.

2. From the Welcome to IntelliJ IDEA screen, click the New Project button. (If you’re already inside a project, click File > New > Project in the menu bar.)

3. In the New Project window, do the following:

   • Enter a name for your new project and choose a location to save it. Your app name can contain only Latin characters, digits, _ , - and :.

   • Deselect Create Git repository, if necessary

   • Select Java as your programming language, if necessary

   • Select Gradle as your build system

   • Select a supported JDK

   • Select Groovy as your Gradle build language (i.e. DSL), if necessary

   • Check the Add sample code box, if necessary

   • Click Advanced Settings to expand the drop-down. Set the Gradle distribution to Wrapper and check the Auto-select box for the Gradle version. Optionally, you can enable or disable the ability to use these settings for future projects. For GroupId enter com.example.app. You can leave the default for ArtifactId.

   • Click Create to build your new project.

4. In the Project tool window, replace the contents of the build.gradle file with the following script to configure your app and reference the API. Make sure that you load the gradle changes after modifying build.gradle.

   More info

   To load the Gradle changes, in the Gradle window, click the Reload All Gradle Projects icon in the upper left corner.



   build.gradle

   plugins {
       id 'application'
       id 'org.openjfx.javafxplugin' version '0.1.0'
       id 'idea'
   }

   idea {
       module {
           downloadJavadoc = true
       }
   }

   ext {
       arcgisVersion = '200.6.0'
   }

   repositories {
       mavenCentral()
       maven {
           url 'https://esri.jfrog.io/artifactory/arcgis'
       }
   }

   configurations {
       natives
   }

   dependencies {
       implementation "com.esri.arcgisruntime:arcgis-java:$arcgisVersion"
       natives "com.esri.arcgisruntime:arcgis-java-jnilibs:$arcgisVersion"
       natives "com.esri.arcgisruntime:arcgis-java-resources:$arcgisVersion"
       implementation 'org.slf4j:slf4j-nop:2.0.16'
   }

   javafx {
       version = "21.0.5"
       modules = [ 'javafx.controls', 'javafx.graphics', 'javafx.fxml', 'javafx.web', 'javafx.media' ]
   }

   application {
       mainModule = "com.example.app"
       mainClass = "com.example.app.App"
   }

   task copyNatives(type: Copy) {
       description = "Copies the arcgis native libraries into the .arcgis directory for development."
       group = "build"
       configurations.natives.asFileTree.each {
           from(zipTree(it))
       }
       into "${System.properties.getProperty("user.home")}/.arcgis/$arcgisVersion"
   }

   run {
       dependsOn copyNatives
   }

   wrapper {
       gradleVersion = '8.10.2'
   }

5. Click View > Tool Windows > Gradle to open the Gradle view, then in Tasks > build, double-click copyNatives. This unpacks the native library dependencies to $USER_HOME/.arcgis.

   More info

   You can also run Gradle tasks via the command line. Consult Gradle’s documentation to learn how this is done.

6. In the Project tool window, under your package com.example.app, right-click Main and click Refactor > Rename….

7. Rename the Java class to App and click Refactor.

Add import statements

1. In App.java, add import statements to reference the ArcGIS and JavaFX classes.

   App.java

   package com.example.app;

   import com.esri.arcgisruntime.ArcGISRuntimeEnvironment;
   import com.esri.arcgisruntime.geometry.Point;
   import com.esri.arcgisruntime.geometry.SpatialReferences;
   import com.esri.arcgisruntime.mapping.ArcGISScene;
   import com.esri.arcgisruntime.mapping.ArcGISTiledElevationSource;
   import com.esri.arcgisruntime.mapping.BasemapStyle;
   import com.esri.arcgisruntime.mapping.Surface;
   import com.esri.arcgisruntime.mapping.view.Camera;
   import com.esri.arcgisruntime.mapping.view.SceneView;

   import javafx.application.Application;
   import javafx.scene.Scene;
   import javafx.scene.layout.StackPane;
   import javafx.stage.Stage;

   public class App extends Application {

Add a UI for the scene view

A scene view A scene view is a user interface that displays scene layers and graphics in 3D. It uses a camera to control the visible area of the scene and supports user interactions such as pan, zoom, tilt, and rotate. Learn more is a UI component that displays a scene A scene is a collection of layers that are displayed in 3D. It is typically composed of a basemap layer, data layers, and 3D data. Learn more . It also handles user interactions with the scene. Use JavaFX to add a scene view to the UI.

1. In App.java, define a class named App that extends the JavaFX Application class.

   • Add a private member variable for a SceneView.

     More info

     The sceneView member variable allows you to easily reference your SceneView from other parts of the application.

   • Inside the main() method, replace the print statement with a call to Application.launch(args).

     More info

     This code calls the static method launch() of the JavaFX class Application, which creates an instance of your App class on the JavaFX Application Thread and then calls the start() method. For a description of the JavaFX life-cycle, see Application.

   • Override the start() method, in which you configure the JavaFX Stage with a title and dimensions, and then show it.

     More info

     Note that the start() method is abstract in the JavaFX Application class and must be overridden in your application code. The start() method takes a single parameter of the JavaFX type Stage.

   • Create a JavaFX StackPane, and use it to create a JavaFX Scene. Then set the scene on the stage.

   App.java

   30 collapsed lines
