withinOperator

AMD: require(["esri/geometry/operators/withinOperator"], (withinOperator) => { /* code goes here */ });
ESM: import * as withinOperator from "@arcgis/core/geometry/operators/withinOperator.js";
Object: esri/geometry/operators/withinOperator
Since: ArcGIS Maps SDK for JavaScript 4.31

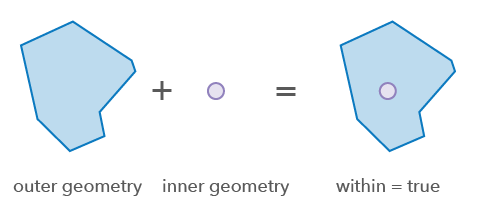

Perform a relational operation to determine if one 2D geometry is within another 2D geometry. Geometry A is within geometry B, when A is the intersection of A and B.

Geometry A can be non-simple geometry.

Property Overview

Name Type Summary Object

Indicates if the operator supports input geometries that contain curves.

withinOperator

Property Details

supportsCurves

Property
supportsCurves Booleanreadonly

Indicates if the operator supports input geometries that contain curves.

Default Value:true

Method Overview

Name Return Type Summary Object

Accelerate a geometry.

withinOperator

Perform a within operation on two geometries.

withinOperator

Method Details

accelerateGeometry

Method
accelerateGeometry(geometry){Boolean}

Accelerate a geometry. This method prepares the geometry for faster within operations when the same geometry is tested multiple times (e.g. in a loop with hundreds of iterations).

Parameter
geometry GeometryUnion

The geometry to accelerate.

Returns
Type Description
Boolean Returns true if the geometry was successfully accelerated.

execute

Method
execute(inner, outer){Boolean}

Perform a within operation on two geometries.

Parameters

The base geometry that is tested for the "within" relationship with outer.

The comparison geometry that is tested for the "contains" relationship with inner.

Returns
Type Description
Boolean Returns true if inner is within outer.
Example
Returns true if a geometry is completely within another
const isWithin = withinOperator.execute(polygon1, polygon2);
