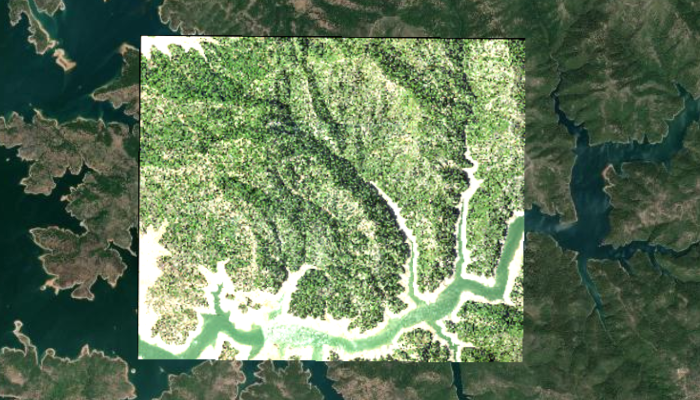

Apply stretch renderer

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.applystretchrenderer.components

import android.app.Application
import androidx.lifecycle.AndroidViewModel
import androidx.lifecycle.viewModelScope
import com.arcgismaps.mapping.ArcGISMap
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.mapping.layers.RasterLayer
import com.arcgismaps.mapping.symbology.raster.MinMaxStretchParameters
import com.arcgismaps.mapping.symbology.raster.PercentClipStretchParameters
import com.arcgismaps.mapping.symbology.raster.StandardDeviationStretchParameters
import com.arcgismaps.mapping.symbology.raster.StretchParameters
import com.arcgismaps.mapping.symbology.raster.StretchRenderer
import com.arcgismaps.raster.Raster
import com.arcgismaps.toolkit.geoviewcompose.MapViewProxy
import com.esri.arcgismaps.sample.applystretchrenderer.R
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel
import kotlinx.coroutines.flow.MutableStateFlow
import kotlinx.coroutines.flow.asStateFlow
import kotlinx.coroutines.launch
import java.io.File

private const val DEFAULT_MIN = 10.0
private const val DEFAULT_MAX = 150.0
private const val DEFAULT_PERCENT_MIN = 0.0
private const val DEFAULT_PERCENT_MAX = 50.0
private const val DEFAULT_STD_DEVIATION_FACTOR = 0.5

/**
 * ViewModel for the "Apply stretch renderer" sample.
 */
class ApplyStretchRendererViewModel(private val app: Application) : AndroidViewModel(app) {

    // The map with imagery basemap style
    val arcGISMap: ArcGISMap = ArcGISMap(BasemapStyle.ArcGISImageryStandard)

    // MapViewProxy used to set viewpoint after layer loads
    val mapViewProxy = MapViewProxy()

    // Message dialog view model for error handling
    val messageDialogVM = MessageDialogViewModel()

    // Provision path for local offline resources
    private val provisionPath by lazy {
        app.getExternalFilesDir(null)?.path.toString() + File.separator +
                app.getString(R.string.apply_stretch_renderer_app_name)
    }

    // The raster data (raster-file/Shasta.tif) should be downloaded to external storage on launch
    private val raster by lazy {
        val rasterFile = File(provisionPath, "raster-file${File.separator}Shasta.tif")
        Raster.createWithPath(rasterFile.path)
    }

    // The raster layer to which the stretch renderer will be applied
    private val rasterLayer = RasterLayer(raster)

    // Stretch type options for UI
    val stretchTypeOptions = listOf("MinMax", "Percent Clip", "Std Deviation")

    // Current selected stretch type
    private val _selectedStretchType = MutableStateFlow(StretchType.MinMax)
    val selectedStretchType = _selectedStretchType.asStateFlow()

    // Min-Max parameters (values represent pixel value range)
    private val _minValue = MutableStateFlow(DEFAULT_MIN)
    val minValue = _minValue.asStateFlow()

    private val _maxValue = MutableStateFlow(DEFAULT_MAX)
    val maxValue = _maxValue.asStateFlow()

    // Percent clip parameters (values represent percent 0..100)
    private val _percentMin = MutableStateFlow(DEFAULT_PERCENT_MIN)
    val percentMin = _percentMin.asStateFlow()

    private val _percentMax = MutableStateFlow(DEFAULT_PERCENT_MAX)
    val percentMax = _percentMax.asStateFlow()

    // Standard deviation factor (typical range 0.25..4.0)
    private val _stdDeviationFactor = MutableStateFlow(DEFAULT_STD_DEVIATION_FACTOR)
    val stdDeviationFactor = _stdDeviationFactor.asStateFlow()

    init {
        viewModelScope.launch {
            rasterLayer.load().onSuccess {
                arcGISMap.operationalLayers.add(rasterLayer)
            }.onFailure {
                return@launch messageDialogVM.showMessageDialog(it)
            }

            arcGISMap.load().onFailure {
                return@launch messageDialogVM.showMessageDialog(it)
            }

            rasterLayer.fullExtent?.center?.let { center ->
                mapViewProxy.setViewpoint(Viewpoint(center = center, scale = 80_000.0))
            }
            updateRenderer()
        }
    }

    /** Update the current stretch type by index from [stretchTypeOptions]. */
    fun updateStretchTypeByIndex(index: Int) {
        val safeIndex = index.coerceIn(0, stretchTypeOptions.lastIndex)
        _selectedStretchType.value = when (safeIndex) {
            0 -> StretchType.MinMax
            1 -> StretchType.PercentClip
            else -> StretchType.StandardDeviation
        }
        updateRenderer()
    }

    /** Update MinMax minimum value (clamped to 0..(max-1)). */
    fun updateMinValue(value: Double) {
        val max = _maxValue.value
        _minValue.value = value.coerceIn(DEFAULT_MIN, max - 1.0)
        updateRenderer()
    }

    /** Update MinMax maximum value (clamped to (min+1)..255). */
    fun updateMaxValue(value: Double) {
        val min = _minValue.value
        _maxValue.value = value.coerceIn(min + 1.0, 255.0)
        updateRenderer()
    }

    /** Update Percent Clip minimum percent (clamped to 0..percentMax). */
    fun updatePercentMin(value: Double) {
        val max = _percentMax.value
        _percentMin.value = value.coerceIn(DEFAULT_MIN, max)
        updateRenderer()
    }

    /** Update Percent Clip maximum percent (clamped to percentMin..100). */
    fun updatePercentMax(value: Double) {
        val min = _percentMin.value
        _percentMax.value = value.coerceIn(min, 100.0)
        updateRenderer()
    }

    /** Update Standard Deviation factor (clamped to 0.25..4.0). */
    fun updateStdDeviationFactor(value: Double) {
        _stdDeviationFactor.value = value.coerceIn(0.25, 4.0)
        updateRenderer()
    }

    /** Construct and apply a StretchRenderer to the raster layer using current UI parameters. */
    private fun updateRenderer() {
        val parameters: StretchParameters = when (_selectedStretchType.value) {
            StretchType.MinMax -> {
                // apply the values to the renderer
                MinMaxStretchParameters(
                    minValues = listOf(_minValue.value),
                    maxValues = listOf(_maxValue.value)
                )
            }

            StretchType.PercentClip -> {
                // apply the values to the renderer
                PercentClipStretchParameters(
                    min = _percentMin.value,
                    max = _percentMax.value
                )
            }

            StretchType.StandardDeviation -> {
                // apply the value to the renderer
                StandardDeviationStretchParameters(
                    factor = _stdDeviationFactor.value
                )
            }
        }
        rasterLayer.renderer = StretchRenderer(
            parameters = parameters,
            gammas = emptyList(),
            estimateStatistics = true,
            colorRamp = null
        )
    }

    /** Reset all parameters to their initial default values. */
    fun resetAllChanges() {
        _selectedStretchType.value = StretchType.MinMax
        _minValue.value = DEFAULT_MIN
        _maxValue.value = DEFAULT_MAX
        _percentMin.value = DEFAULT_PERCENT_MIN
        _percentMax.value = DEFAULT_PERCENT_MAX
        _stdDeviationFactor.value = DEFAULT_STD_DEVIATION_FACTOR
        updateRenderer()
    }
}

/** Enum representing available stretch parameter types. */
enum class StretchType { MinMax, PercentClip, StandardDeviation }
