Apply unique value renderer

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.applyuniquevaluerenderer.components

import android.app.Application
import androidx.lifecycle.AndroidViewModel
import androidx.lifecycle.viewModelScope
import com.arcgismaps.Color
import com.arcgismaps.data.ServiceFeatureTable
import com.arcgismaps.geometry.Point
import com.arcgismaps.geometry.SpatialReference
import com.arcgismaps.mapping.ArcGISMap
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.mapping.layers.FeatureLayer
import com.arcgismaps.mapping.symbology.SimpleFillSymbol
import com.arcgismaps.mapping.symbology.SimpleFillSymbolStyle
import com.arcgismaps.mapping.symbology.SimpleLineSymbol
import com.arcgismaps.mapping.symbology.SimpleLineSymbolStyle
import com.arcgismaps.mapping.symbology.UniqueValue
import com.arcgismaps.mapping.symbology.UniqueValueRenderer
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel
import kotlinx.coroutines.launch

/**
 * ViewModel for the ApplyUniqueValueRenderer sample.
 *
 * This ViewModel builds an ArcGISMap, adds a FeatureLayer from a service, and
 * applies a UniqueValueRenderer based on the SUB_REGION field. The map and
 * layer are created during initialization and loaded in initialization. Errors are
 * reported through message dialog.
 */
class ApplyUniqueValueRendererViewModel(application: Application) : AndroidViewModel(application) {

    // Create the map with a Topographic basemap and an initial viewpoint
    var arcGISMap = ArcGISMap(BasemapStyle.ArcGISTopographic).apply {
            // Center and scale the map to show the US
            initialViewpoint = Viewpoint(
                center = Point(
                    x = -12356253.6,
                    y = 3842795.4,
                    spatialReference = SpatialReference.webMercator()
                ),
                scale = 52681563.2
            )
    }


    // Create a service feature table from the census feature service
    private val censusFeatureTable = ServiceFeatureTable(
        uri = "https://sampleserver6.arcgisonline.com/arcgis/rest/services/Census/MapServer/3"
    )

    // Feature layer created from the service feature table
    private val statesFeatureLayer = FeatureLayer.createWithFeatureTable(censusFeatureTable)

    // Message dialog helper for presenting errors to the user
    val messageDialogVM = MessageDialogViewModel()

    init {
        // Set a unique value renderer to the feature layer
        configureUniqueValueRenderer()

        // Add the feature layer to the map's operational layers
        arcGISMap.operationalLayers.add(statesFeatureLayer)

        // Load the map and the feature layer
        viewModelScope.launch {
            arcGISMap.load().onFailure { throwable ->
                messageDialogVM.showMessageDialog(throwable)
            }
        }
    }

    /**

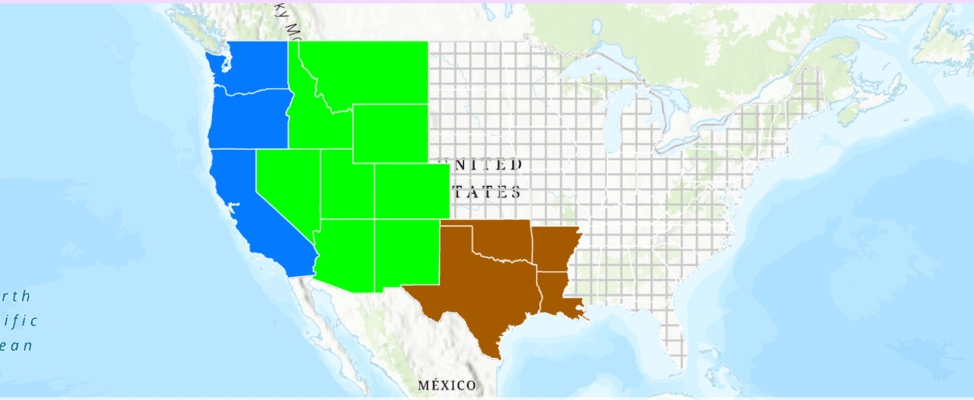

     * Creates a unique value renderer configured to render the Pacific states
     * as blue, the Mountain states as green, and the West South Central states
     * as brown.
     *
     * Build and apply a [UniqueValueRenderer] object to the [statesFeatureLayer].
     */
    private fun configureUniqueValueRenderer() {
        // Outline used for all fill symbols
        val stateOutline = SimpleLineSymbol(
            style = SimpleLineSymbolStyle.Solid,
            color = Color.white,
            width = 0.7f
        )

        // Region fill symbols
        val pacificFill = SimpleFillSymbol(
            style = SimpleFillSymbolStyle.Solid,
            color = Color.fromRgba(4, 122, 255, 255), // blue
            outline = stateOutline
        )

        val mountainFill = SimpleFillSymbol(
            style = SimpleFillSymbolStyle.Solid,
            color = Color.green,
            outline = stateOutline
        )

        val westSouthCentralFill = SimpleFillSymbol(
            style = SimpleFillSymbolStyle.Solid,
            color = Color.fromRgba(165, 90, 0, 255), // brown
            outline = stateOutline
        )

        // Unique values for the renderer, based on SUB_REGION values
        val pacificValue = UniqueValue(
            description = "Pacific Region",
            label = "Pacific",
            symbol = pacificFill,
            values = listOf("Pacific")
        )

        val mountainValue = UniqueValue(
            description = "Rocky Mountain Region",
            label = "Mountain",
            symbol = mountainFill,
            values = listOf("Mountain")
        )

        val westSouthCentralValue = UniqueValue(
            description = "West South Central Region",
            label = "West South Central",
            symbol = westSouthCentralFill,
            values = listOf("West South Central")
        )

        // Default symbol for any other regions not explicitly defined
        val defaultFill = SimpleFillSymbol(
            style = SimpleFillSymbolStyle.Cross,
            color = Color.fromRgba(200, 200, 200, 255), // gray
            outline = stateOutline
        )

        // Create the renderer and apply it to the feature layer
        val uniqueValueRenderer = UniqueValueRenderer(
            fieldNames = listOf("SUB_REGION"),
            uniqueValues = listOf(pacificValue, mountainValue, westSouthCentralValue),
            defaultLabel = "Other",
            defaultSymbol = defaultFill
        )

        statesFeatureLayer.renderer = uniqueValueRenderer
    }
}
