Render features in a scene statically or dynamically by setting the feature layer rendering mode.

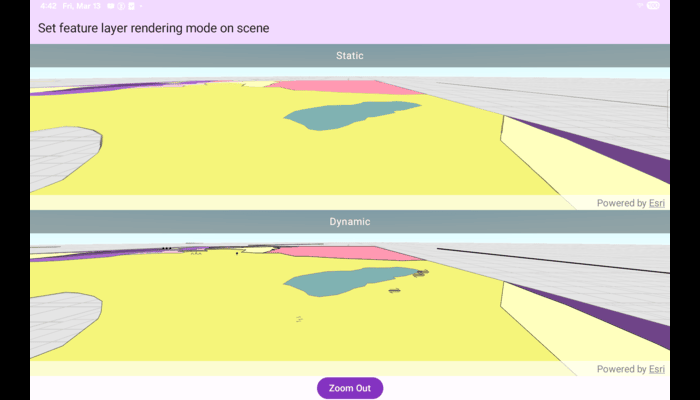

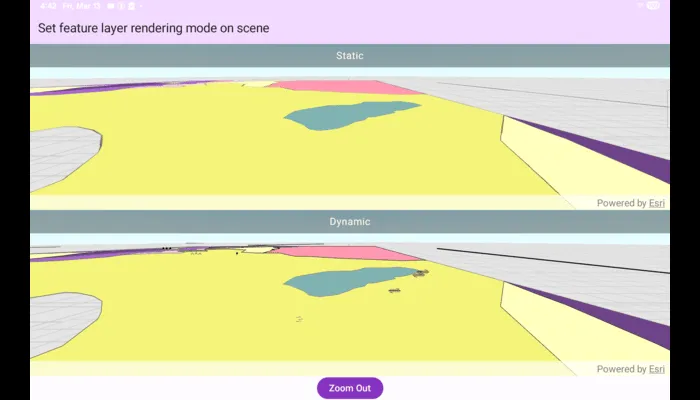

Screenshot of Set feature layer rendering mode on scene sample

Use case

In dynamic rendering mode, features and graphics are stored on the GPU. As a result, dynamic rendering mode is good for moving objects and for maintaining graphical fidelity during extent changes, since individual graphic changes can be efficiently applied directly to the GPU state. This gives the map or scene a seamless look and feel when interacting with it. The number of features and graphics has a direct impact on GPU resources, so large numbers of features or graphics can affect the responsiveness of maps or scenes to user interaction. Ultimately, the number and complexity of features and graphics that can be rendered in dynamic rendering mode is dependent on the power and memory of the device’s GPU.

In static rendering mode, features and graphics are rendered only when needed (for example, after an extent change) and offloads a significant portion of the graphical processing onto the CPU. As a result, less work is required by the GPU to draw the graphics, and the GPU can spend its resources on keeping the UI interactive. Use this mode for stationary graphics, complex geometries, and very large numbers of features or graphics. The number of features and graphics has little impact on frame render time, meaning it scales well, and pushes a constant GPU payload. However, rendering updates is CPU and system memory intensive, which can have an impact on device battery life.

How to use the sample

Use the ‘Zoom In’/‘Zoom Out’ button to trigger the zoom animation on both static and dynamic scenes.

How it works

Create a scene with operational layers and set the FeatureRenderingMode for each layer.
The FeatureRenderingMode can be set to Static, Dynamic, or Automatic.

In Static rendering mode, the number of features and graphics has little impact on frame render time, meaning it scales well, however points don’t stay screen-aligned and point/polyline/polygon objects are only redrawn once scene view navigation is complete.
In Dynamic rendering mode, large numbers of features or graphics can affect the responsiveness of scenes to user interaction, however points remain screen-aligned and point/polyline/polygon objects are continually redrawn while the scene view is navigating.
When left to automatic rendering, points are drawn dynamically and polylines and polygons statically.

Relevant API

FeatureLayer
FeatureLayer.RenderingMode
Scene
SceneView

Sample Code

MainActivity.kt

SetFeatureLayerRenderingModeOnSceneViewModel.kt

SetFeatureLayerRenderingModeOnSceneScreen.kt

/* Copyright 2026 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.setfeaturelayerrenderingmodeonscene

import android.os.Bundle
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.Surface
import androidx.compose.runtime.Composable
import com.arcgismaps.ApiKey
import com.arcgismaps.ArcGISEnvironment
import com.esri.arcgismaps.sample.sampleslib.theme.SampleAppTheme
import com.esri.arcgismaps.sample.setfeaturelayerrenderingmodeonscene.screens.SetFeatureLayerRenderingModeOnSceneScreen

class MainActivity : ComponentActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        // authentication with an API key or named user is
        // required to access basemaps and other location services
        ArcGISEnvironment.apiKey = ApiKey.create(BuildConfig.ACCESS_TOKEN)

        setContent {
            SampleAppTheme {
                SetFeatureLayerRenderingModeOnSceneApp()
            }
        }
    }

    @Composable
    private fun SetFeatureLayerRenderingModeOnSceneApp() {
        Surface(color = MaterialTheme.colorScheme.background) {
            SetFeatureLayerRenderingModeOnSceneScreen(
                sampleName = getString(R.string.set_feature_layer_rendering_mode_on_scene_app_name)
            )
        }
    }
}

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.setfeaturelayerrenderingmodeonscene.components

import android.app.Application
import androidx.compose.runtime.getValue
import androidx.compose.runtime.mutableStateOf
import androidx.compose.runtime.setValue
import androidx.lifecycle.AndroidViewModel
import androidx.lifecycle.viewModelScope
import com.arcgismaps.data.ServiceFeatureTable
import com.arcgismaps.geometry.Point
import com.arcgismaps.geometry.SpatialReference
import com.arcgismaps.mapping.ArcGISScene
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.mapping.layers.FeatureLayer
import com.arcgismaps.mapping.layers.FeatureRenderingMode
import com.arcgismaps.mapping.view.Camera
import com.arcgismaps.toolkit.geoviewcompose.SceneViewProxy
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel
import kotlinx.coroutines.launch
import kotlin.time.Duration.Companion.seconds

/**
 * ViewModel for the SetFeatureLayerRenderingModeOnScene sample.
 *
 * Builds two scenes: one where feature layers are rendered statically and
 * another where they are rendered dynamically. Exposes Scene objects and
 * SceneViewProxy instances so the Compose UI can render SceneViews and
 * interact with them.
 */
class SetFeatureLayerRenderingModeOnSceneViewModel(application: Application) : AndroidViewModel(application) {

    // URLs for the sample feature service tables (point, polyline, polygon)
    private val pointLayerUrl =
        "https://sampleserver6.arcgisonline.com/arcgis/rest/services/Energy/Geology/FeatureServer/0"
    private val polylineLayerUrl =
        "https://sampleserver6.arcgisonline.com/arcgis/rest/services/Energy/Geology/FeatureServer/8"
    private val polygonLayerUrl =
        "https://sampleserver6.arcgisonline.com/arcgis/rest/services/Energy/Geology/FeatureServer/9"

    // Scenes exposed to the UI
    var staticScene: ArcGISScene = ArcGISScene().apply {
        initialViewpoint = Viewpoint(
            center = Point(-118.37, 34.46, SpatialReference.wgs84()),
            scale = 30000.0
        )
    }

    var dynamicScene: ArcGISScene = ArcGISScene().apply {
        initialViewpoint = Viewpoint(
            center = Point(-118.37, 34.46, SpatialReference.wgs84()),
            scale = 30000.0
        )
    }

    // SceneViewProxy instances used to control each SceneView from the ViewModel
    val staticSceneViewProxy = SceneViewProxy()
    val dynamicSceneViewProxy = SceneViewProxy()

    var isZoomedIn by mutableStateOf(true)
        private set

    // Message dialog helper to present errors to the user
    val messageDialogVM = MessageDialogViewModel()

    init {
        // Build the scenes and load them.
        viewModelScope.launch {
            try {
                buildScenes()
                // Load both scenes; report any failures to the message dialog VM
                staticScene.load().onFailure { messageDialogVM.showMessageDialog(it) }
                dynamicScene.load().onFailure { messageDialogVM.showMessageDialog(it) }
            } catch (ex: Exception) {
                messageDialogVM.showMessageDialog(ex)
            }
        }
    }

    /**
     * Constructs two scenes. Each scene gets the same set of feature tables but the
     * rendering mode for the layers is set differently: static vs dynamic.
     */
    private fun buildScenes() {
        // Create feature layers from the tables
        val staticPointLayer = FeatureLayer.createWithFeatureTable(ServiceFeatureTable(uri = pointLayerUrl)).apply {
            renderingMode = FeatureRenderingMode.Static
        }
        val staticPolylineLayer = FeatureLayer.createWithFeatureTable(ServiceFeatureTable(uri = polylineLayerUrl)).apply {
            renderingMode = FeatureRenderingMode.Static
        }
        val staticPolygonLayer = FeatureLayer.createWithFeatureTable(ServiceFeatureTable(uri = polygonLayerUrl)).apply {
            renderingMode = FeatureRenderingMode.Static
        }

        val dynamicPointLayer = FeatureLayer.createWithFeatureTable(ServiceFeatureTable(uri = pointLayerUrl)).apply {
            // Set rendering mode to Dynamic for the dynamic scene layers
            renderingMode = FeatureRenderingMode.Dynamic
        }
        val dynamicPolylineLayer = FeatureLayer.createWithFeatureTable(ServiceFeatureTable(uri = polylineLayerUrl)).apply {
            renderingMode = FeatureRenderingMode.Dynamic
        }
        val dynamicPolygonLayer = FeatureLayer.createWithFeatureTable(ServiceFeatureTable(uri = polygonLayerUrl)).apply {
            renderingMode = FeatureRenderingMode.Dynamic
        }

        // Create scenes and add layers
        staticScene.operationalLayers.addAll(listOf(staticPolygonLayer, staticPolylineLayer, staticPointLayer))

        dynamicScene.operationalLayers.addAll(listOf(dynamicPolygonLayer, dynamicPolylineLayer, dynamicPointLayer))
    }

    /**
     * Toggle between zoomed-in and zoomed-out cameras for both scenes.
     */
    fun toggleZoom() {

        val zoomedIn = isZoomedIn
        val staticPoint: Point
        val dynamicPoint: Point
        val distance: Double
        val heading: Double
        val pitch: Double

        if (!zoomedIn) {
            // Zoom in
            staticPoint = Point(-118.45, 34.395, SpatialReference.wgs84())
            dynamicPoint = Point(-118.45, 34.395, SpatialReference.wgs84())
            distance = 2500.0
            heading = 90.0
            pitch = 75.0
        } else {
            // Zoom out
            staticPoint = Point(-118.37, 34.46, SpatialReference.wgs84())
            dynamicPoint = Point(-118.37, 34.46, SpatialReference.wgs84())
            distance = 30000.0
            heading = 0.0
            pitch = 0.0
        }

        val staticCamera = Camera(staticPoint, distance, heading, pitch, 0.0)
        val dynamicCamera = Camera(dynamicPoint, distance, heading, pitch, 0.0)
        viewModelScope.launch {
            staticSceneViewProxy.setViewpointCameraAnimated(staticCamera,5.seconds)
        }
        viewModelScope.launch {
            dynamicSceneViewProxy.setViewpointCameraAnimated(dynamicCamera, 5.seconds)
        }
        isZoomedIn = !isZoomedIn
    }
}

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.setfeaturelayerrenderingmodeonscene.screens

import androidx.compose.foundation.background
import androidx.compose.foundation.layout.Box
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.fillMaxWidth
import androidx.compose.foundation.layout.padding
import androidx.compose.material3.Button
import androidx.compose.material3.Scaffold
import androidx.compose.material3.Text
import androidx.compose.runtime.Composable
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.lifecycle.viewmodel.compose.viewModel
import androidx.compose.ui.unit.dp
import com.arcgismaps.toolkit.geoviewcompose.SceneView
import com.esri.arcgismaps.sample.setfeaturelayerrenderingmodeonscene.components.SetFeatureLayerRenderingModeOnSceneViewModel
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialog
import com.esri.arcgismaps.sample.sampleslib.components.SampleTopAppBar
import androidx.compose.material3.MaterialTheme

/**
 * Main screen for the SetFeatureLayerRenderingModeOnScene sample.
 * Displays two SceneViews stacked vertically: the top scene renders layers statically,
 * the bottom scene renders layers dynamically. A FloatingActionButton toggles a zoom
 * animation on both scenes to demonstrate the rendering differences while animating.
 */
@Composable
fun SetFeatureLayerRenderingModeOnSceneScreen(sampleName: String) {
    val viewModel: SetFeatureLayerRenderingModeOnSceneViewModel = viewModel()

    Scaffold(
        topBar = { SampleTopAppBar(title = sampleName) },
        content = { paddingValues ->
            Column(modifier = Modifier
                .fillMaxSize()
                .padding(paddingValues),
                horizontalAlignment = Alignment.CenterHorizontally) {

                // Static SceneView - renders its layers using static rendering
                Box(modifier = Modifier
                    .weight(1f)
                    .fillMaxWidth()) {
                    SceneView(
                        modifier = Modifier.fillMaxSize(),
                        arcGISScene = viewModel.staticScene,
                        sceneViewProxy = viewModel.staticSceneViewProxy
                    )

                    // Small overlay label to indicate static scene
                    Box(
                        modifier = Modifier
                            .fillMaxWidth()
                            .background(MaterialTheme.colorScheme.surface.copy(alpha = 0.5f))
                            .align(Alignment.TopCenter)
                    ) {
                        Text(
                            text = "Static",
                            color = MaterialTheme.colorScheme.onSurface,
                            modifier = Modifier
                                .align(Alignment.Center)
                                .padding(8.dp)
                        )
                    }
                }

                // Dynamic SceneView - renders its layers using dynamic rendering
                Box(modifier = Modifier
                    .weight(1f)
                    .fillMaxWidth()) {
                    SceneView(
                        modifier = Modifier.fillMaxSize(),
                        arcGISScene = viewModel.dynamicScene,
                        sceneViewProxy = viewModel.dynamicSceneViewProxy
                    )

                    Box(
                        modifier = Modifier
                            .fillMaxWidth()
                            .background(MaterialTheme.colorScheme.surface.copy(alpha = 0.5f))
                            .align(Alignment.TopCenter)
                    ) {
                        Text(
                            text = "Dynamic",
                            color = MaterialTheme.colorScheme.onSurface,
                            modifier = Modifier
                                .align(Alignment.Center)
                                .padding(8.dp)
                        )
                    }
                }

                Button(onClick = viewModel::toggleZoom) {
                    Text(if (viewModel.isZoomedIn) "Zoom Out" else "Zoom In")
                }

                // Display message dialog if an error occurred in the ViewModel
                viewModel.messageDialogVM.apply {
                    if (dialogStatus) {
                        MessageDialog(
                            title = messageTitle,
                            description = messageDescription,
                            onDismissRequest = ::dismissDialog
                        )
                    }
                }
            }
        }
    )
}

Use case

How to use the sample

How it works

Relevant API

Tags

Sample Code
