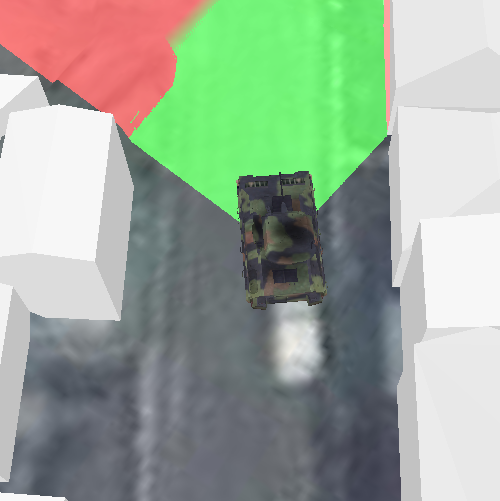

Show exploratory viewshed (GeoElement)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
// [WriteFile Name=ShowExploratoryViewshedFromGeoElementInScene, Category=Analysis]
// [Legal]
// Copyright 2017 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "ShowExploratoryViewshedFromGeoElementInScene.h"

// ArcGIS Maps SDK headers
#include "AnalysisListModel.h"
#include "AnalysisOverlay.h"
#include "AnalysisOverlayListModel.h"
#include "AngularUnit.h"
#include "ArcGISSceneLayer.h"
#include "ArcGISTiledElevationSource.h"
#include "AttributeListModel.h"
#include "ElevationSourceListModel.h"
#include "ExploratoryGeoElementViewshed.h"
#include "GeodeticDistanceResult.h"
#include "GeometryEngine.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "LayerListModel.h"
#include "LayerSceneProperties.h"
#include "LinearUnit.h"
#include "MapTypes.h"
#include "ModelSceneSymbol.h"
#include "OrbitGeoElementCameraController.h"
#include "Point.h"
#include "RendererSceneProperties.h"
#include "Scene.h"
#include "SceneQuickView.h"
#include "SceneViewTypes.h"
#include "SimpleRenderer.h"
#include "SpatialReference.h"
#include "Surface.h"
#include "SymbolTypes.h"

// Qt headers
#include <QList>
#include <QStandardPaths>
#include <QString>
#include <QTimer>
#include <QUrl>
#include <QVariant>
#include <QtCore/qglobal.h>

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
  QString defaultDataPath()
  {
    QString dataPath;

#ifdef Q_OS_IOS
    dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
#else
    dataPath = QStandardPaths::writableLocation(QStandardPaths::HomeLocation);
#endif

    return dataPath;
  }
} // namespace

ShowExploratoryViewshedFromGeoElementInScene::ShowExploratoryViewshedFromGeoElementInScene(QQuickItem* parent /* = nullptr */) :
  QQuickItem(parent)
{
}

void ShowExploratoryViewshedFromGeoElementInScene::init()
{
  // Register classes for QML
  qmlRegisterType<SceneQuickView>("Esri.Samples", 1, 0, "SceneView");
  qmlRegisterType<ShowExploratoryViewshedFromGeoElementInScene>("Esri.Samples", 1, 0, "ShowExploratoryViewshedFromGeoElementInSceneSample");
}

void ShowExploratoryViewshedFromGeoElementInScene::componentComplete()
{
  QQuickItem::componentComplete();

  // Create a scene and give it to the SceneView
  m_sceneView = findChild<SceneQuickView*>("sceneView");
  Scene* scene = new Scene(BasemapStyle::ArcGISImageryStandard, this);

  // Create a surface
  Surface* surface = new Surface(this);
  surface->elevationSources()->append(
    new ArcGISTiledElevationSource(QUrl("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"), this));
  scene->setBaseSurface(surface);

  // Add a SceneLayer
  ArcGISSceneLayer* sceneLayer =
    new ArcGISSceneLayer(QUrl("https://tiles.arcgis.com/tiles/P3ePLMYs2RVChkJx/arcgis/rest/services/Buildings_Brest/SceneServer/layers/0"), this);
  scene->operationalLayers()->append(sceneLayer);

  // Add an AnalysisOverlay
  m_analysisOverlay = new AnalysisOverlay(this);
  m_sceneView->analysisOverlays()->append(m_analysisOverlay);

  // Add a GraphicsOverlay
  createGraphicsOverlay();

  // Create a Graphic
  createGraphic();

  // Create the GeoElementViewshed
  const double horizontalAngle = 90.0;
  const double verticalAngle = 25.0;
  const double minDistance = 5.0;
  const double maxDistance = 250.0;
  const double headingOffset = 0.0;
  const double pitchOffset = 0.0;
  m_viewshed = new ExploratoryGeoElementViewshed(m_tank, horizontalAngle, verticalAngle, minDistance, maxDistance, headingOffset, pitchOffset, this);
  m_viewshed->setOffsetY(0.5);
  m_viewshed->setOffsetZ(0.5);
  m_analysisOverlay->analyses()->append(m_viewshed);

  // Add the Scene to the SceneView
  m_sceneView->setArcGISScene(scene);

  // create the camera controller to follow the graphic
  OrbitGeoElementCameraController* followingController = new OrbitGeoElementCameraController(m_tank, 200.0, this);
  followingController->setCameraPitchOffset(45.0);
  m_sceneView->setCameraController(followingController);

  // Create a Timer
  m_timer = new QTimer(this);
  m_timer->setInterval(100);
  connect(m_timer, &QTimer::timeout, this, &ShowExploratoryViewshedFromGeoElementInScene::animate);

  // connect to the mouse clicked signal
  connect(m_sceneView, &SceneQuickView::mouseClicked, this, [this](QMouseEvent& event)
  {
    m_waypoint = m_sceneView->screenToBaseSurface(event.position().x(), event.position().y());
    m_timer->start();
  });
}

void ShowExploratoryViewshedFromGeoElementInScene::createGraphicsOverlay()
{
  // Add a GraphicsOverlay
  m_graphicsOverlay = new GraphicsOverlay(this);
  m_sceneView->graphicsOverlays()->append(m_graphicsOverlay);

  // Set the SurfacePlacement
  LayerSceneProperties sceneProperties = m_graphicsOverlay->sceneProperties();
  sceneProperties.setSurfacePlacement(SurfacePlacement::Relative);
  m_graphicsOverlay->setSceneProperties(sceneProperties);

  // Set a Renderer
  SimpleRenderer* simpleRenderer = new SimpleRenderer(this);
  const QString headingExpression = QString("[%1]").arg(m_headingAttr);
  simpleRenderer->setSceneProperties(RendererSceneProperties(headingExpression, "", ""));
  m_graphicsOverlay->setRenderer(simpleRenderer);
}

void ShowExploratoryViewshedFromGeoElementInScene::createGraphic()
{
  // Create the Graphic Point
  const double x = -4.508708007847015;
  const double y = 48.38823243446344;
  const double z = 0;
  const Point tankPoint(x, y, z, SpatialReference(4326));
  const float scale = 10;

  // Create the Graphic Symbol
  ModelSceneSymbol* sceneSymbol = new ModelSceneSymbol(QUrl(defaultDataPath() + "/ArcGIS/Runtime/Data/3D/bradley_low_3ds/bradle.3ds"), scale, this);
  sceneSymbol->setAnchorPosition(SceneSymbolAnchorPosition::Bottom);
  sceneSymbol->setHeading(90.0f);

  // Create the Graphic
  QVariantMap attr;
  attr[m_headingAttr] = 150.0;
  m_tank = new Graphic(tankPoint, attr, sceneSymbol, this);
  m_graphicsOverlay->graphics()->append(m_tank);
}

void ShowExploratoryViewshedFromGeoElementInScene::animate()
{
  if (m_waypoint.isEmpty())
  {
    return;
  }

  // get current location and distance from waypoint
  Point location = geometry_cast<Point>(m_tank->geometry());
  const GeodeticDistanceResult distance =
    GeometryEngine::distanceGeodetic(location, m_waypoint, LinearUnit(m_linearUnit), AngularUnit(m_angularUnit), m_curveType);

  // move toward waypoint based on speed and update orientation
  location =
    GeometryEngine::moveGeodetic(QList<Point>{location}, 1.0, LinearUnit(m_linearUnit), distance.azimuth1(), AngularUnit(m_angularUnit), m_curveType)
      .at(0);
  m_tank->setGeometry(location);

  // update the heading
  const double heading = m_tank->attributes()->attributeValue(m_headingAttr).toDouble();
  const QString newHeading = QString::number(heading + (distance.azimuth1() - heading) / 10);
  m_tank->attributes()->replaceAttribute(m_headingAttr, newHeading);

  // reached waypoint
  if (distance.distance() <= 5)
  {
    m_waypoint = Point();
    m_timer->stop();
  }
}
