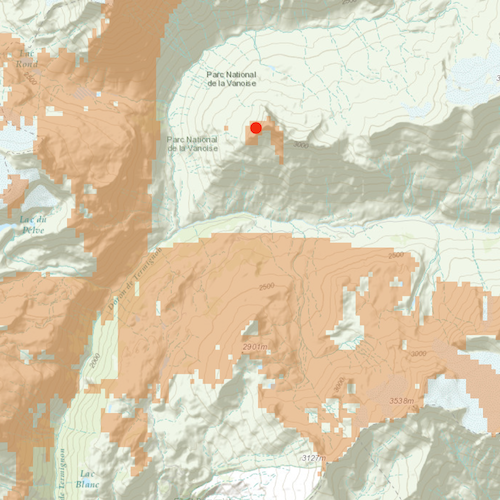

Show viewshed calculated from geoprocessing task

// [WriteFile Name=ShowViewshedCalculatedFromGeoprocessingTask, Category=Analysis]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "ShowViewshedCalculatedFromGeoprocessingTask.h"

// ArcGIS Maps SDK headers
#include "Error.h"
#include "Feature.h"
#include "FeatureCollectionTable.h"
#include "FeatureIterator.h"
#include "Field.h"
#include "GeoprocessingFeatures.h"
#include "GeoprocessingJob.h"
#include "GeoprocessingParameter.h"
#include "GeoprocessingParameters.h"
#include "GeoprocessingResult.h"
#include "GeoprocessingTask.h"
#include "GeoprocessingTypes.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "MapViewTypes.h"
#include "Point.h"
#include "SimpleFillSymbol.h"
#include "SimpleMarkerSymbol.h"
#include "SimpleRenderer.h"
#include "SpatialReference.h"
#include "SymbolTypes.h"
#include "TaskTypes.h"
#include "Viewpoint.h"

// Qt headers
#include <QFuture>
#include <QMouseEvent>
#include <QUuid>

using namespace Esri::ArcGISRuntime;

ShowViewshedCalculatedFromGeoprocessingTask::ShowViewshedCalculatedFromGeoprocessingTask(QQuickItem* parent /* = nullptr */) :
  QQuickItem(parent)
{
}

ShowViewshedCalculatedFromGeoprocessingTask::~ShowViewshedCalculatedFromGeoprocessingTask() = default;

void ShowViewshedCalculatedFromGeoprocessingTask::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<ShowViewshedCalculatedFromGeoprocessingTask>("Esri.Samples", 1, 0, "ShowViewshedCalculatedFromGeoprocessingTaskSample");
}

void ShowViewshedCalculatedFromGeoprocessingTask::componentComplete()
{
  QQuickItem::componentComplete();

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");
  m_mapView->setWrapAroundMode(WrapAroundMode::Disabled);

  // Create a map using the topographic basemap
  m_map = new Map(BasemapStyle::ArcGISTopographic, this);
  m_map->setInitialViewpoint(Viewpoint(Point(6.84905317262762, 45.3790902612337, SpatialReference(4326)), 100000));

  // Set map to map view
  m_mapView->setMap(m_map);

  // Create the GeoprocessingTask
  m_viewshedTask =
    new GeoprocessingTask(QUrl("https://sampleserver6.arcgisonline.com/arcgis/rest/services/Elevation/ESRI_Elevation_World/GPServer/Viewshed"), this);

  // Create the Graphics Overlays
  createOverlays();

  // Connect signals
  connectSignals();
}

void ShowViewshedCalculatedFromGeoprocessingTask::createOverlays()
{
  // Create the graphics overlays for the input and output
  m_inputOverlay = new GraphicsOverlay(this);
  m_inputGraphic = new Graphic(this);
  m_inputOverlay->graphics()->append(m_inputGraphic);
  SimpleMarkerSymbol* sms = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::Circle, QColor("red"), 12.0, this);
  SimpleRenderer* inputRenderer = new SimpleRenderer(sms, this);
  m_inputOverlay->setRenderer(inputRenderer);
  m_mapView->graphicsOverlays()->append(m_inputOverlay);

  m_resultsOverlay = new GraphicsOverlay(this);
  SimpleFillSymbol* sfs = new SimpleFillSymbol(SimpleFillSymbolStyle::Solid, QColor(226, 119, 40, 100), this);
  SimpleRenderer* outputRenderer = new SimpleRenderer(sfs, this);
  m_resultsOverlay->setRenderer(outputRenderer);
  m_mapView->graphicsOverlays()->append(m_resultsOverlay);
}

void ShowViewshedCalculatedFromGeoprocessingTask::connectSignals()
{
  // Set up signal handler for the mouse clicked signal
  connect(m_mapView, &MapQuickView::mouseClicked, this, [this](QMouseEvent& mouse)
  {
    // The geoprocessing task is still executing, don't do anything else (i.e. respond to
    // more user taps) until the processing is complete.
    if (m_viewshedInProgress)
    {
      return;
    }

    // Indicate that the geoprocessing is running
    m_viewshedInProgress = true;

    // Clear previous viewshed geoprocessing task results
    m_resultsOverlay->graphics()->clear();
    if (m_graphicParent)
    {
      delete m_graphicParent;
      m_graphicParent = nullptr;
    }

    // Create a marker graphic where the user clicked on the map and add it to the existing graphics overlay
    Point mapPoint = m_mapView->screenToLocation(mouse.position().x(), mouse.position().y());
    if (m_inputGraphic)
    {
      m_inputGraphic->setGeometry(mapPoint);
    }

    // Setup the geoprocessing task
    calculateViewshed();
  });

  // Connect to the GP Task's errorOccurred signal
  connect(m_viewshedTask, &GeoprocessingTask::errorOccurred, this, [this](const Error& error)
  {
    emit displayErrorDialog("Geoprocessing Task failed", error.message());
  });
}

void ShowViewshedCalculatedFromGeoprocessingTask::calculateViewshed()
{
  // Create a new feature collection table based upon point geometries using the current map view spatial reference
  FeatureCollectionTable* inputFeatures = new FeatureCollectionTable(QList<Field>(), GeometryType::Point, SpatialReference::webMercator(), this);

  // Create a new feature from the feature collection table. It will not have a coordinate location (x,y) yet
  Feature* inputFeature = inputFeatures->createFeature(this);

  // Assign a physical location to the new point feature based upon where the user clicked on the map view
  inputFeature->setGeometry(m_inputOverlay->graphics()->at(0)->geometry());

  // Add the new feature with (x,y) location to the feature collection table
  inputFeatures->addFeatureAsync(inputFeature)
    .then(this, [this, inputFeatures]()
  {
    onAddFeatureCompleted_(inputFeatures);
  });
}

void ShowViewshedCalculatedFromGeoprocessingTask::onAddFeatureCompleted_(FeatureCollectionTable* inputFeatures)
{
  // Create the parameters that are passed to the used geoprocessing task
  GeoprocessingParameters viewshedParameters = GeoprocessingParameters(GeoprocessingExecutionType::SynchronousExecute);

  // Request the output features to use the same SpatialReference as the map view
  viewshedParameters.setOutputSpatialReference(SpatialReference::webMercator());

  // Add an input location to the geoprocessing parameters
  QMap<QString, GeoprocessingParameter*> inputs;
  inputs["Input_Observation_Point"] = new GeoprocessingFeatures(inputFeatures, this);
  viewshedParameters.setInputs(inputs);

  // Create the job that handles the communication between the application and the geoprocessing task
  GeoprocessingJob* viewshedJob = m_viewshedTask->createJob(viewshedParameters);

  // Create signal handler for the job
  connect(viewshedJob, &GeoprocessingJob::statusChanged, this, [this, viewshedJob](JobStatus jobStatus)
  {
    switch (jobStatus)
    {
      case JobStatus::Failed:
        emit displayErrorDialog("Geoprocessing Task failed", !viewshedJob->error().isEmpty() ? viewshedJob->error().message() : "Unknown error.");
        m_viewshedInProgress = false;
        m_jobStatus = "Job failed";
        break;
      case JobStatus::Started:
        m_viewshedInProgress = true;
        m_jobStatus = "Job in progress...";
        break;
      case JobStatus::Paused:
        m_viewshedInProgress = false;
        m_jobStatus = "Job paused...";
        break;
      case JobStatus::Succeeded:
        m_viewshedInProgress = false;
        m_jobStatus = "Job succeeded";
        // handle the results
        processResults(viewshedJob->result());
        break;
      default:
        break;
    }

    // emit signals
    emit viewshedInProgressChanged();
    emit statusChanged();
  });

  // start the job
  viewshedJob->start();
}

void ShowViewshedCalculatedFromGeoprocessingTask::processResults(GeoprocessingResult* results)
{
  // Get the results from the outputs as GeoprocessingFeatures
  const QMap<QString, GeoprocessingParameter*> outputs = results->outputs();
  GeoprocessingFeatures* viewshedResultFeatures = static_cast<GeoprocessingFeatures*>(outputs["Viewshed_Result"]);

  // Create the parent for the graphic
  if (!m_graphicParent)
  {
    m_graphicParent = new QObject(this);
  }

  // Add all the features from the result feature set as a graphics to the map
  FeatureIterator features = viewshedResultFeatures->features()->iterator();
  while (features.hasNext())
  {
    Feature* feat = features.next(this);
    Graphic* graphic = new Graphic(feat->geometry(), m_graphicParent);
    m_resultsOverlay->graphics()->append(graphic);
  }
}

// [WriteFile Name=ShowViewshedCalculatedFromGeoprocessingTask, Category=Analysis]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef ShowViewshedCalculatedFromGeoprocessingTask_H
#define ShowViewshedCalculatedFromGeoprocessingTask_H

// Qt headers
#include <QQuickItem>

namespace Esri::ArcGISRuntime
{
  class FeatureCollectionTable;
  class GraphicsOverlay;
  class GeoprocessingTask;
  class GeoprocessingResult;
  class Graphic;
  class Map;
  class MapQuickView;
} // namespace Esri::ArcGISRuntime

class ShowViewshedCalculatedFromGeoprocessingTask : public QQuickItem
{
  Q_OBJECT

  Q_PROPERTY(bool viewshedInProgress MEMBER m_viewshedInProgress NOTIFY viewshedInProgressChanged)
  Q_PROPERTY(QString statusText READ jobStatus NOTIFY statusChanged)

public:
  explicit ShowViewshedCalculatedFromGeoprocessingTask(QQuickItem* parent = nullptr);
  ~ShowViewshedCalculatedFromGeoprocessingTask() override;

  void componentComplete() override;
  static void init();

signals:
  void viewshedInProgressChanged();
  void displayErrorDialog(const QString& titleText, const QString& detailedText);
  void statusChanged();

private:
  void onAddFeatureCompleted_(Esri::ArcGISRuntime::FeatureCollectionTable* inputFeatures);

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_inputOverlay = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_resultsOverlay = nullptr;
  Esri::ArcGISRuntime::GeoprocessingTask* m_viewshedTask = nullptr;
  Esri::ArcGISRuntime::Graphic* m_inputGraphic = nullptr;
  bool m_viewshedInProgress = false;
  QString m_jobStatus;
  QObject* m_graphicParent = nullptr;

private:
  void connectSignals();
  void createOverlays();
  void calculateViewshed();
  void processResults(Esri::ArcGISRuntime::GeoprocessingResult* results);

  QString jobStatus() const
  {
    return m_jobStatus;
  }
};

#endif // ShowViewshedCalculatedFromGeoprocessingTask_H

// [WriteFile Name=ShowViewshedCalculatedFromGeoprocessingTask, Category=Analysis]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts
import Esri.Samples

ShowViewshedCalculatedFromGeoprocessingTaskSample {
    id: rootRectangle
    clip: true
    width: 800
    height: 600

    MapView {
        anchors.fill: parent
        objectName: "mapView"

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    onDisplayErrorDialog: {
        messageDialog.title = qsTr("Error");
        messageDialog.text = titleText;
        messageDialog.detailedText = detailedText;
        messageDialog.open();
    }

    // Create rectangle to display the status
    Rectangle {
        anchors {
            margins: -10
            fill: statusColumn
        }
        color: palette.base
        radius: 5
        border.color: "black"
        opacity: 0.85
    }

    Column {
        id: statusColumn
        anchors {
            right: parent.right
            top: parent.top
            margins: 20
        }

        Label {
            anchors.margins: 5
            visible: !viewshedInProgress
            text: qsTr("Click map to execute viewshed analysis")
            font.pixelSize: 12
        }

        Row {
            anchors.margins: 5
            visible: viewshedInProgress
            spacing: 10

            BusyIndicator {
                anchors.verticalCenter: parent.verticalCenter
                width: 32
                height: width
            }

            Label {
                anchors.verticalCenter: parent.verticalCenter
                text: statusText
                font.pixelSize: 12
            }
        }
    }

    MouseArea {
        anchors.fill: statusColumn
        acceptedButtons: Qt.LeftButton | Qt.RightButton
        onClicked: mouse => mouse.accepted = true
        onDoubleClicked: mouse => mouse.accepted = true
        onWheel: wheel => wheel.accepted = true
    }

    Dialog {
        id: messageDialog
        modal: true
        x: Math.round(parent.width - width) / 2
        y: Math.round(parent.height - height) / 2
        standardButtons: Dialog.Ok
        title: qsTr("Error")
        property alias text : textLabel.text
        property alias detailedText : detailsLabel.text
        ColumnLayout {
            Label {
                id: textLabel
                text: qsTr("Executing geoprocessing failed.")
            }
            Label {
                id: detailsLabel
            }
        }
    }
}

// [WriteFile Name=ShowViewshedCalculatedFromGeoprocessingTask, Category=Analysis]
// [Legal]
// Copyright 2015 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "ShowViewshedCalculatedFromGeoprocessingTask.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlEngine>
#include <QQuickView>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char* argv[])
{
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("ShowViewshedCalculatedFromGeoprocessingTask"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
    qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires"
               << "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
    Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }
  // Initialize the sample
  ShowViewshedCalculatedFromGeoprocessingTask::init();

  // Initialize application view
  QQuickView view;
  view.setResizeMode(QQuickView::SizeRootObjectToView);

  // Add the import Path
  view.engine()->addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

#if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
#endif

  // Add the Runtime and Extras path
  view.engine()->addImportPath(arcGISRuntimeImportPath);

  // Set the source
  view.setSource(QUrl("qrc:/Samples/Analysis/ShowViewshedCalculatedFromGeoprocessingTask/ShowViewshedCalculatedFromGeoprocessingTask.qml"));

  view.show();

  return app.exec();
}
