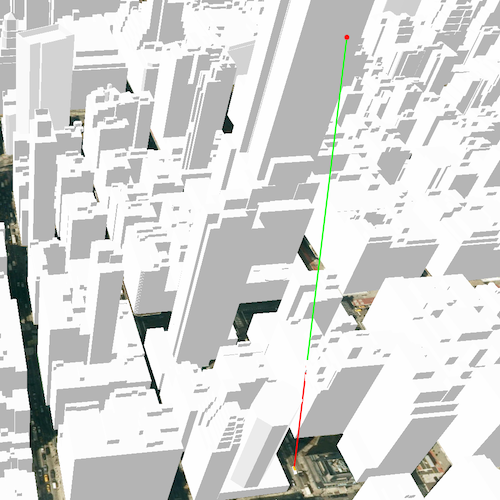

Show exploratory line of sight (GeoElement)

// [WriteFile Name=ShowExploratoryLineOfSightBetweenGeoElements, Category=Analysis]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "ShowExploratoryLineOfSightBetweenGeoElements.h"

// ArcGIS Maps SDK headers
#include "AnalysisListModel.h"
#include "AnalysisOverlay.h"
#include "AnalysisOverlayListModel.h"
#include "AngularUnit.h"
#include "ArcGISSceneLayer.h"
#include "ArcGISTiledElevationSource.h"
#include "AttributeListModel.h"
#include "Camera.h"
#include "ElevationSourceListModel.h"
#include "Error.h"
#include "ExploratoryGeoElementLineOfSight.h"
#include "GeodeticDistanceResult.h"
#include "GeometryEngine.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "LayerListModel.h"
#include "LayerSceneProperties.h"
#include "LinearUnit.h"
#include "MapTypes.h"
#include "ModelSceneSymbol.h"
#include "Point.h"
#include "PointBuilder.h"
#include "RendererSceneProperties.h"
#include "Scene.h"
#include "SceneQuickView.h"
#include "SceneViewTypes.h"
#include "SimpleMarkerSymbol.h"
#include "SimpleRenderer.h"
#include "SpatialReference.h"
#include "Surface.h"
#include "SymbolTypes.h"

// Qt headers
#include <QFuture>
#include <QStandardPaths>
#include <QtCore/qglobal.h>

// STL headers
#include <array>

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
  QString defaultDataPath()
  {
    QString dataPath;

#ifdef Q_OS_IOS
    dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
#else
    dataPath = QStandardPaths::writableLocation(QStandardPaths::HomeLocation);
#endif

    return dataPath;
  }
} // namespace

namespace
{

  // Initial fixed point to observe taxi.
  const Point observationPoint(-73.9853, 40.7484, 200, SpatialReference::wgs84());

  // Waypoints around the block for taxi to drive.
  const std::array<Point, 4> waypoints = {{{-73.984513, 40.748469, 2, SpatialReference::wgs84()},
                                           {-73.985068, 40.747786, 2, SpatialReference::wgs84()},
                                           {-73.983452, 40.747091, 2, SpatialReference::wgs84()},
                                           {-73.982961, 40.747762, 2, SpatialReference::wgs84()}}};
} // namespace

ShowExploratoryLineOfSightBetweenGeoElements::ShowExploratoryLineOfSightBetweenGeoElements(QObject* parent /* = nullptr */) :
  QObject(parent),
  m_scene(new Scene(BasemapStyle::ArcGISImageryStandard, this))
{
  // create a new elevation source from Terrain3D rest service
  ArcGISTiledElevationSource* elevationSource =
    new ArcGISTiledElevationSource(QUrl("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"), this);

  // add the elevation source to the scene to display elevation
  m_scene->baseSurface()->elevationSources()->append(elevationSource);

  // Load up the buildings that will block the line of sight.
  ArcGISSceneLayer* buildings = new ArcGISSceneLayer(
    QUrl("https://tiles.arcgis.com/tiles/z2tnIkrLQ2BRzr6P/arcgis/rest/services/New_York_LoD2_3D_Buildings/SceneServer/layers/0"), this);
  m_scene->operationalLayers()->append(buildings);

  // Trigger animation of taxi every 100ms.
  m_animation.setInterval(100);
  m_animation.callOnTimeout(this, &ShowExploratoryLineOfSightBetweenGeoElements::animate);
}

ShowExploratoryLineOfSightBetweenGeoElements::~ShowExploratoryLineOfSightBetweenGeoElements() = default;

void ShowExploratoryLineOfSightBetweenGeoElements::init()
{
  // Register classes for QML
  qmlRegisterType<SceneQuickView>("Esri.Samples", 1, 0, "SceneView");
  qmlRegisterType<ShowExploratoryLineOfSightBetweenGeoElements>("Esri.Samples", 1, 0, "ShowExploratoryLineOfSightBetweenGeoElementsSample");
}

double ShowExploratoryLineOfSightBetweenGeoElements::heightZ() const
{
  if (m_observer)
  {
    const Point p = geometry_cast<Point>(m_observer->geometry());
    return p.isValid() ? p.z() : 0.0;
  }
  else
  {
    return 0.0;
  }
}

void ShowExploratoryLineOfSightBetweenGeoElements::setHeightZ(double z)
{
  if (!m_observer)
  {
    return;
  }

  const Point p = geometry_cast<Point>(m_observer->geometry());
  if (p.isValid())
  {
    PointBuilder builder(p);
    builder.setZ(z);
    m_observer->setGeometry(builder.toGeometry());
    emit heightZChanged();
  }
}

SceneQuickView* ShowExploratoryLineOfSightBetweenGeoElements::sceneView() const
{
  return m_sceneView;
}

// Set the view (created in QML)
void ShowExploratoryLineOfSightBetweenGeoElements::setSceneView(SceneQuickView* sceneView)
{
  if (!sceneView || sceneView == m_sceneView)
  {
    return;
  }

  m_sceneView = sceneView;
  m_sceneView->setArcGISScene(m_scene);
  emit sceneViewChanged();

  if (!defaultDataPath().isEmpty() && m_sceneView)
  {
    initialize();
  }
}

void ShowExploratoryLineOfSightBetweenGeoElements::initialize()
{
  // Setup the graphics overlay - ensure that all z-position are relative to the height of the surface.
  GraphicsOverlay* graphicsOverlay = new GraphicsOverlay(this);
  {
    LayerSceneProperties properties = graphicsOverlay->sceneProperties();
    properties.setSurfacePlacement(SurfacePlacement::Relative);
    graphicsOverlay->setSceneProperties(properties);
  }
  m_sceneView->graphicsOverlays()->append(graphicsOverlay);

  // Set up the renderer so that we can orient the taxi using the `HEADING` attribute.
  SimpleRenderer* renderer3D = new SimpleRenderer(this);
  {
    RendererSceneProperties properties = renderer3D->sceneProperties();
    properties.setHeadingExpression("[HEADING]");
    renderer3D->setSceneProperties(properties);
  }
  graphicsOverlay->setRenderer(renderer3D);

  // Create our observation point as a red sphere.
  m_observer = new Graphic(observationPoint, new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::Circle, Qt::red, 5.f, this), this);
  emit heightZChanged(); // We now have a point to extract the Z-height from.
  graphicsOverlay->graphics()->append(m_observer);

  // Get our Taxi model. We will attempt to load it and continue our setup after it has loaded.
  const QUrl modelPath = defaultDataPath() + "/ArcGIS/Runtime/Data/3D/dolmus_3ds/dolmus.3ds";
  ModelSceneSymbol* taxiSymbol = new ModelSceneSymbol(modelPath, 1.0, this);
  taxiSymbol->setAnchorPosition(SceneSymbolAnchorPosition::Bottom);

  connect(taxiSymbol, &ModelSceneSymbol::doneLoading, this, [this, graphicsOverlay, taxiSymbol](const Error& error)
  {
    if (!error.isEmpty())
    {
      return;
    }

    // Create taxi from loaded taxi symbol, with an initial "HEADING" attribute for orientation.
    m_taxi = new Graphic(waypoints.front(), taxiSymbol, this);
    m_taxi->attributes()->insertAttribute("HEADING", 0.0);
    graphicsOverlay->graphics()->append(m_taxi);

    // Set up our line of sight analysis.
    AnalysisOverlay* analysisOverlay = new AnalysisOverlay(this);
    m_sceneView->analysisOverlays()->append(analysisOverlay);

    ExploratoryGeoElementLineOfSight* lineOfSight = new ExploratoryGeoElementLineOfSight(m_observer, m_taxi, this);
    analysisOverlay->analyses()->append(lineOfSight);

    connect(lineOfSight, &ExploratoryGeoElementLineOfSight::targetVisibilityChanged, this,
            [this](ExploratoryLineOfSightTargetVisibility targetVisibility)
    {
      // Select taxi whenever there is a clear line of sight from observer position.
      m_taxi->setSelected(targetVisibility == ExploratoryLineOfSightTargetVisibility::Visible);
    });

    Camera camera(observationPoint, 700, -30, 45, 0);
    m_sceneView->setViewpointCameraAsync(camera, 0);

    m_animation.start();
  });

  taxiSymbol->load();
}

void ShowExploratoryLineOfSightBetweenGeoElements::animate()
{
  // Goal point to travel to
  Point waypoint = waypoints.at(m_waypointIndex);

  // Calculate azimuth between current location and goal location for taxi.
  Point location = geometry_cast<Point>(m_taxi->geometry());

  if (!location.isValid())
  {
    return;
  }

  GeodeticDistanceResult distance =
    GeometryEngine::distanceGeodetic(location, waypoint, LinearUnit::meters(), AngularUnit::degrees(), GeodeticCurveType::Geodesic);

  // Move taxi one metre along the line between its current position and the goal location.
  QList<Point> newPoints =
    GeometryEngine::moveGeodetic({location}, 1.0, LinearUnit::meters(), distance.azimuth1(), AngularUnit::degrees(), GeodeticCurveType::Geodesic);
  if (newPoints.size() > 0)
  {
    location = newPoints.last();
  }

  // Update taxi position and orientation.
  m_taxi->setGeometry(geometry_cast<Geometry>(location));
  m_taxi->attributes()->replaceAttribute("HEADING", distance.azimuth1());

  // When taxi is close enough to the waypoint then increment the index for a new goal next animation step.
  // Index is cyclic and an element of [0, 3].
  if (distance.distance() <= 2)
  {
    m_waypointIndex = (m_waypointIndex + 1) % waypoints.size();
  }
}

// [WriteFile Name=ShowExploratoryLineOfSightBetweenGeoElements, Category=Analysis]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef ShowExploratoryLineOfSightBetweenGeoElements_H
#define ShowExploratoryLineOfSightBetweenGeoElements_H

// Qt headers
#include <QObject>
#include <QTimer>

namespace Esri::ArcGISRuntime
{
  class Scene;
  class SceneQuickView;
  class Graphic;
} // namespace Esri::ArcGISRuntime

Q_MOC_INCLUDE("SceneQuickView.h")

class ShowExploratoryLineOfSightBetweenGeoElements : public QObject
{
  Q_OBJECT

  Q_PROPERTY(double heightZ READ heightZ WRITE setHeightZ NOTIFY heightZChanged)
  Q_PROPERTY(Esri::ArcGISRuntime::SceneQuickView* sceneView READ sceneView WRITE setSceneView NOTIFY sceneViewChanged)

public:
  explicit ShowExploratoryLineOfSightBetweenGeoElements(QObject* parent = nullptr);
  ~ShowExploratoryLineOfSightBetweenGeoElements() override;

  static void init();

signals:
  void heightZChanged();
  void sceneViewChanged();

private slots:
  void animate();

private:
  double heightZ() const;
  void setHeightZ(double z);

  Esri::ArcGISRuntime::SceneQuickView* sceneView() const;
  void setSceneView(Esri::ArcGISRuntime::SceneQuickView* sceneView);
  void initialize();

  Esri::ArcGISRuntime::Scene* m_scene = nullptr;
  Esri::ArcGISRuntime::SceneQuickView* m_sceneView = nullptr;

  QTimer m_animation;
  std::size_t m_waypointIndex = 0;
  Esri::ArcGISRuntime::Graphic* m_taxi = nullptr;
  Esri::ArcGISRuntime::Graphic* m_observer = nullptr;
};

#endif // ShowExploratoryLineOfSightBetweenGeoElements_H

// [WriteFile Name=ShowExploratoryLineOfSightBetweenGeoElements, Category=Analysis]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples

Item {
    SceneView {
        id: view
        anchors.fill: parent

        Component.onCompleted: {
            // Set the focus on SceneView to initially enable keyboard navigation
            forceActiveFocus();
        }

        Rectangle {
            anchors {
                margins: 5
                right: parent.right
                verticalCenter: parent.verticalCenter
            }
            color: palette.base
            radius: 10
            width: 80
            height: parent.height * 0.5

            Column {
                anchors {
                    fill: parent
                    margins: 10
                }
                spacing: 10

                Label {
                    text: "Height: " + Math.round(heightSlider.value) + " m"
                    anchors.horizontalCenter: parent.horizontalCenter
                    font.pixelSize: 14
                    width: parent.width
                    horizontalAlignment: Text.AlignHCenter
                    wrapMode: Text.WordWrap
                }

                Slider {
                    id: heightSlider
                    anchors.horizontalCenter: parent.horizontalCenter
                    height: parent.height - parent.spacing - 40
                    width: 40
                    from: 150
                    to: 300
                    stepSize: 10
                    value: model.heightZ
                    orientation: Qt.Vertical
                    onMoved: {
                        model.heightZ = value;
                    }
                }
            }
        }
    }

    // Declare the C++ instance which creates the scene etc. and supply the view
    ShowExploratoryLineOfSightBetweenGeoElementsSample {
        id: model
        sceneView: view
    }
}

// [WriteFile Name=ShowExploratoryLineOfSightBetweenGeoelements, Category=Analysis]
// [Legal]
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "ShowExploratoryLineOfSightBetweenGeoElements.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>
#include <QSurfaceFormat>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char* argv[])
{
#if defined(Q_OS_LINUX) && !defined(Q_OS_ANDROID)
  // Linux requires 3.2 OpenGL Context
  // in order to instance 3D symbols
  QSurfaceFormat fmt = QSurfaceFormat::defaultFormat();
  fmt.setVersion(3, 2);
  QSurfaceFormat::setDefaultFormat(fmt);
#endif

  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("ShowExploratoryLineOfSightBetweenGeoElements"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
    qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires"
               << "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
    Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  ShowExploratoryLineOfSightBetweenGeoElements::init();

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

#if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
#endif

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));
  // Add the Runtime and Extras path
  engine.addImportPath(arcGISRuntimeImportPath);

  // Set the source
  engine.load(QUrl("qrc:/Samples/Analysis/ShowExploratoryLineOfSightBetweenGeoElements/main.qml"));

  return app.exec();
}

// Copyright 2019 ESRI
//
// All rights reserved under the copyright laws of the United States
// and applicable international laws, treaties, and conventions.
//
// You may freely redistribute and use this sample code, with or
// without modification, provided you include the original copyright
// notice and use restrictions.
//
// See the Sample code usage restrictions document for further information.
//

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    ShowExploratoryLineOfSightBetweenGeoElements {
        anchors.fill: parent
    }
}
