Analyze terrain suitability from an elevation raster by deriving slope and aspect.

Use case

Terrain suitability analysis narrows a larger elevation surface down to areas that match a specific set of conditions. Slope and aspect are derived from elevation datasets to show how steep the terrain is and which direction it faces. Those factors can determine whether an area is suitable for a given purpose, such as finding more sheltered terrain versus more exposed terrain.

How to use the sample

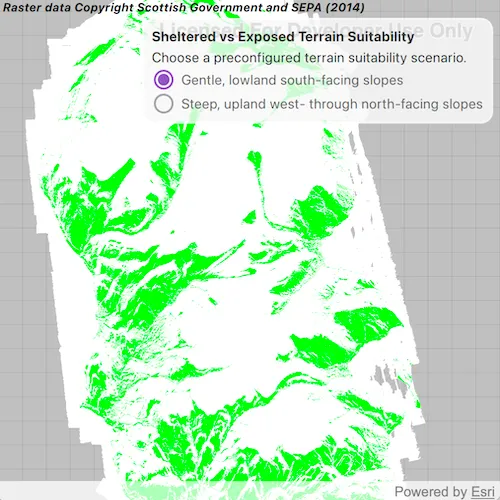

When the sample opens, the map shows a preconfigured terrain suitability analysis for south-facing lowland slopes on the Isle of Arran, Scotland. The matching areas are rendered in green and the non-matching areas are rendered in white. Open the settings panel to switch to the second scenario, which highlights west- to north-facing upland slopes in purple.

How it works

Create a blank Map with a spatial reference set to UTM 30N so the analysis runs in a conformal coordinate system.
Create a ContinuousField from the elevation raster and project it to the map spatial reference.
Create a ContinuousFieldFunction from the continuous field and derive slope and aspect functions.
Build BooleanFieldFunction masks for slope, aspect, elevation, and land-only areas using range checks and long-form boolean field methods.
Combine the masks with logicalAnd and logicalOr to build a final scenario mask.
Convert the final mask to a DiscreteFieldFunction and create a FieldAnalysis from it.
Apply a ColormapRenderer with white for non-matching areas and green or purple for matching areas.
Add the analyses to an AnalysisOverlay and toggle their visibility from the settings panel.

Relevant API

AnalysisOverlay
BooleanFieldFunction
Colormap
ColormapRenderer
ContinuousField
ContinuousFieldFunction
DiscreteFieldFunction
FieldAnalysis
Map
MapQuickView
SpatialReference

About the data

The sample uses a 10m resolution digital terrain elevation raster of the Isle of Arran, Scotland from ArcGIS Online.

The data requires this attribution to be shown in the app display somewhere:

Raster data Copyright Scottish Government and SEPA (2014)

Sample code

AnalyzeTerrainSuitabilityWithSlopeAndAspect.cpp

AnalyzeTerrainSuitabilityWithSlopeAndAspect.h

AnalyzeTerrainSuitabilityWithSlopeAndAspect.qml

// [WriteFile Name=AnalyzeTerrainSuitabilityWithSlopeAndAspect, Category=Analysis]
// [Legal]
// Copyright 2026 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "AnalyzeTerrainSuitabilityWithSlopeAndAspect.h"

// ArcGIS Maps SDK headers
#include "AnalysisListModel.h"
#include "AnalysisOverlay.h"
#include "AnalysisOverlayListModel.h"
#include "BooleanFieldFunction.h"
#include "Colormap.h"
#include "ColormapRenderer.h"
#include "ContinuousField.h"
#include "ContinuousFieldFunction.h"
#include "DiscreteFieldFunction.h"
#include "Envelope.h"
#include "FieldAnalysis.h"
#include "Map.h"
#include "MapQuickView.h"
#include "Point.h"
#include "SpatialReference.h"

// Qt headers
#include <QColor>
#include <QFileInfo>
#include <QFuture>
#include <QStandardPaths>

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
  QString defaultDataPath()
  {
    QString dataPath;

#ifdef Q_OS_IOS
    dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
#else
    dataPath = QStandardPaths::writableLocation(QStandardPaths::HomeLocation);
#endif

    return dataPath;
  }
} // namespace

AnalyzeTerrainSuitabilityWithSlopeAndAspect::AnalyzeTerrainSuitabilityWithSlopeAndAspect(QObject* parent /* = nullptr */) :
  QObject(parent)
{
}

AnalyzeTerrainSuitabilityWithSlopeAndAspect::~AnalyzeTerrainSuitabilityWithSlopeAndAspect() = default;

void AnalyzeTerrainSuitabilityWithSlopeAndAspect::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<AnalyzeTerrainSuitabilityWithSlopeAndAspect>("Esri.Samples", 1, 0, "AnalyzeTerrainSuitabilityWithSlopeAndAspectSample");
}

MapQuickView* AnalyzeTerrainSuitabilityWithSlopeAndAspect::mapView() const
{
  return m_mapView;
}

void AnalyzeTerrainSuitabilityWithSlopeAndAspect::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
  {
    return;
  }

  m_mapView = mapView;

  m_map = new Map(SpatialReference(32630), this);
  loadElevationField();

  m_mapView->setMap(m_map);

  emit mapViewChanged();
}

void AnalyzeTerrainSuitabilityWithSlopeAndAspect::loadElevationField()
{
  const QString rasterPath = defaultDataPath() + QStringLiteral("/ArcGIS/Runtime/Data/raster/arran.tif");
  if (!QFileInfo::exists(rasterPath))
  {
    return;
  }

  // Load the raster into a continuous field that can be queried for slope and aspect.
  const SpatialReference spatialReference(32630);
  ContinuousField::createFromFilesAsync({rasterPath}, 0, spatialReference, this)
    .then(this, [this](ContinuousField* continuousField)
  {
    onContinuousFieldCreated(continuousField);
  });
}

void AnalyzeTerrainSuitabilityWithSlopeAndAspect::onContinuousFieldCreated(ContinuousField* continuousField)
{
  if (!continuousField)
  {
    return;
  }

  // Create the analysis overlay once the raster field is available.
  if (!m_analysisOverlay && m_mapView)
  {
    m_analysisOverlay = new AnalysisOverlay(this);
    m_mapView->analysisOverlays()->append(m_analysisOverlay);
  }

  // Derive slope and aspect from the elevation field
  m_elevationFieldFunction = ContinuousFieldFunction::create(continuousField, this);
  m_slopeFunction = m_elevationFieldFunction->slope();
  m_aspectFunction = m_elevationFieldFunction->aspect();
  m_aboveSeaLevelSelection = m_elevationFieldFunction->isGreaterThanOrEqualTo(0.0F);

  // Build both scenarios up front and toggle visibility when the user changes selection.
  buildAnalysisForScenario(GentleSouthFacingSlopes);
  buildAnalysisForScenario(SteepWestAndNorthFacingSlopes);
  applyFieldAnalysisVisibility();

  if (m_mapView)
  {
    m_mapView->setViewpointCenterAsync(continuousField->extent().center(), 200000);
  }
}

void AnalyzeTerrainSuitabilityWithSlopeAndAspect::buildAnalysisForScenario(SiteScenario scenario)
{
  switch (scenario)
  {
    case GentleSouthFacingSlopes:
      if (m_gentleSouthFacingSlopesAnalysis)
      {
        return;
      }

      // Green highlights sheltered, lowland south-facing areas.
      m_gentleSouthFacingSlopesAnalysis = createScenarioAnalysis(0.0F, 20.0F, 112.5F, 247.5F, 0.0F, 300.0F, QColor(Qt::green));
      if (m_gentleSouthFacingSlopesAnalysis)
      {
        m_analysisOverlay->analyses()->append(m_gentleSouthFacingSlopesAnalysis);
      }
      break;

    case SteepWestAndNorthFacingSlopes:
      if (m_steepWestAndNorthFacingSlopesAnalysis)
      {
        return;
      }

      // Purple highlights steeper upland terrain facing west through north.
      m_steepWestAndNorthFacingSlopesAnalysis = createScenarioAnalysis(20.0F, 80.0F, 202.5F, 67.5F, 300.0F, 850.0F, QColor("purple"));
      if (m_steepWestAndNorthFacingSlopesAnalysis)
      {
        m_analysisOverlay->analyses()->append(m_steepWestAndNorthFacingSlopesAnalysis);
      }
      break;
  }
}

void AnalyzeTerrainSuitabilityWithSlopeAndAspect::applyFieldAnalysisVisibility()
{
  buildAnalysisForScenario(GentleSouthFacingSlopes);
  buildAnalysisForScenario(SteepWestAndNorthFacingSlopes);

  if (m_gentleSouthFacingSlopesAnalysis)
  {
    m_gentleSouthFacingSlopesAnalysis->setVisible(m_selectedScenario == GentleSouthFacingSlopes);
  }

  if (m_steepWestAndNorthFacingSlopesAnalysis)
  {
    m_steepWestAndNorthFacingSlopesAnalysis->setVisible(m_selectedScenario == SteepWestAndNorthFacingSlopes);
  }
}

FieldAnalysis* AnalyzeTerrainSuitabilityWithSlopeAndAspect::createScenarioAnalysis(float slopeMin,
                                                                                   float slopeMax,
                                                                                   float aspectStart,
                                                                                   float aspectEnd,
                                                                                   float elevationMin,
                                                                                   float elevationMax,
                                                                                   const QColor& color)
{
  // Build the scenario mask first, then convert it into a field analysis rendered with two colors.
  BooleanFieldFunction* scenarioFieldFunction = createScenarioFieldFunction(slopeMin, slopeMax, aspectStart, aspectEnd, elevationMin, elevationMax);

  const QList<QColor> colors{QColor(Qt::white), color};
  ColormapRenderer* renderer = new ColormapRenderer(Colormap::create(colors, this), this);

  FieldAnalysis* analysis = FieldAnalysis::create(scenarioFieldFunction->toDiscreteFieldFunction(), renderer, this);
  if (!analysis)
  {
    return nullptr;
  }

  analysis->setVisible(false);
  return analysis;
}

BooleanFieldFunction* AnalyzeTerrainSuitabilityWithSlopeAndAspect::createScenarioFieldFunction(float slopeMin,
                                                                                               float slopeMax,
                                                                                               float aspectStart,
                                                                                               float aspectEnd,
                                                                                               float elevationMin,
                                                                                               float elevationMax)
{
  // Each mask represents a terrain condition that must be satisfied.
  BooleanFieldFunction* slopeRangeMask =
    m_slopeFunction->isGreaterThanOrEqualTo(slopeMin)->logicalAnd(m_slopeFunction->isLessThanOrEqualTo(slopeMax));

  BooleanFieldFunction* aspectRangeMask = nullptr;
  if (aspectStart <= aspectEnd)
  {
    // Normal (non-wrapping) aspect range, such as south-facing terrain.
    aspectRangeMask = m_aspectFunction->isGreaterThanOrEqualTo(aspectStart)->logicalAnd(m_aspectFunction->isLessThanOrEqualTo(aspectEnd));
  }
  else
  {
    // Wrapped aspect range, such as west through north spanning 0 degrees.
    BooleanFieldFunction* aspectFromStartToNorth =
      m_aspectFunction->isGreaterThanOrEqualTo(aspectStart)->logicalAnd(m_aspectFunction->isLessThan(360.0F));
    BooleanFieldFunction* aspectFromZeroToEnd =
      m_aspectFunction->isGreaterThanOrEqualTo(0.0F)->logicalAnd(m_aspectFunction->isLessThanOrEqualTo(aspectEnd));
    aspectRangeMask = aspectFromStartToNorth->logicalOr(aspectFromZeroToEnd);
  }

  // Elevation keeps the analysis within the intended lowland/upland bands.
  BooleanFieldFunction* elevationRangeMask =
    m_elevationFieldFunction->isGreaterThanOrEqualTo(elevationMin)->logicalAnd(m_elevationFieldFunction->isLessThanOrEqualTo(elevationMax));

  return slopeRangeMask->logicalAnd(aspectRangeMask)->logicalAnd(elevationRangeMask)->logicalAnd(m_aboveSeaLevelSelection);
}

void AnalyzeTerrainSuitabilityWithSlopeAndAspect::setSelectedScenario(SiteScenario scenario)
{
  if (m_selectedScenario == scenario)
  {
    return;
  }

  m_selectedScenario = scenario;
  if (m_analysisOverlay)
  {
    applyFieldAnalysisVisibility();
  }

  emit selectedScenarioChanged();
}

// [WriteFile Name=AnalyzeTerrainSuitabilityWithSlopeAndAspect, Category=Analysis]
// [Legal]
// Copyright 2026 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef ANALYZETERRAINSUITABILITYWITHSLOPEANDASPECT_H
#define ANALYZETERRAINSUITABILITYWITHSLOPEANDASPECT_H

// Qt headers
#include <QColor>
#include <QObject>

namespace Esri::ArcGISRuntime
{
  class AnalysisOverlay;
  class BooleanFieldFunction;
  class ContinuousField;
  class ContinuousFieldFunction;
  class FieldAnalysis;
  class Map;
  class MapQuickView;
} // namespace Esri::ArcGISRuntime

Q_MOC_INCLUDE("MapQuickView.h");

class AnalyzeTerrainSuitabilityWithSlopeAndAspect : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)
  Q_PROPERTY(SiteScenario selectedScenario MEMBER m_selectedScenario WRITE setSelectedScenario NOTIFY selectedScenarioChanged)

public:
  enum SiteScenario
  {
    GentleSouthFacingSlopes,
    SteepWestAndNorthFacingSlopes
  };
  Q_ENUM(SiteScenario)

  explicit AnalyzeTerrainSuitabilityWithSlopeAndAspect(QObject* parent = nullptr);
  ~AnalyzeTerrainSuitabilityWithSlopeAndAspect() override;

  static void init();

signals:
  void mapViewChanged();
  void selectedScenarioChanged();

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);
  void loadElevationField();
  void onContinuousFieldCreated(Esri::ArcGISRuntime::ContinuousField* continuousField);
  void buildAnalysisForScenario(SiteScenario scenario);
  void applyFieldAnalysisVisibility();
  Esri::ArcGISRuntime::FieldAnalysis* createScenarioAnalysis(float slopeMin,
                                                             float slopeMax,
                                                             float aspectStart,
                                                             float aspectEnd,
                                                             float elevationMin,
                                                             float elevationMax,
                                                             const QColor& color);
  Esri::ArcGISRuntime::BooleanFieldFunction* createScenarioFieldFunction(float slopeMin,
                                                                         float slopeMax,
                                                                         float aspectStart,
                                                                         float aspectEnd,
                                                                         float elevationMin,
                                                                         float elevationMax);

  void setSelectedScenario(SiteScenario scenario);

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::AnalysisOverlay* m_analysisOverlay = nullptr;
  Esri::ArcGISRuntime::ContinuousFieldFunction* m_elevationFieldFunction = nullptr;
  Esri::ArcGISRuntime::ContinuousFieldFunction* m_slopeFunction = nullptr;
  Esri::ArcGISRuntime::ContinuousFieldFunction* m_aspectFunction = nullptr;
  Esri::ArcGISRuntime::BooleanFieldFunction* m_aboveSeaLevelSelection = nullptr;
  Esri::ArcGISRuntime::FieldAnalysis* m_gentleSouthFacingSlopesAnalysis = nullptr;
  Esri::ArcGISRuntime::FieldAnalysis* m_steepWestAndNorthFacingSlopesAnalysis = nullptr;

  SiteScenario m_selectedScenario = GentleSouthFacingSlopes;
};

#endif // ANALYZETERRAINSUITABILITYWITHSLOPEANDASPECT_H

// [WriteFile Name=AnalyzeTerrainSuitabilityWithSlopeAndAspect, Category=Analysis]
// [Legal]
// Copyright 2026 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts
import Esri.Samples

Item {
    readonly property bool compactUi: width < 760

    AnalyzeTerrainSuitabilityWithSlopeAndAspectSample {
        id: model
    }

    MapView {
        id: view
        anchors.fill: parent
        objectName: "mapView"
        focus: true

        Component.onCompleted: forceActiveFocus()
    }

    Component.onCompleted: {
        model.mapView = view
    }

    Rectangle {
        id: settingsPanel
        anchors.top: parent.top
        anchors.right: parent.right
        anchors.topMargin: compactUi ? 26 : 32
        anchors.rightMargin: compactUi ? 10 : 16
        radius: 12
        color: palette.base
        border.color: palette.mid
        border.width: 2
        opacity: 0.85
        z: 5
        readonly property int panelPadding: compactUi ? 10 : 14
        width: Math.min(settingsColumn.implicitWidth + panelPadding * 2, parent.width - anchors.rightMargin * 2)
        height: settingsColumn.implicitHeight + panelPadding * 2

        MouseArea {
            anchors.fill: parent
            acceptedButtons: Qt.LeftButton | Qt.RightButton
            onClicked: mouse => mouse.accepted = true
            onDoubleClicked: mouse => mouse.accepted = true
            onWheel: wheel => wheel.accepted = true
        }

        ColumnLayout {
            id: settingsColumn
            anchors.fill: parent
            anchors.margins: settingsPanel.panelPadding
            spacing: compactUi ? 4 : 6

            Label {
                text: qsTr("Sheltered vs Exposed Terrain Suitability")
                font.bold: true
                wrapMode: Text.WordWrap
                Layout.fillWidth: true
                Layout.preferredWidth: 280
            }

            Label {
                text: qsTr("Choose a preconfigured terrain suitability scenario.")
                wrapMode: Text.WordWrap
                Layout.fillWidth: true
                Layout.preferredWidth: 280
            }

            ButtonGroup {
                id: scenarioGroup
            }

            RadioButton {
                ButtonGroup.group: scenarioGroup
                checked: model.selectedScenario === AnalyzeTerrainSuitabilityWithSlopeAndAspectSample.GentleSouthFacingSlopes
                text: qsTr("Gentle, lowland south-facing slopes")
                Layout.fillWidth: true
                onClicked: model.selectedScenario = AnalyzeTerrainSuitabilityWithSlopeAndAspectSample.GentleSouthFacingSlopes
            }

            RadioButton {
                ButtonGroup.group: scenarioGroup
                checked: model.selectedScenario === AnalyzeTerrainSuitabilityWithSlopeAndAspectSample.SteepWestAndNorthFacingSlopes
                text: qsTr("Steep, upland west- through north-facing slopes")
                Layout.fillWidth: true
                onClicked: model.selectedScenario = AnalyzeTerrainSuitabilityWithSlopeAndAspectSample.SteepWestAndNorthFacingSlopes
            }
        }
    }

    Label {
        anchors.left: parent.left
        anchors.top: parent.top
        anchors.leftMargin: 8
        anchors.topMargin: 8
        text: qsTr("Raster data Copyright Scottish Government and SEPA (2014)")
        font.italic: true
        font.pointSize: 12
        color: palette.text
        font.bold: true
    }
}
