Display draw status

// [WriteFile Name=DisplayDrawingStatus, Category=Maps]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "DisplayDrawingStatus.h"

// ArcGIS Maps SDK headers
#include "Envelope.h"
#include "FeatureLayer.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "MapViewTypes.h"
#include "ServiceFeatureTable.h"
#include "SpatialReference.h"
#include "Viewpoint.h"

// Qt headers
#include <QUrl>

using namespace Esri::ArcGISRuntime;

DisplayDrawingStatus::DisplayDrawingStatus(QQuickItem* parent):
  QQuickItem(parent)
{
}

DisplayDrawingStatus::~DisplayDrawingStatus() = default;

void DisplayDrawingStatus::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<DisplayDrawingStatus>("Esri.Samples", 1, 0, "DisplayDrawingStatusSample");
}

void DisplayDrawingStatus::componentComplete()
{
  QQuickItem::componentComplete();

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");
  m_mapView->setWrapAroundMode(WrapAroundMode::Disabled);

  // Create a map using the topographic basemap
  m_map = new Map(BasemapStyle::ArcGISTopographic, this);
  m_map->setInitialViewpoint(Viewpoint(Envelope(-13639984, 4537387, -13606734, 4558866, SpatialReference::webMercator())));

  // create feature layer
  ServiceFeatureTable* featureTable = new ServiceFeatureTable(QUrl("https://sampleserver6.arcgisonline.com/arcgis/rest/services/DamageAssessment/FeatureServer/0"), this);
  m_featureLayer = new FeatureLayer(featureTable, this);

  // add the layer to the map
  m_map->operationalLayers()->append(m_featureLayer);

  // Set map to map view
  m_mapView->setMap(m_map);

  connect(m_mapView, &MapQuickView::drawStatusChanged, this, [this](DrawStatus drawStatus)
  {
    m_mapDrawing = (drawStatus == DrawStatus::InProgress);
    emit mapDrawStatusChanged();
  });
}

bool DisplayDrawingStatus::mapDrawing() const
{
  return m_mapDrawing;
}

// [WriteFile Name=DisplayDrawingStatus, Category=Maps]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef DISPLAYDRAWINGSTATUS_H
#define DISPLAYDRAWINGSTATUS_H

// Qt headers
#include <QQuickItem>

namespace Esri::ArcGISRuntime
{
  class Map;
  class MapQuickView;
  class FeatureLayer;
}

class DisplayDrawingStatus : public QQuickItem
{
  Q_OBJECT

  Q_PROPERTY(bool mapDrawing READ mapDrawing NOTIFY mapDrawStatusChanged)

public:
  explicit DisplayDrawingStatus(QQuickItem* parent = nullptr);
  ~DisplayDrawingStatus() override;

  void componentComplete() override;
  static void init();

signals:
  void mapDrawStatusChanged();

private:
  bool mapDrawing() const;

private:
  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::FeatureLayer* m_featureLayer = nullptr;
  bool m_mapDrawing = false;
};

#endif // DISPLAYDRAWINGSTATUS_H

// [WriteFile Name=DisplayDrawingStatus, Category=Maps]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples

DisplayDrawingStatusSample {
    id: displayDrawingStatusSample
    clip: true
    width: 800
    height: 600

    // add a mapView component
    MapView {
        anchors.fill: parent
        objectName: "mapView"

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    // dim window if map is drawing
    Rectangle {
        anchors.fill: parent
        color: "transparent"
        visible: displayDrawingStatusSample.mapDrawing

        Rectangle {
            anchors.fill: parent
            color: "#60000000"
        }

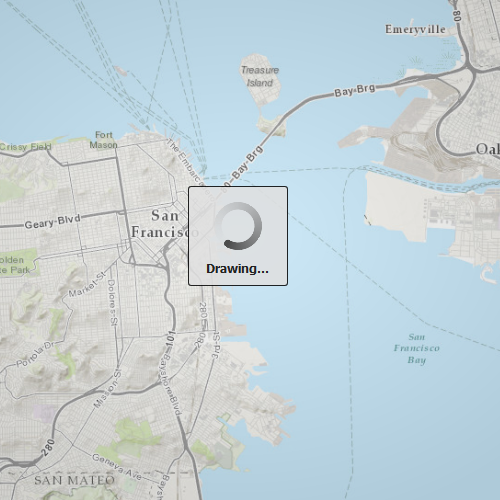

        // pop up to show if MapView is drawing
        Rectangle {
            anchors.centerIn: parent
            width: 100
            height: 100
            radius: 3
            opacity: 0.85
            color: "#E0E0E0"
            border.color: "black"

            Column {
                anchors {
                    centerIn: parent
                    topMargin: 5
                }
                spacing: 5

                BusyIndicator {
                    anchors.horizontalCenter: parent.horizontalCenter
                    height: 60
                    running: displayDrawingStatusSample.mapDrawing
                }

                Text {
                    anchors.horizontalCenter: parent.horizontalCenter
                    font {
                        weight: Font.Black
                        pixelSize: 12
                    }
                    height: 20
                    horizontalAlignment: Text.AlignHCenter
                    text: "Drawing..."
                }
            }
        }
    }
}
