Manage bookmarks

// [WriteFile Name=ManageBookmarks, Category=Maps]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "ManageBookmarks.h"

// ArcGIS Maps SDK headers
#include "Basemap.h"
#include "Bookmark.h"
#include "BookmarkListModel.h"
#include "Envelope.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "SpatialReference.h"
#include "Viewpoint.h"

// Qt headers
#include <QFuture>

using namespace Esri::ArcGISRuntime;

ManageBookmarks::ManageBookmarks(QQuickItem* parent) :
  QQuickItem(parent)
{
}

ManageBookmarks::~ManageBookmarks() = default;

void ManageBookmarks::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<ManageBookmarks>("Esri.Samples", 1, 0, "ManageBookmarksSample");
  qmlRegisterUncreatableType<QAbstractListModel>("Esri.Samples", 1, 0, "AbstractListModel", "AbstractListModel is uncreateable");
}

void ManageBookmarks::componentComplete()
{
  QQuickItem::componentComplete();

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");

  // create a new basemap instance
  Basemap* basemap = new Basemap(BasemapStyle::ArcGISImagery, this);
  // create a new map instance
  m_map = new Map(basemap, this);
  // set map on the map view
  m_mapView->setMap(m_map);

  // create the bookmarks once the map is loaded
  connect(m_map, &Esri::ArcGISRuntime::Map::loadStatusChanged, this, [this](Esri::ArcGISRuntime::LoadStatus loadStatus)
  {
    if (loadStatus == LoadStatus::Loaded)
    {
      m_bookmarks = m_map->bookmarks();
      createInitialBookmarks();
    }
  });
}

void ManageBookmarks::createInitialBookmarks()
{
  // Mysterious Desert Pattern
  Envelope env1(3742993.127298778, 3170396.4675719286, 3744795.1333054285, 3171745.88077, SpatialReference(102100));
  Viewpoint viewpoint1(env1);
  createBookmark("Mysterious Desert Pattern", viewpoint1);

  // Strange Symbol
  Envelope env2(-13009913.860076642, 4495026.9307899885, -13009442.089218518, 4495404.031910696, SpatialReference(102100));
  Viewpoint viewpoint2(env2);
  createBookmark("Strange Symbol", viewpoint2);

  // Guitar-Shaped Forest
  Envelope env3(-7124497.45137465, -4012221.6124684606, -7121131.417429369, -4009697.0870095, SpatialReference(102100));
  Viewpoint viewpoint3(env3);
  createBookmark("Guitar-Shaped Forest", viewpoint3);

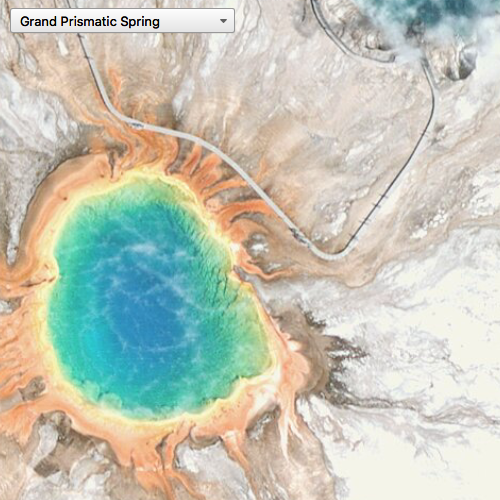

  // Grand Prismatic Spring
  Envelope env4(-12338668.348591767, 5546908.424239618, -12338247.594362013, 5547223.989911933, SpatialReference(102100));
  Viewpoint viewpoint4(env4);
  createBookmark("Grand Prismatic Spring", viewpoint4);
}

void ManageBookmarks::createBookmark(QString name, Viewpoint viewpoint)
{
  //! [Add bookmarks to the list model]
  // Get the bookmark list
  BookmarkListModel* bookmarks = dynamic_cast<BookmarkListModel*>(m_bookmarks);
  if (!bookmarks)
    return;

  // Create the bookmark from the name and viewpoint
  Bookmark* bookmark = new Bookmark(name, viewpoint, this);

  // Add it to the map's bookmark list
  bookmarks->append(bookmark);

  // emit that model has changed
  emit bookmarksChanged();
  //! [Add bookmarks to the list model]
}

void ManageBookmarks::goToBookmark(int bookmarkIndex)
{
  BookmarkListModel* bookmarks = dynamic_cast<BookmarkListModel*>(m_bookmarks);
  if (!bookmarks)
    return;

  m_mapView->setViewpointAsync(bookmarks->at(bookmarkIndex)->viewpoint());
}

QAbstractListModel* ManageBookmarks::bookmarks() const
{
  return m_bookmarks;
}

void ManageBookmarks::addBookmark(QString newBookmarkName)
{
  createBookmark(newBookmarkName, m_mapView->currentViewpoint(ViewpointType::BoundingGeometry));
}

QString ManageBookmarks::bookmarkNameForIndex(int index) const
{
  return m_bookmarks->data(m_bookmarks->index(index),
                           BookmarkListModel::BookmarkNameRole).toString();
}

// [WriteFile Name=ManageBookmarks, Category=Maps]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef MANAGE_BOOKMARKS_H
#define MANAGE_BOOKMARKS_H

// Qt headers
#include <QAbstractListModel>
#include <QQuickItem>

namespace Esri::ArcGISRuntime
{
  class Map;
  class MapQuickView;
  class Viewpoint;
}

class QString;

class ManageBookmarks : public QQuickItem
{
  Q_OBJECT
  //! [Expose the list model to QML]
  Q_PROPERTY(QAbstractListModel* bookmarks READ bookmarks NOTIFY bookmarksChanged)
  //! [Expose the list model to QML]

public:
  explicit ManageBookmarks(QQuickItem* parent = nullptr);
  ~ManageBookmarks() override;

  void componentComplete() override;
  static void init();
  Q_INVOKABLE void goToBookmark(int bookmarkIndex);
  Q_INVOKABLE void addBookmark(QString newBookmarkName);

  Q_INVOKABLE QString bookmarkNameForIndex(int index) const;

signals:
  void bookmarksChanged();

private:
  void createInitialBookmarks();
  void createBookmark(QString name, Esri::ArcGISRuntime::Viewpoint viewpoint);
  QAbstractListModel* bookmarks() const;

private:
  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  QAbstractListModel* m_bookmarks = nullptr;
};

#endif // MANAGE_BOOKMARKS_H

// [WriteFile Name=ManageBookmarks, Category=Maps]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts
import Esri.Samples

ManageBookmarksSample {
    id: manageBookmarksSample
    width: 800
    height: 600

    // add a mapView component
    MapView {
        id: mapView
        anchors.fill: parent
        objectName: "mapView"

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }

        // Create the add button so new bookmarks can be added
        Rectangle {
            id: addButton
            property bool pressed: false
            anchors {
                right: parent.right
                bottom: mapView.attributionTop
                rightMargin: 20
                bottomMargin: 20
            }
            width: childrenRect.width
            height: childrenRect.height
            color: pressed ? "#959595" : "#D6D6D6"
            radius: 100
            border {
                color: "#585858"
                width: 1
            }

            Image {
                rotation: 45
                source: "qrc:/Samples/Maps/ManageBookmarks/add.png"
                width: 32
                height: 32
            }

            MouseArea {
                anchors.fill: parent
                onPressed: addButton.pressed = true
                onReleased: addButton.pressed = false
                onClicked: {
                    // Show the add window when it is clicked
                    addWindow.visible = true;
                }
            }
        }
    }

    //! [Use BookmarkListModel in View]
    ComboBox {
        id: bookmarkComboBox
        anchors {
            left: parent.left
            top: parent.top
            margins: 15
        }
        property int bestWidth: implicitWidth
        width: bestWidth + leftPadding + rightPadding + (indicator ? indicator.width : 10)
        // Set the model to the BookmarkListModel
        model: manageBookmarksSample.bookmarks

        onModelChanged: {
            const model = bookmarkComboBox.model;
            if (model)
            {
                let w = bestWidth;
                for (let i = 0; i < model.rowCount(); ++i) {
                    metrics.text = manageBookmarksSample.bookmarkNameForIndex(i);
                    w = Math.max(w, metrics.width);
                }
                bestWidth = w;
            }
        }

        onCurrentTextChanged: {
            // Call C++ invokable function to to go to the bookmark
            manageBookmarksSample.goToBookmark(bookmarkComboBox.currentIndex);
        }

        // Add a background to the ComboBox
        Rectangle {
            anchors.fill: parent
            radius: 10
            // Make the rectangle visible if a dropdown indicator exists
            // An indicator only exists if a theme is set
            visible: parent.indicator
            border.width: 1
        }

        TextMetrics {
            id: metrics
            font: bookmarkComboBox.font
        }
    }
    //! [Use BookmarkListModel in View]


    // Create a window so names for new bookmarks can be specified
    Rectangle {
        id: addWindow
        visible: false
        enabled: visible
        color: "lightgrey"
        opacity: .9
        radius: 5
        anchors.centerIn: parent
        width: childrenRect.width
        height: childrenRect.height
        border {
            color: "#4D4D4D"
            width: 1
        }

        MouseArea {
            anchors.fill: parent
            onClicked: mouse => mouse.accepted = true;
        }

        GridLayout {
            columns: 2
            Text {
                text: qsTr("Provide the bookmark name")
                Layout.columnSpan: 2
                Layout.margins: 5
            }

            TextField {
                id: textField
                placeholderText: qsTr("ex: Grand Canyon")
                selectByMouse: true
                Layout.columnSpan: 2
                Layout.margins: 5
                Layout.fillWidth: true
            }

            Button {
                text: qsTr("Cancel")
                onClicked: addWindow.visible = false;
                Layout.margins: 5
            }

            Button {
                text: qsTr("Done")
                Layout.margins: 5
                Layout.alignment: Qt.AlignRight
                onClicked: {
                    // Call the C++ invokable function and pass in the name specified
                    manageBookmarksSample.addBookmark(textField.text);
                    bookmarkComboBox.currentIndex = bookmarkComboBox.count - 1;
                    textField.text = "";
                    addWindow.visible = false;
                }
            }
        }
    }
}

// [Legal]
// Copyright 2015 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "ManageBookmarks.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlEngine>
#include <QQuickView>
#include <QSettings>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("ManageBookmarks"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  ManageBookmarks::init();

  /* Leaving in for Doc snippet
  //! [Register the list model for QML]
  qmlRegisterUncreatableType<BookmarkListModel>("Esri.Samples", 1, 0,
                                                "BookmarkListModel",
                                                "BookmarkListModel is an uncreatable type");
  //! [Register the list model for QML]
  */

  // Initialize application view
  QQuickView view;
  view.setResizeMode(QQuickView::SizeRootObjectToView);

  // Add the import Path
  view.engine()->addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

 #if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
 #endif

  // Add the Runtime and Extras path
  view.engine()->addImportPath(arcGISRuntimeImportPath);

  // Set the source
  view.setSource(QUrl("qrc:/Samples/Maps/ManageBookmarks/ManageBookmarks.qml"));

  view.show();

  return app.exec();
}
