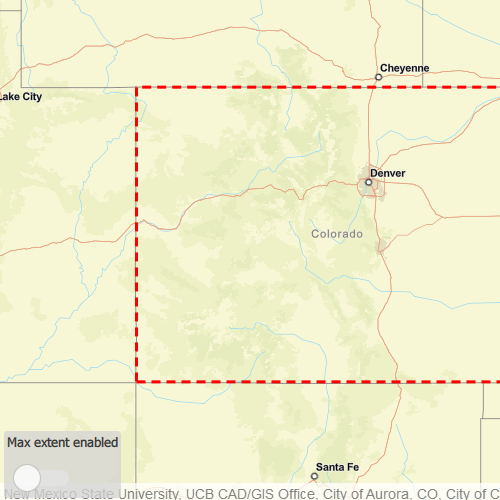

Set max extent

// [WriteFile Name=SetMaxExtent, Category=Maps]
// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "SetMaxExtent.h"

// ArcGIS Maps SDK headers
#include "Envelope.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "SimpleLineSymbol.h"
#include "SpatialReference.h"
#include "SymbolTypes.h"

// Qt headers
#include <QFuture>

using namespace Esri::ArcGISRuntime;

SetMaxExtent::SetMaxExtent(QObject* parent /* = nullptr */):
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISStreets, this))
{
}

SetMaxExtent::~SetMaxExtent() = default;

void SetMaxExtent::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<SetMaxExtent>("Esri.Samples", 1, 0, "SetMaxExtentSample");
}

MapQuickView* SetMaxExtent::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void SetMaxExtent::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_coloradoOverlay = new GraphicsOverlay(this);
  // Create an envelope to be used as the Colorado geometry
  m_coloradoEnvelope = Envelope(-12138232, 4441198, -11362327, 5012861, SpatialReference(3857));

  m_mapView = mapView;
  m_mapView->setMap(m_map);
  m_mapView->graphicsOverlays()->append(m_coloradoOverlay);
  m_map->setMaxExtent(m_coloradoEnvelope);
  createExtentBorder();

  emit mapViewChanged();
}

void SetMaxExtent::createExtentBorder()
{
  m_coloradoOutline = new SimpleLineSymbol(SimpleLineSymbolStyle::Dash, QColor("red"), 3.0f, this);
  m_coloradoGraphic = new Graphic(m_coloradoEnvelope, m_coloradoOutline, this);
  m_coloradoOverlay->graphics()->append(m_coloradoGraphic);
}

void SetMaxExtent::toggleMaxExtent()
{
  m_maxExtentEnabled ? m_maxExtentEnabled = false : m_maxExtentEnabled = true;

  if (!m_maxExtentEnabled) {
    m_map->setMaxExtent(Envelope{});
  }
  else {
    m_map->setMaxExtent(m_coloradoEnvelope);
    m_mapView->setViewpointGeometryAsync(m_coloradoEnvelope, 50);
  }
}

// [WriteFile Name=SetMaxExtent, Category=Maps]
// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef SETMAXEXTENT_H
#define SETMAXEXTENT_H

// ArcGIS Maps SDK headers
#include "Envelope.h"

// Qt headers
#include <QObject>

namespace Esri::ArcGISRuntime
{
class Envelope;
class Graphic;
class GraphicsOverlay;
class Map;
class MapQuickView;
class SimpleLineSymbol;
}

Q_MOC_INCLUDE("MapQuickView.h")

class SetMaxExtent : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)

public:
  explicit SetMaxExtent(QObject* parent = nullptr);
  ~SetMaxExtent();

  static void init();
  Q_INVOKABLE void toggleMaxExtent();

signals:
  void mapViewChanged();

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);
  void createExtentBorder();

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;

  Esri::ArcGISRuntime::Graphic* m_coloradoGraphic = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_coloradoOverlay = nullptr;
  Esri::ArcGISRuntime::Envelope m_coloradoEnvelope;
  Esri::ArcGISRuntime::SimpleLineSymbol* m_coloradoOutline = nullptr;
  bool m_maxExtentEnabled = true;
};

#endif // SETMAXEXTENT_H

// [WriteFile Name=SetMaxExtent, Category=Maps]
// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts
import Esri.Samples

Item {

    // add a mapView component
    MapView {
        id: view
        anchors.fill: parent

        Component.onCompleted: {
            // Set and keep the focus on MapView to enable keyboard navigation
            forceActiveFocus();
        }
    }

    Rectangle {
        anchors {
            margins: 5
            left: parent.left
            bottom: parent.bottom
        }
        width: childrenRect.width
        height: childrenRect.height
        color: "#D3D3D3"
        opacity: .75
        radius: 3

        ColumnLayout {
            Text {
                color: "#000000"
                text: "Max extent enabled"
                Layout.fillWidth: true
                Layout.margins: 3
                font {
                    weight: Font.DemiBold
                    pointSize: 10
                }
            }
            Switch {
                id: maxExtentSwitch
                checked: true
                onClicked: model.toggleMaxExtent();
            }
        }
    }

    // Declare the C++ instance which creates the map etc. and supply the view
    SetMaxExtentSample {
        id: model
        mapView: view
    }
}

// [Legal]
// Copyright 2022 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "SetMaxExtent.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("SetMaxExtent"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  SetMaxExtent::init();

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

#ifdef ARCGIS_RUNTIME_IMPORT_PATH_2
  engine.addImportPath(ARCGIS_RUNTIME_IMPORT_PATH_2);
#endif

  // Set the source
  engine.load(QUrl("qrc:/Samples/Maps/SetMaxExtent/main.qml"));

  return app.exec();
}

// Copyright 2022 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    SetMaxExtent {
        anchors.fill: parent
    }
}
