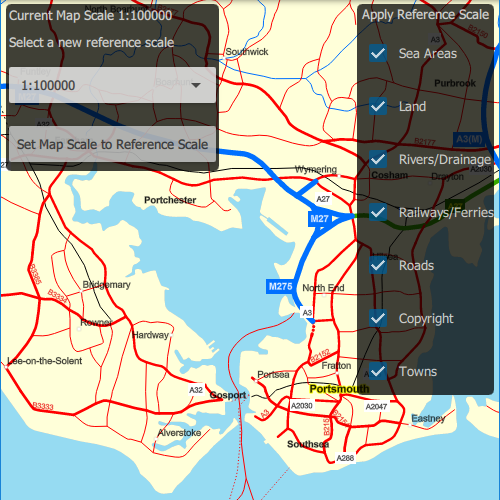

Map reference scale

// [WriteFile Name=MapReferenceScale, Category=Maps]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "MapReferenceScale.h"

// ArcGIS Maps SDK headers
#include "Error.h"
#include "FeatureLayer.h"
#include "Layer.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "Portal.h"
#include "PortalItem.h"

// Qt headers
#include <QFuture>

using namespace Esri::ArcGISRuntime;

MapReferenceScale::MapReferenceScale(QObject* parent /* = nullptr */):
  QObject(parent),
  m_portal(new Portal(this)),
  m_portalItem(new PortalItem(m_portal, "3953413f3bd34e53a42bf70f2937a408", this))
{
  m_map = new Map(m_portalItem, this);

  // Once map is loaded set FeatureLayer list model
  connect(m_map, &Map::doneLoading, this, [this](const Error& loadError)
  {
    if (!loadError.isEmpty())
      return;

    m_layerInfoListModel = m_map->operationalLayers();
    emit layerInfoListModelChanged();
    emit currentMapScaleChanged();

    connect(m_mapView, &MapQuickView::mapScaleChanged, this, [this]()
    {
      emit currentMapScaleChanged();
    });
  });
}

MapReferenceScale::~MapReferenceScale() = default;

void MapReferenceScale::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<MapReferenceScale>("Esri.Samples", 1, 0, "MapReferenceScaleSample");
  qmlRegisterUncreatableType<QAbstractListModel>("Esri.Samples", 1, 0, "AbstractListModel", "AbstractListModel is uncreateable");
}

double MapReferenceScale::currentMapScale() const
{
  if (!m_mapView)
    return 0.0;

  return m_mapView->mapScale();
}

void MapReferenceScale::setCurrentMapScale(double scale)
{
  if(!m_map)
    return;

  m_map->setReferenceScale(scale);
}

void MapReferenceScale::setMapScaleToReferenceScale(double scale)
{
  if(m_mapView)
    m_mapView->setViewpointScaleAsync(scale);
}

void MapReferenceScale::featureLayerScaleSymbols(const QString& layerName, bool checkedStatus)
{
  if(m_layerInfoListModel)
  {
    for(Layer* layer : *static_cast<LayerListModel*>(m_layerInfoListModel))
    {
      if(layer->name() == layerName)
      {
        FeatureLayer* featureLayer = static_cast<FeatureLayer*>(layer);
        if(featureLayer)
          featureLayer->setScaleSymbols(checkedStatus);
      }
    }
  }
}

MapQuickView* MapReferenceScale::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void MapReferenceScale::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  emit mapViewChanged();
}

// [WriteFile Name=MapReferenceScale, Category=Maps]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef MAPREFERENCESCALE_H
#define MAPREFERENCESCALE_H

// Qt headers
#include <QAbstractListModel>
#include <QObject>

namespace Esri::ArcGISRuntime
{
class Map;
class MapQuickView;
class Portal;
class PortalItem;
class LayerListModel;
}

Q_MOC_INCLUDE("MapQuickView.h")

class MapReferenceScale : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)
  Q_PROPERTY(QAbstractListModel* layerInfoListModel MEMBER m_layerInfoListModel NOTIFY layerInfoListModelChanged)
  Q_PROPERTY(double currentMapScale READ currentMapScale WRITE setCurrentMapScale NOTIFY currentMapScaleChanged)

public:
  explicit MapReferenceScale(QObject* parent = nullptr);
  ~MapReferenceScale();

  static void init();

  Q_INVOKABLE void setMapScaleToReferenceScale(double scale);
  Q_INVOKABLE void featureLayerScaleSymbols(const QString& layerName, bool checkedStatus);

signals:
  void mapViewChanged();
  void layerInfoListModelChanged();
  void currentMapScaleChanged();

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);
  void setCurrentMapScale(double scale);
  double currentMapScale() const;

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::Portal* m_portal = nullptr;
  Esri::ArcGISRuntime::PortalItem* m_portalItem = nullptr;
  QAbstractListModel* m_layerInfoListModel = nullptr;
};

#endif // MAPREFERENCESCALE_H

// [WriteFile Name=MapReferenceScale, Category=Maps]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples
import QtQuick.Layouts

Item {
    readonly property var referenceScales: [500000, 250000, 100000, 50000]

    MapView {
        id: myMapView
        anchors.fill: parent

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    Rectangle {
        anchors {
            margins: 5
            left: parent.left
            top: parent.top
        }
        width: childrenRect.width
        height: childrenRect.height
        color: "#000000"
        opacity: .75
        radius: 5

        ColumnLayout {
            Text {
                color: "#ffffff"
                text: "Current Map Scale 1:%1".arg(Math.round(mapReferenceScaleSampleModel.currentMapScale))
                Layout.fillWidth: true
                Layout.margins: 3
                font {
                    weight: Font.DemiBold
                    pointSize: 10
                }
            }

            Text {
                color: "#ffffff"
                text: qsTr("Select a new reference scale")
                Layout.fillWidth: true
                Layout.margins: 3
                font {
                    weight: Font.DemiBold
                    pointSize: 10
                }
            }

            ComboBox {
                id: scales
                font {
                    weight: Font.DemiBold
                    pointSize: 10
                }
                Layout.margins: 3
                Layout.fillWidth: true
                model: ["1:500000","1:250000","1:100000","1:50000"]
                Component.onCompleted: mapReferenceScaleSampleModel.currentMapScale = referenceScales[scales.currentIndex];
                onActivated: mapReferenceScaleSampleModel.currentMapScale = referenceScales[scales.currentIndex];

                // Add a background to the ComboBox
                Rectangle {
                    anchors.fill: parent
                    radius: 10
                    // Make the rectangle visible if a dropdown indicator exists
                    // An indicator only exists if a theme is set
                    visible: parent.indicator
                    border.width: 1
                }
            }

            Button {
                text: qsTr("Set Map Scale to Reference Scale")
                font {
                    weight: Font.DemiBold
                    pointSize: 10
                }
                Layout.margins: 3
                Layout.fillWidth: true
                onClicked: mapReferenceScaleSampleModel.setMapScaleToReferenceScale(referenceScales[scales.currentIndex]);
            }
        }
    }

    Rectangle {
        anchors {
            margins: 5
            right: parent.right
            top: parent.top
        }
        width: childrenRect.width
        height: childrenRect.height
        color: "#000000"
        opacity: .75
        radius: 5

        ColumnLayout {
            Text {
                text: qsTr("Apply Reference Scale")
                horizontalAlignment: Text.AlignHCenter
                Layout.fillWidth: true
                Layout.margins: 2
                font {
                    weight: Font.DemiBold
                    pointSize: 10
                }
                color: "#ffffff"
            }

            Repeater {
                // Assign the model to the list model of operational layers
                id: featureLayerRepeater
                model: mapReferenceScaleSampleModel.layerInfoListModel
                width: childrenRect.width
                height: childrenRect.height

                // Assign the delegate to display text next to checkbox as a row
                delegate: Row {
                    CheckBox {
                        id: featureLayerBox
                        checked: true
                        onCheckStateChanged: mapReferenceScaleSampleModel.featureLayerScaleSymbols(name,featureLayerBox.checked);
                    }
                    Text {
                        id: featureLayerText
                        text: name
                        height: featureLayerBox.height
                        verticalAlignment: Text.AlignVCenter
                        font.pointSize: 10
                        color: "#ffffff"
                    }
                }
            }
        }
    }
    // Declare the C++ instance which creates the map etc. and supply the view
    MapReferenceScaleSample {
        id: mapReferenceScaleSampleModel
        mapView: myMapView
    }
}

// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "MapReferenceScale.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("MapReferenceScale"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  MapReferenceScale::init();

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

#if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
#endif

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));
  // Add the Runtime and Extras path
  engine.addImportPath(arcGISRuntimeImportPath);

  // Set the source
  engine.load(QUrl("qrc:/Samples/Maps/MapReferenceScale/main.qml"));

  return app.exec();
}

// Copyright 2019 ESRI
//
// All rights reserved under the copyright laws of the United States
// and applicable international laws, treaties, and conventions.
//
// You may freely redistribute and use this sample code, with or
// without modification, provided you include the original copyright
// notice and use restrictions.
//
// See the Sample code usage restrictions document for further information.
//

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    MapReferenceScale {
        anchors.fill: parent
    }
}
