Take a screenshot of the map.

Use case

GIS users may want to export a screenshot of a map to enable sharing as an image or printing.

How to use the sample

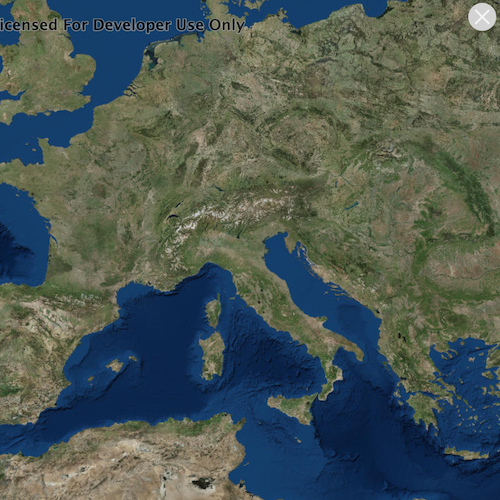

Pan and zoom to find an interesting location. Press Take screenshot, and a screenshot image will display over the map. Note that there may be a small delay if the map is still rendering when you push the button.

How it works

The exportImage function is executed on the MapView.
Once the asynchronous task completes, a QImage is returned.
QML cannot directly render a QImage. Instead, a QML Image Provider must be created for generating an in-memory URL to the returned QImage. This is done with the following steps:

Subclass QQuickImageProvider.
Reimplement the requestImage function.
Add an image provider to the QQmlEngine instance using QQmlEngine::addImageProvider.
Create a Q_PROPERTY that returns the image URL from the Image Provider.
Bind the QML Image to the image URL property. When this property changes, it will automatically trigger the requestImage function and return the URL to the image.

Relevant API

GeoView::exportImage

Sample code

TakeScreenshot.cpp

TakeScreenshot.h

MapImageProvider.cpp

MapImageProvider.h

TakeScreenshot.qml

// [WriteFile Name=TakeScreenshot, Category=Maps]
// [Legal]
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "MapImageProvider.h"
#include "TakeScreenshot.h"

// ArcGIS Maps SDK headers
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"

// Qt headers
#include <QFuture>
#include <QQmlContext>
#include <QUuid>

using namespace Esri::ArcGISRuntime;

TakeScreenshot::TakeScreenshot(QQuickItem* parent /* = nullptr */):
  QQuickItem(parent)
{
}

void TakeScreenshot::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<TakeScreenshot>("Esri.Samples", 1, 0, "TakeScreenshotSample");
}

void TakeScreenshot::componentComplete()
{
  QQuickItem::componentComplete();

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");

  // Create a map using the imagery basemap
  m_map = new Map(BasemapStyle::ArcGISImageryStandard, this);

  // Set map to map view
  m_mapView->setMap(m_map);

  // Get the image provider from the QML Engine
  QQmlEngine* engine = QQmlEngine::contextForObject(this)->engine();
  m_imageProvider = dynamic_cast<MapImageProvider*>(engine->imageProvider(MapImageProvider::imageProviderId()));
}

// Q_INVOKABLE function to kick off the export image asynchronous task
void TakeScreenshot::captureScreenshot()
{
  m_mapView->exportImageAsync().then(this, [this](QImage img)
  {
    // convert the QUuid into a QString
    const QString imageId = QUuid().createUuid().toString(QUuid::WithoutBraces);
    // add the image to the provider
    m_imageProvider->addImage(imageId, img);
    // update the URL with the unique id
    m_mapImageUrl = QString("image://%1/%2").arg(MapImageProvider::imageProviderId(), imageId);
    // emit the signal to trigger the QML Image to update
    emit mapImageUrlChanged();
  });
}

QUrl TakeScreenshot::mapImageUrl() const
{
  return m_mapImageUrl;
}

// [WriteFile Name=TakeScreenshot, Category=Maps]
// [Legal]
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef TAKESCREENSHOT_H
#define TAKESCREENSHOT_H

// Qt headers
#include <QQuickItem>

namespace Esri::ArcGISRuntime
{
class Map;
class MapQuickView;
}

class MapImageProvider;

class TakeScreenshot : public QQuickItem
{
  Q_OBJECT

  Q_PROPERTY(QUrl mapImageUrl READ mapImageUrl NOTIFY mapImageUrlChanged)

public:
  explicit TakeScreenshot(QQuickItem* parent = nullptr);
  ~TakeScreenshot() override = default;

  void componentComplete() override;
  static void init();
  Q_INVOKABLE void captureScreenshot();

signals:
  void mapImageUrlChanged();

private:
  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  MapImageProvider* m_imageProvider = nullptr;
  QUrl m_mapImageUrl;

private:
  QUrl mapImageUrl() const;
};

#endif // TAKESCREENSHOT_H

// [Legal]
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "MapImageProvider.h"

// Qt headers
#include <QQuickImageProvider>

MapImageProvider::MapImageProvider() :
  QQuickImageProvider(QQuickImageProvider::Image)
{
}

// reimplemented function for QML to request Images from the provider
QImage MapImageProvider::requestImage(const QString& id, QSize* size, const QSize &requestedSize)
{
  Q_UNUSED(size)
  Q_UNUSED(requestedSize)
  return m_images[id];
}

// helper to add images to the the provider
void MapImageProvider::addImage(const QString& id, const QImage& img)
{
  m_images[id] = img;
}

// static function to return the image provider id
QString MapImageProvider::imageProviderId()
{
  return QStringLiteral("mapimageprovider");
}

// [Legal]
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

#ifndef MAPIMAGEPROVIDER_H
#define MAPIMAGEPROVIDER_H

// Qt headers
#include <QImage>
#include <QMap>
#include <QQuickImageProvider>

class MapImageProvider : public QQuickImageProvider
{

public:
  MapImageProvider();
  ~MapImageProvider() override = default;

public:
  QImage requestImage(const QString& id, QSize* size, const QSize& requestedSize) override;
  void addImage(const QString& id, const QImage& img);
  static QString imageProviderId();

private:
  QMap<QString, QImage> m_images;
};

#endif // MAPIMAGEPROVIDER_H

// [WriteFile Name=TakeScreenshot, Category=Maps]
// [Legal]
// Copyright 2018 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples

TakeScreenshotSample {
    id: rootRectangle
    clip: true
    width: 800
    height: 600

    // Declare a MapView
    MapView {
        id: mapView
        anchors.fill: parent
        objectName: "mapView"

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }

        Button {
            anchors {
                horizontalCenter: parent.horizontalCenter
                bottom: mapView.attributionTop
                margins: 10
            }
            text: "Take screenshot"
            onClicked: {
                captureScreenshot();
                busyIndicator.visible = true;
            }
        }
    }

    onMapImageUrlChanged: {
        imageRect.visible = true;
        busyIndicator.visible = false;
    }

    Rectangle {
        id: imageRect
        anchors.fill: parent
        visible: false
        Rectangle {
            anchors.fill: parent
            color: "#60000000"
        }

        Image {
            id: mapImage
            anchors.centerIn: parent
            width: parent.width * 0.75
            height: parent.height * 0.75
            source: mapImageUrl // bind to the property exposed by TakeScreenshot

            Rectangle {
                anchors {
                    right: parent.right
                    top: parent.top
                    margins: 10
                }
                width: 28
                height: width
                color: "lightgray"
                radius: 50

                Image {
                    anchors.centerIn: parent
                    width: parent.width * 0.95
                    height: parent.height * 0.95
                    source: "qrc:/Samples/Maps/TakeScreenshot/close.png"
                }

                MouseArea {
                    anchors.fill: parent
                    onClicked: imageRect.visible = false;
                }
            }
        }
    }

    BusyIndicator {
        id: busyIndicator
        anchors.centerIn: parent
        visible: false
    }
}
