Animate 3D graphic

View on GitHub
An OrbitGeoElementCameraController follows a graphic while the graphic's position and rotation are animated.

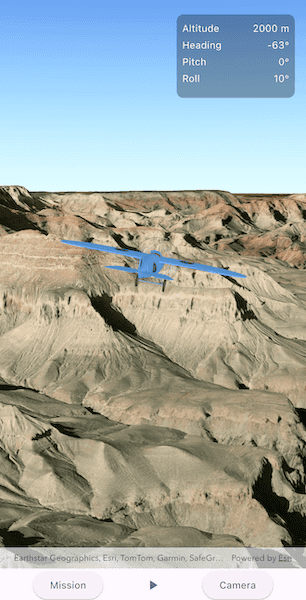

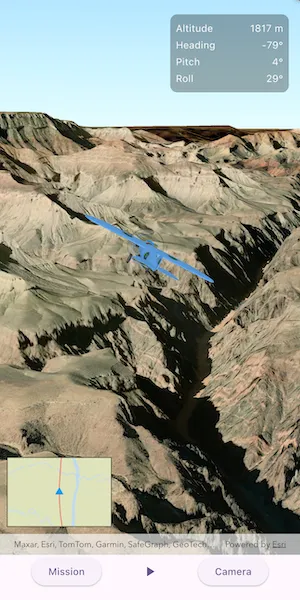

Image of animate 3D graphic
Use case

Visualize movement through a 3D landscape.
How to use the sample

Tap the buttons on the bottom toolbar to adjust the settings for the animation:
Mission: change the flight path, speed, and view progress
Play/Pause: toggle the animation
Camera: change the camera distance, heading, pitch, and other camera properties.
How it works

Create a GraphicsOverlay and add it to the ArcGISSceneViewController.
Create a ModelSceneSymbol object.
Create a Graphic object and set its geometry to a ArcGISPoint.
Set the ModelSceneSymbol object to the graphic.
Add heading, pitch, and roll attributes to the graphic.
Create a SimpleRenderer object and set its expression properties.
Add graphic and a renderer to the graphics overlay.
Create a OrbitGeoElementCameraController which is set to target the graphic.
Assign the camera controller to the ArcGISSceneViewController.
Update the graphic's location, heading, pitch, and roll.
Relevant API

ArcGISScene
ArcGISSceneViewController
Camera
GlobeCameraController
Graphic
GraphicsOverlay
ModelSceneSymbol
OrbitGeoElementCameraController
Renderer
SceneProperties
SurfacePlacement
Offline data

This sample uses the following data which are all included and downloaded on-demand:
Sample Code

animate_3d_graphic.dart
Use dark colors for code blocksCopy
// Copyright 2025 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
//

import 'dart:convert';
import 'dart:io';
import 'package:arcgis_maps/arcgis_maps.dart';
import 'package:arcgis_maps_sdk_flutter_samples/common/common.dart';
import 'package:flutter/material.dart';
import 'package:flutter/scheduler.dart';
import 'package:path_provider/path_provider.dart';

class Animate3dGraphic extends StatefulWidget {
  const Animate3dGraphic({super.key});

  @override
  State<Animate3dGraphic> createState() => _Animate3dGraphicState();
}

class _Animate3dGraphicState extends State<Animate3dGraphic>
    with TickerProviderStateMixin, SampleStateSupport {
  // Create a controller for the scene view.
  final _sceneViewController = ArcGISSceneView.createController();

  // A flag for when the scene view is ready and controls can be used.
  var _ready = false;

  // The graphic for the plane.
  Graphic? _planeGraphic;

  // Track mission modal status.
  StateSetter? _modalStateSetter;

  // The camera controller that follows the plane.
  late OrbitGeoElementCameraController _cameraController;

  // Whether the animation is currently playing.
  var _isPlaying = false;

  // The current frame index in the animation.
  var _currentFrameIndex = 0;

  // The list of animation frames.
  var _frames = <Frame>[];

  // The ticker that drives the animation.
  late final Ticker _ticker;

  // The currently selected mission.
  var _currentMission = Mission.grandCanyon;

  // The selected animation speed.
  var _animationSpeed = AnimationSpeed.medium;

  // Camera controller settings.
  double _cameraDistance = 1000;
  double _cameraHeading = 0;
  double _cameraPitch = 0;
  var _autoHeading = true;
  var _autoPitch = false;
  var _autoRoll = false;

  // State variables for real-time telemetry tracking.
  double _altitude = 0;
  double _heading = 0;
  double _pitch = 0;
  double _roll = 0;

  // The current progress of the animation.
  double get _progress {
    if (_frames.isEmpty) return 0;
    return _currentFrameIndex.toDouble() / _frames.length.toDouble();
  }

  @override
  void initState() {
    super.initState();
    // Start the animation ticker.
    _ticker = createTicker(_onTick)..start();
  }

  @override
  void dispose() {
    // Cleanup the ticker.
    _ticker.dispose();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SafeArea(
        top: false,
        left: false,
        right: false,
        child: Stack(
          children: [
            Column(
              children: [
                Expanded(
                  // Add a scene view to the widget tree and set a controller.
                  child: ArcGISSceneView(
                    controllerProvider: () => _sceneViewController,
                    onSceneViewReady: onSceneViewReady,
                  ),
                ),
                Row(
                  mainAxisAlignment: MainAxisAlignment.spaceEvenly,
                  children: [
                    // Button to open mission settings.
                    ElevatedButton(
                      onPressed: _showMissionSettings,
                      child: const Text('Mission'),
                    ),
                    // Play/pause button.
                    IconButton(
                      onPressed: _toggleAnimation,
                      icon: Icon(_isPlaying ? Icons.pause : Icons.play_arrow),
                    ),
                    // Button to open camera settings.
                    ElevatedButton(
                      onPressed: _showCameraSettings,
                      child: const Text('Camera'),
                    ),
                  ],
                ),
              ],
            ),
            // Show real-time telemetry data.
            Visibility(
              visible: _ready,
              child: SafeArea(
                child: Align(
                  alignment: Alignment.topRight,
                  child: Container(
                    margin: const EdgeInsets.all(16),
                    width: 170,
                    height: 120,
                    padding: const EdgeInsets.all(8),
                    decoration: BoxDecoration(
                      color: Colors.black.withValues(alpha: 0.3),
                      borderRadius: BorderRadius.circular(10),
                    ),
                    child: Column(
                      crossAxisAlignment: CrossAxisAlignment.start,
                      children: [
                        _buildTelemetryRow('Altitude', _altitude),
                        _buildTelemetryRow('Heading', _heading),
                        _buildTelemetryRow('Pitch', _pitch),
                        _buildTelemetryRow('Roll', _roll),
                      ],
                    ),
                  ),
                ),
              ),
            ),
            // Display a loading indicator until the scene is ready.
            LoadingIndicator(visible: !_ready),
          ],
        ),
      ),
    );
  }

  // Called when the scene view is ready.
  Future<void> onSceneViewReady() async {
    // Create and configure the scene with elevation.
    final scene = _createScene();
    // Assign the scene to the scene view controller.
    _sceneViewController.arcGISScene = scene;

    // Load the 3D plane graphic from local sample data.
    _planeGraphic = await _loadPlaneGraphic();

    // Add the plane graphic to the scene and set the initial viewpoint.
    await _addPlaneToScene(_planeGraphic!);

    // Set up the orbit camera controller to follow the plane.
    _setupCameraController(_planeGraphic!);

    // Load the default mission animation frames.
    await _loadMissionFrames(_currentMission);

    // Enable the UI once everything is ready.
    setState(() => _ready = true);
  }

  // Creates a scene with an imagery basemap and adds elevation data.
  ArcGISScene _createScene() {
    final scene = ArcGISScene.withBasemapStyle(BasemapStyle.arcGISImagery);

    // Add world elevation source to the scene's surface.
    final elevationSource = ArcGISTiledElevationSource.withUri(
      Uri.parse(
        'https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer',
      ),
    );
    scene.baseSurface.elevationSources.add(elevationSource);

    return scene;
  }

  // Loads the 3D plane model from local sample data and returns it as a Graphic.
  Future<Graphic> _loadPlaneGraphic() async {
    const downloadFileName = 'Bristol';
    final appDir = await getApplicationDocumentsDirectory();
    final zipFile = File('${appDir.absolute.path}/$downloadFileName.zip');
    // Download the plane model files.
    if (!zipFile.existsSync()) {
      await downloadSampleDataWithProgress(
        itemIds: ['681d6f7694644709a7c830ec57a2d72b'],
        destinationFiles: [zipFile],
      );
    }
    final planeModelPath =
        '${appDir.absolute.path}/$downloadFileName/$downloadFileName.dae';

    // Define the plane symbol.
    final planeSymbol = ModelSceneSymbol.withUri(
      uri: Uri.parse(planeModelPath),
      scale: 20,
    )..anchorPosition = SceneSymbolAnchorPosition.center;

    // Define the initial position of the plane in the scene.
    final planePosition = ArcGISPoint(
      x: -109.937516,
      y: 38.456714,
      z: 5000,
      spatialReference: SpatialReference.wgs84,
    );

    // Return the graphic that combines geometry and symbol.
    return Graphic(geometry: planePosition, symbol: planeSymbol);
  }

  // Adds the plane graphic to a graphics overlay and sets the initial viewpoint.
  Future<void> _addPlaneToScene(Graphic planeGraphic) async {
    final graphicsOverlay = GraphicsOverlay()
      ..graphics.add(planeGraphic)
      ..sceneProperties.surfacePlacement = SurfacePlacement.absolute;

    // Apply renderer expressions for heading, pitch, and roll.
    final renderer = SimpleRenderer()
      ..sceneProperties.headingExpression = '[HEADING]'
      ..sceneProperties.pitchExpression = '[PITCH]'
      ..sceneProperties.rollExpression = '[ROLL]';
    graphicsOverlay.renderer = renderer;

    _sceneViewController.graphicsOverlays.add(graphicsOverlay);

    // Set the initial viewpoint centered on the plane's position.
    final planePosition = planeGraphic.geometry! as ArcGISPoint;
    _sceneViewController.setViewpoint(
      Viewpoint.withPointScaleCamera(
        center: planePosition,
        scale: 100000,
        camera: Camera.withLookAtPoint(
          lookAtPoint: planePosition,
          distance: _cameraDistance,
          heading: _cameraHeading,
          pitch: _cameraPitch,
          roll: 0,
        ),
      ),
    );
  }

  // Configures the orbit camera controller to follow the plane graphic.
  void _setupCameraController(Graphic planeGraphic) {
    _cameraController =
        OrbitGeoElementCameraController(
            targetGeoElement: planeGraphic,
            distance: _cameraDistance,
          )
          ..cameraHeadingOffset = _cameraHeading
          ..cameraPitchOffset = _cameraPitch
          ..isAutoHeadingEnabled = _autoHeading
          ..isAutoPitchEnabled = _autoPitch
          ..isAutoRollEnabled = _autoRoll
          ..minCameraDistance = 500
          ..maxCameraDistance = 8000;

    _sceneViewController.cameraController = _cameraController;
  }

  // Loads mission frames from a CSV file using a PortalItem.
  Future<void> _loadMissionFrames(Mission mission) async {
    final portal = Portal.arcGISOnline();
    final item = PortalItem.withPortalAndItemId(
      portal: portal,
      itemId: mission.itemId,
    );
    final data = await item.fetchData();
    final csv = utf8.decode(data);

    final lines = const LineSplitter().convert(csv);
    final frames = <Frame>[];

    for (final line in lines) {
      final parts = line.split(',');
      if (parts.length < 6) continue;

      try {
        final x = double.parse(parts[0]);
        final y = double.parse(parts[1]);
        final z = double.parse(parts[2]);
        final heading = double.parse(parts[3]);
        final pitch = double.parse(parts[4]);
        final roll = double.parse(parts[5]);

        final position = ArcGISPoint(
          x: x,
          y: y,
          z: z,
          spatialReference: SpatialReference.wgs84,
        );

        frames.add(
          Frame(position: position, heading: heading, pitch: pitch, roll: roll),
        );
      } on Exception {
        continue;
      }
    }

    setState(() {
      _frames = frames;
      _currentFrameIndex = 0;
      _isPlaying = false;
    });

    if (_frames.isNotEmpty) {
      _updateFrame(_frames.first);
    }
  }

  // Updates the plane graphic with the current frame data.
  void _updateFrame(Frame frame) {
    if (_planeGraphic == null) return;

    _planeGraphic!.geometry = frame.position;
    _planeGraphic!.attributes['HEADING'] = frame.heading;
    _planeGraphic!.attributes['PITCH'] = frame.pitch;
    _planeGraphic!.attributes['ROLL'] = frame.roll;

    setState(() {
      _altitude = frame.position.z ?? 0;
      _heading = frame.heading;
      _pitch = frame.pitch;
      _roll = frame.roll;
    });
  }

  // Telemetry Row Widget.
  Widget _buildTelemetryRow(String label, double value) {
    return Padding(
      padding: const EdgeInsets.symmetric(vertical: 2),
      child: Row(
        mainAxisAlignment: MainAxisAlignment.spaceBetween,
        children: [
          Text(label, style: const TextStyle(color: Colors.white)),
          Text(
            label == 'Altitude'
                ? '${value.toStringAsFixed(0)} m'
                : '${value.toStringAsFixed(0)}°',
            style: const TextStyle(color: Colors.white),
          ),
        ],
      ),
    );
  }

  // Called on each tick to advance the animation.
  void _onTick(Duration elapsed) {
    if (!_isPlaying || _frames.isEmpty || _planeGraphic == null) return;

    setState(() {
      _currentFrameIndex += _animationSpeed.frameStep;
      if (_currentFrameIndex >= _frames.length) {
        _currentFrameIndex = 0;
        _isPlaying = false;
      }
    });

    // Update modal sheet if it's open.
    _modalStateSetter?.call(() {});

    _updateFrame(_frames[_currentFrameIndex]);
  }

  // Toggles the animation play/pause state.
  void _toggleAnimation() {
    if (_planeGraphic == null || _frames.isEmpty) return;

    setState(() => _isPlaying = !_isPlaying);
  }

  // Shows the mission settings in a bottom sheet.
  void _showMissionSettings() {
    showModalBottomSheet(
      context: context,
      shape: const RoundedRectangleBorder(
        borderRadius: BorderRadius.vertical(top: Radius.circular(16)),
      ),
      builder: (context) {
        return Padding(
          padding: const EdgeInsets.all(16),
          child: Column(
            mainAxisSize: MainAxisSize.min,
            children: [
              Text(
                'Mission Settings',
                style: Theme.of(context).textTheme.titleLarge,
              ),
              const SizedBox(height: 16),

              // Progress widgets have to update for every frame, so wrapped with a StatefulBuilder.
              StatefulBuilder(
                builder: (context, setModalState) {
                  // Store the setter.
                  _modalStateSetter = setModalState;
                  return Column(
                    children: [
                      // Progress Indicator
                      Padding(
                        padding: const EdgeInsets.all(8),
                        child: Row(
                          mainAxisAlignment: MainAxisAlignment.spaceBetween,
                          children: [
                            const Text(
                              'Progress',
                              style: TextStyle(fontSize: 18),
                            ),
                            Text(
                              '${(_progress * 100).toStringAsFixed(1)}%',
                              style: const TextStyle(fontSize: 18),
                            ),
                          ],
                        ),
                      ),
                      LinearProgressIndicator(value: _progress),
                    ],
                  );
                },
              ),

              const SizedBox(height: 24),
              // Dropdown to select mission.
              DropdownMenu(
                initialSelection: _currentMission,
                onSelected: (mission) {
                  if (mission != null) {
                    setState(() {
                      _currentMission = mission;
                      _currentFrameIndex = 0;
                      _isPlaying = false;
                    });
                    // Update the modal to show progress reset to 0
                    _modalStateSetter?.call(() {});

                    _loadMissionFrames(mission);
                  }
                },
                dropdownMenuEntries: Mission.values.map((mission) {
                  return DropdownMenuEntry(
                    value: mission,
                    label: mission.label,
                  );
                }).toList(),
              ),
              const SizedBox(height: 16),
              DropdownMenu(
                initialSelection: _animationSpeed,
                onSelected: (speed) {
                  if (speed != null) {
                    setState(() => _animationSpeed = speed);
                  }
                },
                dropdownMenuEntries: AnimationSpeed.values.map((speed) {
                  return DropdownMenuEntry(
                    value: speed,
                    label: 'Speed: ${speed.label}',
                  );
                }).toList(),
              ),
            ],
          ),
        );
      },
    ).whenComplete(() {
      _modalStateSetter = null;
    });
  }

  // Shows the camera settings in a bottom sheet.
  void _showCameraSettings() {
    showModalBottomSheet(
      context: context,
      shape: const RoundedRectangleBorder(
        borderRadius: BorderRadius.vertical(top: Radius.circular(16)),
      ),
      builder: (context) {
        return StatefulBuilder(
          builder: (context, setModalState) {
            return Padding(
              padding: const EdgeInsets.all(16),
              child: Column(
                mainAxisSize: MainAxisSize.min,
                children: [
                  Text(
                    'Camera Settings',
                    style: Theme.of(context).textTheme.titleLarge,
                  ),
                  const SizedBox(height: 16),
                  _buildSlider(
                    label: 'Distance',
                    value: _cameraDistance,
                    min: 500,
                    max: 8000,
                    onChanged: (value) {
                      setModalState(() => _cameraDistance = value);
                      _cameraController.cameraDistance = value;
                    },
                  ),
                  _buildSlider(
                    label: 'Heading Offset',
                    value: _cameraHeading,
                    min: -180,
                    max: 180,
                    onChanged: (value) {
                      setModalState(() => _cameraHeading = value);
                      _cameraController.cameraHeadingOffset = value;
                    },
                  ),
                  _buildSlider(
                    label: 'Pitch Offset',
                    value: _cameraPitch,
                    min: 0,
                    max: 180,
                    onChanged: (value) {
                      setModalState(() => _cameraPitch = value);
                      _cameraController.cameraPitchOffset = value;
                    },
                  ),
                  SwitchListTile(
                    title: const Text('Auto Heading'),
                    value: _autoHeading,
                    onChanged: (value) {
                      setModalState(() => _autoHeading = value);
                      _cameraController.isAutoHeadingEnabled = value;
                    },
                  ),
                  SwitchListTile(
                    title: const Text('Auto Pitch'),
                    value: _autoPitch,
                    onChanged: (value) {
                      setModalState(() => _autoPitch = value);
                      _cameraController.isAutoPitchEnabled = value;
                    },
                  ),
                  SwitchListTile(
                    title: const Text('Auto Roll'),
                    value: _autoRoll,
                    onChanged: (value) {
                      setModalState(() => _autoRoll = value);
                      _cameraController.isAutoRollEnabled = value;
                    },
                  ),
                ],
              ),
            );
          },
        );
      },
    );
  }

  // Builds a labeled slider widget.
  Widget _buildSlider({
    required String label,
    required double value,
    required double min,
    required double max,
    required ValueChanged<double> onChanged,
  }) {
    return Column(
      crossAxisAlignment: CrossAxisAlignment.start,
      children: [
        Text('$label: ${value.toStringAsFixed(0)}'),
        Slider(
          value: value,
          min: min,
          max: max,
          divisions: (max - min).toInt(),
          label: value.toStringAsFixed(0),
          onChanged: onChanged,
        ),
        const SizedBox(height: 8),
      ],
    );
  }
}

// An enum of the different mission selections available in this sample.
enum Mission {
  grandCanyon('Grand Canyon', '290f0c571c394461a8b58b6775d0bd63'),
  hawaii('Hawaii', 'e87c154fb9c2487f999143df5b08e9b1'),
  pyrenees('Pyrenees', '5a9b60cee9ba41e79640a06bcdf8084d'),
  snowdon('Snowdon', '12509ffdc684437f8f2656b0129d2c13');

  const Mission(this.label, this.itemId);

  // A human-readable label of the mission name.
  final String label;

  // The ArcGIS Online item ID for the mission CSV file.
  final String itemId;
}

// An enum representing the speed of the animation.
enum AnimationSpeed {
  slow(1),
  medium(2),
  fast(4);

  const AnimationSpeed(this.frameStep);

  // The number of frames to advance per tick.
  final int frameStep;

  // A label for the speed.
  String get label => name[0].toUpperCase() + name.substring(1);
}

// A struct containing the location data for a single frame in a 3D animation.
class Frame {
  Frame({
    required this.position,
    required this.heading,
    required this.pitch,
    required this.roll,
  });

  final ArcGISPoint position;
  final double heading;
  final double pitch;
  final double roll;
}
