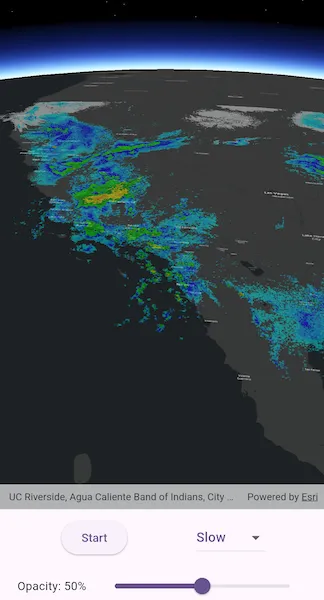

Animate images with image overlay

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
// Copyright 2025 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
//

import 'dart:async';
import 'dart:io';

import 'package:arcgis_maps/arcgis_maps.dart';
import 'package:arcgis_maps_sdk_flutter_samples/common/common.dart';
import 'package:flutter/material.dart';
import 'package:flutter/scheduler.dart';
import 'package:path_provider/path_provider.dart';

class AnimateImagesWithImageOverlay extends StatefulWidget {
  const AnimateImagesWithImageOverlay({super.key});

  @override
  State<AnimateImagesWithImageOverlay> createState() =>
      _AnimateImagesWithImageOverlayState();
}

class _AnimateImagesWithImageOverlayState
    extends State<AnimateImagesWithImageOverlay>
    with TickerProviderStateMixin, SampleStateSupport {
  // Create a controller for the scene view.
  final _sceneViewController = ArcGISSceneView.createController();
  // A flag to toggle the start/stop of the image animation.
  var _started = false;
  // The speed of the image frame animation in milliseconds.
  final _imageFrameSpeed = 68;
  // The last frame time in milliseconds to control the animation speed.
  var _lastFrameTime = 0;
  // The initial opacity of the image overlay.
  var _opacity = 0.5;
  // Create an ImageOverlay to display the animated images.
  final _imageOverlay = ImageOverlay();
  // A list to hold the ArcGIS image files for the animation.
  List<File> _imageFileList = [];
  // A string to display the download progress.
  var _downloadProgress = '';
  // An integer to track the current ArcGIS image index.
  var _imageFrameIndex = 0;
  // A timer to control and change the ArcGIS image periodically.
  Ticker? _ticker;
  // A flag for when the scene view is ready and controls can be used.
  var _ready = false;
  // The image envelope defines the extent of the image frame.
  final imageEnvelope = Envelope.fromCenter(
    ArcGISPoint(
      x: -120.0724273439448,
      y: 35.131016955536694,
      spatialReference: SpatialReference.wgs84,
    ),
    width: 15.09589635986124,
    height: -14.3770441522488,
  );

  @override
  void dispose() {
    _ticker?.dispose();
    _ticker = null;
    _imageFileList.clear();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SafeArea(
        top: false,
        left: false,
        right: false,
        child: Stack(
          children: [
            Column(
              spacing: 10,
              children: [
                Expanded(
                  // Add a scene view to the widget tree and set a controller.
                  child: ArcGISSceneView(
                    controllerProvider: () => _sceneViewController,
                    onSceneViewReady: onSceneViewReady,
                  ),
                ),
                Row(
                  mainAxisAlignment: MainAxisAlignment.spaceEvenly,
                  children: [
                    // A button to start/stop the animation.
                    ElevatedButton(
                      onPressed: () {
                        if (!_started) {
                          startTicker();
                        } else {
                          stopTicker();
                        }
                      },
                      child: _started
                          ? const Text('Stop')
                          : const Text('Start'),
                    ),
                  ],
                ),
                // A Slider to control opacity of the image overlay.
                Row(
                  mainAxisAlignment: MainAxisAlignment.center,
                  spacing: 10,
                  children: [
                    const SizedBox(width: 20),
                    Text('Opacity: ${(_opacity * 100).toStringAsFixed(0)}%'),
                    Expanded(
                      child: Slider(
                        value: _opacity * 100,
                        onChanged: (value) {
                          setState(() {
                            _opacity = value / 100;
                            // Set the opacity of the image overlay.
                            _imageOverlay.opacity = _opacity;
                          });
                        },
                        max: 100,
                        divisions: 100 * 2,
                        label: '$_opacity Opacity',
                      ),
                    ),
                    const SizedBox(width: 20),
                  ],
                ),
              ],
            ),
            // Display a progress indicator and prevent interaction until state is ready.
            LoadingIndicator(visible: !_ready, text: _downloadProgress),
          ],
        ),
      ),
    );
  }

  // Stop the image animation ticker.
  void stopTicker() {
    _ticker?.stop();
    setState(() => _started = false);
  }

  // Start the image animation ticker.
  void startTicker() {
    _lastFrameTime = 0;
    // create a ticker to control the image frame animation.
    _ticker = _ticker ?? createTicker(_onTicker);
    _ticker!.start();
    setState(() => _started = true);
  }

  // Callback function for the ticker to change the image frame.
  void _onTicker(Duration elapsed) {
    final delta = elapsed.inMilliseconds - _lastFrameTime;
    if (delta >= _imageFrameSpeed) {
      _imageFrameIndex = (_imageFrameIndex + 1) % _imageFileList.length;
      setImageFrame(_imageFrameIndex);
      _lastFrameTime = elapsed.inMilliseconds;
    }
  }

  Future<void> onSceneViewReady() async {
    // Create a Scene with a topographic baseScene style.
    final scene = ArcGISScene.withBasemapStyle(BasemapStyle.arcGISDarkGray);
    _sceneViewController.arcGISScene = scene;
    // Add a elevation source for the base surface of the scene.
    final elevationSource = ArcGISTiledElevationSource.withUri(
      Uri.parse(
        'https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer',
      ),
    );
    scene.baseSurface.elevationSources.add(elevationSource);

    // Set the initial camera position and orientation.
    // The camera is positioned over the Pacific South West region.
    final camera = Camera.withLocation(
      location: ArcGISPoint(
        x: -116.621,
        y: 24.7773,
        z: 856977,
        spatialReference: SpatialReference.wgs84,
      ),
      heading: 353.994,
      pitch: 48.5495,
      roll: 0,
    );
    _sceneViewController.setViewpointCamera(camera);
    // Set the initial opacity of the image overlay.
    _imageOverlay.opacity = _opacity;
    // Set the image overlay to the scene view.
    _sceneViewController.imageOverlays.add(_imageOverlay);

    // Initialize the image frames and set them to the image overlay.
    await initImageFrames();

    // Set the ready state variable to true to enable the sample UI.
    setState(() => _ready = true);
  }

  Future<void> initImageFrames() async {
    final appDir = await getApplicationDocumentsDirectory();
    // Define the path for the sample data zip file and the directory to extract it.
    // The sample data contains images of the Pacific South West region.
    final imageFile = File('${appDir.absolute.path}/PacificSouthWest.zip');
    final directory = Directory.fromUri(
      Uri.parse('${appDir.absolute.path}/PacificSouthWest/PacificSouthWest'),
    );

    // Download the sample data if it does not exist.
    if (!imageFile.existsSync()) {
      await downloadSampleDataWithProgress(
        itemIds: ['9465e8c02b294c69bdb42de056a23ab1'],
        destinationFiles: [imageFile],
        onProgress: (progress) {
          setState(
            () => _downloadProgress =
                'Downloading images: ${(progress * 100).toStringAsFixed(0)}%',
          );
        },
      );
    }
    // Get a list of all PNG image files in the extracted directory.
    _imageFileList = directory
        .listSync()
        .whereType<File>()
        .where((file) => file.path.endsWith('.png'))
        .toList();
    // Sort the list by file path name.
    _imageFileList.sort((file1, file2) => file1.path.compareTo(file2.path));

    // show the first image frame in the image overlay.
    setImageFrame(0);
  }

  /// Sets the image frame to the image overlay based on the index.
  void setImageFrame(int index) {
    // Quickly release the previous image frame to avoid memory issues.
    _imageOverlay.imageFrame = null;
    _imageOverlay.imageFrame = ImageFrame.withImageEnvelope(
      image: ArcGISImage.fromFile(_imageFileList[index].uri)!,
      extent: imageEnvelope,
    );
  }
}
