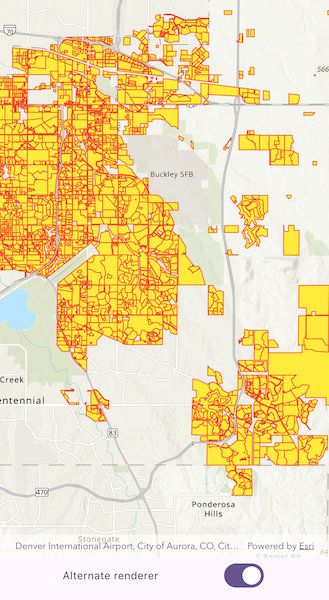

Apply symbology to shapefile

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
// Copyright 2024 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
//

import 'dart:io';

import 'package:arcgis_maps/arcgis_maps.dart';
import 'package:arcgis_maps_sdk_flutter_samples/common/common.dart';
import 'package:flutter/material.dart';
import 'package:path_provider/path_provider.dart';

class ApplySymbologyToShapefile extends StatefulWidget {
  const ApplySymbologyToShapefile({super.key});

  @override
  State<ApplySymbologyToShapefile> createState() =>
      _ApplySymbologyToShapefileState();
}

class _ApplySymbologyToShapefileState extends State<ApplySymbologyToShapefile>
    with SampleStateSupport {
  // Create a controller for the map view.
  final _mapViewController = ArcGISMapView.createController();
  // A flag for when the map view is ready and controls can be used.
  var _ready = false;
  // Hold reference to the feature layer so that its renderer can be changed when button is pushed.
  late FeatureLayer _shapefileFeatureLayer;
  // Hold reference to default renderer to enable switching back.
  Renderer? _defaultRenderer;
  // Hold reference to alternate renderer to enable switching.
  SimpleRenderer? _alternateRenderer;
  // Create variable for holding state relating to the renderer.
  var _alternate = false;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SafeArea(
        top: false,
        left: false,
        right: false,
        child: Stack(
          children: [
            Column(
              children: [
                Expanded(
                  // Add a map view to the widget tree and set a controller.
                  child: ArcGISMapView(
                    controllerProvider: () => _mapViewController,
                    onMapViewReady: onMapViewReady,
                  ),
                ),
                Row(
                  mainAxisAlignment: MainAxisAlignment.spaceEvenly,
                  children: [
                    const Text('Alternate renderer'),
                    Switch(value: _alternate, onChanged: updateRenderer),
                  ],
                ),
              ],
            ),
            // Display a progress indicator and prevent interaction until state is ready.
            LoadingIndicator(visible: !_ready),
          ],
        ),
      ),
    );
  }

  Future<void> onMapViewReady() async {
    // Create a map with the topographic basemap style and an initial viewpoint.
    final map = ArcGISMap.withBasemapStyle(BasemapStyle.arcGISTopographic);
    map.initialViewpoint = Viewpoint.fromCenter(
      ArcGISPoint(
        x: -11662054,
        y: 4818336,
        spatialReference: SpatialReference(wkid: 3857),
      ),
      scale: 200000,
    );

    // Download the sample data.
    await downloadSampleData(['d98b3e5293834c5f852f13c569930caa']);
    // Get the application documents directory.
    final appDir = await getApplicationDocumentsDirectory();
    // Get the Shapefile from the download resource.
    final shapefile = File(
      '${appDir.absolute.path}/Aurora_CO_shp/Subdivisions.shp',
    );
    // Create a feature table from the Shapefile URI.
    final shapefileFeatureTable = ShapefileFeatureTable.withFileUri(
      shapefile.uri,
    );
    // Create a feature layer for the Shapefile feature table.
    _shapefileFeatureLayer = FeatureLayer.withFeatureTable(
      shapefileFeatureTable,
    );
    // Clear the operational layers and add the feature layer to the map.
    map.operationalLayers.clear();
    map.operationalLayers.add(_shapefileFeatureLayer);
    // Create the symbology for the alternate renderer.
    final lineSymbol = SimpleLineSymbol(color: Colors.red);
    final fillSymbol = SimpleFillSymbol(
      color: Colors.yellow,
      outline: lineSymbol,
    );
    // Create the alternate renderer.
    _alternateRenderer = SimpleRenderer(symbol: fillSymbol);
    // Wait for the layer to load so that it will be assigned a default renderer.
    await _shapefileFeatureLayer.load();
    // Hold a reference to the default renderer (to enable switching between the renderers).
    _defaultRenderer = _shapefileFeatureLayer.renderer;

    _mapViewController.arcGISMap = map;
    // Set the ready state variable to true to enable the sample UI.
    setState(() => _ready = true);
  }

  // Set the renderer.
  void updateRenderer(bool alternate) {
    setState(() => _alternate = alternate);
    if (_alternate) {
      _shapefileFeatureLayer.renderer = _alternateRenderer;
    } else {
      _shapefileFeatureLayer.renderer = _defaultRenderer;
    }
  }
}
