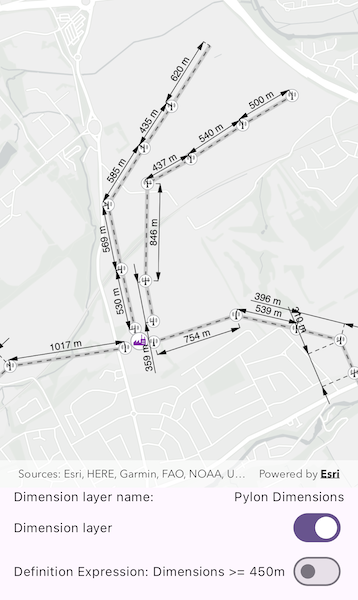

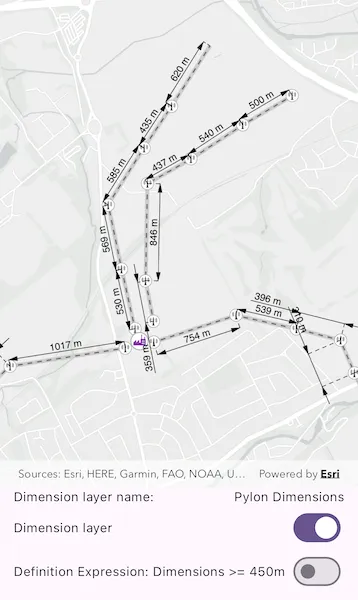

Display dimensions

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
// Copyright 2024 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
//

import 'dart:io';

import 'package:arcgis_maps/arcgis_maps.dart';
import 'package:flutter/material.dart';
import 'package:path_provider/path_provider.dart';

import '../../utils/sample_data.dart';
import '../../utils/sample_state_support.dart';

class DisplayDimensions extends StatefulWidget {
  const DisplayDimensions({super.key});

  @override
  State<DisplayDimensions> createState() => _DisplayDimensionsState();
}

class _DisplayDimensionsState extends State<DisplayDimensions>
    with SampleStateSupport {
  // Create a controller for the map view.
  final _mapViewController = ArcGISMapView.createController();

  // A flag for when the map view is ready and controls can be used.
  var _ready = false;

  // The DimensionLayer showing the dimensions on the map.
  late final DimensionLayer _dimensionLayer;

  // The state variable to show the name of the dimension layer.
  var _dimensionLayerName = '';

  // Switch states for the dimension layer and definition expression.
  var _showDimensionLayer = true;
  var _isDefinitionExpressionApplied = false;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SafeArea(
        top: false,
        child: Stack(
          children: [
            Column(
              children: [
                Expanded(
                  // Add a map view to the widget tree and set a controller.
                  child: ArcGISMapView(
                    controllerProvider: () => _mapViewController,
                    onMapViewReady: onMapViewReady,
                  ),
                ),
                Container(
                  margin: const EdgeInsets.fromLTRB(15, 0, 15, 0),
                  child: Column(
                    children: [
                      Row(
                        mainAxisAlignment: MainAxisAlignment.spaceBetween,
                        children: [
                          const Text('Dimension layer name: '),
                          Text(_dimensionLayerName),
                        ],
                      ),
                      Row(
                        mainAxisAlignment: MainAxisAlignment.spaceBetween,
                        children: [
                          const Text('Dimension layer'),
                          Switch(
                            value: _showDimensionLayer,
                            onChanged: showDimensionLayer,
                          ),
                        ],
                      ),
                      Row(
                        mainAxisAlignment: MainAxisAlignment.spaceBetween,
                        children: [
                          const Text(
                            'Definition Expression: Dimensions >= 450m',
                          ),
                          Switch(
                            value: _isDefinitionExpressionApplied,
                            onChanged: applyDefinitionExpression,
                          ),
                        ],
                      ),
                    ],
                  ),
                ),
              ],
            ),
            // Display a progress indicator and prevent interaction until state is ready.
            Visibility(
              visible: !_ready,
              child: const SizedBox.expand(
                child: ColoredBox(
                  color: Colors.white30,
                  child: Center(child: CircularProgressIndicator()),
                ),
              ),
            ),
          ],
        ),
      ),
    );
  }

  void onMapViewReady() async {
    // Download the mobile map package.
    await downloadSampleData(['f5ff6f5556a945bca87ca513b8729a1e']);

    // Load the local mobile map package.
    final appDir = await getApplicationDocumentsDirectory();
    final mmpkFile =
        File('${appDir.absolute.path}/Edinburgh_Pylon_Dimensions.mmpk');
    final mmpk = MobileMapPackage.withFileUri(mmpkFile.uri);
    await mmpk.load();

    if (mmpk.maps.isNotEmpty) {
      // Get the first map in the mobile map package and set to the map view.
      final map = mmpk.maps.first;

      // Get the dimension layer from the map's operational layers.
      _dimensionLayer = map.operationalLayers.whereType<DimensionLayer>().first;

      // Set an initial viewpoint for the map.
      map.initialViewpoint = Viewpoint.fromCenter(
        ArcGISPoint(
          x: -368015.99460377498,
          y: 7540290.3376379032,
          spatialReference: SpatialReference.webMercator,
        ),
        scale: 30000,
      );

      // Set the map to the map view.
      _mapViewController.arcGISMap = map;
    }

    // Set the ready state variable to true to enable the sample UI.
    setState(() {
      _dimensionLayerName = _dimensionLayer.name;
      _ready = true;
    });
  }

  // Function that shows or hides the dimension layer on the map.
  void showDimensionLayer(bool show) {
    _dimensionLayer.isVisible = show;
    setState(() => _showDimensionLayer = show);
  }

  // Function that applies or removes the definition expression to the dimension layer.
  void applyDefinitionExpression(bool apply) {
    final definitionExpression = apply ? 'DIMLENGTH >= 450' : '';
    _dimensionLayer.definitionExpression = definitionExpression;
    setState(() => _isDefinitionExpressionApplied = apply);
  }
}
