Set the map's reference scale and which feature layers should honor the reference scale.
Use case
Setting a reference scale on an ArcGISMap fixes the size of symbols and text to the desired height and width at that scale. As you zoom in and out, symbols and text will increase or decrease in size accordingly. When no reference scale is set, symbol and text sizes remain the same size relative to the ArcGISMapView.
Map annotations are typically only relevant at certain scales. For instance, annotations to a map showing a construction site are only relevant at that construction site's scale. So, when the map is zoomed out that information shouldn't scale with the ArcGISMapView, but should instead remain scaled with the ArcGISMap.
How to use the sample

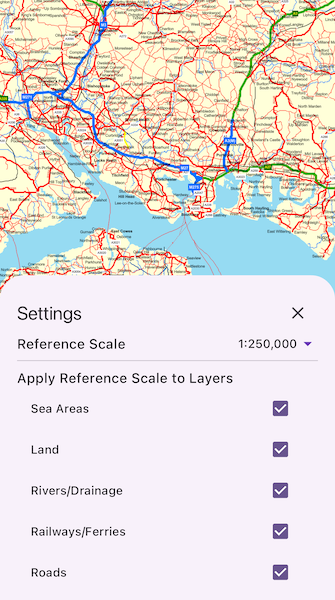

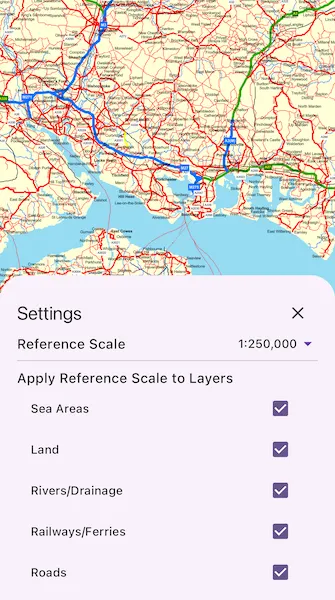

Tap the "Settings" button to load the settings dialog. Use the drop-down menu to set the map's reference scale (1:500,000 1:250,000 1:100,000 1:50,000). You can choose which feature layers should honor the reference scale using the checkboxes. Scroll down and tap the "Set to Reference Scale" button to set the map scale to the reference scale.
How it works
- Get and set the reference scale property on the
ArcGISMapobject. - Get and set the scale symbols property on each individual
FeatureLayerobject.
Relevant API
- ArcGISMap
- FeatureLayer
Additional information
The map reference scale should normally be set by the map's author and not exposed to the end user like it is in this sample.
Tags
map, reference scale, scene
Sample Code
set_reference_scale.dart
//
// Copyright 2024 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
// https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
//
import 'dart:math';
import 'package:arcgis_maps/arcgis_maps.dart';
import 'package:flutter/material.dart';
import '../../utils/sample_state_support.dart';
class SetReferenceScale extends StatefulWidget {
const SetReferenceScale({super.key});
@override
State<SetReferenceScale> createState() => _SetReferenceScaleState();
}
class _SetReferenceScaleState extends State<SetReferenceScale>
with SampleStateSupport {
// Create a controller for the map view.
final _mapViewController = ArcGISMapView.createController();
// Create a list of dropdown menu items to load all the reference scales.
final _referenceScaleList = <DropdownMenuItem<double>>[];
// Create a list of selected feature layers.
final _selectedFeatureLayers = <String>[];
// Create a list of all feature layers.
late List<String> _allFeatureLayers;
// Create a variable to store the map.
var _map = ArcGISMap();
// Create a variable to store the scale.
var _scale = 250000.0;
// Create a flag for when the map view is ready and controls can be used.
var _ready = false;
// Create a flag for when the bottom sheet is visible.
var _bottomSheetVisible = false;
// Create a regular expression to format the scale.
final _digitGroupRegex = RegExp(r'(\d{1,3})(?=(\d{3})+(?!\d))');
@override
void initState() {
super.initState();
// Add scales to the list.
for (final value in [500000.0, 250000.0, 100000.0, 50000.0]) {
_referenceScaleList.add(
DropdownMenuItem(
value: value,
child: Text(formatAsScale(value)),
),
);
}
}
@override
Widget build(BuildContext context) {
return Scaffold(
body: SafeArea(
top: false,
// Add a column to the widget tree.
child: Column(
children: [
Expanded(
// Add a map view to the widget tree and set a controller.
child: ArcGISMapView(
controllerProvider: () => _mapViewController,
onMapViewReady: onMapViewReady,
),
),
// Add a settings button to the widget tree.
ElevatedButton(
// Show the settings dialog when the button is pressed.
onPressed: _ready
? () => setState(() => _bottomSheetVisible = true)
: null,
child: const Text('Settings'),
),
],
),
),
bottomSheet: _bottomSheetVisible ? buildSettings(context) : null,
);
}
void onMapViewReady() async {
// Create a portal item.
final portal = Portal.arcGISOnline();
final portalItem = PortalItem.withPortalAndItemId(
portal: portal,
itemId: '3953413f3bd34e53a42bf70f2937a408',
);
// Load the portal item.
await portalItem.load();
// Create a map from the portal item and load it.
_map = ArcGISMap.withItem(portalItem);
await _map.load();
// Get the operational layer names from the map.
_allFeatureLayers =
_map.operationalLayers.map((layer) => layer.name).toList();
// Get the feature layers that have scale symbols enabled and add them to the selected feature layers list.
for (final layer in _map.operationalLayers) {
layer as FeatureLayer;
layer.scaleSymbols == true
? _selectedFeatureLayers.add(layer.name)
: null;
}
// Set the map view controller's map to the ArcGIS map.
_mapViewController.arcGISMap = _map;
// Set the ready state variable to true to enable the sample UI.
setState(() => _ready = true);
}
Widget buildSettings(BuildContext context) {
return Container(
padding: EdgeInsets.fromLTRB(
20.0,
20.0,
20.0,
max(
20.0,
View.of(context).viewPadding.bottom /
View.of(context).devicePixelRatio,
),
),
child: Column(
mainAxisSize: MainAxisSize.min,
children: [
// Add a row with the settings title and close button.
Row(
children: [
Text(
'Settings',
style: Theme.of(context).textTheme.titleLarge,
),
const Spacer(),
IconButton(
icon: const Icon(Icons.close),
onPressed: () => setState(() => _bottomSheetVisible = false),
),
],
),
// Add a container with a scrollable column for the settings.
Container(
constraints: BoxConstraints(
maxHeight: MediaQuery.sizeOf(context).height * 0.4,
),
child: SingleChildScrollView(
child: Column(
children: [
Row(
children: [
Text(
'Reference Scale',
style: Theme.of(context).textTheme.titleMedium,
),
const Spacer(),
// Add a dropdown button for setting a new reference scale.
DropdownButton(
underline: Container(),
style: Theme.of(context).textTheme.titleSmall,
isDense: true,
alignment: Alignment.center,
// Set the selected scale
value: _scale,
icon: const Icon(
Icons.arrow_drop_down,
color: Colors.deepPurple,
),
// Set the callback to update the selected scale.
onChanged: (newScale) {
setState(() {
_scale = newScale!;
_map.referenceScale = _scale;
});
},
items: _referenceScaleList,
),
],
),
const Divider(),
Row(
children: [
Text(
'Apply Reference Scale to Layers',
style: Theme.of(context).textTheme.titleMedium,
),
],
),
// Add a list of checkboxes for selecting feature layers that will honor the reference scale.
Column(
mainAxisSize: MainAxisSize.min,
children: [
// Create a checkbox for each feature layer.
for (final layer in _allFeatureLayers)
CheckboxListTile(
dense: true,
value: _selectedFeatureLayers.contains(layer),
onChanged: (value) {
setState(() {
// Update the selected feature layers list.
if (value ?? false) {
_selectedFeatureLayers.add(layer);
} else {
_selectedFeatureLayers.remove(layer);
}
});
// Get the matching layer from the map.
var matchingLayer = _map.operationalLayers
.where((element) => element.name == layer)
.first as FeatureLayer;
// Set the layer property based on the checkbox value.
_selectedFeatureLayers.contains(matchingLayer.name)
? matchingLayer.scaleSymbols = true
: matchingLayer.scaleSymbols = false;
},
// Set the title of the checkbox to the layer name.
title: Text(
layer,
style: Theme.of(context).textTheme.titleSmall,
),
),
],
),
const Divider(),
Row(
children: [
// Add text to display the current map scale.
Text(
'Map Scale',
style: Theme.of(context).textTheme.titleMedium,
),
const Spacer(),
Text(
formatAsScale(_mapViewController.scale),
style: Theme.of(context).textTheme.titleSmall,
),
],
),
// Add a button to set the map scale to the reference scale.
Padding(
padding: const EdgeInsets.only(bottom: 20.0),
child: ElevatedButton(
onPressed: () {
// Set the map scale to the reference scale and close the settings dialog.
_mapViewController.setViewpointScale(
_map.referenceScale,
);
setState(() => _bottomSheetVisible = false);
},
child: const Text('Set to Reference Scale'),
),
),
],
),
),
),
],
),
);
}
// Create a function to format the scale.
String formatAsScale(double value) {
return '1:${value.toInt().toString().replaceAllMapped(_digitGroupRegex, matchFormatter)}';
}
// Create a helpder function to be applied on the regular expression.
String Function(Match) matchFormatter = (Match match) => '${match[1]},';
}
