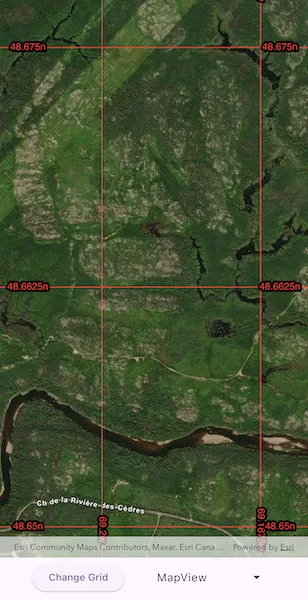

Display coordinate system grids including Latitude/Longitude, MGRS, UTM and USNG on a map view or scene view. Also, toggle label visibility and change the color of grid lines and grid labels.
Use case
Grids are often used on printed maps, but can also be helpful on 2D maps or 3D scenes, to identify locations on a map.
How to use the sample
Tap on the Change Grid button in the toolbar to open a settings view. You can change the view from 2D (MapView) or 3D (SceneView), can select type of grid from Grid Type (LatLong, MGRS, UTM and USNG) and modify its properties like label visibility, grid line color, and grid label color.
How it works
- Create an instance of one of the
Gridtypes. - Grid lines and labels can be styled per grid level with
setLineSymbol(level, lineSymbol)andsetTextSymbol(level, textSymbol)methods on the grid. - The label position can be set with the
labelPositionproperty on the grid.- MGRS, UTM, and USNG grids in a SceneView only support the Geographic label position
- For the
LatitudeLongitudeGridtype, you can specify a label format ofdecimal_degreesordegrees_minutes_seconds. - To set the grid, use the
gridproperty on the map view.
Relevant API
- ArcGISMapView
- ArcGISSceneView
- Grid
- LatitudeLongitudeGrid
- MGRSGrid
- SimpleLineSymbol
- TextSymbol
- USNGGrid
- UTMGrid
Tags
coordinates, degrees, graticule, grid, latitude, longitude, MGRS, minutes, seconds, USNG, UTM
Sample Code
show_grid.dart
//
// Copyright 2024 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
// https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
//
import 'package:arcgis_maps/arcgis_maps.dart';
import 'package:arcgis_maps_sdk_flutter_samples/common/common.dart';
import 'package:flutter/material.dart';
class ShowGrid extends StatefulWidget {
const ShowGrid({super.key});
@override
State<ShowGrid> createState() => _ShowGridState();
}
class _ShowGridState extends State<ShowGrid> with SampleStateSupport {
// Create a controller for the map view.
final _mapViewController = ArcGISMapView.createController();
final _center = ArcGISPoint(
x: -7702852.905619,
y: 6217972.345771,
spatialReference: SpatialReference.webMercator,
);
// Create a controller for the Scene View.
final _sceneViewController = ArcGISSceneView.createController();
var _gridType = GridType.latitudeLongitude;
var _gridColorType = GridColorType.red;
var _gridLabelColorType = GridColorType.red;
var _labelPositionType = GridLabelPositionType.allSides;
var _labelFormatType = LatLongLabelFormatType.decimalDegrees;
var _labelVisibility = true;
// Selected View.
final _dropDownMenuEntries = [
const DropdownMenuEntry(value: 'MapView', label: 'MapView'),
const DropdownMenuEntry(value: 'SceneView', label: 'SceneView'),
];
var _isMapView = true;
GeoViewController getController() =>
_isMapView ? _mapViewController : _sceneViewController;
@override
Widget build(BuildContext context) {
return Scaffold(
body: SafeArea(
top: false,
left: false,
right: false,
child: Stack(
children: [
Column(
children: [
Expanded(
// Add a map view to the widget tree and set a controller.
child:
_isMapView
? ArcGISMapView(
controllerProvider: () => _mapViewController,
onMapViewReady: onMapViewReady,
)
: ArcGISSceneView(
controllerProvider: () => _sceneViewController,
onSceneViewReady: onMapViewReady,
),
),
Row(
mainAxisAlignment: MainAxisAlignment.spaceEvenly,
children: [
ElevatedButton(
onPressed: _showGridOptions,
child: const Text('Change Grid'),
),
// Button to switch between MapView and SceneView.
DropdownMenu(
dropdownMenuEntries: _dropDownMenuEntries,
initialSelection: 'MapView',
onSelected: (value) {
setState(() {
_isMapView = value == _dropDownMenuEntries[0].value;
});
},
),
],
),
],
),
],
),
),
);
}
void onMapViewReady() {
final map = ArcGISMap.withBasemapStyle(BasemapStyle.arcGISImagery);
_mapViewController.arcGISMap = map;
final scene = ArcGISScene.withBasemapStyle(BasemapStyle.arcGISImagery);
_sceneViewController.arcGISScene = scene;
// Set the initial grid.
_onGridChanged(_gridType);
_onGridColorChanged(_gridColorType);
_onLabelColorChanged(_gridLabelColorType);
_onLabelPositionChanged(_labelPositionType);
_onLabelVisibilityChanged(_labelVisibility);
}
// Change the grid based on the given value.
void _onGridChanged(GridType gridType) {
_gridType = gridType;
final grid = gridType.value;
getController().grid = grid;
if (grid is LatitudeLongitudeGrid) {
grid.labelFormat = LatitudeLongitudeGridLabelFormat.decimalDegrees;
getController().setViewpoint(Viewpoint.fromCenter(_center, scale: 23227));
} else if (grid is UtmGrid) {
getController().setViewpoint(
Viewpoint.fromCenter(_center, scale: 10000000),
);
} else if (grid is UsngGrid || grid is MgrsGrid) {
getController().setViewpoint(Viewpoint.fromCenter(_center, scale: 23227));
}
}
// Change the grid color based on the given value.
void _onGridColorChanged(GridColorType colorType) {
_gridColorType = colorType;
if (getController().grid != null) {
final grid = getController().grid!;
for (var i = 0; i < grid.levelCount; i++) {
final lineSymbol = SimpleLineSymbol(color: colorType.value);
grid.setLineSymbol(level: i, lineSymbol: lineSymbol);
}
}
}
// Change the label visibility based on the given value.
void _onLabelVisibilityChanged(bool value) {
_labelVisibility = value;
getController().grid?.labelVisibility = value;
}
// Change the label color based on the given value.
void _onLabelColorChanged(GridColorType colorType) {
_gridLabelColorType = colorType;
if (getController().grid != null) {
final grid = getController().grid!;
for (var i = 0; i < grid.levelCount; i++) {
final textSymbol =
TextSymbol(
color: colorType.value,
size: 14,
horizontalAlignment: HorizontalAlignment.left,
verticalAlignment: VerticalAlignment.bottom,
)
..haloColor = Colors.black
..haloWidth = 5.0;
grid.setTextSymbol(level: i, textSymbol: textSymbol);
}
}
}
// Change the label format if the grid is LatitudeLongitudeGrid.
void _onLabelFormatChanged(LatLongLabelFormatType labelFormatType) {
_labelFormatType = labelFormatType;
if (getController().grid is LatitudeLongitudeGrid) {
final grid = getController().grid! as LatitudeLongitudeGrid;
grid.labelFormat = labelFormatType.value;
}
}
// Change the label position based on the given value.
void _onLabelPositionChanged(GridLabelPositionType labelPositionType) {
_labelPositionType = labelPositionType;
getController().grid?.labelPosition = labelPositionType.value;
}
/// Show the grid options dialog.
Future<void> _showGridOptions() async {
return showDialog(
context: context,
barrierColor: Colors.transparent,
builder: (context) {
return Align(
alignment: Alignment.bottomCenter,
child: Material(
child: Padding(
padding: const EdgeInsets.all(10),
child: Column(
mainAxisSize: MainAxisSize.min,
mainAxisAlignment: MainAxisAlignment.spaceEvenly,
children: [
Row(
children: [
const Text('Grid Options'),
const Spacer(),
IconButton(
onPressed: () {
Navigator.of(context).pop();
},
icon: const Icon(Icons.close),
),
],
),
GridOptions(
grids: MapViewGrids(
gridType: _gridType,
gridColorType: _gridColorType,
labelColorType: _gridLabelColorType,
labelPositionType: _labelPositionType,
labelFormatType: _labelFormatType,
labelVisible: _labelVisibility,
),
isSceneView: !_isMapView,
onGridChanged: _onGridChanged,
onGridColorChanged: _onGridColorChanged,
onLabelColorChanged: _onLabelColorChanged,
onLabelPositionChanged: _onLabelPositionChanged,
onLabelFormatChanged: _onLabelFormatChanged,
onLabelVisibilityChanged: _onLabelVisibilityChanged,
),
],
),
),
),
);
},
);
}
}
///
/// A widget that displays grid options.
///
class GridOptions extends StatefulWidget {
const GridOptions({
required this.grids,
required this.onGridChanged,
required this.onGridColorChanged,
required this.onLabelColorChanged,
required this.onLabelPositionChanged,
required this.onLabelFormatChanged,
required this.onLabelVisibilityChanged,
required this.isSceneView,
super.key,
});
final Function(GridType) onGridChanged;
final Function(GridColorType) onGridColorChanged;
final Function(GridColorType) onLabelColorChanged;
final Function(GridLabelPositionType) onLabelPositionChanged;
final Function(LatLongLabelFormatType) onLabelFormatChanged;
final Function(bool) onLabelVisibilityChanged;
final MapViewGrids grids;
final bool isSceneView;
@override
State<GridOptions> createState() => _GridOptionsState();
}
class _GridOptionsState extends State<GridOptions> with SampleStateSupport {
// Stateful variables.
late GridType gridType;
late GridColorType gridColorType;
late GridColorType gridLabelColorType;
late GridLabelPositionType labelPositionType;
late LatLongLabelFormatType labelFormatType;
late bool labelVisible;
late bool isLabelFormatVisible;
@override
void initState() {
super.initState();
gridType = widget.grids.gridType;
gridColorType = widget.grids.gridColorType;
gridLabelColorType = widget.grids.labelColorType;
labelPositionType = widget.grids.labelPositionType;
labelFormatType = widget.grids.labelFormatType;
labelVisible = widget.grids.labelVisible;
isLabelFormatVisible = _shouldShowLabelFormat(gridType);
}
@override
Widget build(BuildContext context) {
return SingleChildScrollView(
child: ListBody(
children: [
_buildGridDropdown(),
if (isLabelFormatVisible)
_buildLatLongLabelFormatDropdown()
else
Container(),
_buildGridColorDropdown(),
_buildLabelColorDropdown(),
_buildLabelPositionDropdown(),
_buildLabelVisibilityCheckbox(),
],
),
);
}
// Create a DropdownMenu widget.
static DropdownMenu _createDropdownMenu<T>({
required T value,
required String labelText,
required List<T> items,
required Function(T) onChanged,
}) {
return DropdownMenu(
width: double.infinity,
initialSelection: value,
onSelected: (newValue) {
onChanged(newValue!);
},
label: Text(labelText),
dropdownMenuEntries:
items.map((value) {
return DropdownMenuEntry(value: value, label: value.toString());
}).toList(),
);
}
DropdownMenu _buildGridDropdown() {
return _createDropdownMenu(
value: gridType,
labelText: 'Grid Type',
items: GridType.values,
onChanged: (newGrid) {
_changeGrid(newGrid);
setState(() {
gridType = newGrid;
isLabelFormatVisible = _shouldShowLabelFormat(newGrid);
});
},
);
}
DropdownMenu _buildLatLongLabelFormatDropdown() {
final formField = _createDropdownMenu(
value: labelFormatType,
labelText: 'Label Format',
items: LatLongLabelFormatType.values,
onChanged: (newFormat) {
widget.onLabelFormatChanged(newFormat);
setState(() => labelFormatType = newFormat);
},
);
return formField;
}
DropdownMenu _buildGridColorDropdown() {
return _createDropdownMenu(
value: gridColorType,
labelText: 'Grid Color',
items: GridColorType.values,
onChanged: (newColor) {
widget.onGridColorChanged(newColor);
setState(() => gridColorType = newColor);
},
);
}
DropdownMenu _buildLabelColorDropdown() {
return _createDropdownMenu(
value: gridLabelColorType,
labelText: 'Label Color',
items: GridColorType.values,
onChanged: (newColor) {
widget.onLabelColorChanged(newColor);
setState(() => gridLabelColorType = newColor);
},
);
}
DropdownMenu _buildLabelPositionDropdown() {
final unsupportedInSceneView = {
GridLabelPositionType.bottomLeft,
GridLabelPositionType.bottomRight,
GridLabelPositionType.topLeft,
GridLabelPositionType.topRight,
GridLabelPositionType.center,
GridLabelPositionType.allSides,
};
final isUnsupportedGrid = gridType != GridType.latitudeLongitude;
final filteredItems =
widget.isSceneView && isUnsupportedGrid
? GridLabelPositionType.values
.where((type) => !unsupportedInSceneView.contains(type))
.toList()
: GridLabelPositionType.values;
return _createDropdownMenu(
value: labelPositionType,
labelText: 'Label Position',
items: filteredItems,
onChanged: (newLabelPosition) {
widget.onLabelPositionChanged(newLabelPosition);
setState(() => labelPositionType = newLabelPosition);
},
);
}
Widget _buildLabelVisibilityCheckbox() {
return Center(
child: CheckboxListTile(
title: const Text('Label Visible'),
value: labelVisible,
onChanged: (newVisible) {
widget.onLabelVisibilityChanged(newVisible!);
setState(() => labelVisible = newVisible);
},
),
);
}
// Change the Grid and apply the current settings.
void _changeGrid(GridType newGridType) {
widget.onGridChanged(newGridType);
widget.onLabelFormatChanged(labelFormatType);
widget.onGridColorChanged(gridColorType);
widget.onLabelColorChanged(gridLabelColorType);
// Reset label position if unsupported
final unsupportedInSceneView = {
GridLabelPositionType.bottomLeft,
GridLabelPositionType.bottomRight,
GridLabelPositionType.topLeft,
GridLabelPositionType.topRight,
GridLabelPositionType.center,
GridLabelPositionType.allSides,
};
final isUnsupported =
widget.isSceneView &&
newGridType != GridType.latitudeLongitude &&
unsupportedInSceneView.contains(labelPositionType);
if (isUnsupported) {
labelPositionType = GridLabelPositionType.geographic;
widget.onLabelPositionChanged(labelPositionType);
}
widget.onLabelPositionChanged(labelPositionType);
widget.onLabelVisibilityChanged(labelVisible);
}
// Set the visibility of the label format dropdown based on the grid type.
bool _shouldShowLabelFormat(GridType grid) =>
grid == GridType.latitudeLongitude;
}
//
// A data class that holds the grid options.
//
class MapViewGrids {
MapViewGrids({
required this.gridType,
required this.gridColorType,
required this.labelColorType,
required this.labelPositionType,
required this.labelFormatType,
required this.labelVisible,
});
final GridType gridType;
final GridColorType gridColorType;
final GridColorType labelColorType;
final GridLabelPositionType labelPositionType;
final LatLongLabelFormatType labelFormatType;
final bool labelVisible;
}
// An enum of grid label positions.
enum GridLabelPositionType {
allSides('AllSides', GridLabelPosition.allSides),
center('Center', GridLabelPosition.center),
bottomLeft('BottomLeft', GridLabelPosition.bottomLeft),
bottomRight('BottomRight', GridLabelPosition.bottomRight),
topLeft('TopLeft', GridLabelPosition.topLeft),
topRight('TopRight', GridLabelPosition.topRight),
geographic('Geographic', GridLabelPosition.geographic);
const GridLabelPositionType(this.name, this.value);
final String name;
final GridLabelPosition value;
@override
String toString() => name;
}
// An enum of grid colors.
enum GridColorType {
red('Red', Colors.red),
blue('Blue', Colors.blue),
green('Green', Colors.green),
yellow('Yellow', Colors.yellow);
const GridColorType(this.name, this.value);
final String name;
final Color value;
@override
String toString() => name;
}
// An enum of label format types.
enum LatLongLabelFormatType {
decimalDegrees(
'Decimal Degrees',
LatitudeLongitudeGridLabelFormat.decimalDegrees,
),
degreesMinutesSeconds(
'Degrees Minutes Seconds',
LatitudeLongitudeGridLabelFormat.degreesMinutesSeconds,
);
const LatLongLabelFormatType(this.name, this.value);
final String name;
final LatitudeLongitudeGridLabelFormat value;
@override
String toString() => name;
}
// An enum of grid types.
enum GridType {
latitudeLongitude('Latitude & Longitude'),
mgrs('MGRS'),
utm('UTM'),
usng('USNG');
const GridType(this.name);
final String name;
Grid get value {
switch (this) {
case GridType.latitudeLongitude:
return LatitudeLongitudeGrid();
case GridType.mgrs:
return MgrsGrid();
case GridType.utm:
return UtmGrid();
case GridType.usng:
return UsngGrid();
}
}
@override
String toString() => name;
}
