// Copyright 2025 Esri
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
//
//   https://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
//

import 'dart:async';
import 'dart:io';

import 'package:arcgis_maps/arcgis_maps.dart';
import 'package:arcgis_maps_sdk_flutter_samples/common/common.dart';
import 'package:flutter/material.dart';
import 'package:path_provider/path_provider.dart';

class ShowViewshedFromGeoelementInScene extends StatefulWidget {
  const ShowViewshedFromGeoelementInScene({super.key});

  @override
  State<ShowViewshedFromGeoelementInScene> createState() =>
      _ShowViewshedFromGeoelementInSceneState();
}

class _ShowViewshedFromGeoelementInSceneState
    extends State<ShowViewshedFromGeoelementInScene>
    with SampleStateSupport {
  // Create a controller for the scene view.
  final _sceneViewController = ArcGISSceneView.createController();

  // The graphic for the tank.
  Graphic? _tankGraphic;

  // Timer for animation.
  Timer? _animationTimer;

  // Waypoint for tank graphic.
  ArcGISPoint? _waypoint;

  // A flag for when the map view is ready and controls can be used.
  var _ready = false;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SafeArea(
        top: false,
        left: false,
        right: false,
        child: Stack(
          children: [
            // Add a scene view to the widget tree and set a controller.
            ArcGISSceneView(
              controllerProvider: () => _sceneViewController,
              onSceneViewReady: onSceneViewReady,
              onTap: onTap,
            ),
            // Display a progress indicator and prevent interaction until state is ready.
            LoadingIndicator(visible: !_ready),
            // Banner at the top.
            SafeArea(
              child: IgnorePointer(
                child: Container(
                  width: double.infinity,
                  padding: const EdgeInsets.all(10),
                  color: Colors.black.withValues(alpha: 0.5),
                  child: const Text(

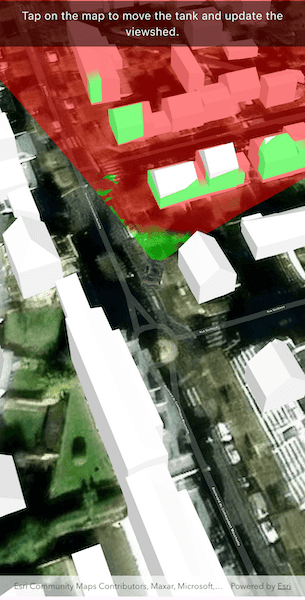

                    'Tap on the map to move the tank and update the viewshed.',
                    textAlign: TextAlign.center,
                    style: TextStyle(color: Colors.white, fontSize: 16),
                  ),
                ),
              ),
            ),
          ],
        ),
      ),
    );
  }

  // Called when the scene view is ready.
  Future<void> onSceneViewReady() async {
    // Create and configure the scene with elevation.
    final scene = _createScene();
    // Assign the scene to the scene view controller.
    _sceneViewController.arcGISScene = scene;

    // Load the tank graphic from the local data.
    _tankGraphic = await _loadTankGraphic();

    // Add the tank graphic to the scene.
    _addTankToScene(_tankGraphic!);

    // Set up the orbit camera controller to follow the tank.
    _setupCameraController(_tankGraphic!);

    // Add the viewshed to the scene.
    _addViewshedToScene(_tankGraphic!);

    setState(() => _ready = true);
  }

  // Creates a scene with an imagery basemap and adds elevation data.
  ArcGISScene _createScene() {
    final scene = ArcGISScene.withBasemapStyle(BasemapStyle.arcGISImagery);

    // Add world elevation source to the scene's surface.
    final elevationSource = ArcGISTiledElevationSource.withUri(
      Uri.parse(
        'https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer',
      ),
    );
    scene.baseSurface.elevationSources.add(elevationSource);

    // Create the building layer and add it to the scene.
    final buildingsLayer = ArcGISSceneLayer.withUri(
      Uri.parse(
        'https://tiles.arcgis.com/tiles/P3ePLMYs2RVChkJx/arcgis/rest/services/Buildings_Brest/SceneServer/layers/0',
      ),
    );
    scene.operationalLayers.add(buildingsLayer);

    return scene;
  }

  // Convert the tapped location into a waypoint within the scene and initiate the tank's animation towards the waypoint.
  Future<void> onTap(Offset localPosition) async {
    // Convert localPosition to scenePoint.
    final scenePoint = await _sceneViewController.screenToLocation(
      screen: localPosition,
    );

    setState(() => _waypoint = scenePoint);

    _startTankAnimation();
  }

  // Animate the tank toward the waypoint.
  void _startTankAnimation() {
    // Cancel any existing timer.
    _animationTimer?.cancel();
    _animationTimer = Timer.periodic(const Duration(milliseconds: 100), (
      timer,
    ) async {
      if (_tankGraphic == null || _waypoint == null) return;

      final tempPos = _tankGraphic!.geometry! as ArcGISPoint;

      final currentPos = ArcGISPoint(
        x: tempPos.x,
        y: tempPos.y,
        spatialReference: SpatialReference.wgs84,
      );
      final target = ArcGISPoint(
        x: _waypoint!.x,
        y: _waypoint!.y,
        spatialReference: SpatialReference.wgs84,
      );

      // Use geodetic distance to get distance and azimuth.
      final result = GeometryEngine.distanceGeodetic(
        point1: currentPos,
        point2: target,
        distanceUnit: LinearUnit(unitId: LinearUnitId.meters),
        azimuthUnit: AngularUnit(unitId: AngularUnitId.degrees),
        curveType: GeodeticCurveType.geodesic,
      );

      final distance = result.distance;
      final azimuth = result.azimuth1;

      // Stop if close enough.
      if (distance <= 5) {
        _waypoint = null;
        timer.cancel();
        return;
      }

      // Move a small step toward the waypoint.
      const step = 1.0; // meters
      final movedPoints = GeometryEngine.moveGeodetic(
        pointCollection: [currentPos],
        distance: step,
        azimuth: azimuth,
        distanceUnit: LinearUnit(unitId: LinearUnitId.meters),
        azimuthUnit: AngularUnit(unitId: AngularUnitId.degrees),
        curveType: GeodeticCurveType.geodesic,
      );

      if (movedPoints.isEmpty) return;

      final newPoint = movedPoints.first;
      _tankGraphic!.geometry = newPoint;

      // Update heading.
      final currentHeading =
          (_tankGraphic!.attributes['HEADING'] as num?)?.toDouble() ?? 0.0;

      final headingDiff = shortestAngle(currentHeading, azimuth);
      final newHeading = currentHeading + headingDiff / 10;

      _tankGraphic!.attributes['HEADING'] = newHeading;
    });
  }

  // Calculate shortest angle to rotate.
  double shortestAngle(double from, double to) {
    final difference = (to - from + 540) % 360 - 180;
    return difference;
  }

  // Loads the 3D tank model from local sample data and returns it as a Graphic.
  Future<Graphic> _loadTankGraphic() async {
    const downloadFileName = 'bradley_low_3ds';

    final appDir = await getApplicationDocumentsDirectory();
    final zipFile = File('${appDir.absolute.path}/$downloadFileName.zip');
    if (!zipFile.existsSync()) {
      await downloadSampleDataWithProgress(
        itemIds: ['07d62a792ab6496d9b772a24efea45d0'],
        destinationFiles: [zipFile],
      );
    }

    final tankModelPath =
        '${appDir.absolute.path}/$downloadFileName/bradle.3ds';

    // Define the tank symbol.
    final tankSymbol =
        ModelSceneSymbol.withUri(uri: Uri.parse(tankModelPath), scale: 10)
          ..heading = 90
          ..anchorPosition = SceneSymbolAnchorPosition.bottom;

    // Return the graphic that combines geometry and symbol.
    return Graphic(
      geometry: ArcGISPoint(x: -4.506390, y: 48.385624),
      attributes: {'HEADING': 0.0},
      symbol: tankSymbol,
    );
  }

  // Adds the tank graphic to a graphics overlay and sets the initial viewpoint.
  void _addTankToScene(Graphic tankGraphic) {
    final graphicsOverlay = GraphicsOverlay()
      ..graphics.add(tankGraphic)
      ..sceneProperties = LayerSceneProperties(
        surfacePlacement: SurfacePlacement.relative,
      );

    // Configure the heading expression for the tank; this will allow the
    // viewshed to update automatically based on the tank's position.
    final renderer = SimpleRenderer()
      ..sceneProperties.headingExpression = '[HEADING]'
      ..sceneProperties.pitchExpression = '[PITCH]'
      ..sceneProperties.rollExpression = '[ROLL]';
    graphicsOverlay.renderer = renderer;

    _sceneViewController.graphicsOverlays.add(graphicsOverlay);
  }

  // Add viewshed to the scene.
  void _addViewshedToScene(Graphic tankGraphic) {
    // Create a GeoElementViewshed attached to the scene.
    final geoElementViewshed =
        GeoElementViewshed(
            geoElement: tankGraphic,
            horizontalAngle: 90,
            verticalAngle: 40,
            headingOffset: 0,
            pitchOffset: 0,
            minDistance: 0.1,
            maxDistance: 250,
          )
          // Offset the observer location to the front of the tank.
          ..offsetZ = 0.5
          ..offsetY = 4;

    // Create an Analysis Overlay and add the viewshed to it.
    final analysisOverlay = AnalysisOverlay()..analyses.add(geoElementViewshed);

    // Add the analysis overlay to the scene view.
    _sceneViewController.analysisOverlays.add(analysisOverlay);
  }

  // Configures the orbit camera controller for the tank graphic.
  void _setupCameraController(Graphic tankGraphic) {
    final cameraController = OrbitGeoElementCameraController(
      targetGeoElement: tankGraphic,
      distance: 200,
    );
    _sceneViewController.cameraController = cameraController;
  }
}
