Style a feature layer

Learn how to apply renderers A renderer is a collection of rules and symbols used to display the data in a layer. Learn more and label definitions to a feature layer A feature layer (client-side) is a data layer that can access and display features from a feature service that has the same type of geometry and attribute fields. Learn more based on attribute values.

Applications can display feature layer data with different styles to enhance the visualization. The type of Renderer you choose depends on your application. A SimpleRenderer applies the same symbol to all features, a UniqueValueRenderer applies a different symbol to each unique attribute value, and a ClassBreaksRenderer applies a symbol to a range of numeric values. Renderers are responsible for accessing the data and applying the appropriate symbol to each feature when the layer draws. You can also use a LabelDefinition to show attribute information for features. Visit the Styles and data visualization documentation to learn more about styling layers.

You can also author, style and save web maps, web scenes, and layers as portal items and then add them to the map in your application. Visit the following tutorials to learn more about adding portal items.

• Display a web map
• Display a web scene
• Add a feature layer from a portal item

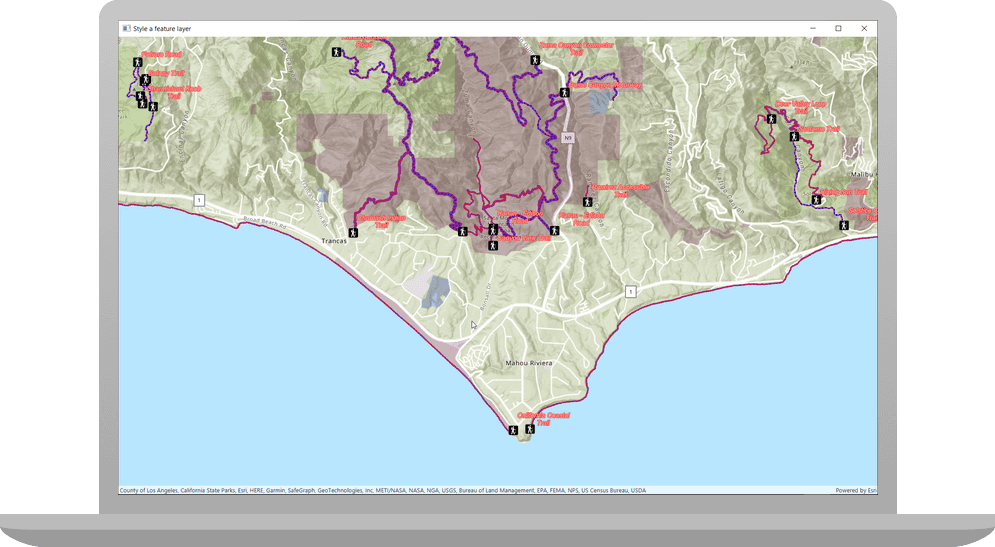

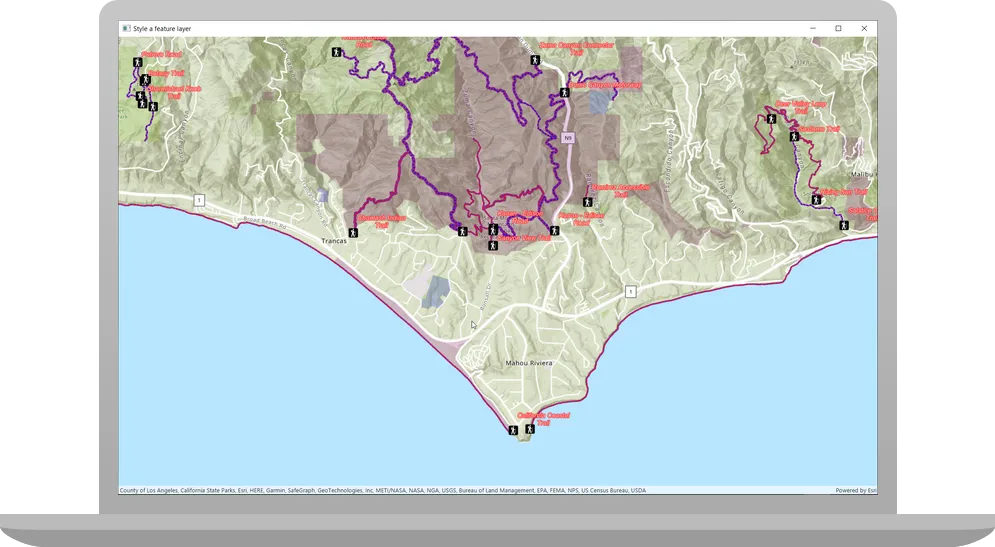

In this tutorial, you will apply different renderers A renderer is a collection of rules and symbols used to display the data in a layer. Learn more to enhance the visualization of three feature layers with data for the Santa Monica Mountains: Trailheads with a single symbol, Trails based on elevation change and bike use, and Parks and Open Spaces based on the type of park.

Prerequisites

Steps

Open a Java project with Gradle

1. To start this tutorial, complete the Display a map tutorial, or download and unzip the Display a map solution into a new folder.

2. Open the build.gradle file as a project in IntelliJ IDEA.

3. If you downloaded the solution, get an access token and set the API key.

   More info

   An API key An API key is a long-lived access token created using API key credentials. They are valid for up to one year and are typically embedded directly into client applications. Learn more gives your app access to secure resources A secure resource is any item or service in an ArcGIS that requires an ArcGIS account and authentication to access. Examples include ArcGIS Location Services, and items and data services in an ArcGIS portal. Learn more used in this tutorial.

   1. Go to the Create an API key tutorial to obtain a new API key access token An access token is an authorization string that provides access to secure ArcGIS content, data, and services. Its capabilities are determined by the privileges it supports. It is obtained by implementing API key authentication, User authentication, or App authentication. Learn more using your ArcGIS Location Platform An ArcGIS Location Platform account, formerly known as an ArcGIS Developer account, is an identity associated with an ArcGIS Location Platform subscription. Learn more or ArcGIS Online An ArcGIS Online account, also known as an ArcGIS Organization account, is an identity associated with an ArcGIS Online subscription. It can be used to access ArcGIS tools and develop applications with ArcGIS location services for an organization. Learn more account. Ensure that the following privilege Privileges are a set of permissions assigned to ArcGIS accounts, developer credentials, and applications that grant access to secure resources and functionality in ArcGIS. Learn more is enabled: Location services > Basemaps > Basemap styles service. Copy the access token as it will be used in the next step.

   2. In IntelliJ IDEA’s Project tool window, open src/main/java/com.example.app and double-click App.

   3. In the start() method, set the API key property on the ArcGISRuntimeEnvironment with your access token An access token is an authorization string that provides access to secure ArcGIS content, data, and services. Its capabilities are determined by the privileges it supports. It is obtained by implementing API key authentication, User authentication, or App authentication. Learn more . Replace YOUR_ACCESS_TOKEN with your copied access token. Be sure to surround your access token with double quotes as it is a string.

      App.java

          ArcGISRuntimeEnvironment.setApiKey("YOUR_ACCESS_TOKEN");

Preconfigure app

Modify the files from the Display a map tutorial so they can be used in this tutorial: you will change the app title, modify the viewpoint, and move the declaration of the map variable.

1. In the start() life-cycle method, change the title that will appear on the application window to Style a feature layer.

   App.java
