How SequenceToSequence works

Introduction

SequenceToSequence model can be used for multiple tasks that fall under the category of sequence translation. Sequence translation is the task of translating an input sequence to an output sequence of any length (independent of the input sequence length).
Few such tasks are:

Figure1: High level view of sequence translation

SeqenceToSequence model in arcgis.learn.text module is built on top of Hugginface transformers library. This library provides access to a wide range of transformer architectures.

The transformer architecture as proposed in the Attention is all you need paper, consists of an encoder block and a decoder block. Many of the latest transformer-based architectures like BERT, RoBERTa, ALBERT utilizes only the encoder part of the transformer. Whereas other models like GPT, GPT-2, etc. utilizes only the decoder part of the architecture. But, for SequenceToSequence tasks we need both the encoder and decoder. T5, Bart, MBart are few examples of such architectures, which preserve both the encoder and decoder.

For a detailed walkthrough of transformer architecture, refer to Jay Almmar's blogpost [1].

Prerequisites

  • Refer to the section Install deep learning dependencies of arcgis.learn module for detailed explanation about deep learning dependencies.
  • Labeled data: For SequenceToSequence to learn, it needs to see examples that have been translated in a way that the model is expected to translate an input text into. Head to the Data preparation section to see the supported formats for training data.

Data preparation

The SequenceToSequence class in arcgis.learn.text module can consume labeled training data in CSV file format

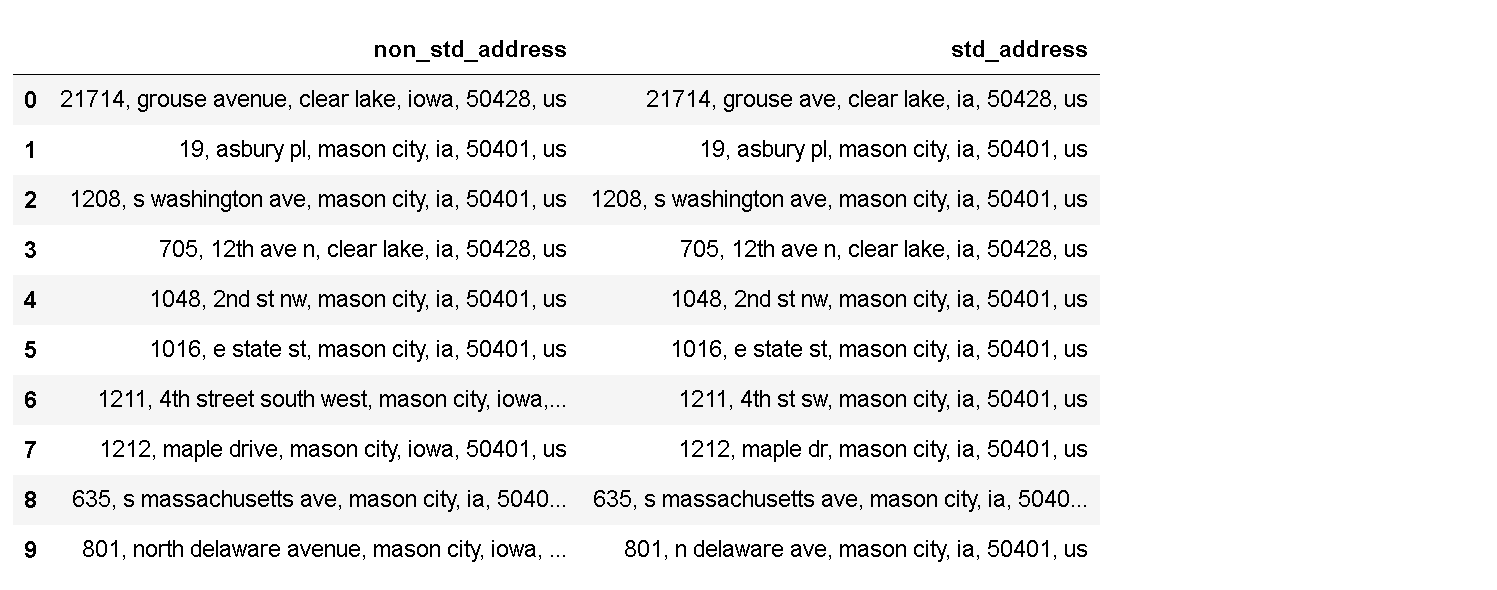

Sample input data format for SeqenceToSequence model training:

Training data must have two columns, one for input text and the other for translated output text. In the above example, non_std_address is the input text column, which has addresses from the U.S. in a non-standard format. std_address is the output text column which has the input address translated into a standard format.

Data preparation involves splitting the data into training and validation sets, creating the necessary data structures for loading data into the model and so on. The prepare_textdata function can directly read the training samples in the above specified format and automate the entire process. While calling this function, the user has to provide the following arguments:

  • path      -      The full directory path where the training file is present
  • task       -      The task for which the dataset is being prepared, for SequenceToSequence model
                 pass "sequence_translation" as the task name.
  • train_file      -      The file name containing the training data. Supported file format/extension is .csv
  • text_columns  -      The column name in the csv file that will be used as input feature.
  • label_columns -     The column denoting the translated text.

Some pre-processing functions are also provided like removing HTML tags from the text or removing the URLs from the text. Users can decide if these pre-processing steps are required for their dataset or not.

A note on the dataset

  • The data is collected around 2020-04-30 by OpenAddresses.
  • The data licenses can be found in data/address_standardization_correction_data/LICENSE.txt.
In [1]:
from arcgis.learn import prepare_textdata
from arcgis.learn.text import SequenceToSequence
In [2]:
data = prepare_textdata(path='data/', batch_size=16, task='sequence_translation',
                        text_columns='non_std_address', label_columns='std_address',
                        train_file='address_standardization.csv')

show_batch() method can be used to visualize the training samples, along with labels.

In [3]:
data.show_batch()
Out[3]:
non_std_address std_address
366, richland avenue, athens, ohio, 45701.0, us 366, richland ave, athens, oh, 45701.0, us
524, parnell drive, branson, missouri, 65616, us 524, parnell dr, branson, mo, 65616, us
26645.0, freedom valley dr, washburn, wi, 54891.0, us 26645.0, freedom valley dr, washburn, wi, 54891.0, us
15728.0, 430th avenue, delavan, minnesota, 56023.0, us 15728.0, 430th ave, delavan, mn, 56023.0, us
7129, tr 664, nan, ohio, 44624, us 7129, tr 664, nan, oh, 44624, us

SequenceToSequence model

The SequenceToSequence model training and inferencing workflows are similar to computer vision models in arcgis.learn.

Model instantiation

SequenceToSequence class constructor accepts two named arguments data(required) and backbone(optional).

data: TextDataObject object prepared with the prepare_textdata() function.

backbone: A pretrained transformer model based on the transformer architecture of choice.

How to choose an appropriate backbone for your dataset?

supported_backbones attribute can be called on SequenceToSequence class to see the supported backbones (transformer architectures) by the model

In [4]:
SequenceToSequence.supported_backbones
Out[4]:
['T5', 'Bart', 'Marian']

available_backbone_models() method accepts one of the supported_backbones and returns a list (this list is not exhaustive) of pretrained models for that backbone/architecture.

Users can choose a supported backbone and a pretrained model based on the task the model is to be trained on. It is preferable to choose a model that was trained on a similar task and data.

For instance, if a user is training a model for summarizing English text. It would be most appropriate to choose T5 architecture and t5-base-finetuned-summarize-news model, as this model was trained for summarization downstream task.

Visit HuggingFace model zoo and filter the tags based on the task to find all the available pretrained models for that particular task.

In [5]:
SequenceToSequence.available_backbone_models('T5')
Out[5]:
['t5-small',
 't5-base',
 't5-large',
 't5-3b',
 't5-11b',
 'See all T5 models at https://huggingface.co/models?filter=t5 ']
In [6]:
model = SequenceToSequence(data,backbone='t5-base')

Model training

Finding optimum learning rate

In machine learning, the learning rate[2] is a tuning parameter that determines the step size at each iteration while moving toward a minimum of a loss function, it represents the speed at which a machine learning model "learns"

  • If the learning rate is low, then model training will take a lot of time because steps towards the minimum of the loss function are tiny.
  • If the learning rate is high, then training may not converge or even diverge. Weight changes can be so big that the optimizer overshoots the minimum and makes the loss worse.

We have to find an optimum learning rate for the dataset we wish to train our model on. To do so we will call the lr_find() method of the model.

Note

  • A user is not required to call the lr_find() method separately. If lr argument is not provided while calling the fit() method then lr_find() method is internally called by the fit() method to find the optimal learning rate.
In [7]:
model.lr_find()
Out[7]:
0.1445439770745928

Training the model is an iterative process. We can train the model using its fit() method till the validation loss (or error rate) continues to go down with each training pass also known as epoch. This is indicative of the model learning the task.

In [8]:
model.fit(1, lr=0.1, checkpoint=False)
epoch train_loss valid_loss seq2seq_acc bleu time
0 0.353121 0.195216 0.976460 0.944818 1:06:36

By default, the earlier layers of the model (i.e. the backbone) are frozen and their weights are not updated when the model is being trained. Once the later layers have been sufficiently trained, the earlier layers are unfrozen (by calling unfreeze() method of the SequenceToSequence class) and fine-tuned to the nuances of the particular text in the dataset.

In [9]:
model.unfreeze()
In [10]:
lr = model.lr_find()
In [11]:
model.fit(epochs=4, lr=lr)
epoch train_loss valid_loss seq2seq_acc bleu time
0 0.001017 0.001049 0.999739 0.999311 1:46:22
1 0.000797 0.000705 0.999817 0.999521 1:47:22
2 0.000314 0.000421 0.999896 0.999720 1:48:03
3 0.000213 0.000380 0.999916 0.999773 1:48:06

Evaluate model performance

Call get_model_metrics() to calculate accuracy [3] and bleu [4] score on the validation data.

In [12]:
model.get_model_metrics()
Out[12]:
{'seq2seq_acc': 0.9999, 'bleu': 0.9998}

BLEU : (bilingual evaluation understudy) is an algorithm for evaluating the quality of text which has been machine-translated from one natural language to another. Refer to this paper for details on BLEU score.

Validate results

Once we have the trained model, we can see the results to see how it performs.

In [13]:
model.show_results()
text target pred
3001.0, ronald reagan cross colorado wb highway, sycamore township ham ohio, ohio, 45236.0, us 3001.0, ronald reagan cross co wb hwy, sycamore township ham oh, oh, 45236.0, us 3001.0, ronald reagan cross co wb hwy, sycamore township ham oh, oh, 45236.0, us
702.0, ronald reagan cross colorado wb highway, colerain township ham ohio, ohio, 45251.0, us 702.0, ronald reagan cross co wb hwy, colerain township ham oh, oh, 45251.0, us 702.0, ronald reagan cross co wb hwy, colerain township ham oh, oh, 45251.0, us
3208.0, ronald reagan cross co eb hwy, sycamore township ham oh, oh, 45242.0, us 3208.0, ronald reagan cross co eb hwy, sycamore township ham oh, oh, 45242.0, us 3208.0, ronald reagan cross co eb hwy, sycamore township ham oh, oh, 45242.0, us
3102.0, ronald reagan cross colorado eb highway, blue ash ham ohio, ohio, 45236.0, us 3102.0, ronald reagan cross co eb hwy, blue ash ham oh, oh, 45236.0, us 3102.0, ronald reagan cross co eb hwy, blue ash ham oh, oh, 45236.0, us
7679.0, ginnala connecticut, sycamore township ham ohio, ohio, 45243.0, us 7679.0, ginnala ct, sycamore township ham oh, oh, 45243.0, us 7679.0, ginnala ct, sycamore township ham oh, oh, 45243.0, us
In [14]:
model.save('add_standardization_4E_bleu_99')
Computing model metrics...
Out[14]:
PosixPath('models/add_standardization_4E_bleu_99')

Model inference

The trained model can be used to translate new text documents using the predict() method. This method accepts a string or a list of strings to translate new documents/text.

In [15]:
txt=['12160, eagle scout connecticut, sycamore township ham ohio, ohio, 45249, us',
     '2808, ronald reagan cross colorado wb highway, reading ham ohio, ohio, 45215, us']
In [16]:
model.predict(txt, max_length=50)
100.00% [1/1 00:00<00:00]
Out[16]:
[('12160, eagle scout connecticut, sycamore township ham ohio, ohio, 45249, us',
  '12160, eagle scout ct, sycamore township ham oh, oh, 45249, us'),
 ('2808, ronald reagan cross colorado wb highway, reading ham ohio, ohio, 45215, us',
  '2808, ronald reagan cross co wb hwy, reading ham oh, oh, 45215, us')]
