Set initial map location

View on GitHubSample viewer app

Display a basemap centered at an initial location and scale.

screenshot

Use case

You can set a map's initial location when you want to highlight a particular feature or area to establish the context.

How to use the sample

When the map loads, note the specific location and scale of the initial map view.

How it works

  1. Create a Map, specifying a basemap style, latitude and longitude in WGS84, and target scale.
  2. Display the map in a map view.

Relevant API

  • Basemap
  • Map
  • MapView

About the data

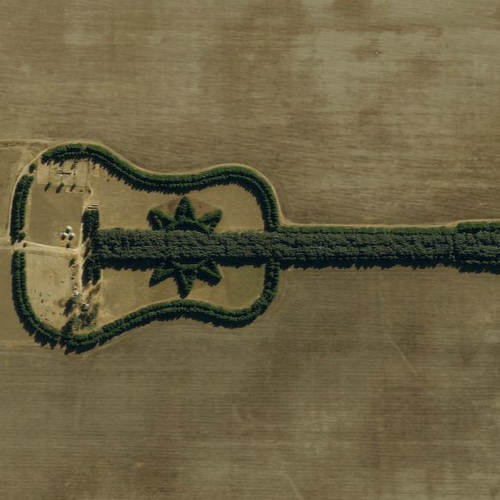

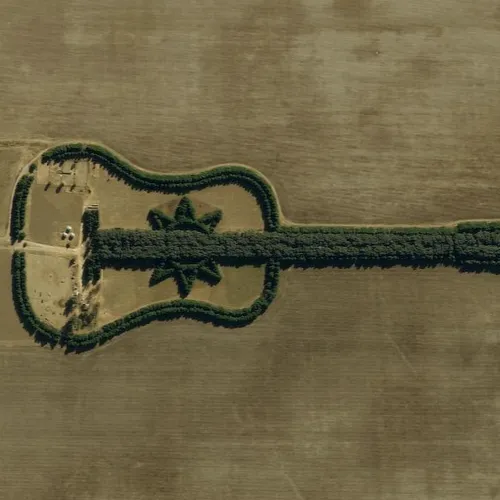

The map opens with satellite imagery of a guitar-shaped field in the Pampas region of north central Argentina.

Tags

basemap, center, envelope, extent, initial, lat, latitude, level of detail, location, LOD, long, longitude, scale, zoom level

Sample Code

SetInitialMapLocation.cppSetInitialMapLocation.cppSetInitialMapLocation.hSetInitialMapLocation.qml
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
// [WriteFile Name=SetInitialMapLocation, Category=Maps]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "SetInitialMapLocation.h"

// ArcGIS Maps SDK headers
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "Viewpoint.h"

using namespace Esri::ArcGISRuntime;

SetInitialMapLocation::SetInitialMapLocation(QQuickItem* parent) :
  QQuickItem(parent)
{
}

SetInitialMapLocation::~SetInitialMapLocation() = default;

void SetInitialMapLocation::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<SetInitialMapLocation>("Esri.Samples", 1, 0, "SetInitialMapLocationSample");
}

void SetInitialMapLocation::componentComplete()
{
  QQuickItem::componentComplete();

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");

  // Create a new map with the imagery basemap style enum and set its initial lat, long, and scale
  constexpr double lat = -33.867886;
  constexpr double lon = -63.985;
  constexpr double scale = 9027.977411;

  m_map = new Map(BasemapStyle::ArcGISImagery, this);
  m_map->setInitialViewpoint(Viewpoint(lat, lon, scale));
  // set map on the map view
  m_mapView->setMap(m_map);
}
