Group layers together

Group a collection of layers together and toggle their visibility as a group.

Use case

Group layers communicate to the user that layers are related and can be managed together. In a land development project, you might group layers according to the phase of development.

How to use the sample

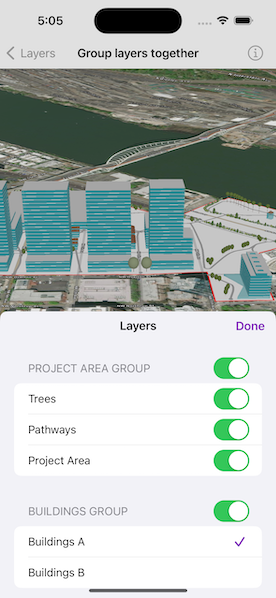

The layers in the map will be displayed in a table of contents. For project area group layers, toggle the switch next to a layer’s name. For the buildings group layers, tap the cell to change its visibility. Turning a group layer’s visibility off will override the visibility of its child layers.

How it works

1. Create an empty GroupLayer.
2. Add a child layer to the group layer’s layers collection.
3. Set the group layer’s visibilityMode to change its behavior:

• independent allows each sublayer to change its visibility independently.
• exclusive allows only one sublayer to be visible at a time.
• inherited treats the group layer as if it is one merged layer.

4. To toggle the visibility of the group, simply change the group layer’s isVisible property.

Relevant API

• GroupLayer
• GroupLayer.VisibilityMode
• LayerContent

Additional information

The full extent of a group layer may change when child layers are added/removed. Group layers do not have a spatial reference, but the full extent will have the spatial reference of the first child layer.

Group layers can be saved to web scenes. In web maps, group layers will be ignored.

Tags

3D, group layer, layers
