Map with a polyline | Documentation

Build a URL to create a static map with a polyline.

To display a polyline on a static mapA static map is a non-interactive map image generated by the ArcGIS Static Maps service that includes a basemap style and optional geometries such as points, polylines, and polygons.Learn more, use the /with-polyline endpoint from the ArcGIS Static Maps serviceThe ArcGIS Static Maps service, also known as Static Maps service, is a location service hosted by Esri that generates non-interactive map images called static maps. The service supports displaying a variety of basemap styles and optional geometries such as points, polylines, and polygons. No client-side mapping API is required.Learn more. Provide an array of 2 to 10 x,y coordinate pairs in the polyline parameter to define the path. You can also specify the polyline color, line style, and width. Additionally, specify the image width and height in pixels, along with the output format (png, jpeg, or webp).

How to display a static map with a polyline

The typical workflow to display a static map with a polyline is:

Map: Define the basemapStyle and map area with centerX andcenterY, and zoom or radius.
Geometry: Define the polyline array containing the x,y coordinate pairs that define the polyline.
Image: Specify the image size height and width in pixels, format, and attribution style.
Request: Send a GET request to the /with-polyline endpoint to generate the static map.

Service URL

Use dark colors for code blocksCopy
https://static-maps-api.arcgis.com/arcgis/rest/services/static-maps-service/v1/static-maps

Path parameters

These are required parameters to specify the style to access.

Use dark colors for code blocksCopy
https://static-maps-api.arcgis.com/arcgis/rest/services/static-maps-service/v1/static-maps/{basemapStyle}/with-polyline

Name	Description	Example
`{version}`	Required: The API version.	`v1`
`{basemapStyle}`	Required: The basemap style for the static map.	`arcgis/navigation`, `arcgis/navigation-night`, `arcgis/imagery`, `arcgis/streets-night`, or `arcgis/streets`

Query parameters

Name	Type	Default value	Description
`token`	`string`		An access token with the static maps service privilege. To pass the token as an authorization header, see HTTP authorization headers.
`polyline`	`PathGeometryGet`		An array of x,y coordinate pairs defining a polyline in WGS84 spatial reference. Accepts 2 to 10 coordinate pairs.
`endSymbolLabel`	`SymbolLabel`		Label displayed on the point symbol at the end of a polyline. Accepts 1–2 alphanumeric characters (`A-Z`, `a-z`, `0-9`).
`endSymbolColor`	`string`	`007AC2`	Point symbol color at the end of a polyline in hexadecimal format.
`endSymbolStyle`	`SymbolStyle`	`pin`	Point symbol style at the end of the polyline. Supported values include `pin`, `circle`, `square`, `none`.
`lineColor`	`HexColor`	`007AC2`	Line symbol color in hexadecimal format.
`lineStyle`	`LineStyle`	`solid`	Line symbol stroke applied to the polyline. Supported values include `solid`, `dash`, `dot`.
`lineWidth`	`integer`	`4`	Line symbol width in device-independent pixels. Values range from `1` to `16`.
`format`	`ImageFormat`	`webp`	Output image format of the map. Supported formats include `png`, `jpeg`, and `webp`.
`height`	`ImageDimensionHeight`	`400`	Height of the map image in pixels. Values must be between `128` and `1024`.
`width`	`ImageDimensionWidth`	`400`	Width of the map image in pixels. Values must be between `128` and `1024`.
`padding`	`ImagePadding`	`10`	Padding percentages around the map extent. Accepts an array of 1–4 values; default is `10` on all sides, maximum is `25`.
`startSymbolLabel`	`SymbolLabel`		Label displayed on the point symbol at the start of a polyline. Accepts 1–2 alphanumeric characters (`A-Z`, `a-z`, `0-9`).
`startSymbolColor`	`string`	`007AC2`	Point symbol color at the start of a polyline in hexadecimal format.
`startSymbolStyle`	`SymbolStyle`	`pin`	Point symbol style at the start of the polyline. Supported values include `pin`, `circle`, `square`, and `none`.
`symbolScale`	`SymbolScale`	`1`	Scale factor applied to the point symbol size. Values range from `0.1` to `4.0`.
`centerX`	`number(double)`		X-coordinate of the map center in WGS84 decimal degrees. Values range from `-179.99` to `179.99`.
`centerY`	`number(double)`		Y-coordinate of the map center in WGS84 decimal degrees. Values range from `-85.05` to `85.05`.
`zoom`	`ZoomLevel`		A number that defines the level of detail of the map. Values range from `0` to `22`.
`radius`	`RadiusDistance`		A number (in meters) that defines the minimum geographic area around a center point of the map. If no center point is supplied, the radius is applied to the geometry. Values range from `10` to `20,000,000`.
`attribution`	`string`	`auto`	Attribution footer style. To learn more about attribution requirements for static maps, see Esri and data attribution.
`referenceDetails`	`string`	`all`	A basemap option that controls the visibility of labels and feature symbology. This parameter is currently supported only for the `arcgis/imagery` style. Supported values include `all` and `none`.

Code examples

Display a polyline for a driving route

Use the Static Maps service to draw a line representing a route on a static map. The image is displayed in a rideshare receipt along with details such as pick-up and drop-off points, distance, travel time, and fare breakdown. The image uses a pin to represent the destination and a circle to indicate the starting point.

Steps

Reference the service.
Define the polyline as an array of x,y coordinate pairs in the WGS84 spatial reference.
Set the API key in the Authorization request header using the Bearer authentication scheme.
Send the request to the Static Maps service to generate the static map.

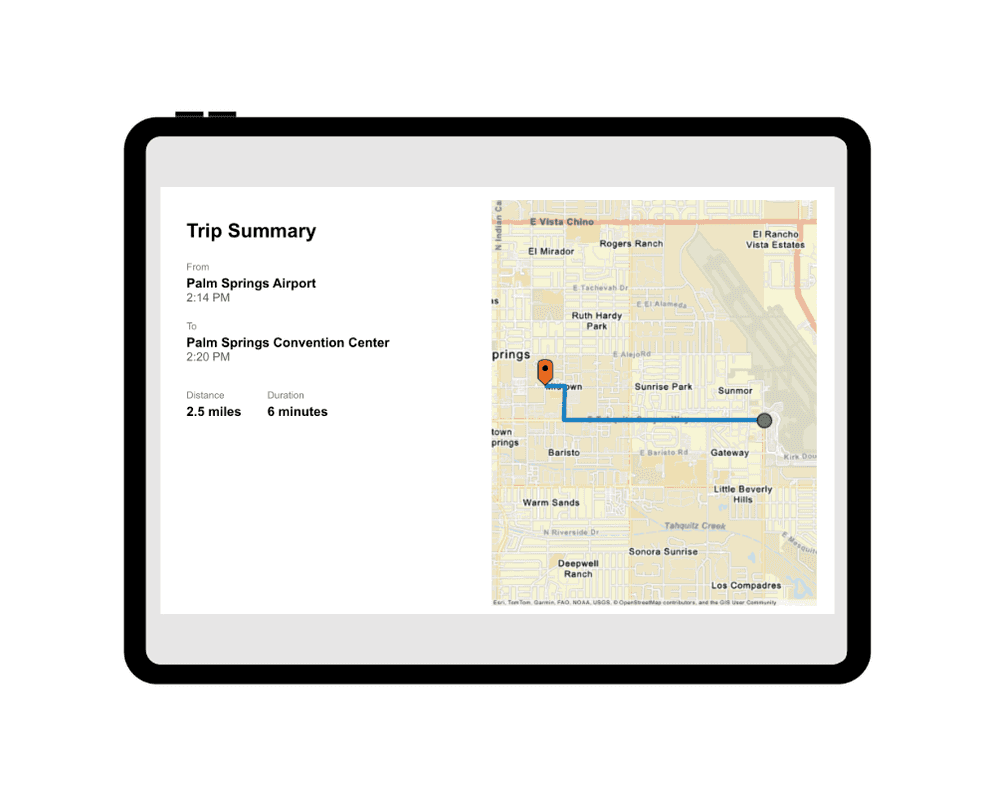

Rideshare receipt showing a static map with a polyline

JavaScript
Expand
Use dark colors for code blocksCopy
      fetch(
        `https://static-maps-api.arcgis.com/arcgis/rest/services/static-maps-service/v1/static-maps/${basemapStyle}/with-polyline?polyline=${JSON.stringify(route)}&startSymbolStyle=circle&endSymbolStyle=pin&symbolScale=1&lineColor=007AC2&startSymbolColor=35AB46&endSymbolColor=F36F21&lineWidth=5&width=400&height=500&format=png&zoom=13`,
        {
          headers: {
            Authorization: `Bearer ${accessToken}`,
          },
        }
      )
        .then((response) => response.blob())
        .then((blob) => {
          document.getElementById("mapImage").src = URL.createObjectURL(blob);
        });
Expand

REST API

cURL

HTTP

Use dark colors for code blocks

Copy

1
2
curl -X GET "https://static-maps-api.arcgis.com/arcgis/rest/services/static-maps-service/v1/static-maps/arcgis/streets/with-polyline?polyline=[[-116.51055445979493,33.82303750349174],[-116.53701714772251,33.82306348953144],[-116.5368920286327,33.82677940662155],[-116.53958208906323,33.826857361194676]]&startSymbolStyle=circle&endSymbolStyle=pin&symbolScale=1&lineColor=007AC2&startSymbolColor=35AB46&endSymbolColor=F36F21&lineWidth=5&width=400&height=500&format=png" \
	-H "Authorization: Bearer <ACCESS_TOKEN>"

Run in Postman

Tutorials

Display a simple static map

Display a static map with a point, polyline, or polygon.

REST API Python JavaScript (Node)HTML
