Custom dictionary style

// [WriteFile Name=CustomDictionaryStyle, Category=DisplayInformation]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "CustomDictionaryStyle.h"

// ArcGIS Maps SDK headers
#include "DictionaryRenderer.h"
#include "DictionarySymbolStyle.h"
#include "FeatureLayer.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "Point.h"
#include "PortalItem.h"
#include "ServiceFeatureTable.h"
#include "SpatialReference.h"
#include "Viewpoint.h"

// Qt headers
#include <QStandardPaths>
#include <QtCore/qglobal.h>

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
QString defaultDataPath()
{
  QString dataPath;

#ifdef Q_OS_IOS
  dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
#else
  dataPath = QStandardPaths::writableLocation(QStandardPaths::HomeLocation);
#endif

  return dataPath;
}
} // namespace

CustomDictionaryStyle::CustomDictionaryStyle(QObject* parent /* = nullptr */):
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISTopographic, this))
{
  // Set an initial viewpoint
  Viewpoint viewpoint(Point(-13'046'305, 4'036'698, SpatialReference(3857)), 5000);
  m_map->setInitialViewpoint(viewpoint);

  // Create a feature layer from a feature service and it to the map
  ServiceFeatureTable* featureTable = new ServiceFeatureTable(QUrl("https://services2.arcgis.com/ZQgQTuoyBrtmoGdP/arcgis/rest/services/Redlands_Restaurants/FeatureServer/0"), this);
  m_featureLayer = new FeatureLayer(featureTable, this);
  m_map->operationalLayers()->append(m_featureLayer);

  // Create a DictionaryRenderer using the local .stylx file
  DictionarySymbolStyle* localDictionaryStyle = DictionarySymbolStyle::createFromFile(defaultDataPath() + "/ArcGIS/Runtime/Data/styles/arcade_style/Restaurant.stylx", this);
  m_localDictionaryRenderer = new DictionaryRenderer(localDictionaryStyle, this);

  // Set initial FeatureLayer renderer to the local DictionaryRenderer
  m_featureLayer->setRenderer(m_localDictionaryRenderer);

  // Create a DictionarySymbolStyle from a portal item, using the default arcgis.com path
  PortalItem* portalItem = new PortalItem("adee951477014ec68d7cf0ea0579c800", this);
  DictionarySymbolStyle* dictSymbStyleFromPortal = new DictionarySymbolStyle(portalItem, this);

  // The source feature layer fields do not match those of the the DictionarySymbolStyle so we create a fieldMap to correct this
  QMap<QString, QString> fieldMap;
  // With the following override, the feature layer's "inspection" field will be mapped to the dictionary symbol style's "healthgrade" field
  fieldMap["healthgrade"] = "inspection";
  m_webDictionaryRenderer = new DictionaryRenderer(dictSymbStyleFromPortal, fieldMap, fieldMap, this);
}

void CustomDictionaryStyle::changeDictionarySymbolStyleSource()
{
  m_featureLayer->setRenderer(m_featureLayer->renderer() == m_webDictionaryRenderer ? m_localDictionaryRenderer : m_webDictionaryRenderer);
}

CustomDictionaryStyle::~CustomDictionaryStyle() = default;

void CustomDictionaryStyle::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<CustomDictionaryStyle>("Esri.Samples", 1, 0, "CustomDictionaryStyleSample");
}

MapQuickView* CustomDictionaryStyle::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void CustomDictionaryStyle::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  emit mapViewChanged();
}

// [WriteFile Name=CustomDictionaryStyle, Category=DisplayInformation]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef CUSTOMDICTIONARYSTYLE_H
#define CUSTOMDICTIONARYSTYLE_H

// Qt headers
#include <QObject>

namespace Esri::ArcGISRuntime
{
class DictionaryRenderer;
class FeatureLayer;
class Map;
class MapQuickView;
}

Q_MOC_INCLUDE("MapQuickView.h")

class CustomDictionaryStyle : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)

public:
  explicit CustomDictionaryStyle(QObject* parent = nullptr);
  ~CustomDictionaryStyle();

  static void init();

  Q_INVOKABLE void changeDictionarySymbolStyleSource();

signals:
  void mapViewChanged();

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::DictionaryRenderer* m_localDictionaryRenderer = nullptr;
  Esri::ArcGISRuntime::DictionaryRenderer* m_webDictionaryRenderer = nullptr;
  Esri::ArcGISRuntime::FeatureLayer* m_featureLayer = nullptr;
};

#endif // CUSTOMDICTIONARYSTYLE_H

// [WriteFile Name=CustomDictionaryStyle, Category=DisplayInformation]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples

Item {

    // add a mapView component
    MapView {
        id: view
        anchors.fill: parent

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    // Declare the C++ instance which creates the map etc. and supply the view
    CustomDictionaryStyleSample {
        id: model
        mapView: view
    }

    Rectangle {
        id: rectangle
        anchors {
            left: parent.left
            top: parent.top
            margins: 5
        }
        width: radioColumn.width
        height: radioColumn.height
        color: "white"
        border {
            color: "black"
            width: 1
        }
        opacity: 0.9

        Column {
            id: radioColumn
            padding: 5
            spacing: 5

            Text {

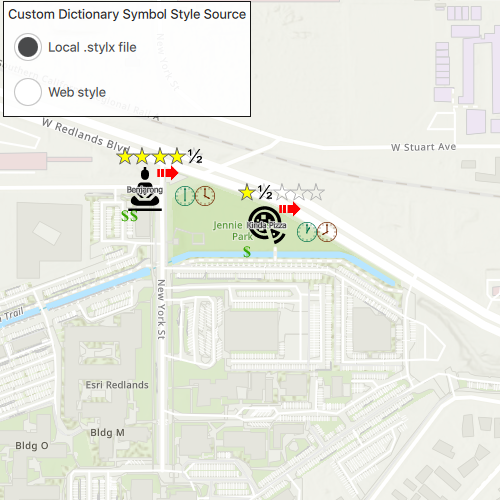

                text: "Custom Dictionary Symbol Style Source"
            }

            RadioButton {
                text: "Local .stylx file"
                checked: true
            }

            RadioButton {
                text: "Web style"
                onCheckedChanged: {
                    model.changeDictionarySymbolStyleSource();
                }
            }
        }
    }
}

// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "CustomDictionaryStyle.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("CustomDictionaryStyle"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  CustomDictionaryStyle::init();

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

#if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
#endif

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));
  // Add the Runtime and Extras path
  engine.addImportPath(arcGISRuntimeImportPath);

  // Set the source
  engine.load(QUrl("qrc:/Samples/DisplayInformation/CustomDictionaryStyle/main.qml"));

  return app.exec();
}

// Copyright 2019 ESRI
//
// All rights reserved under the copyright laws of the United States
// and applicable international laws, treaties, and conventions.
//
// You may freely redistribute and use this sample code, with or
// without modification, provided you include the original copyright
// notice and use restrictions.
//
// See the Sample code usage restrictions document for further information.
//

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    CustomDictionaryStyle {
        anchors.fill: parent
    }
}
