Identify graphics

// [WriteFile Name=IdentifyGraphics, Category=DisplayInformation]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "IdentifyGraphics.h"

// ArcGIS Maps SDK headers
#include "Geometry.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "IdentifyGraphicsOverlayResult.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "PolygonBuilder.h"
#include "SimpleFillSymbol.h"
#include "SimpleRenderer.h"
#include "SpatialReference.h"
#include "SymbolTypes.h"

// Qt headers
#include <QFuture>
#include <QList>
#include <QMouseEvent>
#include <QUuid>

// STL headers
#include <memory>

using namespace Esri::ArcGISRuntime;

IdentifyGraphics::IdentifyGraphics(QQuickItem* parent) :
  QQuickItem(parent)
{
}

IdentifyGraphics::~IdentifyGraphics() = default;

void IdentifyGraphics::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<IdentifyGraphics>("Esri.Samples", 1, 0, "IdentifyGraphicsSample");
}

void IdentifyGraphics::componentComplete()
{
  QQuickItem::componentComplete();

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");

  // Create a map using the topographic basemap
  m_map = new Map(BasemapStyle::ArcGISTopographic, this);
  // set map on the map view
  m_mapView->setMap(m_map);

  // create a new graphics overlay
  m_graphicsOverlay = new GraphicsOverlay(this);

  // assign a renderer to the graphics overlay
  SimpleFillSymbol* simpleFillSymbol = new SimpleFillSymbol(SimpleFillSymbolStyle::Solid, QColor(255, 255, 0, 180), this);
  SimpleRenderer* simpleRenderer = new SimpleRenderer(simpleFillSymbol, this);
  m_graphicsOverlay->setRenderer(simpleRenderer);

  // add the overlay to the mapview
  m_mapView->graphicsOverlays()->append(m_graphicsOverlay);

  // add polygon graphics
  addPolygonGraphic();

  // connect signals
  connectSignals();
}

// create the polygon geometry and graphic
void IdentifyGraphics::addPolygonGraphic()
{
  // create the polygon using the builder class
  PolygonBuilder polygonBuilder(SpatialReference::webMercator());
  polygonBuilder.addPoint(-20e5, 20e5);
  polygonBuilder.addPoint(20e5, 20e5);
  polygonBuilder.addPoint(20e5, -20e5);
  polygonBuilder.addPoint(-20e5, -20e5);

  // create the graphic and add to the graphics overlay
  Graphic* graphic = new Graphic(polygonBuilder.toGeometry(), this);
  m_graphicsOverlay->graphics()->append(graphic);
}

void IdentifyGraphics::connectSignals()
{
  //! [identify graphics api snippet]
  // connect to the mouse clicked signal on the MapQuickView
  connect(m_mapView, &MapQuickView::mouseClicked, this, [this](QMouseEvent& mouseEvent)
  {
    // call identify on the map view
    constexpr double tolerance = 5.0;
    constexpr bool returnPopupsOnly = false;
    constexpr int maximumResults = 1;

    m_mapView->identifyGraphicsOverlayAsync(m_graphicsOverlay, mouseEvent.position(), tolerance, returnPopupsOnly, maximumResults).then(this,
    [this](IdentifyGraphicsOverlayResult* rawIdentifyResult)
    {
      // Delete rawIdentifyResult on leaving scope.
      auto identifyResult = std::unique_ptr<IdentifyGraphicsOverlayResult>(rawIdentifyResult);

      if (identifyResult)
      {
        m_identifiedGraphicsCount = identifyResult->graphics().size();
        emit identifiedGraphicsCountChanged();
      }
    });

  });
  //! [identify graphics api snippet]
}

int IdentifyGraphics::identifiedGraphicsCount()
{
  return m_identifiedGraphicsCount;
}

// [WriteFile Name=IdentifyGraphics, Category=DisplayInformation]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef IDENTIFY_GRAPHICS_H
#define IDENTIFY_GRAPHICS_H

// Qt headers
#include <QQuickItem>

namespace Esri::ArcGISRuntime
{
  class Map;
  class MapQuickView;
  class GraphicsOverlay;
}

class IdentifyGraphics : public QQuickItem
{
  Q_OBJECT

  Q_PROPERTY(int identifiedGraphicsCount READ identifiedGraphicsCount NOTIFY identifiedGraphicsCountChanged)

public:
  explicit IdentifyGraphics(QQuickItem* parent = nullptr);
  ~IdentifyGraphics() override;

  void componentComplete() override;
  static void init();

signals:
  void identifiedGraphicsCountChanged();

private:
  void addPolygonGraphic();
  void connectSignals();
  int identifiedGraphicsCount();

private:
  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_graphicsOverlay = nullptr;
  int m_identifiedGraphicsCount = 0;
};

#endif // IDENTIFY_GRAPHICS_H

// [WriteFile Name=IdentifyGraphics, Category=DisplayInformation]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples

IdentifyGraphicsSample {
    id: identifyGraphicsSample
    width: 800
    height: 600

    // add a mapView component
    MapView {
        anchors.fill: parent
        objectName: "mapView"

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    onIdentifiedGraphicsCountChanged: {
        if (identifyGraphicsSample.identifiedGraphicsCount > 0)
            msgDialog.open();
    }

    Dialog {
        id: msgDialog
        modal: true
        x: Math.round(parent.width - width) / 2
        y: Math.round(parent.height - height) / 2
        standardButtons: Dialog.Ok
        Text {

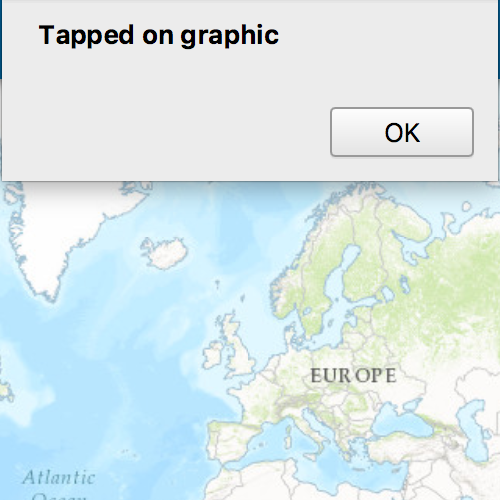

            text: "Tapped on graphic"
        }
    }
}

// [Legal]
// Copyright 2015 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "IdentifyGraphics.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlEngine>
#include <QQuickView>
#include <QSettings>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("Identify Graphics"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  IdentifyGraphics::init();

  // Initialize application view
  QQuickView view;
  view.setResizeMode(QQuickView::SizeRootObjectToView);

  // Add the import Path
  view.engine()->addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

 #if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
 #endif

  // Add the Runtime and Extras path
  view.engine()->addImportPath(arcGISRuntimeImportPath);

  // Set the source
  view.setSource(QUrl("qrc:/Samples/DisplayInformation/IdentifyGraphics/IdentifyGraphics.qml"));

  view.show();

  return app.exec();
}
