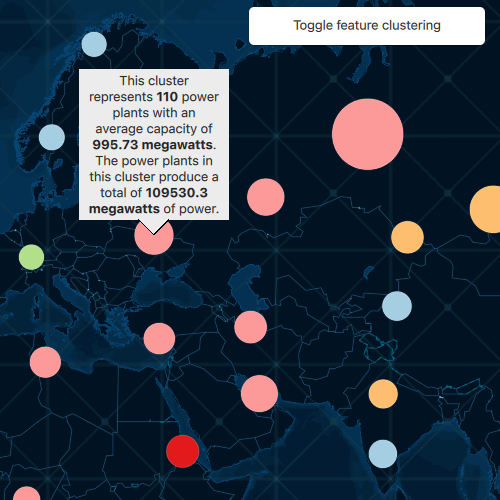

Display clusters

// [WriteFile Name=DisplayClusters, Category=DisplayInformation]
// [Legal]
// Copyright 2023 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "DisplayClusters.h"

// ArcGIS Maps SDK headers
#include "AggregateGeoElement.h"
#include "CalloutData.h"
#include "Error.h"
#include "FeatureLayer.h"
#include "FeatureReduction.h"
#include "FeatureTable.h"
#include "GeoElement.h"
#include "IdentifyLayerResult.h"
#include "LayerListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "Point.h"
#include "Popup.h"
#include "PopupManager.h"
#include "PortalItem.h"

// Qt headers
#include <QFuture>

using namespace Esri::ArcGISRuntime;

DisplayClusters::DisplayClusters(QObject* parent /* = nullptr */):
  QObject(parent),
  m_map(new Map(new PortalItem("8916d50c44c746c1aafae001552bad23", this), this))
{
  connect(m_map, &Map::doneLoading, this, [this](const Error& e)
  {
    if (!e.isEmpty())
    {
      qWarning() << e.message() << e.additionalMessage();
      return;
    }

    // Get the power plants feature layer for querying
    m_powerPlantsLayer = static_cast<FeatureLayer*>(m_map->operationalLayers()->first());
    m_taskRunning = false;
    emit taskRunningChanged();
  });
}

DisplayClusters::~DisplayClusters() = default;

void DisplayClusters::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<DisplayClusters>("Esri.Samples", 1, 0, "DisplayClustersSample");
}

MapQuickView* DisplayClusters::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void DisplayClusters::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  connect(m_mapView, &MapQuickView::mouseClicked, this, &DisplayClusters::onMouseClicked);

  emit mapViewChanged();
}

void DisplayClusters::onMouseClicked(const QMouseEvent &mouseClick)
{
  if (m_taskRunning)
    return;

  m_taskRunning = true;
  emit taskRunningChanged();

  m_mapView->calloutData()->setVisible(false);

  // clear cluster selection
  if (m_aggregateGeoElement)
    m_aggregateGeoElement->setSelected(false);

  // Clean up any children objects associated with this parent
  m_resultParent.reset(new QObject(this));
  m_aggregateGeoElement = nullptr;

  m_mapView->identifyLayerAsync(m_powerPlantsLayer, mouseClick.position(), 3, false, m_resultParent.get())
      .then(this, [this](IdentifyLayerResult* identifyResult)
  {
    m_taskRunning = false;
    emit taskRunningChanged();

    // Invalid identify result
    if (!identifyResult)
      return;

    if (!identifyResult->error().isEmpty())
    {
      qDebug() << "Identify error occurred:" << identifyResult->error().message() << identifyResult->error().additionalMessage();
      return;
    }

    if (identifyResult->popups().isEmpty())
      return;

    Popup* popup = identifyResult->popups().constFirst();

    // if the identified object is a cluster, select it
    m_aggregateGeoElement = dynamic_cast<AggregateGeoElement*>(popup->geoElement());
    if (m_aggregateGeoElement)
      m_aggregateGeoElement->setSelected(true);

    // Create a PopupManager with the IdentifyLayerResult's parent so it will get cleaned up as well.
    PopupManager* popupManager = new PopupManager(popup, identifyResult->parent());

    // Use the custom HTML description in the PopupManager to popuplate a Callout and display it.
    m_calloutText = popupManager->customHtmlDescription();
    m_mapView->calloutData()->setLocation(Point(popup->geoElement()->geometry()));
    m_mapView->calloutData()->setVisible(true);

    emit calloutTextChanged();
  });
}

void DisplayClusters::toggleClustering()
{
  if (m_map->loadStatus() != LoadStatus::Loaded)
    return;

  if (!m_powerPlantsLayer)
  {
    m_powerPlantsLayer = static_cast<FeatureLayer*>(m_map->operationalLayers()->first());

    // Check if the cast was successful
    if (!m_powerPlantsLayer)
      return;
  }

  m_powerPlantsLayer->featureReduction()->setEnabled(!m_powerPlantsLayer->featureReduction()->isEnabled());

  m_mapView->calloutData()->setVisible(false);
}

QString DisplayClusters::calloutText() const
{
  return m_calloutText;
}

bool DisplayClusters::taskRunning() const
{
  return m_taskRunning;
}

// [WriteFile Name=DisplayClusters, Category=DisplayInformation]
// [Legal]
// Copyright 2023 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef DISPLAYCLUSTERS_H
#define DISPLAYCLUSTERS_H

// Qt headers
#include <QMouseEvent>
#include <QObject>

namespace Esri::ArcGISRuntime
{
class AggregateGeoElement;
class FeatureLayer;
class Map;
class MapQuickView;
}

Q_MOC_INCLUDE("MapQuickView.h");

class DisplayClusters : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)
  Q_PROPERTY(bool taskRunning READ taskRunning NOTIFY taskRunningChanged)
  Q_PROPERTY(QString calloutText READ calloutText NOTIFY calloutTextChanged)

public:
  explicit DisplayClusters(QObject* parent = nullptr);
  ~DisplayClusters() override;

  Q_INVOKABLE void toggleClustering();

  static void init();

signals:
  void mapViewChanged();
  void taskRunningChanged();
  void calloutTextChanged();

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);
  QString calloutText() const;

  void onMouseClicked(const QMouseEvent& mouseEvent);

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;

  Esri::ArcGISRuntime::FeatureLayer* m_powerPlantsLayer = nullptr;

  bool taskRunning() const;
  bool m_taskRunning = true;
  QString m_calloutText = "";

  QScopedPointer<QObject> m_resultParent;
  Esri::ArcGISRuntime::AggregateGeoElement* m_aggregateGeoElement = nullptr;
};

#endif // DISPLAYCLUSTERS_H

// [WriteFile Name=DisplayClusters, Category=DisplayInformation]
// [Legal]
// Copyright 2023 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples
import Esri.ArcGISRuntime.Toolkit

Item {

    // add a mapView component
    MapView {
        id: view
        anchors.fill: parent

        Component.onCompleted: {
            // Set and keep the focus on MapView to enable keyboard navigation
            forceActiveFocus();
        }
    }

    // Declare the C++ instance which creates the map etc. and supply the view
    DisplayClustersSample {
        id: model
        mapView: view
    }

    Button {
        id: clusterToggleButton
        width: 250
        height: 50
        text: qsTr("Toggle feature clustering")
        anchors {
            top: parent.top
            right: parent.right
            margins: 15
        }
        enabled: !model.taskRunning
        onClicked: model.toggleClustering()
    }

    Callout {
        id: callout
        calloutData: view.calloutData
        implicitWidth: 150
        implicitHeight: contentText.implicitHeight + (contentText.implicitHeight * .05)
        contentItem: Label {
            id: contentText
            text: model.calloutText
            wrapMode: Text.WordWrap
            textFormat: Text.RichText
            horizontalAlignment: Qt.AlignHCenter
            verticalAlignment: Qt.AlignVCenter
        }
    }

    BusyIndicator {
        anchors.centerIn: parent
        running: model.taskRunning
    }
}
//"DisplayClusters - C++"

// [Legal]
// Copyright 2020 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "DisplayClusters.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>

// Other headers
#include "Esri/ArcGISRuntime/Toolkit/register.h"

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("DisplayClusters"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  DisplayClusters::init();

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

#ifdef ARCGIS_RUNTIME_IMPORT_PATH_2
  engine.addImportPath(ARCGIS_RUNTIME_IMPORT_PATH_2);
#endif

  Esri::ArcGISRuntime::Toolkit::registerComponents(engine);

  // Set the source
  engine.load(QUrl("qrc:/Samples/DisplayInformation/DisplayClusters/main.qml"));

  return app.exec();
}

// Copyright 2023 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    DisplayClusters {
        anchors.fill: parent
    }
}
