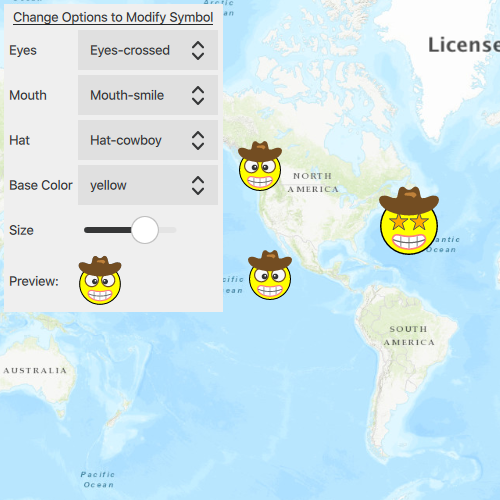

Read symbols from a mobile style

// [WriteFile Name=ReadSymbolsFromMobileStyle, Category=DisplayInformation]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "ReadSymbolsFromMobileStyle.h"
#include "SymbolImageProvider.h"

// ArcGIS Maps SDK headers
#include "Error.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "MultilayerPointSymbol.h"
#include "MultilayerSymbol.h"
#include "Point.h"
#include "SymbolLayer.h"
#include "SymbolLayerListModel.h"
#include "SymbolStyle.h"
#include "SymbolStyleSearchParameters.h"
#include "SymbolStyleSearchResult.h"
#include "SymbolStyleSearchResultListModel.h"

// Qt headers
#include <QFuture>
#include <QObject>
#include <QQmlContext>
#include <QStandardPaths>
#include <QTemporaryDir>
#include <QtCore/qglobal.h>

using namespace Esri::ArcGISRuntime;

constexpr int hatIndex = 0;
constexpr int mouthIndex = 1;
constexpr int eyeIndex = 2;
constexpr int faceIndex = 3;

// helper method to get cross platform data path
namespace
{
QString defaultDataPath()
{
  QString dataPath;

#ifdef Q_OS_IOS
  dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
#else
  dataPath = QStandardPaths::writableLocation(QStandardPaths::HomeLocation);
#endif

  return dataPath;
}
} // namespace

ReadSymbolsFromMobileStyle::ReadSymbolsFromMobileStyle(QObject* parent /* = nullptr */) :
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISTopographic, this)),
  m_graphicParent(new QObject())
{
  m_symbolStyle = new SymbolStyle(defaultDataPath() + "/ArcGIS/Runtime/Data/styles/emoji-mobile.stylx", this);

  // Load the style
  connect(m_symbolStyle, &SymbolStyle::doneLoading, this, [this](const Error& e)
  {
    if (!e.isEmpty())
      return;
    searchSymbolLayer("Hat", hatIndex);
    searchSymbolLayer("Mouth", mouthIndex);
    searchSymbolLayer("Eyes", eyeIndex);
    searchSymbolLayer("Face", faceIndex);
  });

  m_symbolStyle->load();
}

ReadSymbolsFromMobileStyle::~ReadSymbolsFromMobileStyle() = default;

void ReadSymbolsFromMobileStyle::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<ReadSymbolsFromMobileStyle>("Esri.Samples", 1, 0, "ReadSymbolsFromMobileStyleSample");
  qmlRegisterUncreatableType<SymbolStyleSearchResultListModel>("Esri.Samples", 1, 0, "SymbolStyleSearchResultListModel", "SymbolStyleSearchResultListModel is uncreateable");
}

MapQuickView* ReadSymbolsFromMobileStyle::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void ReadSymbolsFromMobileStyle::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);

  // Get the image provider from the QML Engine
  QQmlEngine* engine = QQmlEngine::contextForObject(this)->engine();
  engine->addImageProvider(SymbolImageProvider::imageProviderId(), new SymbolImageProvider);
  m_symbolImageProvider = static_cast<SymbolImageProvider*>(engine->imageProvider(SymbolImageProvider::imageProviderId()));

  // add a graphics overlay
  GraphicsOverlay* overlay = new GraphicsOverlay(this);
  m_mapView->graphicsOverlays()->append(overlay);

  // connect to mouse clicked signal
  connect(m_mapView, &MapQuickView::mouseClicked, this, [this, overlay](QMouseEvent& mouseEvent)
  {
    if (!m_currentSymbol)
      return;

    const Point clickedPoint = m_mapView->screenToLocation(mouseEvent.position().x(), mouseEvent.position().y());
    Graphic* graphic = new Graphic(clickedPoint, m_currentSymbol, m_graphicParent.get());
    overlay->graphics()->append(graphic);
  });

  emit mapViewChanged();
}

// Clear the graphics from the overlay and delete each object
void ReadSymbolsFromMobileStyle::clearGraphics()
{
  if (!m_mapView)
    return;

  GraphicsOverlay* overlay = m_mapView->graphicsOverlays()->first();
  if (!overlay)
    return;

  // clear the list model
  overlay->graphics()->clear();

  // reset m_graphicsParent to delete all children
  m_graphicParent.reset(new QObject());
}

void ReadSymbolsFromMobileStyle::updateSymbol(int requestHatIndex, int requestMouthIndex, int requestEyeIndex, QColor color, int size)
{
  if (!m_symbolStyle || !hatResults() || !mouthResults() || !eyeResults() || !faceResults())
    return;

  // set the color and size members
  m_currentColor = color;
  m_symbolSize = size;

  // fetch the new symbol based on keys
  QStringList keys;
  keys.append(faceResults()->searchResults().at(0).key());
  keys.append(eyeResults()->searchResults().at(requestEyeIndex).key());
  keys.append(mouthResults()->searchResults().at(requestMouthIndex).key());
  keys.append(hatResults()->searchResults().at(requestHatIndex).key());
  m_symbolStyle->fetchSymbolAsync(keys).then(this,
  [this](Symbol* symbol)
  {
    if (m_currentSymbol)
      delete m_currentSymbol;

    // store the resulting symbol
    m_currentSymbol = static_cast<MultilayerPointSymbol*>(symbol);

    // ensure cast was successful
    if (!m_currentSymbol)
      return;

    // set the size
    m_currentSymbol->setSize(m_symbolSize);

    // set the color preferences per layer
    for (SymbolLayer* lyr : *(m_currentSymbol->symbolLayers()))
      lyr->setColorLocked(true);

    m_currentSymbol->symbolLayers()->at(0)->setColorLocked(false);

    // set the color
    m_currentSymbol->setColor(m_currentColor);

    // request symbol swatch
    m_currentSymbol->createSwatchAsync().then(this,
    [this](const QImage& img)
    {
      if (!m_symbolImageProvider)
        return;

      // convert the QUuid into a QString
      const QString imageId = QUuid().createUuid().toString(QUuid::StringFormat::WithoutBraces);

      // add the image to the provider
      m_symbolImageProvider->addImage(imageId, img);

      // update the URL with the unique id
      m_symbolImageUrl = QString("image://%1/%2").arg(SymbolImageProvider::imageProviderId(), imageId);

      // emit the signal to trigger the QML Image to update
      emit symbolImageUrlChanged();
    });

  });
}

SymbolStyleSearchResultListModel* ReadSymbolsFromMobileStyle::hatResults() const
{
  return m_models[hatIndex];
}

SymbolStyleSearchResultListModel* ReadSymbolsFromMobileStyle::mouthResults() const
{
  return m_models[mouthIndex];
}

SymbolStyleSearchResultListModel* ReadSymbolsFromMobileStyle::eyeResults() const
{
  return m_models[eyeIndex];
}

SymbolStyleSearchResultListModel* ReadSymbolsFromMobileStyle::faceResults() const
{
  return m_models[faceIndex];
}

void ReadSymbolsFromMobileStyle::searchSymbolLayer(const QString& category, int index)
{
  SymbolStyleSearchParameters params;
  params.setCategories({category});
  m_symbolStyle->searchSymbolsAsync(params).then(this,
  [this, index](SymbolStyleSearchResultListModel* results)
  {
    m_models[index] = results;
    emit symbolResultsChanged();
  });
}

// [WriteFile Name=ReadSymbolsFromMobileStyle, Category=DisplayInformation]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef READSYMBOLSFROMMOBILESTYLE_H
#define READSYMBOLSFROMMOBILESTYLE_H

// Qt headers
#include <QColor>
#include <QList>
#include <QObject>
#include <QScopedPointer>
#include <QUrl>
#include <QUuid>

namespace Esri::ArcGISRuntime
{
class Map;
class MapQuickView;
class MultilayerPointSymbol;
class SymbolStyle;
class SymbolStyleSearchResultListModel;
}

class SymbolImageProvider;
class QAbstractListModel;

Q_MOC_INCLUDE("MapQuickView.h")
Q_MOC_INCLUDE("SymbolStyleSearchResultListModel.h")

class ReadSymbolsFromMobileStyle : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)
  Q_PROPERTY(Esri::ArcGISRuntime::SymbolStyleSearchResultListModel* hatResults READ hatResults NOTIFY symbolResultsChanged)
  Q_PROPERTY(Esri::ArcGISRuntime::SymbolStyleSearchResultListModel* mouthResults READ mouthResults NOTIFY symbolResultsChanged)
  Q_PROPERTY(Esri::ArcGISRuntime::SymbolStyleSearchResultListModel* eyesResults READ eyeResults NOTIFY symbolResultsChanged)
  Q_PROPERTY(QUrl symbolImageUrl MEMBER m_symbolImageUrl NOTIFY symbolImageUrlChanged)

public:
  explicit ReadSymbolsFromMobileStyle(QObject* parent = nullptr);
  ~ReadSymbolsFromMobileStyle();

  static void init();

  Q_INVOKABLE void clearGraphics();
  Q_INVOKABLE void updateSymbol(int hatIndex, int mouthIndex, int eyeIndex, QColor color, int size);

signals:
  void mapViewChanged();
  void symbolResultsChanged();
  void symbolImageUrlChanged();

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);

  Esri::ArcGISRuntime::SymbolStyleSearchResultListModel* hatResults() const;
  Esri::ArcGISRuntime::SymbolStyleSearchResultListModel* mouthResults() const;
  Esri::ArcGISRuntime::SymbolStyleSearchResultListModel* eyeResults() const;
  Esri::ArcGISRuntime::SymbolStyleSearchResultListModel* faceResults() const;
  void searchSymbolLayer(const QString& category, int index);

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::MultilayerPointSymbol* m_currentSymbol = nullptr;
  Esri::ArcGISRuntime::SymbolStyle* m_symbolStyle = nullptr;
  SymbolImageProvider* m_symbolImageProvider = nullptr;
  QList<Esri::ArcGISRuntime::SymbolStyleSearchResultListModel*> m_models = { nullptr, nullptr, nullptr, nullptr };
  QList<QUuid> m_taskIds;
  QColor m_currentColor = QColor(Qt::yellow);
  int m_symbolSize = 40;
  QUrl m_symbolImageUrl;
  QScopedPointer<QObject> m_graphicParent;
};

#endif // READSYMBOLSFROMMOBILESTYLE_H

// [WriteFile Name=ReadSymbolsFromMobileStyle, Category=DisplayInformation]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts
import Esri.Samples

Item {

    // add a mapView component
    MapView {
        id: view
        anchors.fill: parent

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }

        Button {
            anchors {
                bottom: view.attributionTop
                horizontalCenter: parent.horizontalCenter
                bottomMargin: 10
            }
            text: "Clear Graphics"
            onClicked: model.clearGraphics();
        }
    }

    // Declare the C++ instance which creates the map etc. and supply the view
    ReadSymbolsFromMobileStyleSample {
        id: model
        mapView: view
    }

    Rectangle {
        anchors {
            fill: optionGrid
            margins: -5
        }
        color: "#efefef"
    }

    GridLayout {
        id: optionGrid
        anchors {
            left: parent.left
            top: parent.top
            margins: 10
        }

        columns: 2

        Label {
            Layout.columnSpan: 2
            Layout.alignment: Qt.AlignCenter
            text: "Change Options to Modify Symbol"
            font.underline: true
        }

        Label {
            text: "Eyes"
        }

        SymbolComboBox {
            id: eyeComboBox
            model: model.eyesResults
            onCurrentTextChanged: updateSymbol()
        }

        Label {
            text: "Mouth"
        }

        SymbolComboBox {
            id: mouthComboBox
            model: model.mouthResults
            onCurrentTextChanged: updateSymbol()
        }

        Label {
            text: "Hat"
        }

        SymbolComboBox {
            id: hatComboBox
            model: model.hatResults
            onCurrentTextChanged: updateSymbol()
        }

        Label {
            text: "Base Color"
        }

        ComboBox {
            id: colorComboBox
            model: ["yellow", "green", "pink"]
            onCurrentTextChanged: updateSymbol()
        }

        Label {
            text: "Size"
        }

        Slider {
            id: sizeSlider
            Layout.preferredWidth: parent.width / 2
            from: 1
            to: 60
            value: 40
            onValueChanged: updateSymbol()
        }

        Label {
            text: "Preview:"
        }

        Image {
            id: symbolImage
            source: model.symbolImageUrl
            sourceSize.width: 40
            sourceSize.height: 40
            fillMode: Image.PreserveAspectFit
            width: 40
            height: 40
        }
    }

    function updateSymbol() {
        model.updateSymbol(hatComboBox.currentIndex, mouthComboBox.currentIndex, eyeComboBox.currentIndex,
                           colorComboBox.currentText, sizeSlider.value);
    }
}

// [WriteFile Name=ReadSymbolsFromMobileStyle, Category=DisplayInformation]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts

ComboBox {
    id: rootComboBox
    textRole: "name"
    delegate: Item {
        id: cboDelegate
        height: 30
        width: parent.width

        RowLayout {
            Image {
                id: img
                source: symbolUrl
                Layout.preferredWidth: 20
                Layout.preferredHeight: 20
            }
            Label {
                text: name
                Layout.preferredWidth: cboDelegate.width - img.width
                elide: Text.ElideRight
            }
        }

        MouseArea {
            anchors.fill: parent
            onClicked: {
                rootComboBox.currentIndex = index;
                rootComboBox.popup.close();
            }
        }
    }
}

// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "SymbolImageProvider.h"

// Qt headers
#include <QQuickImageProvider>

SymbolImageProvider::SymbolImageProvider() :
  QQuickImageProvider(QQuickImageProvider::Image)
{
}

// reimplemented function for QML to request Images from the provider
QImage SymbolImageProvider::requestImage(const QString& id, QSize* size, const QSize& requestedSize)
{
  Q_UNUSED(size)
  Q_UNUSED(requestedSize)
  return m_images[id];
}

// helper to add images to the the provider
void SymbolImageProvider::addImage(const QString& id, const QImage& img)
{
  m_images[id] = img;
}

// static function to return the image provider id
QString SymbolImageProvider::imageProviderId()
{
  return QStringLiteral("symbolimageprovider");
}

// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

#ifndef SYMBOLIMAGEPROVIDER_H
#define SYMBOLIMAGEPROVIDER_H

// Qt headers
#include <QHash>
#include <QImage>
#include <QQuickImageProvider>

class SymbolImageProvider : public QQuickImageProvider
{

public:
  SymbolImageProvider();
  ~SymbolImageProvider() override = default;

public:
  QImage requestImage(const QString& id, QSize* size, const QSize& requestedSize) override;
  void addImage(const QString& id, const QImage& img);
  static QString imageProviderId();

private:
  QHash<QString, QImage> m_images;
};

#endif // SYMBOLIMAGEPROVIDER_H

// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "ReadSymbolsFromMobileStyle.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("ReadSymbolsFromMobileStyle"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  ReadSymbolsFromMobileStyle::init();

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

#if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
#endif

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));
  // Add the Runtime and Extras path
  engine.addImportPath(arcGISRuntimeImportPath);

  // Set the source
  engine.load(QUrl("qrc:/Samples/DisplayInformation/ReadSymbolsFromMobileStyle/main.qml"));

  return app.exec();
}

// Copyright 2019 ESRI
//
// All rights reserved under the copyright laws of the United States
// and applicable international laws, treaties, and conventions.
//
// You may freely redistribute and use this sample code, with or
// without modification, provided you include the original copyright
// notice and use restrictions.
//
// See the Sample code usage restrictions document for further information.
//

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    ReadSymbolsFromMobileStyle {
        anchors.fill: parent
    }
}
