Sketch on map | ArcGIS Maps SDK for Qt

View on GitHub

Sample viewer app

This sample demonstrates how to use the Sketch Editor to edit or sketch a new point, line, or polygon geometry on to a map.

Use case

A field worker could annotate features of interest on a map (via the GUI) such as location of dwellings (marked as points), geological features (polylines), or areas of glaciation (polygons).

How to use the sample

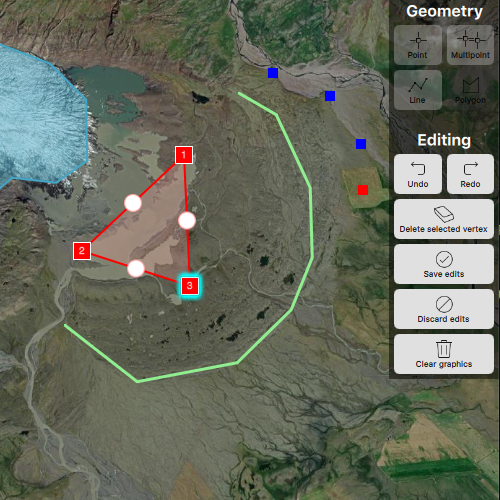

Choose which geometry type to sketch from one of the available buttons. Choose from points, multipoints, polylines, and polygons.

Add points or vertices by tapping on the map. You can edit individual points by tapping to select the point, then dragging it to a new location or double tapping to delete it.

Use the control panel to undo or redo changes made to the sketch, save the sketch to the graphics overlay, discard the current sketch, or clear the graphics overlay.

How it works

Create a SketchEditor component and set it on the map view with MapView::setSketchEditor.
Call SketchEditor::start and pass in a SketchCreationMode enum to begin sketching.
While sketching is in progress, call SketchEditor::undo() or SketchEditor::redo() to undo or redo edits respectively.
To save the sketch, first check if the sketch is valid with SketchEditor::isSketchValid(). If it is, create a graphic using SketchEditor::geometry() and add it to the map view’s GraphicsOverlay.
Call SketchEditor::stop() to stop sketching.

Relevant API

Geometry
Graphic
GraphicsOverlay
MapView
SketchCreationMode
SketchEditor

Sample Code

SketchEditorButton.qml

SketchOnMap.cpp

SketchOnMap.h

SketchOnMap.qml

main.cpp

main.qml

// [WriteFile Name=SketchOnMap, Category=DisplayInformation]
// [Legal]
// Copyright 2021 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts

// This component defines each of the buttons in the sketch editor control UI

RoundButton {
    id: sketchEditorButton

    property var columnSpan: 1
    property string buttonName: ""
    property string iconPath: ""
    property var images: 1

    Layout.fillWidth: true
    Layout.columnSpan: columnSpan
    radius: 5

    // Set the focus policy so that the buttons do not take focus from the MapView
    focusPolicy: Qt.NoFocus

    Image {
        id: imgComponent
        anchors {
            horizontalCenter: parent.horizontalCenter
            verticalCenter: parent.verticalCenter
            verticalCenterOffset: -textComponent.height/2
        }
        source: iconPath
        width: 20
        fillMode: Image.PreserveAspectFit
        visible: images === 1
    }

    Image {
        id: imgComponentLeft
        anchors {
            right: parent.horizontalCenter
            rightMargin: -imgComponentRight.width/5
            verticalCenter: parent.verticalCenter
            verticalCenterOffset: -textComponent.height/2 - 2
        }
        source: iconPath
        width: 20
        fillMode: Image.PreserveAspectFit

        visible: images === 2
    }

    Image {
        id: imgComponentRight
        anchors {
            left: parent.horizontalCenter
            leftMargin: -imgComponentLeft.width/5
            verticalCenter: parent.verticalCenter
            verticalCenterOffset: -textComponent.height/2
        }
        source: iconPath
        width: 20
        fillMode: Image.PreserveAspectFit

        visible: images === 2
    }

    Text {
        id: textComponent
        anchors {
            top: images === 1 ? imgComponent.bottom : imgComponentRight.bottom
            horizontalCenter: parent.horizontalCenter
        }
        text: buttonName
        font.pixelSize: 8
    }
}

// [WriteFile Name=SketchOnMap, Category=DisplayInformation]
// [Legal]
// Copyright 2021 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "SketchOnMap.h"

// ArcGIS Maps SDK headers
#include "Envelope.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "MapViewTypes.h"
#include "Point.h"
#include "SimpleFillSymbol.h"
#include "SimpleLineSymbol.h"
#include "SimpleMarkerSymbol.h"
#include "SketchEditor.h"
#include "SpatialReference.h"
#include "SymbolTypes.h"

// Qt headers
#include <QFuture>

using namespace Esri::ArcGISRuntime;

SketchOnMap::SketchOnMap(QObject* parent /* = nullptr */):
  QObject(parent),
  m_map(new Map(BasemapStyle::ArcGISImagery, this))
{
  // Create a GraphicsOverlay to save the sketches to
  m_sketchOverlay = new GraphicsOverlay(this);
  createSymbols();
}

SketchOnMap::~SketchOnMap() = default;

void SketchOnMap::init()
{
  // Register the map view for QML
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<SketchOnMap>("Esri.Samples", 1, 0, "SketchOnMapSample");
}

MapQuickView* SketchOnMap::mapView() const
{
  return m_mapView;
}

// Set the view (created in QML)
void SketchOnMap::setMapView(MapQuickView* mapView)
{
  if (!mapView || mapView == m_mapView)
    return;

  m_mapView = mapView;
  m_mapView->setMap(m_map);
  m_mapView->setViewpointCenterAsync(Point(-15.5314, 64.3286, SpatialReference::wgs84()), 100'000);

  m_mapView->graphicsOverlays()->append(m_sketchOverlay);

  m_sketchEditor = new SketchEditor(this);
  m_mapView->setSketchEditor(m_sketchEditor);

  emit mapViewChanged();
}

void SketchOnMap::setSketchCreationMode(SampleSketchMode sketchCreationMode)
{
  switch(sketchCreationMode)
  {
    case SampleSketchMode::PointSketchMode:
      m_sketchEditor->start(SketchCreationMode::Point);
      break;

    case SampleSketchMode::MultipointSketchMode:
      m_sketchEditor->start(SketchCreationMode::Multipoint);
      break;

    case SampleSketchMode::PolylineSketchMode:
      m_sketchEditor->start(SketchCreationMode::Polyline);
      break;

    case SampleSketchMode::PolygonSketchMode:
      m_sketchEditor->start(SketchCreationMode::Polygon);
      break;

    default:
      break;
  }
  emit sketchEditorStartedChanged();
}

void SketchOnMap::stopSketching(bool saveGeometry)
{
  if (!m_sketchEditor->isStarted() || !saveGeometry)
  {
    m_sketchEditor->stop();
    emit sketchEditorStartedChanged();
    return;
  }

  if (!m_sketchEditor->isSketchValid())
  {
    qWarning() << "Unable to save sketch. Sketch is not valid.";
    return;
  }

  // To save the sketch, create a graphic with the sketch's geometry before stopping the sketchEditor
  Geometry sketchGeometry = m_sketchEditor->geometry();
  Symbol* geometrySymbol = nullptr;

  switch (m_sketchEditor->creationMode())
  {
    case SketchCreationMode::Point:
      geometrySymbol = m_pointSymbol;
      break;

    case SketchCreationMode::Multipoint:
      geometrySymbol = m_multiPointSymbol;
      break;

    case SketchCreationMode::Polyline:
      geometrySymbol = m_lineSymbol;
      break;

    case SketchCreationMode::Polygon:
      geometrySymbol = m_polygonSymbol;
      break;

    default:
      return;
  }

  Graphic* sketchGraphic = new Graphic(sketchGeometry, geometrySymbol, this);
  m_sketchOverlay->graphics()->append(sketchGraphic);

  m_sketchEditor->stop();
  emit sketchEditorStartedChanged();
}

bool SketchOnMap::sketchEditorStarted() const
{
  if (m_sketchEditor)
    return m_sketchEditor->isStarted();

  return false;
}

void SketchOnMap::createSymbols()
{
  m_pointSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::Square, QColor(255, 0, 0), 10, this);
  m_multiPointSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::Square, QColor(0, 0, 255), 10, this);
  m_lineSymbol = new SimpleLineSymbol(SimpleLineSymbolStyle::Solid, QColor(144, 238, 144), 3, this);
  m_polygonSymbol = new SimpleFillSymbol(SimpleFillSymbolStyle::Solid, QColor(67, 166, 198, 119),
                                         new SimpleLineSymbol(SimpleLineSymbolStyle::Solid, QColor(67, 166, 198), 2.0, this), this);
}

void SketchOnMap::deleteVertex()
{
  if (m_sketchEditor->geometry().extent().isValid())
    m_sketchEditor->removeSelectedVertex();
}

void SketchOnMap::clearGraphics()
{
  m_sketchOverlay->graphics()->clear();
}

void SketchOnMap::undo()
{
  m_sketchEditor->undo();
}

void SketchOnMap::redo()
{
  m_sketchEditor->redo();
}

// [WriteFile Name=SketchOnMap, Category=DisplayInformation]
// [Legal]
// Copyright 2021 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef SKETCHONMAP_H
#define SKETCHONMAP_H

// Qt headers
#include <QObject>

namespace Esri::ArcGISRuntime
{
class Map;
class MapQuickView;
class Graphic;
class GraphicsOverlay;
class SketchEditor;
class SimpleMarkerSymbol;
class SimpleLineSymbol;
class SimpleFillSymbol;
}

Q_MOC_INCLUDE("MapQuickView.h")

class SketchOnMap : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::MapQuickView* mapView READ mapView WRITE setMapView NOTIFY mapViewChanged)
  Q_PROPERTY(bool sketchEditorStarted READ sketchEditorStarted NOTIFY sketchEditorStartedChanged)

public:
  explicit SketchOnMap(QObject* parent = nullptr);
  ~SketchOnMap();

  enum class SampleSketchMode {
    PointSketchMode,
    MultipointSketchMode,
    PolylineSketchMode,
    PolygonSketchMode
  };

  Q_ENUM(SampleSketchMode)

  static void init();
  Q_INVOKABLE void setSketchCreationMode(SketchOnMap::SampleSketchMode sketchCreationMode);
  Q_INVOKABLE void stopSketching(bool saveGeometry);
  Q_INVOKABLE void clearGraphics();
  Q_INVOKABLE void undo();
  Q_INVOKABLE void redo();
  Q_INVOKABLE void deleteVertex();

signals:
  void mapViewChanged();
  void sketchEditorStartedChanged();

private:
  Esri::ArcGISRuntime::MapQuickView* mapView() const;
  void setMapView(Esri::ArcGISRuntime::MapQuickView* mapView);
  void createConnections();
  void createSymbols();
  bool sketchEditorStarted() const;

  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_sketchOverlay = nullptr;
  Esri::ArcGISRuntime::SketchEditor* m_sketchEditor = nullptr;
  Esri::ArcGISRuntime::Graphic* editingGraphic = nullptr;

  Esri::ArcGISRuntime::SimpleMarkerSymbol* m_pointSymbol = nullptr;
  Esri::ArcGISRuntime::SimpleMarkerSymbol* m_multiPointSymbol = nullptr;
  Esri::ArcGISRuntime::SimpleLineSymbol* m_lineSymbol = nullptr;
  Esri::ArcGISRuntime::SimpleFillSymbol* m_polygonSymbol = nullptr;
};

#endif // SKETCHONMAP_H

// [WriteFile Name=SketchOnMap, Category=DisplayInformation]
// [Legal]
// Copyright 2021 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts
import Esri.Samples

Item {

    enum DrawingModes {
        NotDrawing,
        Point,
        Multipoint,
        Line,
        Polygon
    }

    property int drawStatus: SketchOnMap.DrawingModes.NotDrawing

    SketchOnMapSample {
        id: model
        mapView: view
    }

    MapView {
        id: view
        anchors.fill: parent

        // Force focus to remain on MapView so SketchEditor will respond to keystrokes
        onFocusChanged: focus = true;

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    // Display an option to delete the selected vertex if the user right-clicks or taps and holds when the sketch editor is started
    MouseArea {
        anchors.fill: parent
        acceptedButtons: Qt.RightButton

        enabled: model.sketchEditorStarted
        onClicked: {
            contextMenu.popup()
        }

        Menu {
            id: contextMenu
            width: actionComponent.width
            Action {
                id: actionComponent
                text: "Delete"
                onTriggered: model.deleteVertex();
            }
        }
    }

    Control {
        id: control
        anchors.right: parent.right
        padding: 5
        width: 110

        background: Rectangle {
            color: "black"
            opacity: .5
        }

        contentItem: ColumnLayout {
            id: columns
            anchors {
                verticalCenter: parent.verticalCenter
                horizontalCenter: parent.horizontalCenter
            }
            spacing: 20

            GridLayout {
                id: geometryColumn
                Layout.alignment: Qt.AlignHCenter | Qt.AlignVCenter
                columns: 2

                Text {
                    id: geometryHeader
                    Layout.alignment: Qt.AlignHCenter | Qt.AlignVCenter
                    Layout.columnSpan: 2
                    text: "Geometry"
                    color: "white"
                    font.pixelSize: 16
                    font.bold: true
                }

                SketchEditorButton {
                    id: ptButton
                    buttonName: "Point"
                    iconPath: "qrc:/Samples/DisplayInformation/SketchOnMap/iconAssets/point-32.png"

                    highlighted: drawStatus === SketchOnMap.DrawingModes.Point
                    enabled: !model.sketchEditorStarted

                    onClicked: {
                        model.setSketchCreationMode(SketchOnMapSample.PointSketchMode);
                        drawStatus = SketchOnMap.DrawingModes.Point;
                    }
                }

                SketchEditorButton {
                    id: mPtButton
                    buttonName: "Multipoint"
                    iconPath: "qrc:/Samples/DisplayInformation/SketchOnMap/iconAssets/point-32.png"
                    images: 2

                    highlighted: drawStatus === SketchOnMap.DrawingModes.Multipoint
                    enabled: !model.sketchEditorStarted

                    onClicked: {
                        model.setSketchCreationMode(SketchOnMapSample.MultipointSketchMode);
                        drawStatus = SketchOnMap.DrawingModes.Multipoint;
                    }
                }

                SketchEditorButton {
                    id: lineButton
                    buttonName: "Line"
                    iconPath: "qrc:/Samples/DisplayInformation/SketchOnMap/iconAssets/line-32.png"

                    highlighted: drawStatus === SketchOnMap.DrawingModes.Line
                    enabled: !model.sketchEditorStarted

                    onClicked: {
                        model.setSketchCreationMode(SketchOnMapSample.PolylineSketchMode);
                        drawStatus = SketchOnMap.DrawingModes.Line;
                    }
                }

                SketchEditorButton {
                    id: polygonButton
                    buttonName: "Polygon"
                    iconPath: "qrc:/Samples/DisplayInformation/SketchOnMap/iconAssets/polygon-32.png"

                    highlighted: drawStatus === SketchOnMap.DrawingModes.Polygon
                    enabled: !model.sketchEditorStarted

                    onClicked: {
                        model.setSketchCreationMode(SketchOnMapSample.PolygonSketchMode);
                        drawStatus = SketchOnMap.DrawingModes.Polygon;
                    }
                }
            }

            GridLayout {
                id: editingColumn
                Layout.fillWidth: true
                Layout.alignment: Qt.AlignHCenter | Qt.AlignVCenter
                columns: 2

                Text {
                    id: editingHeader
                    Layout.alignment: Qt.AlignHCenter | Qt.AlignVCenter
                    Layout.columnSpan: 2
                    text: "Editing"
                    color: "white"
                    font.pixelSize: 16
                    font.bold: true
                }

                SketchEditorButton {
                    id: undoButton
                    buttonName: "Undo"
                    iconPath: "qrc:/Samples/DisplayInformation/SketchOnMap/iconAssets/undo-32.png"

                    enabled: model.sketchEditorStarted

                    onClicked: model.undo();
                }

                SketchEditorButton {
                    id: redoButton
                    buttonName: "Redo"
                    iconPath: "qrc:/Samples/DisplayInformation/SketchOnMap/iconAssets/redo-32.png"

                    enabled: model.sketchEditorStarted

                    onClicked: model.redo();
                }

                SketchEditorButton {
                    id: deleteSelectedVertexButton
                    columnSpan: 2
                    buttonName: "Delete selected vertex"
                    iconPath: "qrc:/Samples/DisplayInformation/SketchOnMap/iconAssets/erase-32.png"

                    enabled: model.sketchEditorStarted

                    onClicked: model.deleteVertex();
                }

                SketchEditorButton {
                    id: saveEditsButton
                    columnSpan: 2
                    buttonName: "Save edits"
                    iconPath: "qrc:/Samples/DisplayInformation/SketchOnMap/iconAssets/check-circle-32.png"

                    enabled: model.sketchEditorStarted

                    onClicked: {
                        model.stopSketching(true);
                        drawStatus = SketchOnMap.DrawingModes.NotDrawing
                        if (!model.sketchEditorStarted && !clearGraphicsButton.enabled)
                            clearGraphicsButton.enabled = true;
                    }
                }

                SketchEditorButton {
                    id: discardEditsButton
                    columnSpan: 2
                    buttonName: "Discard edits"
                    iconPath: "qrc:/Samples/DisplayInformation/SketchOnMap/iconAssets/circle-disallowed-32.png"

                    enabled: model.sketchEditorStarted

                    onClicked: {
                        model.stopSketching(false);
                        drawStatus = SketchOnMap.DrawingModes.NotDrawing
                    }
                }

                SketchEditorButton {
                    id: clearGraphicsButton
                    columnSpan: 2
                    buttonName: "Clear graphics"
                    iconPath: "qrc:/Samples/DisplayInformation/SketchOnMap/iconAssets/trash-32.png"

                    enabled: false

                    onClicked: {
                        model.clearGraphics();
                        enabled = false;
                    }
                }
            }
        }
    }
}

// [Legal]
// Copyright 2021 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "SketchOnMap.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("SketchOnMap"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  SketchOnMap::init();

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

#ifdef ARCGIS_RUNTIME_IMPORT_PATH_2
  engine.addImportPath(ARCGIS_RUNTIME_IMPORT_PATH_2);
#endif

  // Set the source
  engine.load(QUrl("qrc:/Samples/DisplayInformation/SketchOnMap/main.qml"));

  return app.exec();
}

// Copyright 2021 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    SketchOnMap {
        anchors.fill: parent
    }
}

Use case

How to use the sample

How it works

Relevant API

Tags

Sample Code
