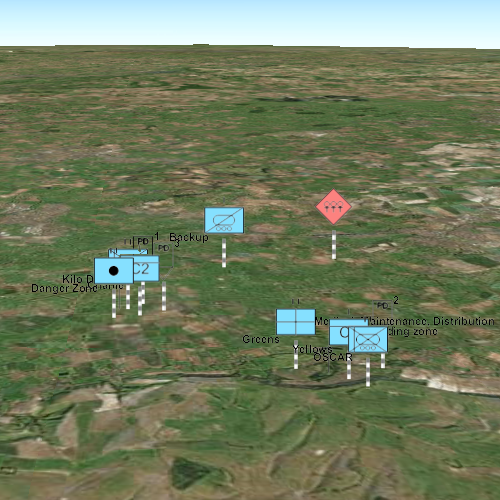

Graphics overlay (dictionary renderer) 3D

// [WriteFile Name=GODictionaryRenderer_3D, Category=DisplayInformation]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "GODictionaryRenderer_3D.h"

// ArcGIS Maps SDK headers
#include "ArcGISTiledElevationSource.h"
#include "Camera.h"
#include "DictionaryRenderer.h"
#include "DictionarySymbolStyle.h"
#include "ElevationSourceListModel.h"
#include "GeometryEngine.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "MapTypes.h"
#include "Point.h"
#include "Scene.h"
#include "SceneQuickView.h"
#include "Surface.h"

// Qt headers
#include <QFileInfo>
#include <QStandardPaths>
#include <QtCore/qglobal.h>

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
  QString defaultDataPath()
  {
    QString dataPath;

  #ifdef Q_OS_IOS
    dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
  #else
    dataPath = QStandardPaths::writableLocation(QStandardPaths::HomeLocation);
  #endif

    return dataPath;
  }
} // namespace

const QString GODictionaryRenderer_3D::FIELD_CONTROL_POINTS = "_control_points";
const QString GODictionaryRenderer_3D::FIELD_WKID = "_wkid";

GODictionaryRenderer_3D::GODictionaryRenderer_3D(QQuickItem* parent) :
  QQuickItem(parent),
  m_dataPath(defaultDataPath() + "/ArcGIS/Runtime/Data"),
  m_graphicsOverlay(new GraphicsOverlay(this))
{
  connect(m_graphicsOverlay, &GraphicsOverlay::errorOccurred, this, &GODictionaryRenderer_3D::logError);
  m_graphicsOverlay->setRenderingMode(GraphicsRenderingMode::Dynamic);
}

GODictionaryRenderer_3D::~GODictionaryRenderer_3D() = default;

void GODictionaryRenderer_3D::init()
{
  qmlRegisterType<SceneQuickView>("Esri.Samples", 1, 0, "SceneView");
  qmlRegisterType<GODictionaryRenderer_3D>("Esri.Samples", 1, 0, "GODictionaryRenderer_3DSample");
}

void GODictionaryRenderer_3D::logError(const Error& error)
{
  setErrorMessage(QString("%1: %2").arg(error.message(), error.additionalMessage()));
}

void GODictionaryRenderer_3D::componentComplete()
{
  QQuickItem::componentComplete();

  // Set up DictionaryRenderer
  if (!QFileInfo::exists(m_dataPath + "/styles/arcade_style/mil2525d.stylx"))
    setErrorMessage("mil2525d.stylx not found");

  DictionarySymbolStyle* dictionarySymbolStyle = DictionarySymbolStyle::createFromFile(m_dataPath + "/styles/arcade_style/mil2525d.stylx", this);
  connect(dictionarySymbolStyle, &DictionarySymbolStyle::errorOccurred, this, &GODictionaryRenderer_3D::logError);

  DictionaryRenderer* renderer = new DictionaryRenderer(dictionarySymbolStyle, this);
  connect(renderer, &DictionaryRenderer::errorOccurred, this, &GODictionaryRenderer_3D::logError);
  m_graphicsOverlay->setRenderer(renderer);

  // Create a scene and give it to the SceneView
  m_sceneView = findChild<SceneQuickView*>("sceneView");
  connect(m_sceneView, &SceneQuickView::errorOccurred, this, &GODictionaryRenderer_3D::logError);

  Scene* scene = new Scene(BasemapStyle::ArcGISImageryStandard, this);
  connect(scene, &Scene::errorOccurred, this, &GODictionaryRenderer_3D::logError);

  Surface* surface = new Surface(this);
  connect(surface, &Surface::errorOccurred, this, &GODictionaryRenderer_3D::logError);
  surface->elevationSources()->append(
        new ArcGISTiledElevationSource(
          QUrl("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"),
          this));
  scene->setBaseSurface(surface);
  m_sceneView->setArcGISScene(scene);
  m_sceneView->graphicsOverlays()->append(m_graphicsOverlay);

  parseXmlFile();

  emit graphicsLoaded();

  zoomToGraphics();
}

void GODictionaryRenderer_3D::parseXmlFile()
{
  bool readingMessage = false;
  QVariantMap elementValues;
  QString currentElementName;

  if (!QFileInfo::exists(m_dataPath + "/xml/arcade_style/Mil2525DMessages.xml"))
    setErrorMessage("xml/Mil2525DMessages.xml file is missing");

  QFile xmlFile(m_dataPath + "/xml/arcade_style/Mil2525DMessages.xml");
  // Open the file for reading
  if (xmlFile.isOpen())
  {
    xmlFile.reset();
  }
  else
  {
    xmlFile.open(QIODevice::ReadOnly | QIODevice::Text);
  }
  m_xmlParser.setDevice(&xmlFile);

  // Traverse the XML in a loop
  while (!m_xmlParser.atEnd())
  {
    m_xmlParser.readNext();

    // Is this the start or end of a message element?
    if (m_xmlParser.name() == QString("message"))
    {
      if (!readingMessage)
      {
        // This is the start of a message element.
        elementValues.clear();
      }
      else
      {
        /**
                 * This is the end of a message element. Here we have a complete message that defines
                 * a military feature to display on the map. Create a graphic from its attributes.
                 */
        createGraphic(elementValues);
      }
      // Either we just started reading a message, or we just finished reading a message.
      readingMessage = !readingMessage;
    }
    // Are we already inside a message element?
    else if (readingMessage)
    {
      // Is this the start of an element inside a message?
      if (m_xmlParser.isStartElement())
      {
        // Remember which element we're reading
        currentElementName = m_xmlParser.name().toString();
      }
      // Is this text?
      else if (m_xmlParser.isCharacters())
      {
        // Is this text inside an element?
        if (!currentElementName.isEmpty())
        {
          // Get the text and store it as the current element's value
          const QStringView trimmedText = m_xmlParser.text().trimmed();
          if (!trimmedText.isEmpty())
          {
            elementValues[currentElementName] = trimmedText.toString();
          }
        }
      }
    }
  }
}

void GODictionaryRenderer_3D::createGraphic(QVariantMap rawAttributes)
{
  // If _wkid was absent, use WGS 1984 (4326) by default.
  int wkid = rawAttributes.count(FIELD_WKID) > 0 ? rawAttributes[FIELD_WKID].toInt() : 4326;
  SpatialReference sr(wkid);
  Geometry geom;
  QStringList pointStrings = rawAttributes[FIELD_CONTROL_POINTS].toString().split(";");
  if (pointStrings.length() == 1)
  {
    // It's a point
    QStringList coords = pointStrings[0].split(",");
    geom = Point(coords[0].toDouble(), coords[1].toDouble(), sr);
  }

  if (!geom.isEmpty())
  {
    /**
         * Get rid of _control_points and _wkid. They are not needed in the graphic's
         * attributes.
         */
    rawAttributes.remove(FIELD_CONTROL_POINTS);
    rawAttributes.remove(FIELD_WKID);

    Graphic* graphic = new Graphic(geom, rawAttributes, this);
    m_graphicsOverlay->graphics()->append(graphic);

    m_bbox = m_bbox.isEmpty() ? geom.extent() : GeometryEngine::unionOf(m_bbox, geom).extent();
  }
}

void GODictionaryRenderer_3D::zoomToGraphics()
{
  m_bbox = GeometryEngine::project(m_bbox, m_sceneView->arcGISScene()->spatialReference());

  // Create a camera that looks at the bbox center, height 15000, pitch 70
  Camera camera(m_bbox.extent().center(), 15000, 0, 70, 0);

  m_sceneView->setViewpointCameraAndWait(camera);
}

QString GODictionaryRenderer_3D::errorMessage() const
{
  return m_errorMsg;
}

void GODictionaryRenderer_3D::setErrorMessage(const QString& msg)
{
  m_errorMsg = msg;
  qDebug() << m_errorMsg;
  emit errorMessageChanged();
}

// [WriteFile Name=GODictionaryRenderer_3D, Category=DisplayInformation]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef GraphicsOverlayDictionaryRenderer_3D_H
#define GraphicsOverlayDictionaryRenderer_3D_H

// ArcGIS Maps SDK headers
#include "Envelope.h"
#include "Error.h"
#include "SpatialReference.h"

// Qt headers
#include <QQuickItem>
#include <QXmlStreamReader>

namespace Esri::ArcGISRuntime
{
  class GraphicsOverlay;
  class SceneQuickView;
}

class GODictionaryRenderer_3D : public QQuickItem
{
  Q_OBJECT

  Q_PROPERTY(QString errorMessage READ errorMessage NOTIFY errorMessageChanged)

public:
  explicit GODictionaryRenderer_3D(QQuickItem* parent = nullptr);
  ~GODictionaryRenderer_3D() override;

  void componentComplete() override;
  static void init();

signals:
  void graphicsLoaded();
  void errorMessageChanged();

private slots:
  void logError(const Esri::ArcGISRuntime::Error& error);

private:
  static const QString FIELD_CONTROL_POINTS;
  static const QString FIELD_WKID;

  void parseXmlFile();
  void createGraphic(QVariantMap rawAttributes);
  void zoomToGraphics();
  QString errorMessage() const;
  void setErrorMessage(const QString& msg);

  QString m_dataPath;
  QXmlStreamReader m_xmlParser;
  Esri::ArcGISRuntime::SceneQuickView* m_sceneView = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_graphicsOverlay = nullptr;
  Esri::ArcGISRuntime::Envelope m_bbox;
  QString m_errorMsg;
};

#endif // GraphicsOverlayDictionaryRenderer_3D_H

// [WriteFile Name=GraphicsOverlayDictionaryRenderer_3D, Category=DisplayInformation]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts
import Esri.Samples

GODictionaryRenderer_3DSample {
    id: graphicsOverlayDictionaryRenderer_3DSample
    width: 800
    height: 600

    onGraphicsLoaded: progressBar_loading.visible = false;

    // Create SceneView here, and create its Scene and GraphicsOverlay in C++ code
    SceneView {
        objectName: "sceneView"
        anchors.fill: parent

        Component.onCompleted: {
            // Set the focus on SceneView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    ProgressBar {
        id: progressBar_loading
        anchors {
            horizontalCenter: parent.horizontalCenter
            bottom: parent.bottom
            margins: 5
        }
        indeterminate: true
    }

    Dialog {
        modal: true
        x: Math.round(parent.width - width) / 2
        y: Math.round(parent.height - height) / 2
        standardButtons: Dialog.Ok
        visible: text.length > 0
        property alias text : textLabel.text
        property alias informativeText : detailsLabel.text
        ColumnLayout {
            Text {
                id: textLabel
                text: errorMessage
            }
            Text {
                id: detailsLabel
                text: "Please consult the README.md"
            }
        }
        onAccepted: errorAccepted()
    }
}

// [Legal]
// Copyright 2015-2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "GODictionaryRenderer_3D.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QDir>
#include <QGuiApplication>
#include <QQmlEngine>
#include <QQuickView>
#include <QSurfaceFormat>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
#if defined(Q_OS_LINUX) && !defined(Q_OS_ANDROID)
  // Linux requires 3.2 OpenGL Context
  // in order to instance 3D symbols
  QSurfaceFormat fmt = QSurfaceFormat::defaultFormat();
  fmt.setVersion(3, 2);
  QSurfaceFormat::setDefaultFormat(fmt);
#endif

  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("GODictionary Renderer (3D)"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  GODictionaryRenderer_3D::init();

  // Initialize application view
  QQuickView view;
  view.setResizeMode(QQuickView::SizeRootObjectToView);

  // Add the import Path
  view.engine()->addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

 #if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
 #endif

  // Add the Runtime and Extras path
  view.engine()->addImportPath(arcGISRuntimeImportPath);

  // Set the source
  view.setSource(QUrl("qrc:/Samples/DisplayInformation/GODictionaryRenderer_3D/GODictionaryRenderer_3D.qml"));

  view.show();

  return app.exec();
}
