Simple marker symbol

// [WriteFile Name=Simple_Marker_Symbol, Category=DisplayInformation]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "Simple_Marker_Symbol.h"

// ArcGIS Maps SDK headers
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "MapViewTypes.h"
#include "Point.h"
#include "SimpleMarkerSymbol.h"
#include "SpatialReference.h"
#include "SymbolTypes.h"
#include "Viewpoint.h"

using namespace Esri::ArcGISRuntime;

Simple_Marker_Symbol::Simple_Marker_Symbol(QQuickItem* parent) :
  QQuickItem(parent)
{
}

Simple_Marker_Symbol::~Simple_Marker_Symbol() = default;

void Simple_Marker_Symbol::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<Simple_Marker_Symbol>("Esri.Samples", 1, 0, "Simple_Marker_SymbolSample");
}

void Simple_Marker_Symbol::componentComplete()
{
  QQuickItem::componentComplete();

  // find QML MapView component
  m_mapView = findChild<MapQuickView*>("mapView");
  m_mapView->setWrapAroundMode(WrapAroundMode::Disabled);

  // create a map using the imagery basemap
  m_map = new Map(BasemapStyle::ArcGISImageryStandard, this);

  // set initial viewpoint
  m_map->setInitialViewpoint(Viewpoint(Point(-226773, 6550477, SpatialReference::webMercator()), 7500));

  // create a GraphicsOverlay
  m_graphicsOverlay = new GraphicsOverlay(this);

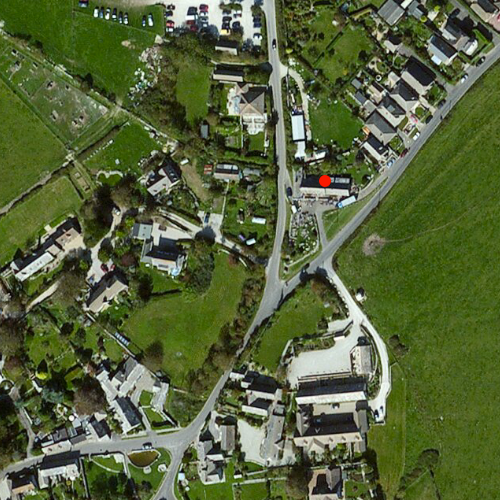

  // create red circle graphic
  Graphic* redCircle = new Graphic(Point(-226773, 6550477, SpatialReference::webMercator()), this);
  SimpleMarkerSymbol* redCircleSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::Circle, QColor("red"), 12, this);
  redCircle->setSymbol(redCircleSymbol);

  // append to graphics overlay
  m_graphicsOverlay->graphics()->append(redCircle);

  // add the GraphicsOverlay to map view
  m_mapView->graphicsOverlays()->append(m_graphicsOverlay);

  // set map to map view
  m_mapView->setMap(m_map);
}

// [WriteFile Name=Simple_Marker_Symbol, Category=DisplayInformation]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef SIMPLE_MARKER_SYMBOL_H
#define SIMPLE_MARKER_SYMBOL_H

// Qt headers
#include <QQuickItem>

namespace Esri::ArcGISRuntime
{
    class Map;
    class MapQuickView;
    class GraphicsOverlay;
}

class Simple_Marker_Symbol : public QQuickItem
{
  Q_OBJECT

public:
  explicit Simple_Marker_Symbol(QQuickItem* parent = nullptr);
  ~Simple_Marker_Symbol() override;

  void componentComplete() override;
  static void init();

private:
  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_graphicsOverlay = nullptr;
};

#endif // SIMPLE_MARKER_SYMBOL_H

// [WriteFile Name=Simple_Marker_Symbol, Category=DisplayInformation]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples

Simple_Marker_SymbolSample {
    clip: true
    width: 800
    height: 600

    // add a mapView component
    MapView {
        anchors.fill: parent
        objectName: "mapView"

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }
}

// [Legal]
// Copyright 2015 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "Simple_Marker_Symbol.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlEngine>
#include <QQuickView>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("Simple Marker Symbol"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  Simple_Marker_Symbol::init();

  // Initialize application view
  QQuickView view;
  view.setResizeMode(QQuickView::SizeRootObjectToView);

  // Add the import Path
  view.engine()->addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

 #if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
 #endif

  // Add the Runtime and Extras path
  view.engine()->addImportPath(arcGISRuntimeImportPath);

  // Set the source
  view.setSource(QUrl("qrc:/Samples/DisplayInformation/Simple_Marker_Symbol/Simple_Marker_Symbol.qml"));

  view.show();

  return app.exec();
}
