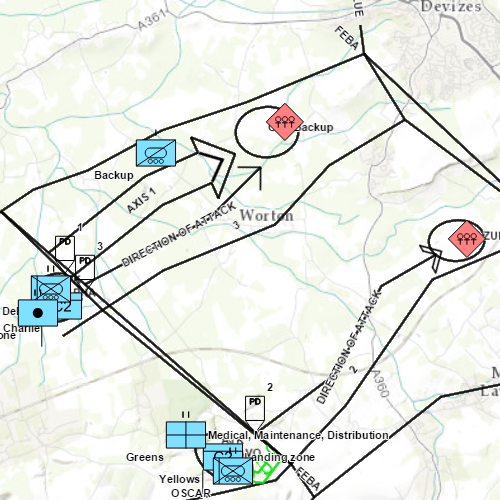

Graphics overlay (dictionary renderer)

// [WriteFile Name=GODictionaryRenderer, Category=DisplayInformation]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "GODictionaryRenderer.h"

// ArcGIS Maps SDK headers
#include "DictionaryRenderer.h"
#include "DictionarySymbolStyle.h"
#include "DictionarySymbolStyleConfiguration.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "Map.h"
#include "MapQuickView.h"
#include "MapTypes.h"
#include "MultipointBuilder.h"
#include "Point.h"
#include "PointCollection.h"
#include "SpatialReference.h"

// Qt headers
#include <QFile>
#include <QFuture>
#include <QStandardPaths>
#include <QtCore/qglobal.h>

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
QString defaultDataPath()
{
  QString dataPath;

#ifdef Q_OS_IOS
  dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
#else
  dataPath = QStandardPaths::writableLocation(QStandardPaths::HomeLocation);
#endif

  return dataPath;
}
} // namespace

const QString GODictionaryRenderer::FIELD_CONTROL_POINTS = QStringLiteral("_control_points");
const QString GODictionaryRenderer::FIELD_WKID = QStringLiteral("_wkid");

GODictionaryRenderer::GODictionaryRenderer(QQuickItem* parent) :
  QQuickItem(parent),
  m_dataPath(defaultDataPath() + "/ArcGIS/Runtime/Data")
{
}

GODictionaryRenderer::~GODictionaryRenderer() = default;

void GODictionaryRenderer::init()
{
  qmlRegisterType<MapQuickView>("Esri.Samples", 1, 0, "MapView");
  qmlRegisterType<GODictionaryRenderer>("Esri.Samples", 1, 0, "GODictionaryRendererSample");
}

bool GODictionaryRenderer::graphicsLoaded() const
{
  return m_graphicsLoaded;
}

void GODictionaryRenderer::componentComplete()
{
  QQuickItem::componentComplete();

  //! [Apply Dictionary Renderer Graphics Overlay Cpp]
  // Create graphics overlay
  m_graphicsOverlay = new GraphicsOverlay(this);

  // Create dictionary renderer and apply to the graphics overlay
  const QString specType = QStringLiteral("mil2525d");
  const QString styleLocation = m_dataPath + "/styles/arcade_style/mil2525d.stylx";
  DictionarySymbolStyle* dictionarySymbolStyle = DictionarySymbolStyle::createFromFile(styleLocation, this);

  // The style will be loaded automatically
  connect(dictionarySymbolStyle, &DictionarySymbolStyle::loadStatusChanged, this, [dictionarySymbolStyle]()
  {
    if (dictionarySymbolStyle->loadStatus() == LoadStatus::Loaded)
    {
      const QList<DictionarySymbolStyleConfiguration*> dictionarySymbolStyleConfigurations = dictionarySymbolStyle->configurations();
      for (DictionarySymbolStyleConfiguration* dictionarySymbolStyleConfiguration : dictionarySymbolStyleConfigurations)
      {
        if (dictionarySymbolStyleConfiguration->name() == "model")
        {
          dictionarySymbolStyleConfiguration->setValue("ORDERED ANCHOR POINTS");
        }
      }
    }
  });

  //! [Apply Dictionary Renderer Graphics Overlay Cpp]
  Q_UNUSED(specType)

  DictionaryRenderer* renderer = new DictionaryRenderer(dictionarySymbolStyle, this);
  m_graphicsOverlay->setRenderer(renderer);
  // Create a map and give it to the MapView
  m_mapView = findChild<MapQuickView*>("mapView");
  m_map = new Map(BasemapStyle::ArcGISTopographic, this);

  parseXmlFile();

  m_mapView->graphicsOverlays()->append(m_graphicsOverlay);

  // The GraphicsOverlay will not have a valid extent until it is part of
  // a MapQuickView with a valid spatial referenence
  connect(m_mapView, &MapQuickView::spatialReferenceChanged, this, [this]()
  {
    zoomToGraphics();
  });

  m_mapView->setMap(m_map);
}

void GODictionaryRenderer::parseXmlFile()
{
  bool readingMessage = false;
  QVariantMap elementValues;
  QString currentElementName;

  QFile xmlFile(m_dataPath + "/xml/arcade_style/Mil2525DMessages.xml");

  // Open the file for reading
  if (xmlFile.isOpen())
  {
    xmlFile.reset();
  }
  else
  {
    xmlFile.open(QIODevice::ReadOnly | QIODevice::Text);
  }
  m_xmlParser.setDevice(&xmlFile);

  // Traverse the XML in a loop
  while (!m_xmlParser.atEnd())
  {
    m_xmlParser.readNext();

    // Is this the start or end of a message element?
    if (m_xmlParser.name() == QString("message"))
    {
      if (!readingMessage)
      {
        // This is the start of a message element.
        elementValues.clear();
      }
      else
      {
        // This is the end of a message element. Here we have a complete message that defines
        // a military feature to display on the map. Create a graphic from its attributes.
        createGraphic(elementValues);
      }
      // Either we just started reading a message, or we just finished reading a message.
      readingMessage = !readingMessage;
    }
    // Are we already inside a message element?
    else if (readingMessage)
    {
      // Is this the start of an element inside a message?
      if (m_xmlParser.isStartElement())
      {
        // Remember which element we're reading
        currentElementName = m_xmlParser.name().toString();
      }
      // Is this text?
      else if (m_xmlParser.isCharacters())
      {
        // Is this text inside an element?
        if (!currentElementName.isEmpty())
        {
          // Get the text and store it as the current element's value
          const QStringView trimmedText = m_xmlParser.text().trimmed();
          if (!trimmedText.isEmpty())
          {
            elementValues[currentElementName] = trimmedText.toString();
          }
        }
      }
    }
  }

  emit graphicsLoadedChanged();
}

void GODictionaryRenderer::createGraphic(QVariantMap rawAttributes)
{
  // If _wkid was absent, use WGS 1984 (4326) by default.
  const int wkid = rawAttributes.count(FIELD_WKID) > 0 ? rawAttributes[FIELD_WKID].toInt() : 4326;
  const SpatialReference sr(wkid);
  const QStringList pointStrings = rawAttributes[FIELD_CONTROL_POINTS].toString().split(";");

  Geometry geom;
  if (pointStrings.length() == 1)
  {
    // It's a point
    const QStringList coords = pointStrings[0].split(",");
    geom = Point(coords[0].toDouble(), coords[1].toDouble(), sr);
  }
  else {
    // It's a multipoint
    MultipointBuilder* builder = new MultipointBuilder(sr, this);
    PointCollection* collection = new PointCollection(sr, this);
    for (const QString& pointString : pointStrings)
    {
      const QStringList coords = pointString.split(",");
      if (coords.length() >= 2)
        collection->addPoint(coords[0].toDouble(), coords[1].toDouble());
    }
    builder->setPoints(collection);
    geom = builder->toGeometry();
  }

  if (!geom.isEmpty())
  {
    // Get rid of _control_points and _wkid. They are not needed in the graphic's
    // attributes.
    rawAttributes.remove(FIELD_CONTROL_POINTS);
    rawAttributes.remove(FIELD_WKID);

    Graphic* graphic = new Graphic(geom, rawAttributes, this);
    m_graphicsOverlay->graphics()->append(graphic);
  }
}

void GODictionaryRenderer::zoomToGraphics()
{
  if (m_graphicsOverlay)
    m_mapView->setViewpointGeometryAsync(m_graphicsOverlay->extent(), 20);
}

// [WriteFile Name=GODictionaryRenderer, Category=DisplayInformation]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef GraphicsOverlayDictionaryRenderer_H
#define GraphicsOverlayDictionaryRenderer_H

// ArcGIS Maps SDK headers
#include "Envelope.h"

// Qt headers
#include <QQuickItem>
#include <QXmlStreamReader>

namespace Esri::ArcGISRuntime
{
  class Map;
  class GraphicsOverlay;
  class MapQuickView;
}

class GODictionaryRenderer : public QQuickItem
{
  Q_OBJECT

  Q_PROPERTY(bool graphicsLoaded READ graphicsLoaded NOTIFY graphicsLoadedChanged)

public:
  explicit GODictionaryRenderer(QQuickItem* parent = nullptr);
  ~GODictionaryRenderer() override;

  void componentComplete() override;
  static void init();

signals:
  void graphicsLoadedChanged();

private:
  static const QString FIELD_CONTROL_POINTS;
  static const QString FIELD_WKID;

  bool graphicsLoaded() const;
  void parseXmlFile();
  void createGraphic(QVariantMap rawAttributes);
  void zoomToGraphics();

  bool m_graphicsLoaded = false;
  QString m_dataPath;
  QXmlStreamReader m_xmlParser;
  Esri::ArcGISRuntime::Map* m_map = nullptr;
  Esri::ArcGISRuntime::MapQuickView* m_mapView = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_graphicsOverlay = nullptr;
};

#endif // GraphicsOverlayDictionaryRenderer_H

// [WriteFile Name=GODictionaryRenderer, Category=DisplayInformation]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples

GODictionaryRendererSample {
    id: graphicsOverlayDictionaryRendererSample
    width: 800
    height: 600

    // Create MapView here, and create its Map and GraphicsOverlay in C++ code
    MapView {
        objectName: "mapView"
        anchors.fill: parent

        Component.onCompleted: {
            // Set the focus on MapView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    ProgressBar {
        anchors {
            horizontalCenter: parent.horizontalCenter
            bottom: parent.bottom
            margins: 5
        }
        indeterminate: true
        visible: graphicsLoaded
    }
}

// [Legal]
// Copyright 2015-2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "GODictionaryRenderer.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QDir>
#include <QGuiApplication>
#include <QQmlEngine>
#include <QQuickView>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("GODictionary Renderer"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  GODictionaryRenderer::init();

  // Initialize application view
  QQuickView view;
  view.setResizeMode(QQuickView::SizeRootObjectToView);

  // Add the import Path
  view.engine()->addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

 #if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
 #endif

  // Add the Runtime and Extras path
  view.engine()->addImportPath(arcGISRuntimeImportPath);

  // Set the source
  view.setSource(QUrl("qrc:/Samples/DisplayInformation/GODictionaryRenderer/GODictionaryRenderer.qml"));

  view.show();

  return app.exec();
}
