Add the plugin to an existing project

Open an existing project

  1. To launch Unreal Engine, open the Epic Games launcher and click on Library.

  2. Choose the correct version and click Launch. Select the project from the project list.

    Select the prject

Install the plugin

The ArcGIS Maps SDK for Unreal Engine should be installed in the project directory.

  1. Exit Unreal Engine and close Visual Studio. Then create a Plugins folder in the main project directory.

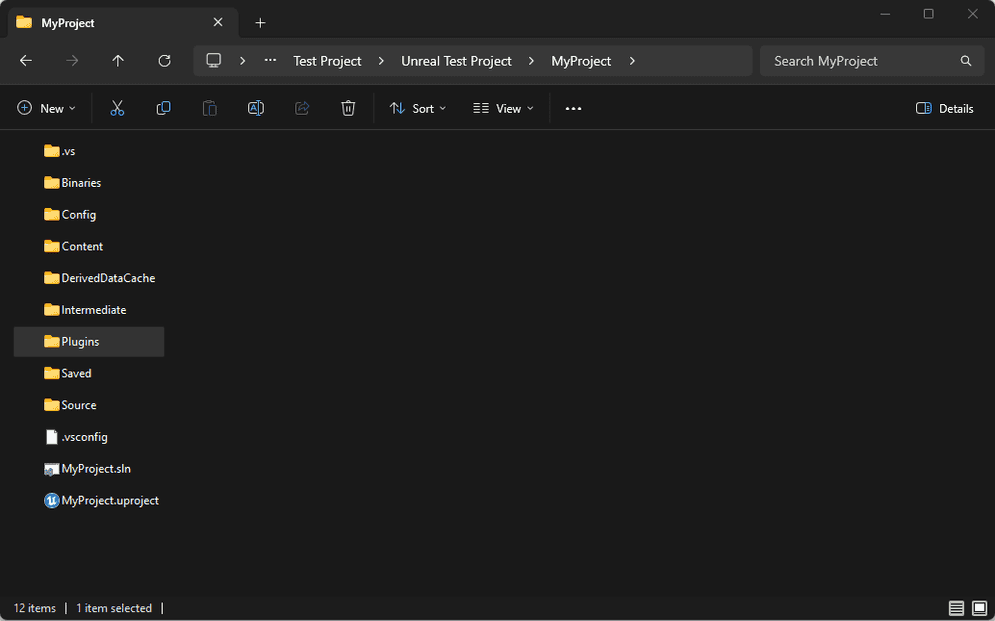

    Create plugin folder under project directory

  2. Extract the ArcGISMapsSDK folder from the .zip file and copy it to the new Plugins folder.

    Place ArcGISMapsSDK folder

  3. When you open the project, you can find ArcGIS Maps SDK for Unreal Engine is enabled in Plugins.


    To open the project, there are three ways:

    • Double-click the project in the Epic Games launcher or Unreal Engine Project Browser.

    • Double-click the .uproject in the main project directory.

    • Open the .sln file in the main project directory and launch the project from Visual Studio. For information about setting up Visual Studio for Unreal Engine, see the Unreal Engine 5 documentation.

  4. Click Window in the menu bar and select World Settings.

    Open World Wettings

  5. Open Advanced under World and check the Enable Large Worlds.

    Enable Large Worlds

Manage existing content

To allow your project's existing Actors to track within an ArcGISMap with geographic coordinates, you can add an ArcGIS Location component.

You can find the script here:

ArcGISMapsSDK for Unreal Engine C++ Classes\ArcGISMapsSDK\Public\ArcGISMapsSDK\Components

To use the ArcGIS Location Component:

  1. Click your Actor in the Outliner.

  2. Click + Add button in the Details panel and search for ArcGIS Location to add the Component to your Actor. For more information on Components see Unreal Engine's documentation under Components section.

  3. Make sure your Actor is selected in the Details panel and change the Mobility to Movable.


  4. Click on the ArcGIS Location in the Details panel and set the initial position and rotation. The ArcGIS Location Componentuses the pivot of the Actor as the setting point.

    ArcGIS Location Component

    • X (Longitude) : Specifies the east–west position of the Actor on the Earth's surface. A projected position value for projected coordinate systems or a longitude value for geographic coordinate systems.
    • Y (Latitude) : Specifies the north–south position of the Actor on the Earth's surface. A projected position value for projected coordinate systems or a latitude value for geographic coordinate systems.
    • Z (Altitude): Sets the vertical distance of the Actor above the Earth. The units is depending on the spatial reference.
    • Spatial Reference WKID: Well-Known ID (WKID) of the spatial reference for the X, Y and Z values. (Specifying the spatial reference with Well-Known Text (WKT) is not supported for the ArcGIS Location Component.)
    • Heading: Sets the heading or up axis of the Actor. This is also known as yaw or azimuth. It represents the number of degrees by which the game object will be rotated, measured counterclockwise from the north. To rotate clockwise, use a negative value.
    • Pitch: Sets the pitch or right axis of the Actor. Pitch is the equivalent of moving a plane's nose up or down (rotating along the axis that passes through the plane's wings). Positive values, looking forward, are above the horizon (pointing upward) and negative values are below the horizon (pointing downward).
    • Roll: Sets the roll or forward axis of the Actor. Roll is the equivalent of tilting a plane's wings up or down (rotating along the axis that passes through the center of the plane from front to back). A zero value is perfectly horizontal. Positive values will tilt the left side upward (or right side downward). Negative values do the opposite.
Learn more about the Location Component

GeoReferencing Plugin integration

You can use ArcGIS Maps SDK for Unreal Engine in a level that is using the GeoReferencing plugin. When you add ArcGIS Map Actor for the first time, it will pull the Origin Position values of the GeoReferencingSystem Actor to the ArcGIS Map Component. In ArcGIS Map Component, use the Update Geo Referencing System option to push the configuration to GeoReferencingSystem Actor.
