import { intersectsAccelerateGeometry, accelerateGeometry, intersectsExecute, execute, intersectsSupportsCurves } from "@arcgis/core/geometry/operators/intersectsOperator.js";
Since
ArcGIS Maps SDK for JavaScript 4.31

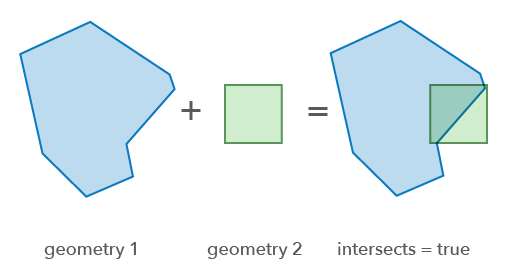

Performs a relational operation to determine if one 2D geometry intersects another 2D geometry. Intersects is the same as not being disjoint. This operator can be used with non-simple geometries.

Intersects operator

Functions

intersectsAccelerateGeometry

Function
Since
ArcGIS Maps SDK for JavaScript 5.2

Accelerate a geometry. This method prepares the geometry for faster intersects operations when the same geometry is tested multiple times (e.g. in a loop with hundreds of iterations). See the Acceleration guide topic for more information.

Signature
intersectsAccelerateGeometry (geometry: GeometryUnion): boolean

Parameters

ParameterTypeDescriptionRequired
geometry

The geometry to accelerate.

Returns
boolean

Returns true if the geometry was successfully accelerated.

accelerateGeometry

deprecated Function

Accelerate a geometry. This method prepares the geometry for faster intersects operations when the same geometry is tested multiple times (e.g. in a loop with hundreds of iterations). See the Acceleration guide topic for more information.

Signature
accelerateGeometry (geometry: GeometryUnion): boolean

Parameters

ParameterTypeDescriptionRequired
geometry

The geometry to accelerate.

Returns
boolean

Returns true if the geometry was successfully accelerated.

intersectsExecute

Function
Since
ArcGIS Maps SDK for JavaScript 5.2

Performs the intersects operation on two geometries.

Signature
intersectsExecute (geometry1: GeometryUnion, geometry2: GeometryUnion): boolean

Parameters

ParameterTypeDescriptionRequired
geometry1

The geometry that is tested for the intersects relationship to geometry2.

geometry2

The geometry being intersected.

Returns
boolean

Returns true if geometry1 intersects with geometry2.

Example
// Returns true if two geometries intersect
const isIntersecting = intersectsExecute(polyline1, polyline2);

execute

deprecated Function

Performs the intersects operation on two geometries.

Signature
execute (geometry1: GeometryUnion, geometry2: GeometryUnion): boolean

Parameters

ParameterTypeDescriptionRequired
geometry1

The geometry that is tested for the intersects relationship to geometry2.

geometry2

The geometry being intersected.

Returns
boolean

Returns true if geometry1 intersects with geometry2.

Example
// Returns true if two geometries intersect
const isIntersecting = intersectsExecute(polyline1, polyline2);

Variables

intersectsSupportsCurves

Variable
Since
ArcGIS Maps SDK for JavaScript 5.2

Indicates if the operator supports input geometries that contain curves. The value will always be true.

Type
boolean

supportsCurves

deprecated Variable

Indicates if the operator supports input geometries that contain curves. The value will always be true.

Type
ReturnType
