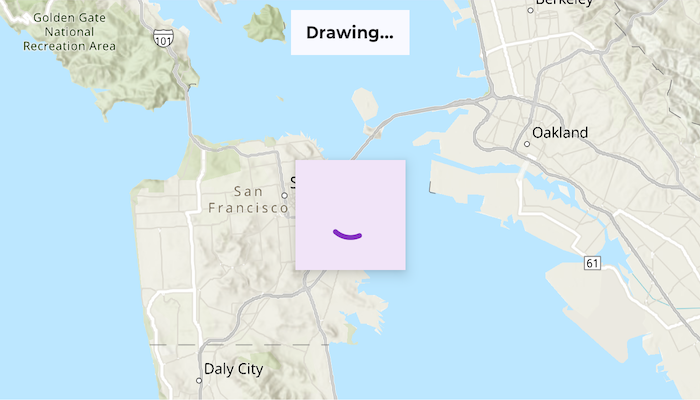

Monitor changes to draw status

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.monitorchangestodrawstatus

import android.os.Bundle
import androidx.activity.ComponentActivity
import androidx.activity.compose.setContent
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.Surface
import androidx.compose.runtime.Composable
import com.arcgismaps.ApiKey
import com.arcgismaps.ArcGISEnvironment
import com.esri.arcgismaps.sample.sampleslib.theme.SampleAppTheme
import com.esri.arcgismaps.sample.monitorchangestodrawstatus.screens.MonitorDrawStatusScreen

class MainActivity : ComponentActivity() {

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        // authentication with an API key or named user is
        // required to access basemaps and other location services
        ArcGISEnvironment.apiKey = ApiKey.create(BuildConfig.ACCESS_TOKEN)

        setContent {
            SampleAppTheme {
                MonitorChangesToDrawStatusApp()
            }
        }
    }

    @Composable
    private fun MonitorChangesToDrawStatusApp() {
        Surface(color = MaterialTheme.colorScheme.background) {
            MonitorDrawStatusScreen(
                sampleName = getString(R.string.monitor_changes_to_draw_status_app_name)
            )
        }
    }
}

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.monitorchangestodrawstatus.components

import android.app.Application
import androidx.lifecycle.AndroidViewModel
import androidx.lifecycle.viewModelScope
import com.arcgismaps.mapping.ArcGISMap
import com.arcgismaps.mapping.BasemapStyle
import com.arcgismaps.mapping.Viewpoint
import com.arcgismaps.geometry.Point
import com.arcgismaps.geometry.SpatialReference
import com.arcgismaps.mapping.view.DrawStatus
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialogViewModel
import kotlinx.coroutines.flow.MutableStateFlow
import kotlinx.coroutines.flow.asStateFlow
import kotlinx.coroutines.launch

/**
 * ViewModel for the Monitor changes to draw status sample.
 *
 * Exposes an ArcGISMap and a flow indicating whether the map is currently drawing
 * so the UI can react (show a progress indicator and status text).
 */
class MonitorDrawStatusViewModel(application: Application) : AndroidViewModel(application) {

    // Create a map shown by the sample
    val arcGISMap: ArcGISMap = ArcGISMap(BasemapStyle.ArcGISTopographic).apply {
        // Center the map on San Francisco
        initialViewpoint = Viewpoint(
            center = Point(
                x = -13623300.0,
                y = 4548100.0,
                spatialReference = SpatialReference.webMercator()
            ),
            scale = 32e4
        )
    }

    // Flow exposing whether the map is currently drawing.
    // true when DrawStatus is InProgress, false otherwise.
    private val _mapIsDrawing = MutableStateFlow(false)
    val mapIsDrawing = _mapIsDrawing.asStateFlow()

    // Message dialog view model to show errors if map load fails
    val messageDialogVM = MessageDialogViewModel()

    init {
        // Load the map and surface any errors via the MessageDialogViewModel.
        viewModelScope.launch {
            arcGISMap.load().onFailure { error ->
                // Surface the error so the UI can present a dialog
                messageDialogVM.showMessageDialog(error)
            }
        }
    }

    /**
     * Update the draw status observed from the MapView composable.
     */
    fun updateDrawStatus(drawStatus: DrawStatus) {
        _mapIsDrawing.value = drawStatus == DrawStatus.InProgress
    }
}

/* Copyright 2025 Esri
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 */

package com.esri.arcgismaps.sample.monitorchangestodrawstatus.screens

import androidx.compose.foundation.layout.Box
import androidx.compose.foundation.layout.Column
import androidx.compose.foundation.layout.fillMaxSize
import androidx.compose.foundation.layout.padding
import androidx.compose.material3.CircularProgressIndicator
import androidx.compose.material3.MaterialTheme
import androidx.compose.material3.Surface
import androidx.compose.material3.Text
import androidx.compose.material3.Scaffold
import androidx.compose.runtime.Composable
import androidx.compose.runtime.getValue
import androidx.compose.ui.Alignment
import androidx.compose.ui.Modifier
import androidx.compose.ui.draw.shadow
import androidx.compose.ui.unit.dp
import androidx.lifecycle.compose.collectAsStateWithLifecycle
import androidx.lifecycle.viewmodel.compose.viewModel
import com.arcgismaps.toolkit.geoviewcompose.MapView
import com.esri.arcgismaps.sample.monitorchangestodrawstatus.components.MonitorDrawStatusViewModel
import com.esri.arcgismaps.sample.sampleslib.components.MessageDialog
import com.esri.arcgismaps.sample.sampleslib.components.SampleTopAppBar

/**
 * Main screen for the Monitor changes to draw status sample.
 *
 * The composable observes the ViewModel's mapIsDrawing flow and updates the UI
 * when the draw status changes. The MapView's onDrawStatusChanged callback
 * is used to notify the ViewModel of draw status changes.
 */
@Composable
fun MonitorDrawStatusScreen(sampleName: String) {
    val viewModel: MonitorDrawStatusViewModel = viewModel()

    // Observe whether the map is currently drawing
    val mapIsDrawing by viewModel.mapIsDrawing.collectAsStateWithLifecycle(false)

    Scaffold(
        topBar = { SampleTopAppBar(title = sampleName) },
        content = { padding ->
            Column(modifier = Modifier
                .fillMaxSize()
                .padding(padding)) {

                Box(modifier = Modifier.fillMaxSize()) {
                    // Pass in the ArcGISMap from the ViewModel and the draw status callback.
                    MapView(
                        modifier = Modifier
                            .fillMaxSize(),
                        arcGISMap = viewModel.arcGISMap,
                        // Forward draw status updates to the ViewModel
                        onDrawStatusChanged = viewModel::updateDrawStatus
                    )

                    // Top overlay text showing current draw status
                    Surface(
                        modifier = Modifier
                            .align(Alignment.TopCenter)
                            .padding(8.dp),
                        color = MaterialTheme.colorScheme.surface.copy(alpha = 0.9f),
                        tonalElevation = 2.dp
                    ) {
                        Text(
                            modifier = Modifier.padding(horizontal = 12.dp, vertical = 8.dp),
                            text = if (mapIsDrawing) "Drawing…" else "Drawing completed.",
                            style = MaterialTheme.typography.labelLarge
                        )
                    }

                    // Center overlay: show a circular progress indicator while drawing
                    if (mapIsDrawing) {
                        Surface(
                            modifier = Modifier
                                .align(Alignment.Center)
                                .shadow(8.dp),
                            tonalElevation = 8.dp
                        ) {
                            CircularProgressIndicator(modifier = Modifier.padding(24.dp))
                        }
                    }
                }

                // Message dialog shown when ViewModel surfaces an error
                viewModel.messageDialogVM.apply {
                    if (dialogStatus) {
                        MessageDialog(
                            title = messageTitle,
                            description = messageDescription,
                            onDismissRequest = ::dismissDialog
                        )
                    }
                }
            }
        }
    )
}
