Part 4 - Productivity with Pandas

In the previous notebook, we introduced Pandas, which provides high-level data structures and functions designed to make working with structured or tabular data fast, easy, and expressive.

In this notebook, we will build on our knowledge of Pandas to be more productive. Pandas provides sophisticated, multi-level indexing functionality, along with the ability to perform data aggregation operations, such as grouping, merging, and joining data. It also provides capabilities for working with Time Series data that involves navigating and manipulating various date ranges and time indices. Let's dive into the details.

In [1]:
# Import libraries
import pandas as pd
import numpy as np

Working with Categorical Data

In many practical Data Science activities, you may come across data that contain categorical variables. These variables are typically stored as text values in columns. For such data, you may want to find the unique elements, frequency of each category present, or transform the categorical data into suitable numeric values.

Pandas provides various approaches to handle categorical data. To get started, let's create a small dataset and look at some examples. Seaborn library comes preloaded with some sample datasets. We will load the tips data from seaborn for our analysis.

In [2]:
import seaborn as sns
tips_data = sns.load_dataset('tips')
print(tips_data.head())
   total_bill   tip     sex smoker  day    time  size
0       16.99  1.01  Female     No  Sun  Dinner     2
1       10.34  1.66    Male     No  Sun  Dinner     3
2       21.01  3.50    Male     No  Sun  Dinner     3
3       23.68  3.31    Male     No  Sun  Dinner     2
4       24.59  3.61  Female     No  Sun  Dinner     4

Unique Values and Value Counts

Pandas provides methods such as unique(), nunique(), and value_counts() to extract information about the values in a column.

unique() and nunique()

unique() can be used to identify the unique elements of a column.

In [3]:
tips_data['day'].unique()
Out[3]:
[Sun, Sat, Thur, Fri]
Categories (4, object): [Sun, Sat, Thur, Fri]

The result is an array which can be easily converted to a list by chaining the tolist() function.

In [4]:
tips_data['day'].unique().tolist()
Out[4]:
['Sun', 'Sat', 'Thur', 'Fri']

Similarly, unique() can be applied on the index.

In [5]:
indexed_tip = tips_data.set_index('day')
indexed_tip.head()
Out[5]:
total_bill tip sex smoker time size
day
Sun 16.99 1.01 Female No Dinner 2
Sun 10.34 1.66 Male No Dinner 3
Sun 21.01 3.50 Male No Dinner 3
Sun 23.68 3.31 Male No Dinner 2
Sun 24.59 3.61 Female No Dinner 4
In [6]:
indexed_tip.index.unique()
Out[6]:
CategoricalIndex(['Sun', 'Sat', 'Thur', 'Fri'], categories=['Sun', 'Sat', 'Thur', 'Fri'], ordered=False, name='day', dtype='category')

nunique() can be used to count the number of unique values in a column.

In [7]:
# Count of unique values in employee
tips_data['day'].nunique()
Out[7]:
4
In [8]:
# Count of unique values in skills
tips_data['time'].nunique()
Out[8]:
2

value_counts()

value_counts() are used to determine the frequency of different values present in the column.

In [9]:
tips_data['day'].value_counts()
Out[9]:
Sat     87
Sun     76
Thur    62
Fri     19
Name: day, dtype: int64

reset_index() can be chained to the value_counts() operation to easily get the results as a DataFrame.

In [10]:
days_df = tips_data['day'].value_counts().reset_index()
days_df
Out[10]:
index day
0 Sat 87
1 Sun 76
2 Thur 62
3 Fri 19

One Hot Encoding

Many machine learning algorithms do not support the presence of categorical values in data. Pandas provides various approaches to transform the categorical data into suitable numeric values to create dummy variables, and one such approach is called One Hot Encoding. The basic strategy is to convert each category value into a new column and assign a 0 or 1 (True/False) value to the column. Dummy variables can be created using get_dummies.

In [11]:
pd.get_dummies(tips_data, columns=['day'])
Out[11]:
total_bill tip sex smoker time size day_Thur day_Fri day_Sat day_Sun
0 16.99 1.01 Female No Dinner 2 0 0 0 1
1 10.34 1.66 Male No Dinner 3 0 0 0 1
2 21.01 3.50 Male No Dinner 3 0 0 0 1
3 23.68 3.31 Male No Dinner 2 0 0 0 1
4 24.59 3.61 Female No Dinner 4 0 0 0 1
... ... ... ... ... ... ... ... ... ... ...
239 29.03 5.92 Male No Dinner 3 0 0 1 0
240 27.18 2.00 Female Yes Dinner 2 0 0 1 0
241 22.67 2.00 Male Yes Dinner 2 0 0 1 0
242 17.82 1.75 Male No Dinner 2 0 0 1 0
243 18.78 3.00 Female No Dinner 2 1 0 0 0

244 rows × 10 columns

The resulting dataset contains four new columns (one for each day) day_Thur, day_Fri, day_Sat, day_Sun. You can pass as many category columns as you would like and choose how to label the columns using prefix parameter.

In [12]:
pd.get_dummies(tips_data, columns=['day', 'smoker', 'sex'], prefix=['weekday', 'smokes', 'gender'])
Out[12]:
total_bill tip time size weekday_Thur weekday_Fri weekday_Sat weekday_Sun smokes_Yes smokes_No gender_Male gender_Female
0 16.99 1.01 Dinner 2 0 0 0 1 0 1 0 1
1 10.34 1.66 Dinner 3 0 0 0 1 0 1 1 0
2 21.01 3.50 Dinner 3 0 0 0 1 0 1 1 0
3 23.68 3.31 Dinner 2 0 0 0 1 0 1 1 0
4 24.59 3.61 Dinner 4 0 0 0 1 0 1 0 1
... ... ... ... ... ... ... ... ... ... ... ... ...
239 29.03 5.92 Dinner 3 0 0 1 0 0 1 1 0
240 27.18 2.00 Dinner 2 0 0 1 0 1 0 0 1
241 22.67 2.00 Dinner 2 0 0 1 0 1 0 1 0
242 17.82 1.75 Dinner 2 0 0 1 0 0 1 1 0
243 18.78 3.00 Dinner 2 1 0 0 0 0 1 0 1

244 rows × 12 columns

Binning Continous Variables

You may come across scenarios where you need to bin continuous data into discrete chunks to be used as a categorical variable. We can use pd.cut() function to cut our data into discrete buckets.

In [13]:
# Bin data into 5 equal sized buckets
pd.cut(tips_data['total_bill'], bins=5)
Out[13]:
0      (12.618, 22.166]
1       (3.022, 12.618]
2      (12.618, 22.166]
3      (22.166, 31.714]
4      (22.166, 31.714]
             ...
239    (22.166, 31.714]
240    (22.166, 31.714]
241    (22.166, 31.714]
242    (12.618, 22.166]
243    (12.618, 22.166]
Name: total_bill, Length: 244, dtype: category
Categories (5, interval[float64]): [(3.022, 12.618] < (12.618, 22.166] < (22.166, 31.714] < (31.714, 41.262] < (41.262, 50.81]]

The function results in five equal-width bins. We can also specify bin edges to create specific non-uniform bins.

In [14]:
# Bin data by specifying bin edges
bill_cat = pd.cut(tips_data['total_bill'], bins=[0, 31.714, 50.81])
bill_cat
Out[14]:
0      (0.0, 31.714]
1      (0.0, 31.714]
2      (0.0, 31.714]
3      (0.0, 31.714]
4      (0.0, 31.714]
           ...
239    (0.0, 31.714]
240    (0.0, 31.714]
241    (0.0, 31.714]
242    (0.0, 31.714]
243    (0.0, 31.714]
Name: total_bill, Length: 244, dtype: category
Categories (2, interval[float64]): [(0.0, 31.714] < (31.714, 50.81]]
In [15]:
# Value count for each category
bill_cat.value_counts()
Out[15]:
(0.0, 31.714]      218
(31.714, 50.81]     26
Name: total_bill, dtype: int64

The operation creates two non-uniform categories for total_bill.

Data Aggregation

Summarizing data by applying various aggregation functions such as sum(), mean(), median() etc. to each group or category within the data is a critical component of a data analysis workflow. Simple aggregations can give you a high level overview but are often not enough to get a deeper understanding of the data.

Pandas provides a flexible groupby() operation which allows for quick and efficient aggregation on subsets of data.

GroupBy

The name "group by" comes from a command in the SQL language. Hadley Wickham, author of popular packages in R programming language, described grouping operations by coining the term split-apply-combine.

  • The split step breaks up and groups a DataFrame based on the value of the specified key. Splitting is performed on a particular axis of a DataFrame i.e. rows (axis=0) or columns (axis=1).
  • The apply step computes some aggregation function within the individual groups.
  • The combine step merges the results of these operations into an output array.

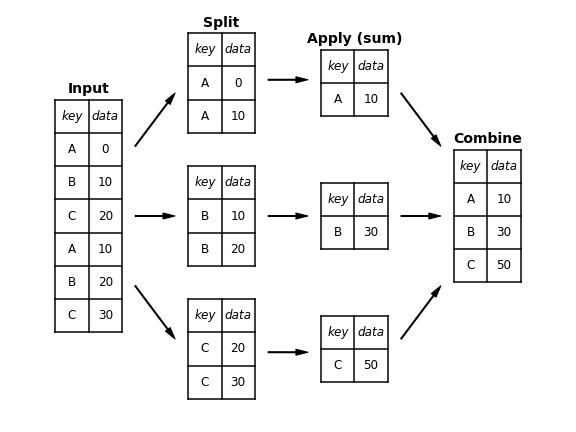

The image below shows a mockup of a simple group aggregation.

groupby() method can be used to apply the basic split-apply-combine operation on a DataFrame by specifying the desired column name.

In [16]:
# Apply Group By
grp1 = tips_data.groupby('sex')
grp1
Out[16]:
<pandas.core.groupby.generic.DataFrameGroupBy object at 0x7ff1186b91c0>

The method returns a DataFrameGroupBy object. No actual computation has been performed by the groupby() method yet. The idea is that this object has all the information needed to then apply some operation to each of the groups in the data. This "lazy evaluation" approach means that common aggregation functions can be implemented very efficiently using groupby(). For example, to compute the mean, we can call mean() method on the GroupBy object.

In [17]:
# Compute mean
grp1.mean()
Out[17]:
total_bill tip size
sex
Male 20.744076 3.089618 2.630573
Female 18.056897 2.833448 2.459770

The data has been aggregated according to the group key and is now indexed by the unique values in the sex column. By default, all of the numeric columns are aggregated.

Using Multiple Keys

Multiple column names can be passed as group keys to group the data appropriately. Let's group the data by smoker and day columns.

In [18]:
# Aggregation using multiple keys
tips_data.groupby(['smoker', 'day']).mean()
Out[18]:
total_bill tip size
smoker day
Yes Thur 19.190588 3.030000 2.352941
Fri 16.813333 2.714000 2.066667
Sat 21.276667 2.875476 2.476190
Sun 24.120000 3.516842 2.578947
No Thur 17.113111 2.673778 2.488889
Fri 18.420000 2.812500 2.250000
Sat 19.661778 3.102889 2.555556
Sun 20.506667 3.167895 2.929825

The data is now indexed by the unique values in the smoker and day columns. Similarly, other aggregation operations such as sum(), median(), std() etc. can be applied to the groups within data.

In [19]:
# Sum operation
tips_data.groupby(['smoker', 'day']).sum()
Out[19]:
total_bill tip size
smoker day
Yes Thur 326.24 51.51 40
Fri 252.20 40.71 31
Sat 893.62 120.77 104
Sun 458.28 66.82 49
No Thur 770.09 120.32 112
Fri 73.68 11.25 9
Sat 884.78 139.63 115
Sun 1168.88 180.57 167
In [20]:
# Median operation
tips_data.groupby(['smoker', 'day']).median()
Out[20]:
total_bill tip size
smoker day
Yes Thur 16.470 2.560 2
Fri 13.420 2.500 2
Sat 20.390 2.690 2
Sun 23.100 3.500 2
No Thur 15.950 2.180 2
Fri 19.235 3.125 2
Sat 17.820 2.750 2
Sun 18.430 3.020 3
In [21]:
# Standard Deviation operation
tips_data.groupby(['smoker', 'day']).std()
Out[21]:
total_bill tip size
smoker day
Yes Thur 8.355149 1.113491 0.701888
Fri 9.086388 1.077668 0.593617
Sat 10.069138 1.630580 0.862161
Sun 10.442511 1.261151 0.901591
No Thur 7.721728 1.282964 1.179796
Fri 5.059282 0.898494 0.500000
Sat 8.939181 1.642088 0.784960
Sun 8.130189 1.224785 1.032674

Using aggregate()

aggregate() method allows for even greater flexibility by taking a string, a function, or a list and computing all the aggregates at once. The example below shows minimum aggregation operation being used as a string, median being called as a function, and all aggregation operations being passed as a list.

In [22]:
tips_data.groupby(['smoker', 'day']).aggregate(['min', np.median, max])
Out[22]:
total_bill tip size
min median max min median max min median max
smoker day
Yes Thur 10.34 16.470 43.11 2.00 2.560 5.00 2 2 4
Fri 5.75 13.420 40.17 1.00 2.500 4.73 1 2 4
Sat 3.07 20.390 50.81 1.00 2.690 10.00 1 2 5
Sun 7.25 23.100 45.35 1.50 3.500 6.50 2 2 5
No Thur 7.51 15.950 41.19 1.25 2.180 6.70 1 2 6
Fri 12.46 19.235 22.75 1.50 3.125 3.50 2 2 3
Sat 7.25 17.820 48.33 1.00 2.750 9.00 1 2 4
Sun 8.77 18.430 48.17 1.01 3.020 6.00 2 3 6

Aggregation functions can also be passed as a dictionary, mapping column names to operations that are to be applied on that column. The example below shows min operation applied to total_bill column and max operation applied to tip column.

In [23]:
tips_data.groupby(['smoker', 'day']).aggregate({'total_bill':'min', 'tip':'max'})
Out[23]:
total_bill tip
smoker day
Yes Thur 10.34 5.00
Fri 5.75 4.73
Sat 3.07 10.00
Sun 7.25 6.50
No Thur 7.51 6.70
Fri 12.46 3.50
Sat 7.25 9.00
Sun 8.77 6.00

A more complex operation could involve passing a list of operations to be applied to a specific column.

In [24]:
tips_data.groupby(['smoker', 'day']).aggregate({'total_bill':['min','max','count'], 'tip':'max'})
Out[24]:
total_bill tip
min max count max
smoker day
Yes Thur 10.34 43.11 17 5.00
Fri 5.75 40.17 15 4.73
Sat 3.07 50.81 42 10.00
Sun 7.25 45.35 19 6.50
No Thur 7.51 41.19 45 6.70
Fri 12.46 22.75 4 3.50
Sat 7.25 48.33 45 9.00
Sun 8.77 48.17 57 6.00

Selecting a Subset of Columns

For large datasets, it may be desirable to aggregate a specific column or only a subset of columns. As an example, we can group the data by smoker and compute mean for tip column as follows:

In [25]:
tips_data.groupby(['smoker'])['tip'].mean()
Out[25]:
smoker
Yes    3.008710
No     2.991854
Name: tip, dtype: float64

Similarly, we can group the data by smoker and day columns, compute median for tip column.

In [26]:
tips_data.groupby(['smoker','day'])['tip'].median()
Out[26]:
smoker  day
Yes     Thur    2.560
        Fri     2.500
        Sat     2.690
        Sun     3.500
No      Thur    2.180
        Fri     3.125
        Sat     2.750
        Sun     3.020
Name: tip, dtype: float64

Pivot Tables

Pivot Table is a popular operation that is commonly used on tabular data in spreadsheets. The pivot table takes simple column-wise data as input, and groups the entries into a two-dimensional table that provides a multidimensional summarization of the data. Pivot Tables are essentially a multidimensional version of GroupBy. Pandas includes a pandas.pivot_table function and DataFrame also has a pivot_table method.

Seaborn library comes preloaded with some sample datasets. We will load the titanic dataset from seaborn for our analysis and look at some examples.

In [27]:
# Get Data
titanic_df = sns.load_dataset('titanic')
titanic_df.head()
Out[27]:
survived pclass sex age sibsp parch fare embarked class who adult_male deck embark_town alive alone
0 0 3 male 22.0 1 0 7.2500 S Third man True NaN Southampton no False
1 1 1 female 38.0 1 0 71.2833 C First woman False C Cherbourg yes False
2 1 3 female 26.0 0 0 7.9250 S Third woman False NaN Southampton yes True
3 1 1 female 35.0 1 0 53.1000 S First woman False C Southampton yes False
4 0 3 male 35.0 0 0 8.0500 S Third man True NaN Southampton no True

Let's say we want to look at the average number of people that survived by both sex and class. We can get the results using both GroupBy and pivot_table.

  • Using GroupBy
In [28]:
titanic_df.groupby(['sex', 'class'])['survived'].aggregate('mean').unstack()
Out[28]:
class First Second Third
sex
female 0.968085 0.921053 0.500000
male 0.368852 0.157407 0.135447
  • Using pivot_table
In [29]:
titanic_df.pivot_table(values='survived', index='sex', columns='class')
Out[29]:
class First Second Third
sex
female 0.968085 0.921053 0.500000
male 0.368852 0.157407 0.135447

We can see that the pivot_table approach is much more readable than the GroupBy and produces the same result. The default aggregation operation is mean.

Multi-level Pivot Table

Just as in GroupBy, the data can be grouped at multiple levels using pivot_table. Suppose we want to group survival by sex and age. Since age is a continuous variable, we can create bins for age using pd.cut function and then group the data.

In [31]:
# Create bins for Age
age = pd.cut(titanic_df['age'], bins=[0,18,80])
age
Out[31]:
0      (18.0, 80.0]
1      (18.0, 80.0]
2      (18.0, 80.0]
3      (18.0, 80.0]
4      (18.0, 80.0]
           ...
886    (18.0, 80.0]
887    (18.0, 80.0]
888             NaN
889    (18.0, 80.0]
890    (18.0, 80.0]
Name: age, Length: 891, dtype: category
Categories (2, interval[int64]): [(0, 18] < (18, 80]]
In [32]:
# Group data
titanic_df.pivot_table(values='survived', index=['sex', age], columns='class')
Out[32]:
class First Second Third
sex age
female (0, 18] 0.909091 1.000000 0.511628
(18, 80] 0.972973 0.900000 0.423729
male (0, 18] 0.800000 0.600000 0.215686
(18, 80] 0.375000 0.071429 0.133663

The operation can be applied to columns in a similar fashion. Suppose we want to group survival by sex and age and look at the data by class and fare.

We can discretize the fare variable into equal-sized buckets based on sample quantiles using pd.qcut and then group the data.

In [33]:
# Create bins for fare
fare = pd.qcut(titanic_df['fare'], q=2)
In [34]:
# Group data
titanic_df.pivot_table(values='survived', index=['sex', age], columns=[fare, 'class'])
Out[34]:
fare (-0.001, 14.454] (14.454, 512.329]
class First Second Third First Second Third
sex age
female (0, 18] NaN 1.000000 0.714286 0.909091 1.000000 0.318182
(18, 80] NaN 0.880000 0.444444 0.972973 0.914286 0.391304
male (0, 18] NaN 0.000000 0.260870 0.800000 0.818182 0.178571
(18, 80] 0.0 0.098039 0.125000 0.391304 0.030303 0.192308

Using aggfunc

aggfunc keyword can be used to specify the aggregate functions that can be applied to different columns.

In [35]:
titanic_df.pivot_table(index='sex', columns='class',
                      aggfunc={'survived':'sum', 'fare': 'mean'})
Out[35]:
fare survived
class First Second Third First Second Third
sex
female 106.125798 21.970121 16.118810 91 70 72
male 67.226127 19.741782 12.661633 45 17 47

To compute totals along each grouping, margins keyword can be used.

In [36]:
titanic_df.pivot_table(values='survived', index='sex', columns='class',
                      aggfunc='sum', margins=True)
Out[36]:
class First Second Third All
sex
female 91 70 72 233
male 45 17 47 109
All 136 87 119 342

describe() method

Convenience methods, such as describe(), can be used to compute several common aggregates for each column. It also comes in handy when you are trying to understand the overall properties of a dataset.

In [38]:
tips_data.describe()
Out[38]:
total_bill tip size
count 244.000000 244.000000 244.000000
mean 19.785943 2.998279 2.569672
std 8.902412 1.383638 0.951100
min 3.070000 1.000000 1.000000
25% 13.347500 2.000000 2.000000
50% 17.795000 2.900000 2.000000
75% 24.127500 3.562500 3.000000
max 50.810000 10.000000 6.000000

describe() on GroupBy

describe() can be used on a groupby() object to get common aggregates for a subset of data.

In [39]:
tips_data.groupby(['smoker','day'])['total_bill'].describe()
Out[39]:
count mean std min 25% 50% 75% max
smoker day
Yes Thur 17.0 19.190588 8.355149 10.34 13.510 16.470 19.8100 43.11
Fri 15.0 16.813333 9.086388 5.75 11.690 13.420 18.6650 40.17
Sat 42.0 21.276667 10.069138 3.07 13.405 20.390 26.7925 50.81
Sun 19.0 24.120000 10.442511 7.25 17.165 23.100 32.3750 45.35
No Thur 45.0 17.113111 7.721728 7.51 11.690 15.950 20.2700 41.19
Fri 4.0 18.420000 5.059282 12.46 15.100 19.235 22.5550 22.75
Sat 45.0 19.661778 8.939181 7.25 14.730 17.820 20.6500 48.33
Sun 57.0 20.506667 8.130189 8.77 14.780 18.430 25.0000 48.17

Combining Data

Data science workflows often involve combining data from different sources to enhance the analysis. There are multiple ways in which data can be combined ranging from the straightforward concatenation of two different datasets, to more complicated database-style joins.

  • pandas.concat - stacks together objects along an axis.
  • DataFrame.append - works similar to pandas.concat but does not modify the original object. It creates a new object with the combined data.
  • pandas.merge - joins rows in DataFrame based on one or more keys. It works as the entry point for all standard database join operations between DataFrame or Series objects.
  • DataFrame.join - join instance of a DataFrame can be used for merging by index. It can be used to combine many DataFrame objects with same or similar indexes but non-overlapping columns.

concat()

concat() can be used to stack data frames together along an axis.

In [40]:
# Create Data
df2 = pd.DataFrame(np.arange(6).reshape(3, 2), index=['a', 'b', 'c'],
                   columns=['one', 'two'])
print('df2 is: \n', df2)

df3 = pd.DataFrame(5 + np.arange(4).reshape(2, 2), index=['a', 'c'],
                   columns=['three', 'four'])
print('\ndf3 is: \n', df3)

df4 = pd.DataFrame(5 + np.arange(4).reshape(2, 2), index=['a', 'c'],
                   columns=['one', 'two'])
print('\ndf4 is: \n', df4)
df2 is:
    one  two
a    0    1
b    2    3
c    4    5

df3 is:
    three  four
a      5     6
c      7     8

df4 is:
    one  two
a    5    6
c    7    8

By default, concat() works row-wise within the DataFrame (along axis=0).

In [41]:
pd.concat([df2,df4])
Out[41]:
one two
a 0 1
b 2 3
c 4 5
a 5 6
c 7 8

ignore_index flag can be used to ignore the index when it is not necessary.

In [42]:
pd.concat([df2,df4], ignore_index=True)
Out[42]:
one two
0 0 1
1 2 3
2 4 5
3 5 6
4 7 8

You an specify an axis along which the concatenation should take place. If axis parameter is not specified, the concatenation works row-wise generating NaN values for unmatched columns.

In [43]:
pd.concat([df2,df3])
Out[43]:
one two three four
a 0.0 1.0 NaN NaN
b 2.0 3.0 NaN NaN
c 4.0 5.0 NaN NaN
a NaN NaN 5.0 6.0
c NaN NaN 7.0 8.0

When axis='columns' is specified, the concatenation works along columns.

In [44]:
pd.concat([df2,df3], axis='columns')
Out[44]:
one two three four
a 0 1 5.0 6.0
b 2 3 NaN NaN
c 4 5 7.0 8.0

append()

append() works similar to concat() but does not modify the original object. It creates a new object with the combined data. The method works row-wise within the DataFrame (along axis=0). This method is not very efficient, as it involves the creation of a new index and data buffer.

In [45]:
df2.append(df4)
Out[45]:
one two
a 0 1
b 2 3
c 4 5
a 5 6
c 7 8
In [46]:
df2.append(df3)
Out[46]:
one two three four
a 0.0 1.0 NaN NaN
b 2.0 3.0 NaN NaN
c 4.0 5.0 NaN NaN
a NaN NaN 5.0 6.0
c NaN NaN 7.0 8.0

merge()

merge() joins rows in DataFrame based on one or more keys. It works as the entry point for all standard database join operations. Let's create sample data and look at some examples.

In [47]:
# Create data
dept_df = pd.DataFrame({'employee': ['John', 'Jake', 'Jane', 'Suzi', 'Chad'],
                    'group': ['Accounting', 'Engineering', 'Engineering', 'Management', 'Marketing']})
print('dept_df is: \n', dept_df)

skills_df = pd.DataFrame({'group': ['Accounting', 'Accounting',
                              'Engineering', 'Engineering', 'Management', 'Management', 'Operations'],
                    'skills': ['math', 'spreadsheets', 'coding', 'linux',
                               'spreadsheets', 'organization', 'SAP']})
print('\nskills_df is: \n', skills_df)
dept_df is:
   employee        group
0     John   Accounting
1     Jake  Engineering
2     Jane  Engineering
3     Suzi   Management
4     Chad    Marketing

skills_df is:
          group        skills
0   Accounting          math
1   Accounting  spreadsheets
2  Engineering        coding
3  Engineering         linux
4   Management  spreadsheets
5   Management  organization
6   Operations           SAP
In [48]:
# Apply merge
pd.merge(dept_df,skills_df)
Out[48]:
employee group skills
0 John Accounting math
1 John Accounting spreadsheets
2 Jake Engineering coding
3 Jake Engineering linux
4 Jane Engineering coding
5 Jane Engineering linux
6 Suzi Management spreadsheets
7 Suzi Management organization

Notice that a column to join the data was not specified. merge() uses the overlapping column names as keys for joining data. It is a good practice to explicitly specify the column to join the data using on keyword. 'Marketing' and 'Operations' values and associated data are missing from the result as the operation returns only common set.

In [49]:
pd.merge(dept_df,skills_df, on='group')
Out[49]:
employee group skills
0 John Accounting math
1 John Accounting spreadsheets
2 Jake Engineering coding
3 Jake Engineering linux
4 Jane Engineering coding
5 Jane Engineering linux
6 Suzi Management spreadsheets
7 Suzi Management organization

If the column names are different in the DataFrame, then left_on and right_on keywords can be used.

In [50]:
# Create data
emp_df = pd.DataFrame({'name': ['John', 'Jake', 'Jane', 'Suzi', 'Chad'],
                    'salary': [70000, 80000, 120000, 65000, 90000]})
emp_df
Out[50]:
name salary
0 John 70000
1 Jake 80000
2 Jane 120000
3 Suzi 65000
4 Chad 90000
In [51]:
# Merge
pd.merge(dept_df, emp_df, left_on='employee', right_on='name')
Out[51]:
employee group name salary
0 John Accounting John 70000
1 Jake Engineering Jake 80000
2 Jane Engineering Jane 120000
3 Suzi Management Suzi 65000
4 Chad Marketing Chad 90000

The redundant column can be dropped as needed using the drop() method.

In [52]:
pd.merge(dept_df, emp_df, left_on='employee', right_on='name').drop('name', axis='columns')
Out[52]:
employee group salary
0 John Accounting 70000
1 Jake Engineering 80000
2 Jane Engineering 120000
3 Suzi Management 65000
4 Chad Marketing 90000

Inner Join

By default merge() performs an inner join. The result is an intersection, or the common set found in both DataFrame. The merge operations we just saw were all inner joins. Different join types such as left, right, outer can be specified using the how= parameter.

In [53]:
pd.merge(dept_df,skills_df, on='group', how='inner')
Out[53]:
employee group skills
0 John Accounting math
1 John Accounting spreadsheets
2 Jake Engineering coding
3 Jake Engineering linux
4 Jane Engineering coding
5 Jane Engineering linux
6 Suzi Management spreadsheets
7 Suzi Management organization

'Marketing' and 'Operations' values and associated data are missing from the result, as the operation returns only common set.

Left Join

This join returns all records from the left DataFrame and the matched records from the right DataFrame.

In [54]:
pd.merge(dept_df,skills_df, on='group', how='left')
Out[54]:
employee group skills
0 John Accounting math
1 John Accounting spreadsheets
2 Jake Engineering coding
3 Jake Engineering linux
4 Jane Engineering coding
5 Jane Engineering linux
6 Suzi Management spreadsheets
7 Suzi Management organization
8 Chad Marketing NaN

The result is a Cartesian product of the rows. Since there were two 'Engineering' rows in the left DataFrame and two in the right, there are four 'Engineering' rows in the result. Similarly, there was one 'Accounting' row in left DataFrame and two in the right, resulting in two 'Accounting' rows. The row for 'Operations' is missing as this join only keeps matched rows from right DataFrame.

Right Join

This join returns all records from the right DataFrame and the matched records from the left DataFrame.

In [55]:
pd.merge(dept_df,skills_df, on='group', how='right')
Out[55]:
employee group skills
0 John Accounting math
1 John Accounting spreadsheets
2 Jake Engineering coding
3 Jane Engineering coding
4 Jake Engineering linux
5 Jane Engineering linux
6 Suzi Management spreadsheets
7 Suzi Management organization
8 NaN Operations SAP

The result is a Cartesian product of the rows. Since there were two 'Engineering' rows in the right DataFrame and two in the left, there are four 'Engineering' rows in the result. Similarly, there was one 'Accounting' row in left DataFrame and two in the right, resulting in two 'Accounting' rows. The row for 'Marketing' is missing as this join only keeps matched rows from right DataFrame.

Outer Join

The outer join takes the union of the keys, combining the effect of applying both left and right joins.

In [56]:
out_df = pd.merge(dept_df,skills_df, on='group', how='outer')
out_df
Out[56]:
employee group skills
0 John Accounting math
1 John Accounting spreadsheets
2 Jake Engineering coding
3 Jake Engineering linux
4 Jane Engineering coding
5 Jane Engineering linux
6 Suzi Management spreadsheets
7 Suzi Management organization
8 Chad Marketing NaN
9 NaN Operations SAP

The result is a Cartesian product of the rows using all key combinations filling in all missing values with NAs.

Using index to merge

Index can also be used as the key for merging by specifying the left_index and/or right_index flags.

In [57]:
# Create data
dept_dfa = dept_df.set_index('group')
print('dept_dfa is \n', dept_dfa)
skills_dfa = skills_df.set_index('group')
print('\nskills_dfa is \n', skills_dfa)
dept_dfa is
             employee
group
Accounting      John
Engineering     Jake
Engineering     Jane
Management      Suzi
Marketing       Chad

skills_dfa is
                    skills
group
Accounting           math
Accounting   spreadsheets
Engineering        coding
Engineering         linux
Management   spreadsheets
Management   organization
Operations            SAP
In [58]:
# Merge
pd.merge(dept_dfa, skills_dfa, left_index=True, right_index=True)
Out[58]:
employee skills
group
Accounting John math
Accounting John spreadsheets
Engineering Jake coding
Engineering Jake linux
Engineering Jane coding
Engineering Jane linux
Management Suzi spreadsheets
Management Suzi organization

join()

join instance of a DataFrame can also be used for merging by index. The how keword can be specified for the type of join.

In [59]:
dept_dfa.join(skills_dfa, how='inner')
Out[59]:
employee skills
group
Accounting John math
Accounting John spreadsheets
Engineering Jake coding
Engineering Jake linux
Engineering Jane coding
Engineering Jane linux
Management Suzi spreadsheets
Management Suzi organization

'Marketing' and 'Operations' values and associated data are missing from the result, as the operation returns only common set.

In [60]:
dept_dfa.join(skills_dfa, how='outer')
Out[60]:
employee skills
group
Accounting John math
Accounting John spreadsheets
Engineering Jake coding
Engineering Jake linux
Engineering Jane coding
Engineering Jane linux
Management Suzi spreadsheets
Management Suzi organization
Marketing Chad NaN
Operations NaN SAP

The result shows all data, filling in the missing values with NAs.

Hierarchical Indexing

Hierarchical indexing (also known as multi-indexing) allows you to have multiple (two or more) index levels within a single index on an axis. It provides a way for representing higher dimensional data in a lower dimensional form. Let's start with a simple example, creating a series with multi-index.

Multi-indexed Series

In [61]:
# Create Data
index = [('CA', 2005), ('CA', 2015),
         ('NY', 2005), ('NY', 2015),
         ('TX', 2005), ('TX', 2015)]
population = [33871648, 37253956,
               18976457, 19378102,
               20851820, 25145561]
pop_series = pd.Series(population, index=index)
pop_series
Out[61]:
(CA, 2005)    33871648
(CA, 2015)    37253956
(NY, 2005)    18976457
(NY, 2015)    19378102
(TX, 2005)    20851820
(TX, 2015)    25145561
dtype: int64

With this indexing, you can easily index or slice the series using the index. However, what if you wanted to select all the values for 2015? The tuple-based index is essentially a multi-index and Pandas MultiIndex type allows us to create multi-level indexes. This provides us with the flexibility to perform operations on indexes easily and efficiently.

We will create a multi-indexed index for pop_series using the MultiIndex type.

In [62]:
new_index = pd.MultiIndex.from_tuples(index)
new_index.levels
Out[62]:
FrozenList([['CA', 'NY', 'TX'], [2005, 2015]])

Notice that the new_index object contains multiple levels of indexing, the state names and the years. We can now reindex the pop_series to see hierarchical representation of the data.

In [63]:
pop_series = pop_series.reindex(new_index)
pop_series
Out[63]:
CA  2005    33871648
    2015    37253956
NY  2005    18976457
    2015    19378102
TX  2005    20851820
    2015    25145561
dtype: int64

Subset Selection

Subset selection of multi-indexed data is similar to what we have seen in the previous part of this guide series. Let's take a quick look.

  • Select data for California
In [64]:
pop_series['CA']
Out[64]:
2005    33871648
2015    37253956
dtype: int64
  • Select data from New York to Texas
In [65]:
pop_series['NY':'TX']
Out[65]:
NY  2005    18976457
    2015    19378102
TX  2005    20851820
    2015    25145561
dtype: int64
  • Select data for California and Texas
In [66]:
pop_series[['CA','TX']]
Out[66]:
CA  2005    33871648
    2015    37253956
TX  2005    20851820
    2015    25145561
dtype: int64

We can now easily access the data for second index and answer our question about selecting all the values for 2015.

In [67]:
pop_series[:,2015]
Out[67]:
CA    37253956
NY    19378102
TX    25145561
dtype: int64

unstack() and stack()

unstack() method will convert a multi-indexed Series into a DataFrame, and naturally stack() would do the opposite.

In [68]:
# Unstack
pop_df = pop_series.unstack()
pop_df
Out[68]:
2005 2015
CA 33871648 37253956
NY 18976457 19378102
TX 20851820 25145561

The result is a DataFrame where second level index (years) is converted to columns, and first level index (states) remains as the index of the DataFrame.

In [69]:
# Stack
pop_df.stack()
Out[69]:
CA  2005    33871648
    2015    37253956
NY  2005    18976457
    2015    19378102
TX  2005    20851820
    2015    25145561
dtype: int64

level can be specified to unstack() by a specific index level. Specifying level=0 will unstack based on the outermost index level i.e. by 'state'.

In [70]:
pop_series.unstack(level=0)
Out[70]:
CA NY TX
2005 33871648 18976457 20851820
2015 37253956 19378102 25145561

Specifying level=1 unstacks by the inner index, in this case 'year'.

In [71]:
pop_series.unstack(level=1)
Out[71]:
2005 2015
CA 33871648 37253956
NY 18976457 19378102
TX 20851820 25145561

Multi-indexed DataFrame

In a DataFrame, both rows and columns can have multiple levels of indices. Let's create some sample data and take a look.

In [72]:
# hierarchical indices and columns
index = pd.MultiIndex.from_product([[2019, 2018], [2, 1]],
                                   names=['year', 'quarter'])
columns = pd.MultiIndex.from_product([['John', 'Jane', 'Ben'], ['Product A', 'Product B']],
                                     names=['sales person', 'product'])

# mock some data
data = np.round(np.random.randn(4, 6), 1)
data[:, ::2] *= 10
data += 55

# create the DataFrame
sales_data = pd.DataFrame(data, index=index, columns=columns)
sales_data
Out[72]:
sales person John Jane Ben
product Product A Product B Product A Product B Product A Product B
year quarter
2019 2 49.0 56.3 54.0 55.4 48.0 54.5
1 51.0 55.7 58.0 53.5 67.0 52.9
2018 2 43.0 54.9 52.0 55.9 46.0 55.0
1 39.0 55.6 62.0 56.3 39.0 55.2

sales_data is essentially four dimensional data with 'sales person', 'product', 'year' and 'quarter' as its dimensions.

Subset Selection

Since columns in a DataFrame are individual Series, the syntax used for multi-indexed Series applies to the columns.

  • Select data for 'Product A' sold by John
In [73]:
sales_data['John','Product A']
Out[73]:
year  quarter
2019  2          49.0
      1          51.0
2018  2          43.0
      1          39.0
Name: (John, Product A), dtype: float64
  • Select data for John and Jane
In [74]:
sales_data[['John','Jane']]
Out[74]:
sales person John Jane
product Product A Product B Product A Product B
year quarter
2019 2 49.0 56.3 54.0 55.4
1 51.0 55.7 58.0 53.5
2018 2 43.0 54.9 52.0 55.9
1 39.0 55.6 62.0 56.3

.loc and .iloc index operators can also be used.

  • Sales data for first two rows and first four columns
In [75]:
sales_data.iloc[:2, :4]
Out[75]:
sales person John Jane
product Product A Product B Product A Product B
year quarter
2019 2 49.0 56.3 54.0 55.4
1 51.0 55.7 58.0 53.5
  • Jane's sales in 2019
In [76]:
sales_data.loc[2019,'Jane']
Out[76]:
product Product A Product B
quarter
2 54.0 55.4
1 58.0 53.5
  • Jane's sales in 2019 for Product B
In [77]:
sales_data.loc[2019,('Jane','Product B')]
Out[77]:
quarter
2    55.4
1    53.5
Name: (Jane, Product B), dtype: float64
  • Jane's sales in second quarter of 2019 for Product B
In [78]:
sales_data.loc[(2019,2), ('Jane','Product B')]
Out[78]:
55.4

Sorting

By Index and Level

sort_index() can be used to sort the index or levels within your data. By default, the indexing operartion is performed on the outermost index (level=0) and in ascending order.

In [79]:
sales_data.sort_index()
Out[79]:
sales person John Jane Ben
product Product A Product B Product A Product B Product A Product B
year quarter
2018 1 39.0 55.6 62.0 56.3 39.0 55.2
2 43.0 54.9 52.0 55.9 46.0 55.0
2019 1 51.0 55.7 58.0 53.5 67.0 52.9
2 49.0 56.3 54.0 55.4 48.0 54.5

Specifying level=1 sorts by the inner index.

In [80]:
sales_data.sort_index(level=1)
Out[80]:
sales person John Jane Ben
product Product A Product B Product A Product B Product A Product B
year quarter
2018 1 39.0 55.6 62.0 56.3 39.0 55.2
2019 1 51.0 55.7 58.0 53.5 67.0 52.9
2018 2 43.0 54.9 52.0 55.9 46.0 55.0
2019 2 49.0 56.3 54.0 55.4 48.0 54.5

Sorting can be applied on columns by specifying axis='columns'.

In [81]:
sales_data.sort_index(axis='columns')
Out[81]:
sales person Ben Jane John
product Product A Product B Product A Product B Product A Product B
year quarter
2019 2 48.0 54.5 54.0 55.4 49.0 56.3
1 67.0 52.9 58.0 53.5 51.0 55.7
2018 2 46.0 55.0 52.0 55.9 43.0 54.9
1 39.0 55.2 62.0 56.3 39.0 55.6
In [82]:
sales_data.sort_index(axis='columns', level=1)
Out[82]:
sales person Ben Jane John Ben Jane John
product Product A Product A Product A Product B Product B Product B
year quarter
2019 2 48.0 54.0 49.0 54.5 55.4 56.3
1 67.0 58.0 51.0 52.9 53.5 55.7
2018 2 46.0 52.0 43.0 55.0 55.9 54.9
1 39.0 62.0 39.0 55.2 56.3 55.6
By Value

sort_values() can be used to sort the values in a DataFrame by one or more columns.

  • Sort by values of quarter and then year
In [83]:
sales_data.sort_values(by=['quarter','year'])
Out[83]:
sales person John Jane Ben
product Product A Product B Product A Product B Product A Product B
year quarter
2018 1 39.0 55.6 62.0 56.3 39.0 55.2
2019 1 51.0 55.7 58.0 53.5 67.0 52.9
2018 2 43.0 54.9 52.0 55.9 46.0 55.0
2019 2 49.0 56.3 54.0 55.4 48.0 54.5

For multi-indexed data, column label must be unique. So, the values passed to by= parameter must be a tuple with elements corresponding to each level.

  • Sort by values of Product A for Ben
In [84]:
sales_data.sort_values(by=('Ben','Product A'))
Out[84]:
sales person John Jane Ben
product Product A Product B Product A Product B Product A Product B
year quarter
2018 1 39.0 55.6 62.0 56.3 39.0 55.2
2 43.0 54.9 52.0 55.9 46.0 55.0
2019 2 49.0 56.3 54.0 55.4 48.0 54.5
1 51.0 55.7 58.0 53.5 67.0 52.9

Multiple columns, or a combination or column and index, can be specified by passing them as a list of tuples.

In [85]:
sales_data.sort_values(by=[('Jane','Product A'), ('quarter')])
Out[85]:
sales person John Jane Ben
product Product A Product B Product A Product B Product A Product B
year quarter
2018 2 43.0 54.9 52.0 55.9 46.0 55.0
2019 2 49.0 56.3 54.0 55.4 48.0 54.5
1 51.0 55.7 58.0 53.5 67.0 52.9
2018 1 39.0 55.6 62.0 56.3 39.0 55.2

Data Aggregations

We have seen data aggregations in a previous section in this notebook. Various aggregation functions such as sum(), mean(), median() can be applied to multi-indexed data.

In [86]:
# Get data
sales_data
Out[86]:
sales person John Jane Ben
product Product A Product B Product A Product B Product A Product B
year quarter
2019 2 49.0 56.3 54.0 55.4 48.0 54.5
1 51.0 55.7 58.0 53.5 67.0 52.9
2018 2 43.0 54.9 52.0 55.9 46.0 55.0
1 39.0 55.6 62.0 56.3 39.0 55.2
  • Total sales by sales person and product
In [87]:
sales_data.sum()
Out[87]:
sales person  product
John          Product A    182.0
              Product B    222.5
Jane          Product A    226.0
              Product B    221.1
Ben           Product A    200.0
              Product B    217.6
dtype: float64
  • Total sales by year and quarter
In [88]:
sales_data.sum(axis='columns')
Out[88]:
year  quarter
2019  2          317.2
      1          338.1
2018  2          306.8
      1          307.1
dtype: float64

level parameter controls the subset of data to which aggregation is applied. Let's look at some examples.

  • Total sales for each quarter by product and sales person
In [89]:
sales_data.sum(level='quarter')
Out[89]:
sales person John Jane Ben
product Product A Product B Product A Product B Product A Product B
quarter
2 92.0 111.2 106.0 111.3 94.0 109.5
1 90.0 111.3 120.0 109.8 106.0 108.1
  • Average sales for each year by product and sales person
In [90]:
yearly_avg = sales_data.mean(level='year')
yearly_avg
Out[90]:
sales person John Jane Ben
product Product A Product B Product A Product B Product A Product B
year
2019 50.0 56.00 56.0 54.45 57.5 53.7
2018 41.0 55.25 57.0 56.10 42.5 55.1
  • Average sales per year by Product
In [91]:
yearly_avg.mean(axis=1, level='product')
Out[91]:
product Product A Product B
year
2019 54.500000 54.716667
2018 46.833333 55.483333

Conclusion

In this part of the guide series we learned about how to be more productive with Pandas. We started with Data Aggregation using groupby and pivot_table. Next, we discussed how data can be combined using concat(), append(), merge(), and join() methods. You have seen how data can be indexed at multiple levels in the Hierarchical indexing section. Here, we discussed multi-indexed Series and DataFrame, including selection, sorting, and aggregation methods. We also looked at how to look at unique values and value counts for categorical data.

In the next part of this guide series, we will explore the capabilities for working with Time Series data.

References

[1] Wes McKinney. 2017. Python for Data Analysis: Data Wrangling with Pandas, NumPy, and IPython (2nd. ed.). O'Reilly Media, Inc.

[2] Jake VanderPlas. 2016. Python Data Science Handbook: Essential Tools for Working with Data (1st. ed.). O'Reilly Media, Inc.


Feedback on this topic?
