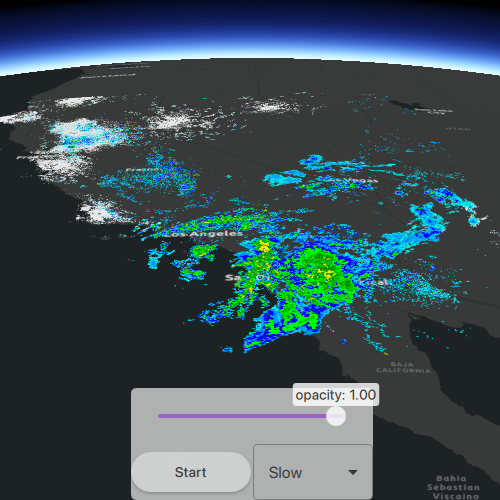

Animate images with image overlay

// [WriteFile Name=AnimateImagesWithImageOverlay, Category=Scenes]
// [Legal]
// Copyright 2020 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "AnimateImagesWithImageOverlay.h"

// ArcGIS Maps SDK headers
#include "ArcGISTiledElevationSource.h"
#include "ArcGISTiledLayer.h"
#include "Camera.h"
#include "ElevationSourceListModel.h"
#include "Envelope.h"
#include "ImageFrame.h"
#include "ImageOverlay.h"
#include "ImageOverlayListModel.h"
#include "LayerListModel.h"
#include "MapTypes.h"
#include "Point.h"
#include "Scene.h"
#include "SceneQuickView.h"
#include "SceneView.h"
#include "SpatialReference.h"
#include "Surface.h"
#include "Viewpoint.h"

// Qt headers
#include <QDir>
#include <QFile>
#include <QImage>
#include <QStandardPaths>
#include <QString>
#include <QTimer>
#include <QtCore/qglobal.h>

// STL headers
#include <memory>

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
QString defaultDataPath()
{
  QString dataPath;

#ifdef Q_OS_IOS
  dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
#else
  dataPath = QStandardPaths::writableLocation(QStandardPaths::HomeLocation);
#endif

  return dataPath;
}
} // namespace

using namespace Esri::ArcGISRuntime;

AnimateImagesWithImageOverlay::AnimateImagesWithImageOverlay(QObject* parent /* = nullptr */):
  QObject(parent),
  // Create a scene using the dark gray basemap
  m_scene(new Scene(BasemapStyle::ArcGISDarkGray, this)),
  m_dataPath(defaultDataPath() + "/ArcGIS/Runtime/Data/3D/ImageOverlay/PacificSouthWest"),
  m_dir(m_dataPath),
  m_images(m_dir.entryList(QStringList() << "*.png", QDir::Files)),
  m_imagesSize(m_images.size())
{
  // create a new elevation source from Terrain3D REST service
  ArcGISTiledElevationSource* elevationSource = new ArcGISTiledElevationSource(
        QUrl("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"), this);

  // add the elevation source to the scene to display elevation
  m_scene->baseSurface()->elevationSources()->append(elevationSource);

}

AnimateImagesWithImageOverlay::~AnimateImagesWithImageOverlay() = default;

void AnimateImagesWithImageOverlay::init()
{
  // Register classes for QML
  qmlRegisterType<SceneQuickView>("Esri.Samples", 1, 0, "SceneView");
  qmlRegisterType<AnimateImagesWithImageOverlay>("Esri.Samples", 1, 0, "AnimateImagesWithImageOverlaySample");
}

SceneQuickView* AnimateImagesWithImageOverlay::sceneView() const
{
  return m_sceneView;
}

// Set the view (created in QML)
void AnimateImagesWithImageOverlay::setSceneView(SceneQuickView* sceneView)
{
  if (!sceneView || sceneView == m_sceneView)
    return;

  m_sceneView = sceneView;
  m_sceneView->setArcGISScene(m_scene);

  emit sceneViewChanged();

  setupImageOverlay();
}

void AnimateImagesWithImageOverlay::setupImageOverlay()
{
  // create an envelope of the pacific southwest sector for displaying the image frame
  const Point pointForImageFrame(-120.0724273439448, 35.131016955536694, SpatialReference(4326));
  m_pacificSouthwestEnvelope = Envelope(pointForImageFrame, 15.09589635986124, -14.3770441522488);

  // create a camera, looking at the pacific southwest sector
  const Point observationPoint(-116.621, 24.7773, 856977);
  const Camera camera(observationPoint, 353.994, 48.5495, 0);
  const Viewpoint pacificSouthwestViewpoint(observationPoint, camera);

  m_scene->setInitialViewpoint(pacificSouthwestViewpoint);

  // create an image overlay
  m_imageOverlay = new ImageOverlay(this);

  // append the image overlay to the scene view
  m_sceneView->imageOverlays()->append(m_imageOverlay);

  // Create new Timer and set the timeout interval to 68ms
  m_timer = new QTimer(this);
  m_timer->setInterval(68);

  // connect to the timeout signal to load and display a new image frame each time
  connect(m_timer, &QTimer::timeout, this, &AnimateImagesWithImageOverlay::animateImageFrames);
}

void AnimateImagesWithImageOverlay::animateImageFrames()
{
  // check if string list of images is empty before trying to load and animate them
  if (m_imagesSize == 0)
    return;

  // create an image with the given path and use it to create an image frame
  const QImage image(m_dataPath + "/" + m_images[m_index]);

  // use std::unqiue_ptr to handle the lifetime of the image frame
  std::unique_ptr<ImageFrame> imageFrame = std::make_unique<ImageFrame>(image, m_pacificSouthwestEnvelope);

  // set image frame to image overlay
  m_imageOverlay->setImageFrame(imageFrame.get());

  // increment the index to keep track of which image to load next
  m_index++;

  // reset index once all files have been loaded
  if (m_index == m_imagesSize)
    m_index = 0;
}

void AnimateImagesWithImageOverlay::setTimerInterval(int value)
{
  if (!m_timer)
    return;

  m_timer->setInterval(value);
}
void AnimateImagesWithImageOverlay::setOpacity(float value)
{
  if (!m_imageOverlay)
    return;

  m_imageOverlay->setOpacity(value);
}

void AnimateImagesWithImageOverlay::startTimer()
{
  if (!m_timer)
    return;

  m_isStopped = false;
  emit isStoppedChanged();
  m_timer->start();
}

void AnimateImagesWithImageOverlay::stopTimer()
{
  if (!m_timer)
    return;

  m_isStopped = true;
  emit isStoppedChanged();
  m_timer->stop();
}

// [WriteFile Name=AnimateImagesWithImageOverlay, Category=Scenes]
// [Legal]
// Copyright 2020 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef ANIMATEIMAGESWITHIMAGEOVERLAY_H
#define ANIMATEIMAGESWITHIMAGEOVERLAY_H

// ArcGIS Maps SDK headers
#include "Envelope.h"

// Qt headers
#include <QDir>
#include <QObject>

namespace Esri::ArcGISRuntime
{
class Scene;
class SceneQuickView;
class ImageFrame;
class ImageOverlay;
}

class QTimer;

Q_MOC_INCLUDE("SceneQuickView.h")

class AnimateImagesWithImageOverlay : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::SceneQuickView* sceneView READ sceneView WRITE setSceneView NOTIFY sceneViewChanged)
  Q_PROPERTY(bool isStopped MEMBER m_isStopped NOTIFY isStoppedChanged)

public:
  explicit AnimateImagesWithImageOverlay(QObject* parent = nullptr);
  ~AnimateImagesWithImageOverlay();

  static void init();

  Q_INVOKABLE void setTimerInterval(int value);
  Q_INVOKABLE void setOpacity(float value);
  Q_INVOKABLE void startTimer();
  Q_INVOKABLE void stopTimer();

signals:
  void sceneViewChanged();
  void isStoppedChanged();

private slots:
  void animateImageFrames();

private:
  Esri::ArcGISRuntime::SceneQuickView* sceneView() const;
  void setSceneView(Esri::ArcGISRuntime::SceneQuickView* sceneView);
  void setupImageOverlay();

  Esri::ArcGISRuntime::Envelope m_pacificSouthwestEnvelope;
  Esri::ArcGISRuntime::ImageOverlay* m_imageOverlay = nullptr;
  Esri::ArcGISRuntime::Scene* m_scene = nullptr;
  Esri::ArcGISRuntime::SceneQuickView* m_sceneView = nullptr;

  int m_index = 0;
  bool m_isStopped = true;
  QTimer* m_timer = nullptr;
  const QString m_dataPath = "";
  const QDir m_dir;
  const QStringList m_images;
  const int m_imagesSize = 0;
};

#endif // ANIMATEIMAGESWITHIMAGEOVERLAY_H

// [WriteFile Name=AnimateImagesWithImageOverlay, Category=Scenes]
// [Legal]
// Copyright 2020 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import QtQuick.Layouts
import Esri.Samples

Item {
    property var timerIntervals: [17,34,68]
    property var imageFrameRefreshRate: ["Fast","Medium","Slow"]

    SceneView {
        id: view
        anchors.fill: parent

        Component.onCompleted: {
            // Set the focus on SceneView to initially enable keyboard navigation
            forceActiveFocus();
        }

        Rectangle {
            id: controlsRect
            anchors {
                bottom: view.attributionTop
                horizontalCenter: parent.horizontalCenter
            }
            width: childrenRect.width
            height: childrenRect.height
            color: "lightgrey"
            opacity: 0.8
            radius: 5
            ColumnLayout {
                id: controlsLayout
                Layout.alignment: Qt.AlignBottom
                spacing: 0

                Slider {
                    id: opacitySlider
                    from: 0
                    to: 1
                    value: 1
                    Layout.preferredHeight: bottomRowControls.height
                    Layout.alignment: Qt.AlignHCenter

                    onMoved: model.setOpacity(value);

                    // Custom slider handle that displays the current value
                    handle: Item {
                        x: parent.leftPadding + parent.visualPosition * (parent.availableWidth - headingHandleNub.width)
                        y: parent.topPadding + parent.availableHeight / 2 - headingHandleNub.height / 2

                        Rectangle {
                            id: headingHandleNub
                            color: headingHandleRect.color
                            radius: width * 0.5
                            width: 20
                            height: width
                        }
                        Rectangle {
                            id: headingHandleRect
                            height: childrenRect.height
                            width: childrenRect.width
                            radius: 3
                            x: headingHandleNub.x - width / 2 + headingHandleNub.width / 2
                            y: headingHandleNub.y - height

                            Text {
                                id: headingValue
                                font.pixelSize: 14
                                padding: 3
                                horizontalAlignment: Qt.AlignHCenter
                                verticalAlignment: Qt.AlignVCenter
                                text: "opacity: " + (opacitySlider.value).toFixed(2)
                            }
                        }
                    }
                }

                RowLayout {
                    id: bottomRowControls
                    spacing: 2
                    Button {
                        id: startStopBtn
                        text: model.isStopped ? qsTr("Start") : qsTr("Stop")
                        Layout.minimumWidth: timerIntervalComboBox.width
                        onClicked: {
                            if (model.isStopped) {
                                model.startTimer();
                            } else {
                                model.stopTimer();
                            }
                        }
                    }

                    ComboBox {
                        id: timerIntervalComboBox
                        currentIndex: 2
                        model: imageFrameRefreshRate
                        Layout.minimumWidth: startStopBtn.width

                        onActivated: {
                            model.setTimerInterval(timerIntervals[currentIndex]);
                        }
                    }
                }
            }
        }
    }

    // Declare the C++ instance which creates the scene etc. and supply the view
    AnimateImagesWithImageOverlaySample {
        id: model
        sceneView: view
    }
}

// [Legal]
// Copyright 2020 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "AnimateImagesWithImageOverlay.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>
#include <QSurfaceFormat>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
#if defined(Q_OS_LINUX) && !defined(Q_OS_ANDROID)
  // Linux requires 3.2 OpenGL Context
  // in order to instance 3D symbols
  QSurfaceFormat fmt = QSurfaceFormat::defaultFormat();
  fmt.setVersion(3, 2);
  QSurfaceFormat::setDefaultFormat(fmt);
#endif

  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("AnimateImagesWithImageOverlay"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  AnimateImagesWithImageOverlay::init();

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

#ifdef ARCGIS_RUNTIME_IMPORT_PATH_2
  engine.addImportPath(ARCGIS_RUNTIME_IMPORT_PATH_2);
#endif

  // Set the source
  engine.load(QUrl("qrc:/Samples/Scenes/AnimateImagesWithImageOverlay/main.qml"));

  return app.exec();
}

// Copyright 2020 Esri.

// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0

// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    AnimateImagesWithImageOverlay {
        anchors.fill: parent
    }
}
