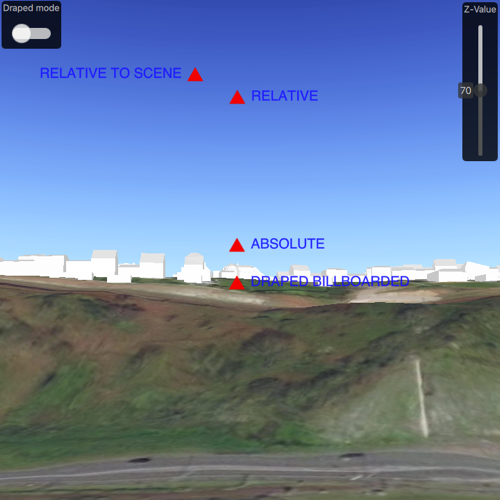

Set surface placement mode

// [WriteFile Name=SetSurfacePlacementMode, Category=Scenes]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "SetSurfacePlacementMode.h"

// ArcGIS Maps SDK headers
#include "ArcGISSceneLayer.h"
#include "ArcGISTiledElevationSource.h"
#include "Camera.h"
#include "ElevationSourceListModel.h"
#include "Graphic.h"
#include "GraphicListModel.h"
#include "GraphicsOverlay.h"
#include "GraphicsOverlayListModel.h"
#include "LayerListModel.h"
#include "LayerSceneProperties.h"
#include "MapTypes.h"
#include "Point.h"
#include "Scene.h"
#include "SceneQuickView.h"
#include "SceneViewTypes.h"
#include "SimpleMarkerSymbol.h"
#include "SpatialReference.h"
#include "Surface.h"
#include "SymbolTypes.h"
#include "TextSymbol.h"
#include "Viewpoint.h"

using namespace Esri::ArcGISRuntime;

SetSurfacePlacementMode::SetSurfacePlacementMode(QQuickItem* parent /* = nullptr */):
  QQuickItem(parent)
{
}

SetSurfacePlacementMode::~SetSurfacePlacementMode() = default;

void SetSurfacePlacementMode::init()
{
  qmlRegisterType<SceneQuickView>("Esri.Samples", 1, 0, "SceneView");
  qmlRegisterType<SetSurfacePlacementMode>("Esri.Samples", 1, 0, "SetSurfacePlacementModeSample");
}

void SetSurfacePlacementMode::componentComplete()
{
  QQuickItem::componentComplete();

  //! [Create Scene API snippet]
  // Create a scene with the imagery basemap and world elevation surface
  m_sceneView = findChild<SceneQuickView*>("sceneView");
  Scene* scene = new Scene(BasemapStyle::ArcGISImageryStandard, this);
  Surface* surface = new Surface(this);
  surface->elevationSources()->append(new ArcGISTiledElevationSource(QUrl("https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer"), this));
  scene->setBaseSurface(surface);

  // Create scene layer from the Brest, France scene server.
  ArcGISSceneLayer* sceneLayer = new ArcGISSceneLayer(QUrl("https://tiles.arcgis.com/tiles/P3ePLMYs2RVChkJx/arcgis/rest/services/Buildings_Brest/SceneServer"), this);
  scene->operationalLayers()->append(sceneLayer);
  //! [Create Scene API snippet]

  // set an initial viewpoint
  const Point initialViewPoint(-4.45968, 48.3889, 37.9922);
  const Camera camera(initialViewPoint, 329.91, 96.6632, 0);
  const Viewpoint viewpoint(initialViewPoint, camera);
  scene->setInitialViewpoint(viewpoint);

  // set the scene to the scene view
  m_sceneView->setArcGISScene(scene);

  // add graphics overlays and set surface placement
  addGraphicsOverlays();

  // add graphics
  addGraphics();
}

void SetSurfacePlacementMode::addGraphicsOverlays()
{
  // Graphics overlay with draped billboarded surface placement
  m_drapedBillboardedOverlay = new GraphicsOverlay(this);
  m_drapedBillboardedOverlay->setSceneProperties(LayerSceneProperties(SurfacePlacement::DrapedBillboarded));
  m_sceneView->graphicsOverlays()->append(m_drapedBillboardedOverlay);

  // Graphics overlay with draped flat surface placement
  m_drapedFlatOverlay = new GraphicsOverlay(this);
  m_drapedFlatOverlay->setSceneProperties(LayerSceneProperties(SurfacePlacement::DrapedFlat));
  m_drapedFlatOverlay->setVisible(false);
  m_sceneView->graphicsOverlays()->append(m_drapedFlatOverlay);

  // Graphics overlay with relative surface placement
  m_relativeOverlay = new GraphicsOverlay(this);
  m_relativeOverlay->setSceneProperties(LayerSceneProperties(SurfacePlacement::Relative));
  m_sceneView->graphicsOverlays()->append(m_relativeOverlay);

  // Graphics overlay with relative to scene surface placement
  m_relativeToSceneOverlay = new GraphicsOverlay(this);
  m_relativeToSceneOverlay->setSceneProperties(LayerSceneProperties(SurfacePlacement::RelativeToScene));
  m_sceneView->graphicsOverlays()->append(m_relativeToSceneOverlay);

  // Graphics overlay with absolute surface placement
  m_absoluteOverlay = new GraphicsOverlay(this);
  m_absoluteOverlay->setSceneProperties(LayerSceneProperties(SurfacePlacement::Absolute));
  m_sceneView->graphicsOverlays()->append(m_absoluteOverlay);
}

void SetSurfacePlacementMode::addGraphics()
{
  // create point for the scene related graphic with a z value of 70
  const Point sceneRelatedPoint(-4.4610562, 48.3902727, 70, SpatialReference::wgs84());

  // create point for the surface related graphics with z value of 70
  const Point surfaceRelatedPoint(-4.4609257, 48.3903965 , 70, SpatialReference::wgs84());

  // create simple marker symbol
  SimpleMarkerSymbol* simpleMarkerSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbolStyle::Triangle, QColor("red"), 20, this);

  // create text symbols
  TextSymbol* drapedBillboardedText = new TextSymbol("DRAPED BILLBOARDED", QColor("blue"), 20, HorizontalAlignment::Left, VerticalAlignment::Middle, this);
  drapedBillboardedText->setOffsetX(20);
  TextSymbol* drapedFlatText = new TextSymbol("DRAPED FLAT", QColor("blue"), 20, HorizontalAlignment::Left, VerticalAlignment::Middle, this);
  drapedFlatText->setOffsetX(20);
  TextSymbol* relativeText = new TextSymbol("RELATIVE", QColor("blue"), 20, HorizontalAlignment::Left, VerticalAlignment::Middle, this);
  relativeText->setOffsetX(20);
  TextSymbol* relativeToSceneText = new TextSymbol("RELATIVE TO SCENE", QColor("blue"), 20, HorizontalAlignment::Right, VerticalAlignment::Middle, this);
  relativeToSceneText->setOffsetX(-20);
  TextSymbol* absoluteText = new TextSymbol("ABSOLUTE", QColor("blue"), 20, HorizontalAlignment::Left, VerticalAlignment::Middle, this);
  absoluteText->setOffsetX(20);

  // add graphics to each overlay
  // Graphics will be draped on the surface of the scene and will always face the camera.
  m_drapedBillboardedOverlay->graphics()->append(new Graphic(surfaceRelatedPoint, simpleMarkerSymbol));
  m_drapedBillboardedOverlay->graphics()->append(new Graphic(surfaceRelatedPoint, drapedBillboardedText));

  // Graphics will be draped on the surface of the scene
  m_drapedFlatOverlay->graphics()->append(new Graphic(surfaceRelatedPoint, simpleMarkerSymbol));
  m_drapedFlatOverlay->graphics()->append(new Graphic(surfaceRelatedPoint, drapedFlatText));

  // Graphics will be placed at z value relative to the surface
  m_relativeOverlay->graphics()->append(new Graphic(surfaceRelatedPoint, simpleMarkerSymbol));
  m_relativeOverlay->graphics()->append(new Graphic(surfaceRelatedPoint, relativeText));

  // Graphics will be placed at z value relative to the scene
  m_relativeToSceneOverlay->graphics()->append(new Graphic(sceneRelatedPoint, simpleMarkerSymbol));
  m_relativeToSceneOverlay->graphics()->append(new Graphic(sceneRelatedPoint, relativeToSceneText));

  // Graphics will be placed at absolute z value
  m_absoluteOverlay->graphics()->append(new Graphic(surfaceRelatedPoint, simpleMarkerSymbol));
  m_absoluteOverlay->graphics()->append(new Graphic(surfaceRelatedPoint, absoluteText));
}

void SetSurfacePlacementMode::changeDrapedVisibility()
{
  m_drapedFlatOverlay->setVisible(!m_drapedFlatOverlay->isVisible());
  m_drapedBillboardedOverlay->setVisible(!m_drapedBillboardedOverlay->isVisible());
}

void SetSurfacePlacementMode::changeZValue(double zValue)
{
  for (GraphicsOverlay* overlay : *m_sceneView->graphicsOverlays())
  {
    for (Graphic* graphic : *overlay->graphics())
    {
      // create new graphic with the same existing information but a new Z-value
      const Point graphicPoint{graphic->geometry()};
      const Point point{graphicPoint.x(), graphicPoint.y(), zValue, graphicPoint.spatialReference()};
      graphic->setGeometry(point);
    }
  }
}

// [WriteFile Name=SetSurfacePlacementMode, Category=Scenes]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef SETSURFACEPLACEMENTMODE_H
#define SETSURFACEPLACEMENTMODE_H

// Qt headers
#include <QQuickItem>

namespace Esri::ArcGISRuntime
{
  class SceneQuickView;
  class GraphicsOverlay;
}

class SetSurfacePlacementMode : public QQuickItem
{
  Q_OBJECT

public:
  explicit SetSurfacePlacementMode(QQuickItem* parent = nullptr);
  ~SetSurfacePlacementMode() override;

  void componentComplete() override;
  static void init();
  Q_INVOKABLE void changeDrapedVisibility();
  Q_INVOKABLE void changeZValue(double zValue);

private:
  void addGraphics();
  void addGraphicsOverlays();

private:
  Esri::ArcGISRuntime::SceneQuickView* m_sceneView = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_drapedFlatOverlay = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_drapedBillboardedOverlay = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_relativeOverlay = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_relativeToSceneOverlay = nullptr;
  Esri::ArcGISRuntime::GraphicsOverlay* m_absoluteOverlay = nullptr;
};

#endif // SETSURFACEPLACEMENTMODE_H

// [WriteFile Name=SetSurfacePlacementMode, Category=Scenes]
// [Legal]
// Copyright 2016 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples
import QtQuick.Layouts

SetSurfacePlacementModeSample {
    width: 800
    height: 600

    // Create SceneView here, and create its Scene and GraphicsOverlay in C++ code
    //! [add a sceneView component]
    SceneView {
        objectName: "sceneView"
        anchors.fill: parent

        Component.onCompleted: {
            // Set the focus on SceneView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    Rectangle {
        anchors {
            top: parent.top
            left: parent.left
            margins: 5
        }
        width: childrenRect.width
        height: childrenRect.height
        color: "#000000"
        opacity: .8
        radius: 5

        MouseArea {
            anchors.fill: parent
            onClicked: mouse => mouse.accepted = true
            onWheel: wheel => wheel.accepted = true
        }

        ColumnLayout {
            Text {
                Layout.margins: 2
                Layout.alignment: Qt.AlignHCenter
                text: qsTr("Draped mode")
                color: "white"
            }

            Switch {
                id: surfacePlacementMode
                Layout.alignment: Qt.AlignHCenter
                Layout.margins: 2

                onCheckedChanged: changeDrapedVisibility();
            }
        }
    }

    Rectangle {
        anchors {
            top: parent.top
            right: parent.right
            margins: 5
        }
        width: childrenRect.width
        height: childrenRect.height
        color: "#000000"
        opacity: .8
        radius: 5

        MouseArea {
            anchors.fill: parent
            onClicked: mouse => mouse.accepted = true
            onWheel: wheel => wheel.accepted = true
        }

        ColumnLayout {
            Text {
                id: zValueSliderLabel
                text: qsTr("Z-Value")
                color: "white"
                Layout.margins: 2
                Layout.alignment: Qt.AlignHCenter
            }

            Slider {
                id: zValueSlider
                from: 0
                to: 140
                value: 70
                Layout.alignment: Qt.AlignHCenter
                Layout.margins: 2
                orientation: Qt.Vertical

                onMoved: changeZValue(value);

                // Custom slider handle that displays the current value
                handle: Item {
                    x: parent.leftPadding + parent.availableWidth / 2 - headingHandleNub.width / 2
                    y: parent.topPadding + parent.visualPosition * (parent.availableHeight - headingHandleNub.height)

                    Rectangle {
                        id: headingHandleNub
                        color: headingHandleRect.color
                        radius: width * 0.5
                        width: 20
                        height: width
                    }
                    Rectangle {
                        id: headingHandleRect
                        height: childrenRect.height
                        width: childrenRect.width
                        radius: 3
                        x: headingHandleNub.x - width
                        y: headingHandleNub.y - height / 2 + headingHandleNub.height / 2

                        Text {
                            id: headingValue
                            font.pixelSize: 14
                            padding: 3
                            horizontalAlignment: Qt.AlignHCenter
                            verticalAlignment: Qt.AlignVCenter
                            text: (zValueSlider.value).toFixed(0)
                            color: "white"
                        }
                    }
                }
            }
        }
    }
    //! [add a sceneView component]
}

// [Legal]
// Copyright 2015 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "SetSurfacePlacementMode.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QCommandLineParser>
#include <QDir>
#include <QGuiApplication>
#include <QQmlEngine>
#include <QQuickView>
#include <QSurfaceFormat>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
#if defined(Q_OS_LINUX) && !defined(Q_OS_ANDROID)
  // Linux requires 3.2 OpenGL Context
  // in order to instance 3D symbols
  QSurfaceFormat fmt = QSurfaceFormat::defaultFormat();
  fmt.setVersion(3, 2);
  QSurfaceFormat::setDefaultFormat(fmt);
#endif

  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("SurfacePlacement"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  SetSurfacePlacementMode::init();

  /* Leaving here for purpose of snippet
  //! [Register the scene view for QML]
  qmlRegisterType<SceneQuickView>("Esri.Samples", 1, 0, "SceneView");
  //! [Register the scene view for QML]
  */

  // Initialize application view
  QQuickView view;
  view.setResizeMode(QQuickView::SizeRootObjectToView);

  // Add the import Path
  view.engine()->addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

 #if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
 #endif

  // Add the Runtime and Extras path
  view.engine()->addImportPath(arcGISRuntimeImportPath);

  // Set the source
  view.setSource(QUrl("qrc:/Samples/Scenes/SetSurfacePlacementMode/SetSurfacePlacementMode.qml"));

  view.show();

  return app.exec();
}
