Create terrain surface from a local tile package

// [WriteFile Name=CreateTerrainSurfaceFromLocalTilePackage, Category=Scenes]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifdef PCH_BUILD
#include "pch.hpp"
#endif // PCH_BUILD

// sample headers
#include "CreateTerrainSurfaceFromLocalTilePackage.h"

// ArcGIS Maps SDK headers
#include "ArcGISTiledElevationSource.h"
#include "Camera.h"
#include "ElevationSourceListModel.h"
#include "Error.h"
#include "MapTypes.h"
#include "Scene.h"
#include "SceneQuickView.h"
#include "Surface.h"

// Qt headers
#include <QFileInfo>
#include <QStandardPaths>
#include <QUrl>

using namespace Esri::ArcGISRuntime;

// helper method to get cross platform data path
namespace
{
  QString defaultDataPath()
  {
    QString dataPath;

    #ifdef Q_OS_IOS
      dataPath = QStandardPaths::writableLocation(QStandardPaths::DocumentsLocation);
    #else
      dataPath = QStandardPaths::writableLocation(QStandardPaths::HomeLocation);
    #endif

    return dataPath;
  }
}

using namespace Esri::ArcGISRuntime;

CreateTerrainSurfaceFromLocalTilePackage::CreateTerrainSurfaceFromLocalTilePackage(QObject* parent /* = nullptr */):
  QObject(parent),
  m_scene(new Scene(BasemapStyle::ArcGISImageryStandard, this))
{
  // create the MontereyElevation data path
  // data is downloaded automatically by the sample viewer app. Instructions to download
  // separately are specified in the readme.
  const QString montereyTileElevationPath = QString{defaultDataPath() + "/ArcGIS/Runtime/Data/tpkx/MontereyElevation.tpkx"};

  // Before attempting to add any layers, check that the file for the elevation source exists at all.
  const bool srcElevationFileExists = QFileInfo::exists(montereyTileElevationPath);

  if(srcElevationFileExists)
  {
    // Create the elevation source from the local raster(s). RasterElevationSource can take multiple files as inputs, but in this case only takes one.
    ArcGISTiledElevationSource* elevationSrc = new ArcGISTiledElevationSource{montereyTileElevationPath, this};

    // When the elevation source is finished loading, call the elevationSrcFinishedLoading callback, so we can tell if it loaded succesfully.
    connect(elevationSrc, &ArcGISTiledElevationSource::doneLoading, this, &CreateTerrainSurfaceFromLocalTilePackage::elevationSrcFinishedLoading);

    // add the elevation source to the scene to display elevation
    m_scene->baseSurface()->elevationSources()->append(elevationSrc);
  }
  else
  {
    qDebug() << "Could not find file at : " << montereyTileElevationPath << ". Elevation source not set.";
  }
}

void CreateTerrainSurfaceFromLocalTilePackage::elevationSrcFinishedLoading(const Error& loadError)
{
  if(loadError.isEmpty())
  {
    // Succesful load
    qDebug() << "Loaded tile elevation source succesfully";
  }
  else {
    // Log failure to load
    qDebug() << "Error loading elevation source : " << loadError.message();
  }
}

CreateTerrainSurfaceFromLocalTilePackage::~CreateTerrainSurfaceFromLocalTilePackage() = default;

void CreateTerrainSurfaceFromLocalTilePackage::init()
{
  // Register classes for QML
  qmlRegisterType<SceneQuickView>("Esri.Samples", 1, 0, "SceneView");
  qmlRegisterType<CreateTerrainSurfaceFromLocalTilePackage>("Esri.Samples", 1, 0, "CreateTerrainSurfaceFromLocalTilePackageSample");
}

SceneQuickView* CreateTerrainSurfaceFromLocalTilePackage::sceneView() const
{
  return m_sceneView;
}

// Set the view (created in QML)
void CreateTerrainSurfaceFromLocalTilePackage::setSceneView(SceneQuickView* sceneView)
{
  if (!sceneView || sceneView == m_sceneView)
  {
    return;
  }

  m_sceneView = sceneView;
  m_sceneView->setArcGISScene(m_scene);

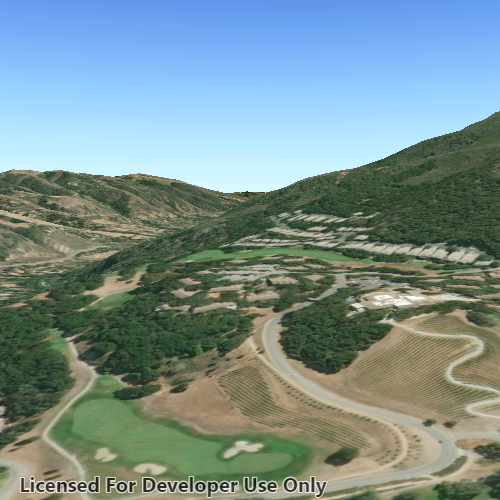

  // Create a camera, looking at Monterey, California.
  constexpr double latitude = 36.51;
  constexpr double longitude = -121.80;
  constexpr double altitude = 300.0;
  constexpr double heading = 0.0;
  constexpr double pitch = 70.0;
  constexpr double roll = 0.0;
  Camera camera{latitude, longitude, altitude, heading, pitch, roll};

  // Set the sceneview to use above camera, waits for load so scene is immediately displayed in appropriate place.
  m_sceneView->setViewpointCameraAndWait(camera);

  emit sceneViewChanged();
}

// [WriteFile Name=CreateTerrainSurfaceFromLocalTilePackage, Category=Scenes]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

#ifndef CreateTerrainSurfaceFromLocalTilePackage_H
#define CreateTerrainSurfaceFromLocalTilePackage_H

// ArcGIS Maps SDK headers
#include "Error.h"

// Qt headers
#include <QObject>

namespace Esri::ArcGISRuntime
{
  class Scene;
  class SceneQuickView;
}

Q_MOC_INCLUDE("SceneQuickView.h")

class CreateTerrainSurfaceFromLocalTilePackage : public QObject
{
  Q_OBJECT

  Q_PROPERTY(Esri::ArcGISRuntime::SceneQuickView* sceneView READ sceneView WRITE setSceneView NOTIFY sceneViewChanged)

public:
  explicit CreateTerrainSurfaceFromLocalTilePackage(QObject* parent = nullptr);
  ~CreateTerrainSurfaceFromLocalTilePackage();

  static void init();

signals:
  void sceneViewChanged();

private slots:
  void elevationSrcFinishedLoading(const Esri::ArcGISRuntime::Error& loadError);

private:
  Esri::ArcGISRuntime::SceneQuickView* sceneView() const;
  void setSceneView(Esri::ArcGISRuntime::SceneQuickView* sceneView);

  Esri::ArcGISRuntime::Scene* m_scene = nullptr;
  Esri::ArcGISRuntime::SceneQuickView* m_sceneView = nullptr;
};

#endif // CreateTerrainSurfaceFromLocalTilePackage_H

// [WriteFile Name=CreateTerrainSurfaceFromLocalTilePackage, Category=Scenes]
// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

import QtQuick
import QtQuick.Controls
import Esri.Samples

Item {

    SceneView {
        id: view
        anchors.fill: parent

        Component.onCompleted: {
            // Set the focus on SceneView to initially enable keyboard navigation
            forceActiveFocus();
        }
    }

    // Declare the C++ instance which creates the scene etc. and supply the view
    CreateTerrainSurfaceFromLocalTilePackageSample {
        id: model
        sceneView: view
    }
}

// [Legal]
// Copyright 2019 Esri.
//
// Licensed under the Apache License, Version 2.0 (the "License");
// you may not use this file except in compliance with the License.
// You may obtain a copy of the License at
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
// [Legal]

// sample headers
#include "CreateTerrainSurfaceFromLocalTilePackage.h"

// ArcGIS Maps SDK headers
#include "ArcGISRuntimeEnvironment.h"

// Qt headers
#include <QDir>
#include <QGuiApplication>
#include <QQmlApplicationEngine>
#include <QSurfaceFormat>

// Platform specific headers
#ifdef Q_OS_WIN
#include <Windows.h>
#endif

#define STRINGIZE(x) #x
#define QUOTE(x) STRINGIZE(x)

int main(int argc, char *argv[])
{
  Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setUseLegacyAuthentication(false);
#if defined(Q_OS_LINUX) && !defined(Q_OS_ANDROID)
  // Linux requires 3.2 OpenGL Context
  // in order to instance 3D symbols
  QSurfaceFormat fmt = QSurfaceFormat::defaultFormat();
  fmt.setVersion(3, 2);
  QSurfaceFormat::setDefaultFormat(fmt);
#endif

  QGuiApplication app(argc, argv);
  app.setApplicationName(QString("CreateTerrainSurfaceFromLocalTilePackage"));

  // Use of ArcGIS location services, such as basemap styles, geocoding, and routing services,
  // requires an access token. For more information see
  // https://links.esri.com/arcgis-runtime-security-auth.

  // The following methods grant an access token:

  // 1. User authentication: Grants a temporary access token associated with a user's ArcGIS account.
  // To generate a token, a user logs in to the app with an ArcGIS account that is part of an
  // organization in ArcGIS Online or ArcGIS Enterprise.

  // 2. API key authentication: Get a long-lived access token that gives your application access to
  // ArcGIS location services. Go to the tutorial at https://links.esri.com/create-an-api-key.
  // Copy the API Key access token.

  const QString accessToken = QString("");

  if (accessToken.isEmpty())
  {
      qWarning() << "Use of ArcGIS location services, such as the basemap styles service, requires" <<
                    "you to authenticate with an ArcGIS account or set the API Key property.";
  }
  else
  {
      Esri::ArcGISRuntime::ArcGISRuntimeEnvironment::setApiKey(accessToken);
  }

  // Initialize the sample
  CreateTerrainSurfaceFromLocalTilePackage::init();

  QString arcGISRuntimeImportPath = QUOTE(ARCGIS_RUNTIME_IMPORT_PATH);

#if defined(LINUX_PLATFORM_REPLACEMENT)
  // on some linux platforms the string 'linux' is replaced with 1
  // fix the replacement paths which were created
  QString replaceString = QUOTE(LINUX_PLATFORM_REPLACEMENT);
  arcGISRuntimeImportPath = arcGISRuntimeImportPath.replace(replaceString, "linux", Qt::CaseSensitive);
#endif

  // Initialize application view
  QQmlApplicationEngine engine;
  // Add the import Path
  engine.addImportPath(QDir(QCoreApplication::applicationDirPath()).filePath("qml"));
  // Add the Runtime and Extras path
  engine.addImportPath(arcGISRuntimeImportPath);

  // Set the source
  engine.load(QUrl("qrc:/Samples/Scenes/CreateTerrainSurfaceFromLocalTilePackage/main.qml"));

  return app.exec();
}

// Copyright 2019 ESRI
//
// All rights reserved under the copyright laws of the United States
// and applicable international laws, treaties, and conventions.
//
// You may freely redistribute and use this sample code, with or
// without modification, provided you include the original copyright
// notice and use restrictions.
//
// See the Sample code usage restrictions document for further information.
//

import QtQuick.Controls
import Esri.Samples

ApplicationWindow {
    visible: true
    width: 800
    height: 600

    CreateTerrainSurfaceFromLocalTilePackage {
        anchors.fill: parent
    }
}
