Display a map (C# API)

Learn how to set a basemap, elevation source, data layers and display a specific area by using the C# API and the High Definition Render Pipeline from Unity.

In this tutorial, you will create a Unity local scene using a basemap layer service, and data layers. The surface of the scene is defined with an elevation layer and the camera is positioned to display a cropped area of New York City.

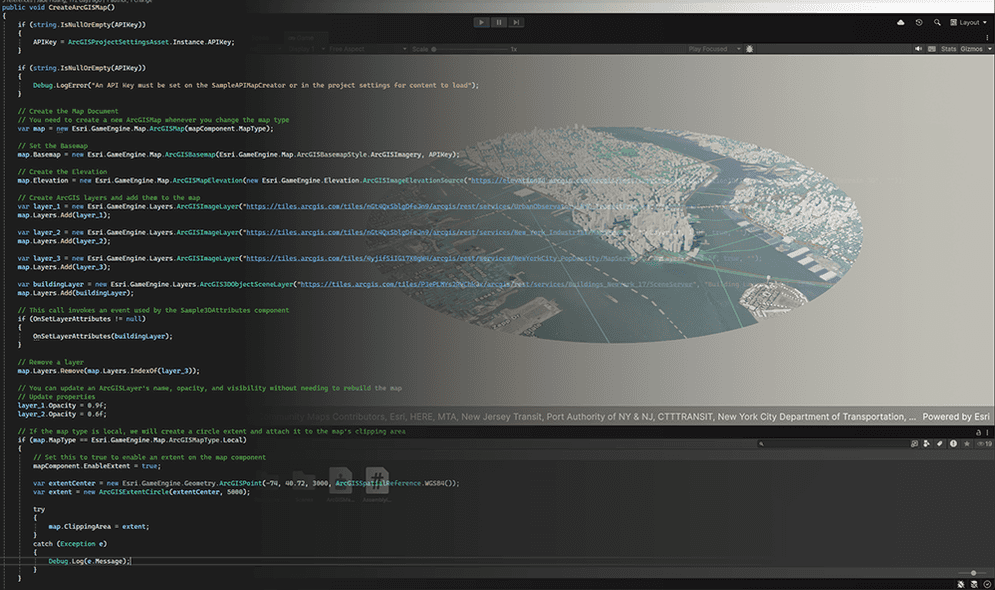

Local scene UI

Prerequisites

Before starting this tutorial, you should:

  1. Have an ArcGIS Developer account or ArcGIS Online account, and an API key to access ArcGIS Online services while you are developing. If you don't have an account, sign up one for free.

  2. Ensure your development environment meets the system requirements.

  3. Take install and setup steps and install the plugin. Make sure to import the sample assets.

  4. Create a new HDRP project.

For more information about Unity scripting, visit the Unity Scripting page.

Steps

Create a new scene

  1. In the top menu, click on File > New Scene and open the pop-up window.

    Create a new scene

  2. Select Basic Outdoors (HDRP) template and click on the Create button, then save the scene with a scene name.

    Select Basic Outdoors (HDRP) template

Prepare the script

  1. Go to Assets > Create > C# Script to create a new script and name the script.

  2. Add the following namespaces that you will use in this tutorial.

    Use dark colors for code blocks
