geodeticUtilsOperator | API Reference | ArcGIS Maps SDK for JavaScript

Method Overview

Return Type	Summary	Object
CalculateDistanceAndAzimuthResult	Geodetically calculates the distance and direction between two points.	geodeticUtilsOperator
Boolean	Indicates if all dependencies of this module have been loaded.	geodeticUtilsOperator
Promise	Loads this module's dependencies.	geodeticUtilsOperator
Point\|null\|undefined	Geodetically calculates a point location at a defined distance and direction from a known point.	geodeticUtilsOperator

Method Details

calculateDistanceAndAzimuth Method calculateDistanceAndAzimuth(point1, point2, options){CalculateDistanceAndAzimuthResult}

Geodetically calculates the distance and direction between two points. Unless the unit option is set, the default is meters.

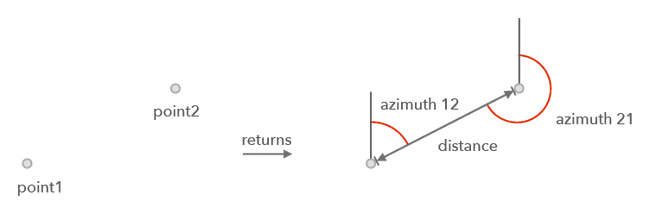

Calculate Distance and Azimuth operator

Parameters

Specification

point1 Point

The starting point.

point2 Point

The ending point.

options Object

optional

Additional options.

Specification

curveType String

optional

Default Value: "geodesic"

The type of geodetic curve along which distance will be measured. The default curveType of geodesic returns the shortest distance between point1 and point2.

Possible Values:"geodesic"|"loxodrome"|"great-elliptic"|"normal-section"

unit LengthUnit

optional

Default Value: "meters"

The length unit of the distance.

Returns

Type	Description
CalculateDistanceAndAzimuthResult	Returns an object containing the distance and azimuths between the two points.

Example

if (!geodeticUtilsOperator.isLoaded()) {
  await geodeticUtilsOperator.load();
}

const distanceAndAzimuthResult = geodeticUtilsOperator.calculateDistanceAndAzimuth(
  new Point({ x: -118.805, y: 34.027, spatialReference: { wkid: 4326 } }),
  new Point({ x: -118.802, y: 34.029, spatialReference: { wkid: 4326 } })
);

isLoaded Method isLoaded(){Boolean}

Indicates if all dependencies of this module have been loaded.

Returns

Type	Description
Boolean	Returns `true` if this module's dependencies have been loaded.

load Method load(){Promise}

Loads this module's dependencies. This method must be called first if isLoaded returns false.

Returns

Type	Description
Promise	Resolves when the dependencies have been loaded.

See also

isLoaded

pointFromDistance Method pointFromDistance(point, distance, azimuth, options){Point |null |undefined}

Geodetically calculates a point location at a defined distance and direction from a known point. Unless the unit option is set, the default is meters.

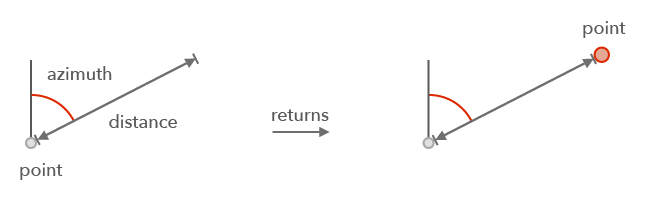

Point From Distance operator

Parameters

Specification

point Point

Origin location.

distance Number

Distance from the origin point.

azimuth Number

Direction in degrees (0 +/- 360) from the origin point, where both 0 and 360 degrees represent due north. A positive azimuth is measured clockwise from north. A negative azimuth is measured counter-clockwise from north.

options Object

optional

Additional options.

Specification

curveType String

optional

Default Value: "geodesic"

The type of geodetic curve used.

Possible Values:"geodesic"|"loxodrome"|"great-elliptic"|"normal-section"

unit LengthUnit

optional

Default Value: "meters"

The length unit of the distance.

Returns

Type	Description
Point \| null \| undefined	Returns the new point or `null` if the point cannot be represented in the spatial reference.

Example

if (!geodeticUtilsOperator.isLoaded()) {
  await geodeticUtilsOperator.load();
}

const point = geodeticUtilsOperator.pointFromDistance(
  new Point({ x: -118.805, y: 34.027, spatialReference: { wkid: 4326 } }),
  350,
  45
);

Type Definitions

CalculateDistanceAndAzimuthResult Type Definition CalculateDistanceAndAzimuthResult

Object returned by the calculateDistanceAndAzimuth() method. Azimuths are in positive degrees from 0 to 360, measured clockwise from due north.

Properties: distance Number

The geodetic distance between point1 and point2.

azimuth12 Number

The azimuth in degrees from point1 to point2.

azimuth21 Number

The azimuth in degrees from point2 to point1.

For example, Berlin is almost due north of Rome. The azimuth from Rome to Berlin is 3°; close to due north (0°) but a little east. The azimuth from Berlin to Rome is 183°; close to due south (180°) but a little west.

For another example, Shanghai is almost due east of Wuhan. The azimuth from Wuhan to Shanghai is 82°; close to due east (90°) but a little north. The azimuth from Shanghai to Wuhan is 266°; close to due west (270°) but a little south.
