arcgis-histogram | References | ArcGIS Maps SDK for JavaScript

ESM

import "@arcgis/common-components/components/arcgis-histogram";

Inheritance:: ArcgisHistogram→PublicLitElement

Since: ArcGIS Maps SDK for JavaScript 5.0

Renders a histogram to visualize the spread of a dataset based on bins representing buckets, or sub-ranges, of data. Each bin is defined by a minimum and maximum value and a total count.

You can generate the underlying histogram's bins with the histogram module, then apply them to the component, as shown in the example below.

const params = {
  layer: povLayer,
  field: "POP_POVERTY",
  normalizationField: "TOTPOP_CY",
  numBins: 30
};

const results = await histogram(params);
const histogramElement = document.querySelector("arcgis-histogram");

histogramElement.bins = results.bins;
histogramElement.min = results.minValue;
histogramElement.max = results.maxValue;

Other properties of this component allow you to display meaningful values on the histogram, such as the average, standardDeviation, and the dataLines properties.

The layout property allows you to set the orientation of the histogram, and the colorStops property allows you to set a gradient or color scheme for the histogram bars.

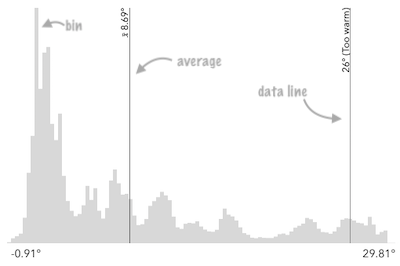

See the image below for a summary of the configurable options available on the histogram.

Histogram with annotations

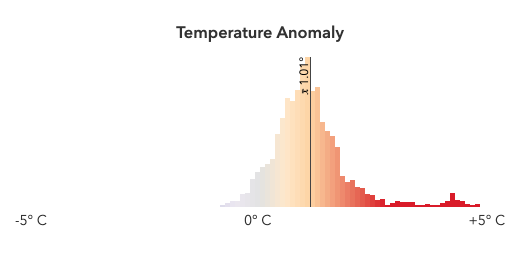

The colorStops property may be used to define a color scheme for the histogram bars.

Histogram with color

See also

Demos

Properties

Property	Attribute	Type
`average` reflected	`average`	`number \| undefined`
`bins`		`HistogramBin[] \| undefined`
`colorBlendingEnabled`	`color-blending-enabled`	`boolean`
`colorStops`		`HistogramColorStops \| undefined`
`dataLines`		`DataLine[] \| undefined`
`icon` reflected	`icon`	`string \| undefined`
`label`	`label`	`string \| undefined`
`layout` reflected	`layout`	`HistogramLayout`
`max` reflected	`max`	`number \| undefined`
`messageOverrides`		`Record<string, unknown> \| undefined`
`min` reflected	`min`	`number \| undefined`
`standardDeviation` reflected	`standard-deviation`	`number \| undefined`

average

reflected Property

Type: number | undefined

The statistical average of the data in the histogram. You would typically get this value from the avg property of SummaryStatisticsResult, which is the result of the summaryStatistics function.

When set, this value will render on the histogram with a symbol indicating it is the average.

See also

summaryStatistics

Attribute: average

Examples

// sets result returned from a smart mapping method
// to the histogram
histogram.average = response.statistics.avg;

histogram.average = 34.5;

bins

Property

Type: HistogramBin[] | undefined

An array of objects representing each bin in the histogram. This information is typically returned from the histogram function.

Examples

// sets the bins of the histogram from the bins in the histogram() result
histogram.bins = histogramResult.bins;

// Creates a histogram with 7 bins.
histogram.bins = [
  { minValue: 0, maxValue: 10, count: 4 },
  { minValue: 10.1, maxValue: 20, count: 14 },
  { minValue: 20.1, maxValue: 30, count: 9 },
  { minValue: 30.1, maxValue: 40, count: 34 },
  { minValue: 40.1, maxValue: 50, count: 351 },
  { minValue: 50.1, maxValue: 60, count: 100 },
  { minValue: 60.1, maxValue: 70, count: 1 }
];

colorBlendingEnabled

Property

Type: boolean

When set to true, overlapping classed color stops will be blended together to create the color of the bar. This allows to show a if a bar representing a bin overlaps with multiple classed color stops.

This property is only applicable when the colorStops property is set to classed color stops.

Attribute: color-blending-enabled
Default value: false

colorStops

Property

Type: HistogramColorStops | undefined

An array of color stops used to define the color scheme for the histogram bars. There are two types of color stops:

Continuous color stops: Each stop is defined by a color and a value. The color of the bar is determined by interpolating between the colors of the stops surrounding the value of the bin.
Classed color stops: Each stop is defined by a color and a minValue and maxValue. The color of the bar is determined by the color of the stop that contains the value of the bin. If the color is omitted, the bar will be colored using the CSS variable --arcgis-histogram-stop-color.

When a bar is not covered by any color stop, it will be colored using the CSS variable --arcgis-histogram-bar-color.

Examples

// Define continuous color stops on the histogram.
// The color of the bar is determined by interpolating between the colors of the stops surrounding the value of the bin.
histogram.colorStops = [
  { color: "#ff0000", value: 0 },
  { color: "#ffff00", value: 50 },
  { color: "#00ff00", value: 100 }
];

// Define classed color stops on the histogram.
// The color of the bar is determined by the color of the stop that contains the value of the bin.
histogram.colorStops = [
  { color: "#ff0000", minValue: 0, maxValue: 50 },
  { color: "#00ff00", minValue: 50, maxValue: 100 },
];

dataLines

Property

Type: DataLine[] | undefined

When set, renders lines on the histogram that indicate important or meaningful values to the end user.

See also

smartMappingUtils.getDeviationValues

Examples

// will render lines at the 25th, 50th, 75th, and 99th percentiles
histogram.dataLines = [{
  value: 30,
  label: "25 pctl"
}, {
  value: 45,
  label: "50 pctl"
}, {
  value: 65,
  label: "75 pctl"
}, {
  value: 89,
  label: "99 pctl"
}];

// calculate standard deviations from mean using stats
// returned from smart mapping statistic methods
const stddevs = smartMappingUtils.getDeviationValues(stats.stddev, stats.avg, 2);
histogram.dataLines = stddevs.map((stddev) => {
  return {
    value: stddev
  };
});

icon

reflected Property

Type: string | undefined

Icon which represents the component. Typically used when the component is controlled by another component (e.g. by the Expand component). Search Calcite Icons for possible values.

Attribute: icon
Default value: "graph-histogram"

label

Property

Type: string | undefined

The component's default label.

Attribute: label

layout

reflected Property

Type: HistogramLayout

Determines the orientation of the histogram.

Attribute: layout
Default value: "horizontal"

Example

histogram.layout = "vertical";

max

reflected Property

Type: number | undefined

The maximum value or bound of the entire histogram. This should match the maximum bound of the last bins.

Attribute: max

Examples

histogram.max = 100;

// sets result returned from a smart mapping method to the histogram
histogram.max = response.statistics.max;

messageOverrides

Property

Type: Record<string, unknown> | undefined

Replace localized message strings with your own strings.

Note: Individual message keys may change between releases.

min

reflected Property

Type: number | undefined

The minimum value or bound of the entire histogram. This should match the minimum bound of the first bins.

Attribute: min

Examples

histogram.min = 0;

// sets result returned from a smart mapping method to the histogram
histogram.min = response.statistics.min;

standardDeviation

reflected Property

Type: number | undefined

The statistical standard deviation of the data in the histogram. You would typically get this value from the stddev property of SummaryStatisticsResult, which is the result of the summaryStatistics function.

When set, this value will render on the histogram with symbols indicating standard deviation intervals from the mean.

See also

summaryStatistics

Attribute: standard-deviation

Example

// sets result returned from a smart mapping method
// to the histogram
histogram.standardDeviation = response.statistics.stddev;

Methods

Method	Signature
`componentOnReady` inherited	`componentOnReady(): Promise<this>`

componentOnReady

inherited Method

Signature: componentOnReady (): Promise<this>

Inherited from: PublicLitElement

Creates a promise that resolves once the component is fully loaded.

Returns: Promise<this>

Example

const arcgisHistogram = document.querySelector("arcgis-histogram");
document.body.append(arcgisHistogram);
await arcgisHistogram.componentOnReady();
console.log("arcgis-histogram is ready to go!");

Styles

Name	Default	Description
`--arcgis-histogram-bar-color`		Specifies the color of the histogram bars when the bin doesn't have a corresponding color stop.
`--arcgis-histogram-stop-color`		Specifies the default color for color stops.
